FEICHAO 5 inch Drone Frame Black Bat 220mm FPV Frame 5mm Arm Carbon Fiber Rack for FPV Racing Drone DIY Models Toys

Feature：

★NEW 5 INCH DRONE FRAME-Removable Drone Frame For Easy Installation And Removal,FPV Beginners Can Also Assemble Themselves.

★NEW MATTE CARBON FIBER SHEET-5 Inch Drone Frame Black Bat 220mm Is Made Of New Matte Carbon Fiber Sheet.

★SMALL AND COMPACT 5-INCH FRAME-Suitable For 5-inch Paddle, 5.0mm Narrow Arm Quick Release Design, The Arm Acts As The Bottom Plate Design, 30mm Aluminum Column, The Side Plate Provides The Porous Position Adjustment Design.

★VARIETY OF ACCESSORIES INSTALLATION-Applicable to 19mm Micro camera, the flight control mounting hole is suitable for M3*30.5*30.5, can be installed with 3 layers, and the tail plate is designed to place the receiver.

Specification：

Item name:Black Bat 220

Material:3K carbon fiber matte

Wheelbase:220 mm

Motor hole position:M3x16x19mm

Flight control hole position:M3x20x20mm/M3x30.5x30.5mm

Camera hole position:M3x19x19mm

Space height:30mm

Paddle:5 inches

Arm thickness:5mm

Upper board:2mm

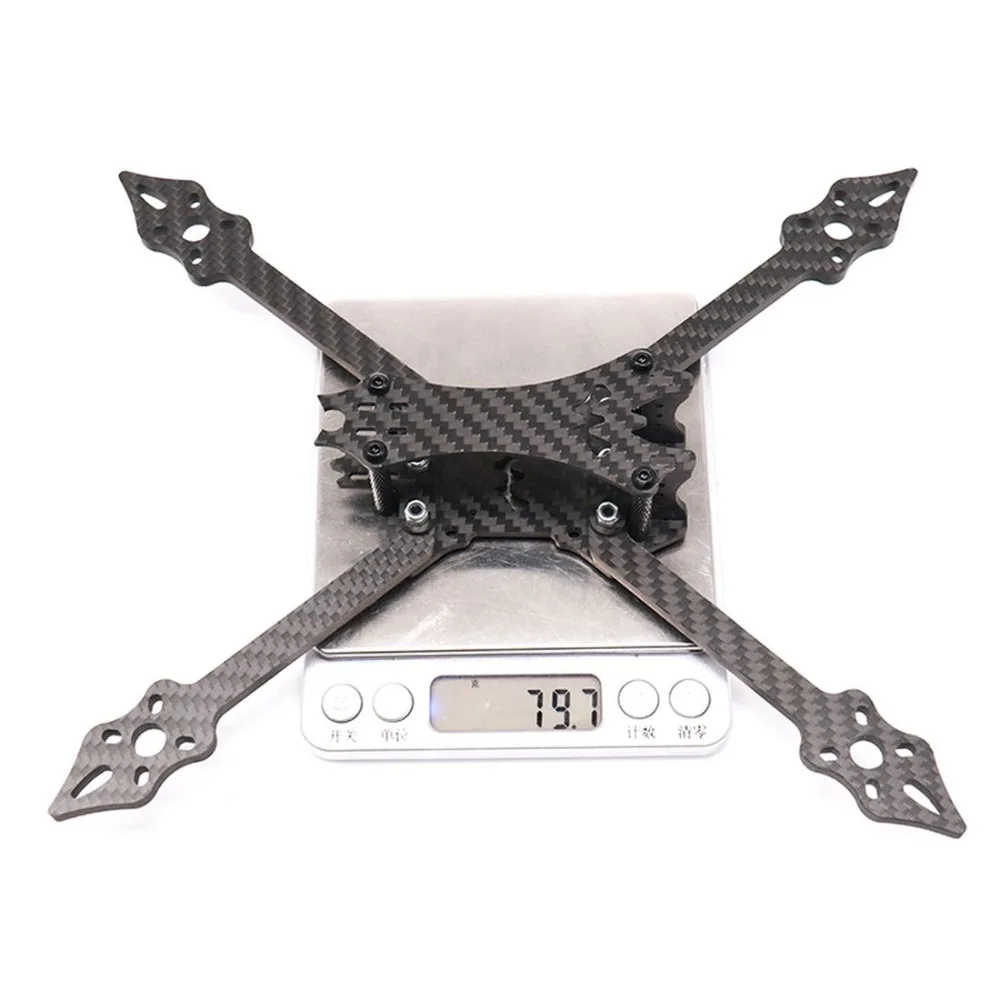

Rack net weight:79.7g

Packing list:

1x FPV Racing Drone Frame Kit

1x Iron screw package: M3*6mm-12pcs, M3*16mm-6pcs； M3 Silver screw nut-6pcs

1x Aluminum column package: M3*30 Black Textured Aluminum Standoff-4pcs

1x M3 Isolation column-4pcs

P.S.：The camera and ESC in this rack does not include a camera. The camera and ESC in the picture is only used for product display.
