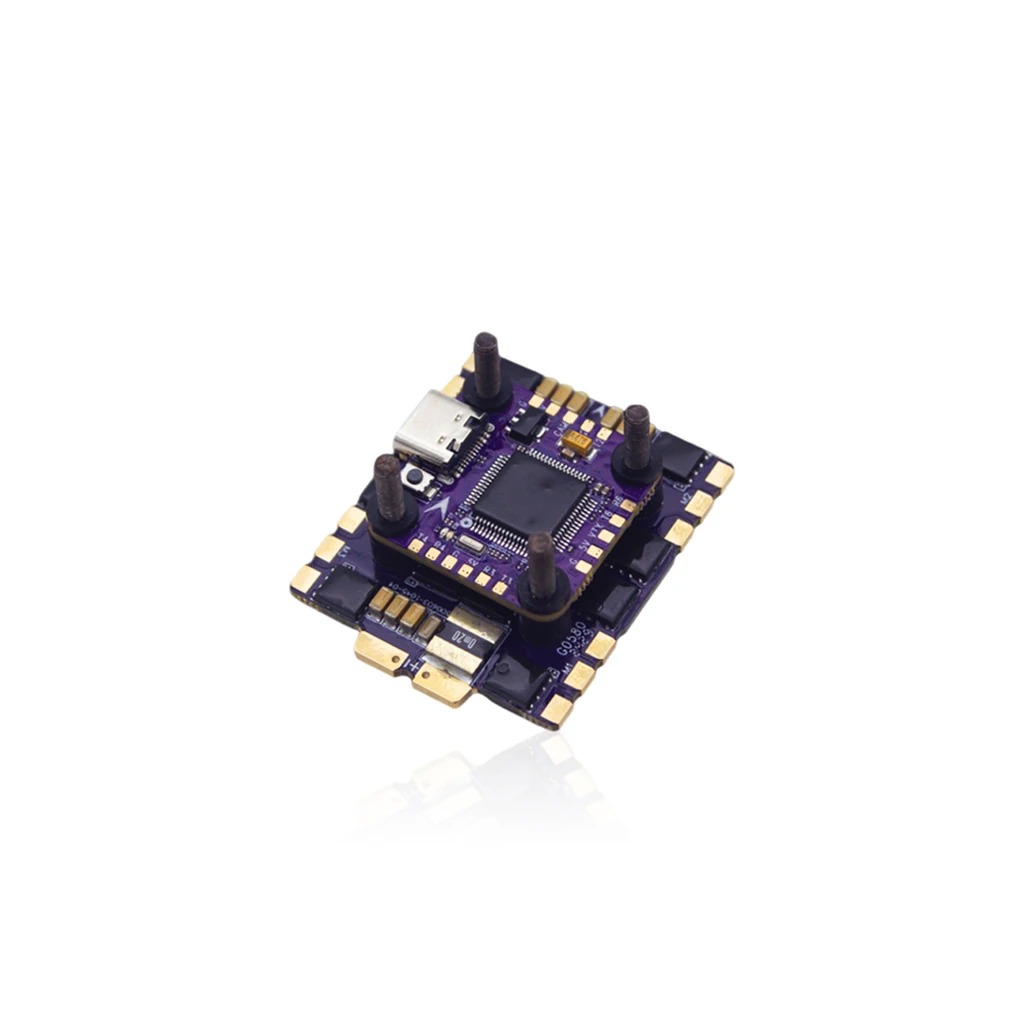

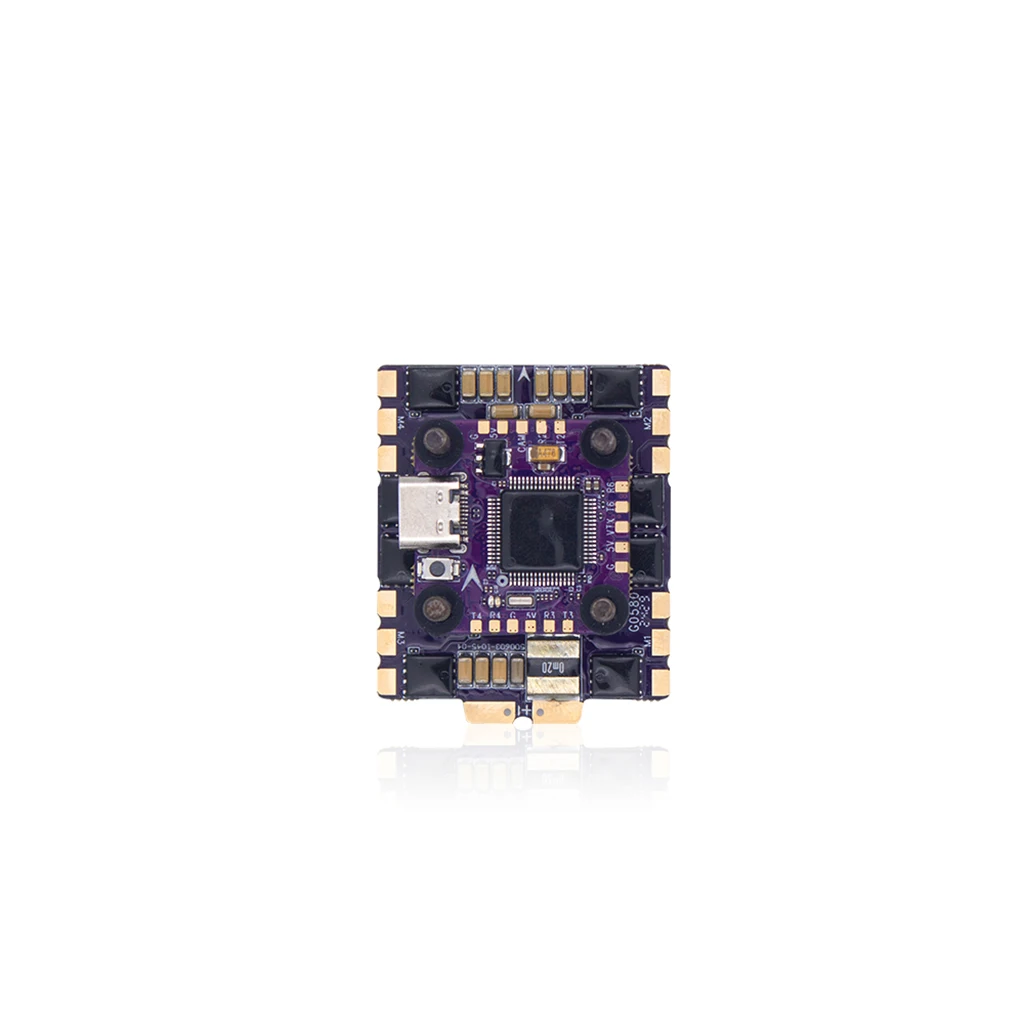

Flycolor Raptor MICRO F7 60A 3-6S Flying Tower Racing Tower Racing Quadcopter For Drone Multi-rotors 20*20

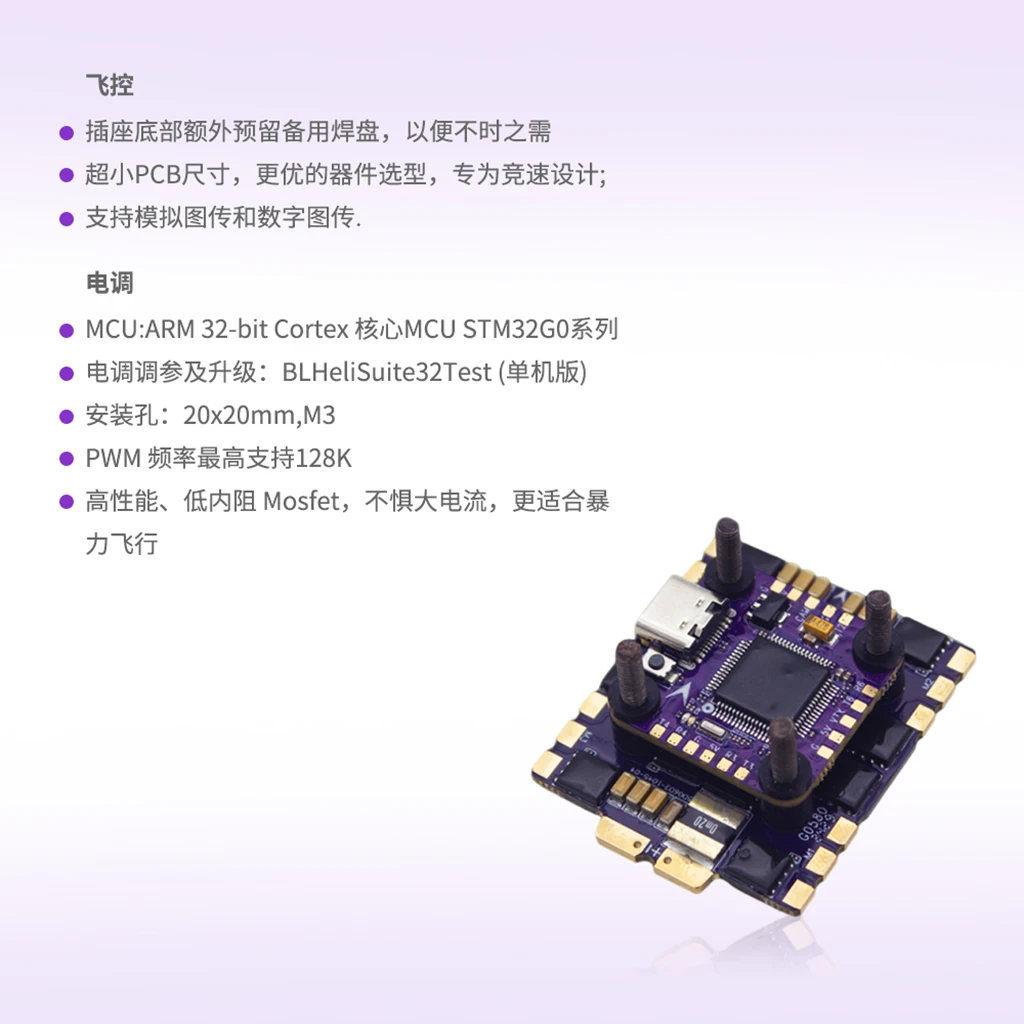

Flight Controls

Extra spare pads on the bottom of the socket for emergency use.

Ultra-small PCB size, better device selection, designed for racing;

Supports analog and digital mapping.


ESC

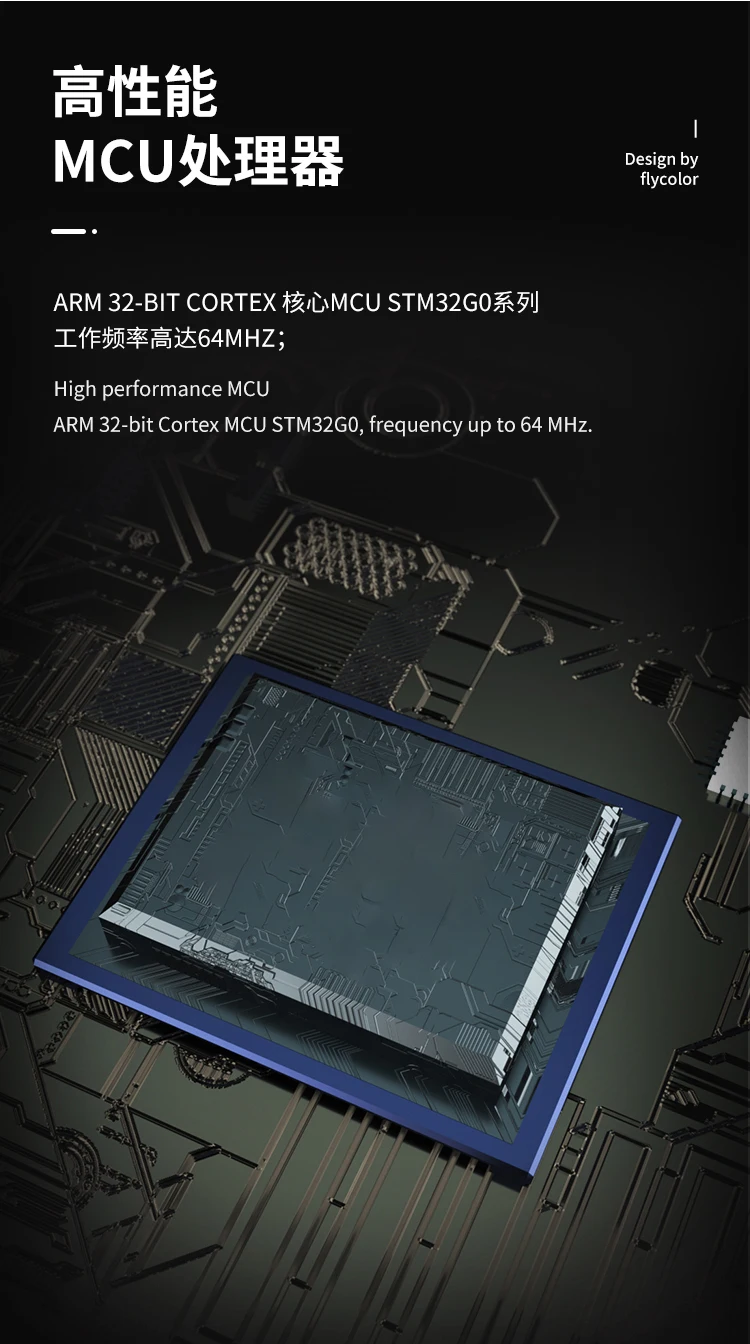

MCU: ARM 32-bit Cortex core MCUSTM32G0 series.

ESC tuning reference and upgrade: BLHeliSuite32Test (stand-alone version)

Mounting hole: 20x20mm, M3

PWM frequency support up to 128K

High performance, low internal resistance Mosfet, not afraid of high current, more suitable for violent flights

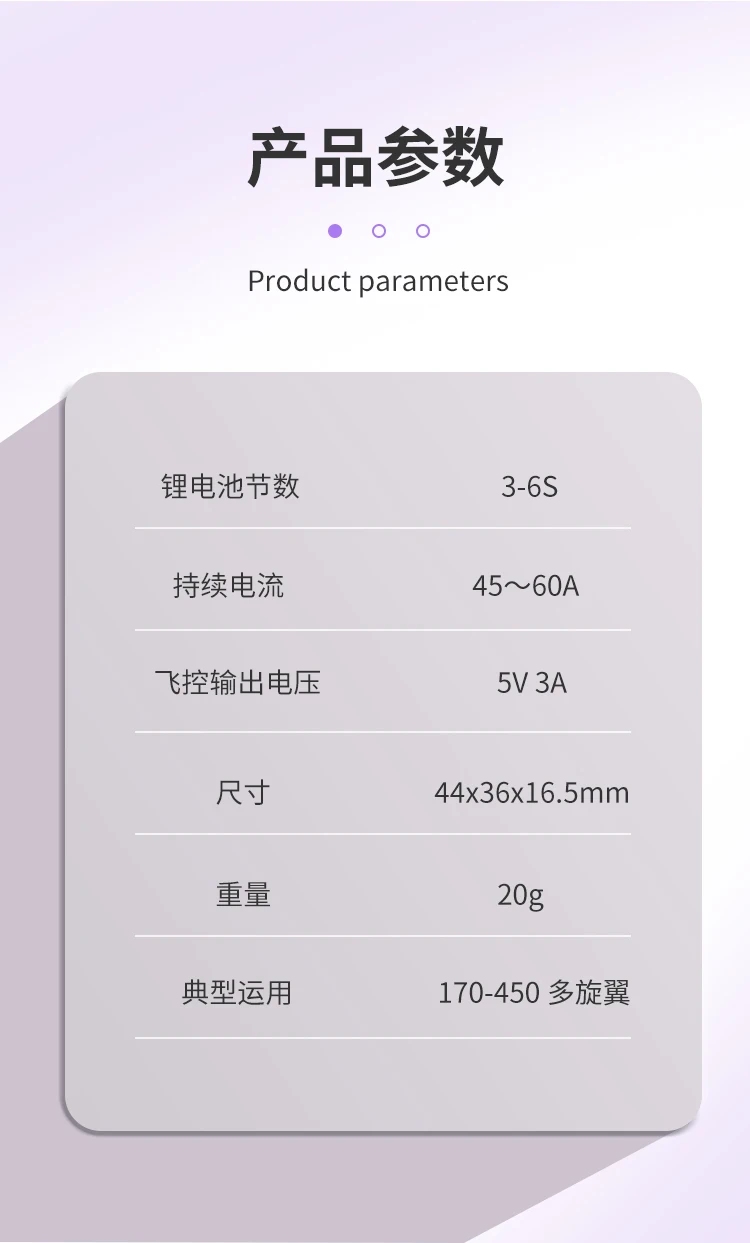

Li-ion battery section: 3-6S

Continuous current: 45~60A

Output voltage of flight control: 5V3A

Size: 44x36x16.5mm

Weight: 20g

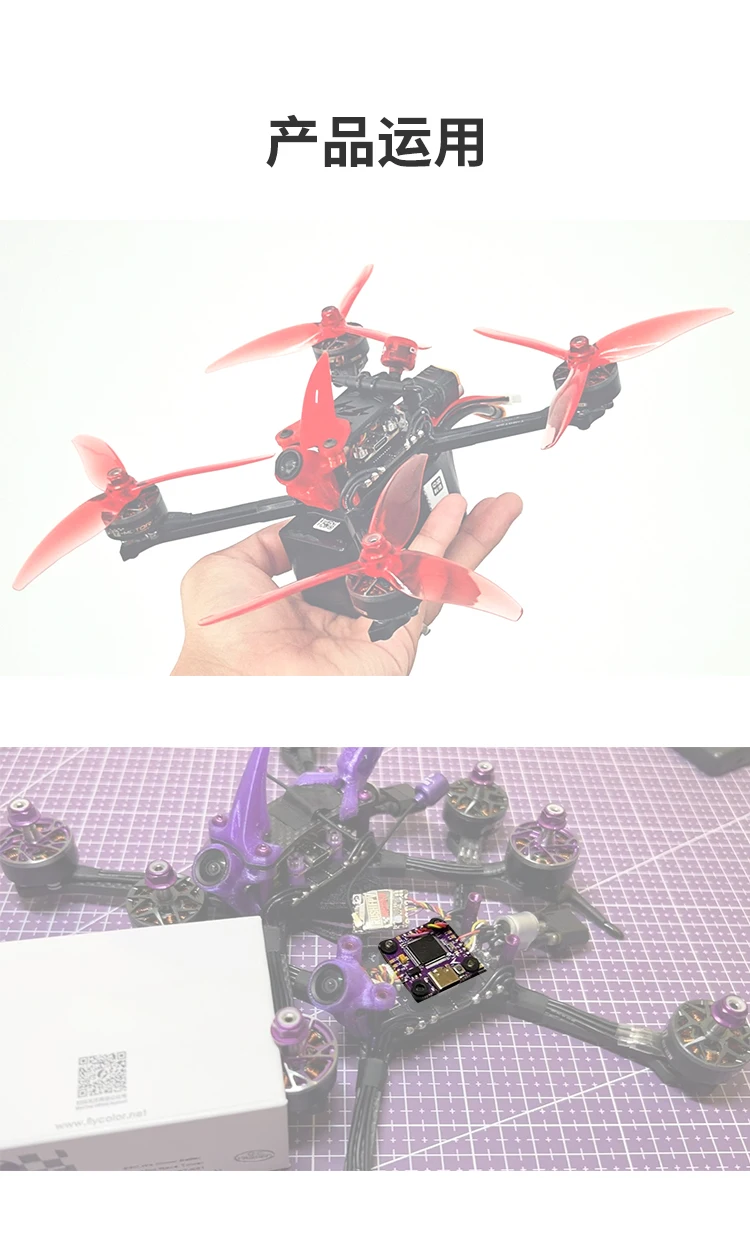

Typical use:170-450 Multi-rotors
