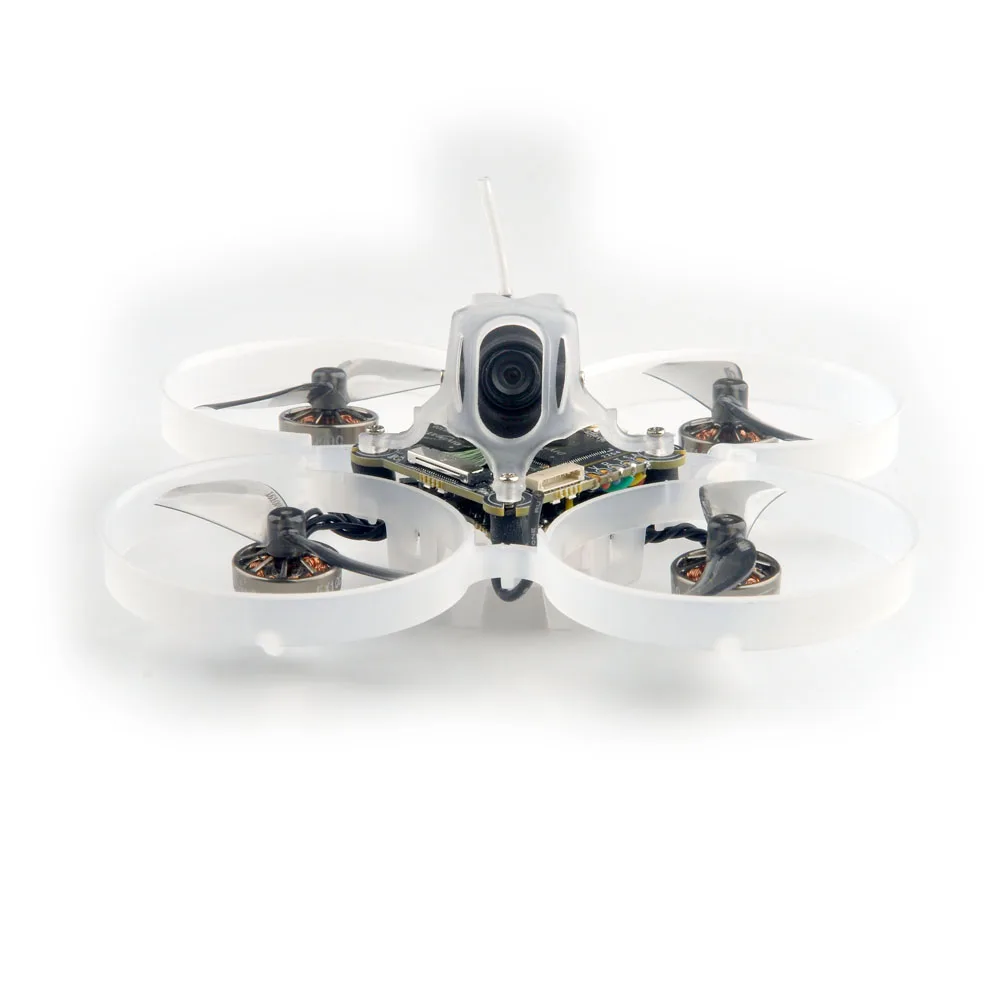

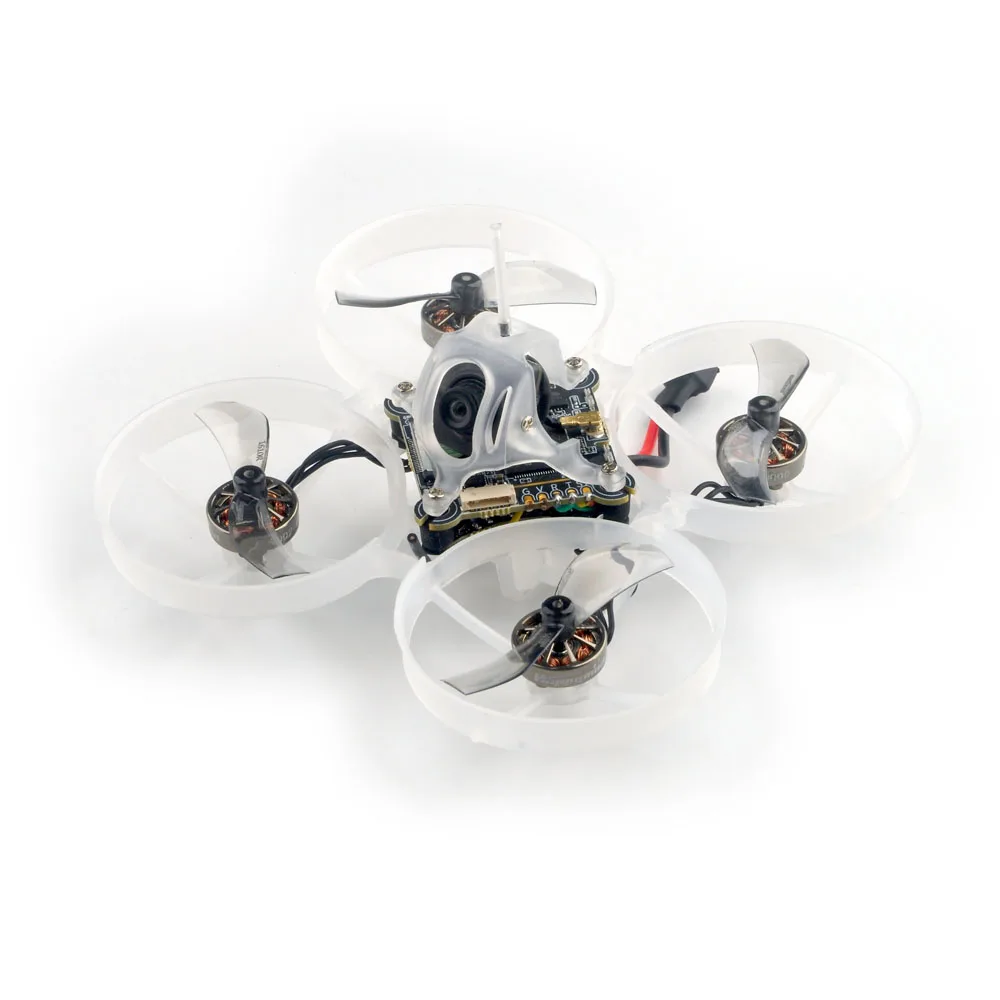

Happymodel Moblite7 HDZERO Drone 1S 75mm HD Brushless Bwhoop HDZERO Lite VTX KV20000 HDZero Nano Lite Camera SPI /Frsky ELRS FPV

Mobula7 v4 75mm frame +Canopy

1

SPI Receiver Option1: SuperbeeF4 Lite FC built-in ExpressLRS SPI RX

1

SPI Receiver Option2: SuperbeeF4 Lite FC built-in Frsky SPI RX

EX1002 KV20000 Unibell brushless motor

4

Gemfan 1610-2 bi-blades propeller(4cw+4ccw)

1

HDZero Nano Lite Camera

1

HDZero Whoop Lite VTX

1

Spare Canopy

1

Propeller disassemble tool

1

Screw driver

1

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
Currents: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT150/DSHOT300/DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Telemetry output Power: <12dBm

Receiver protocol:  SPI ExpressLRS

Could bind with ELRS V2.0 firmware TX module

Onboard Frsky SPI D8 /D16 2.4GHz Receiver

SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)

Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol

Motor

Model: EX1002 20000KV
Configu-ration:9N12P
Stator Diameter:10mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm
Weight(g):2.5g
No.of Cells(Lipo):1S only

Propeller Gemfan 1610-2 Bi-blades

Weight:0.24g
Material: PC
Pitch:1 inch

Props Dia:40mm
Center Hole Dia:1.5mm

HDZero Nano Lite Camera

14x16x11 mm

1.5gram

0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor

Excellent low light performance

Fov:

4:3: D:130° H:108° v:84°

16:9:D:122° H:108° V:65°

HDZero Whoop Lite VTX

1S Input

25mW/200mW RF Output-SmartAudio Support

25.5x25.5 M2 Soft Mounting- Antenna Retention

Removable Shielding Box- 32.5x32.5mm(29x29mm inner)

4.5grams/4mm Thickness (without shielding)
