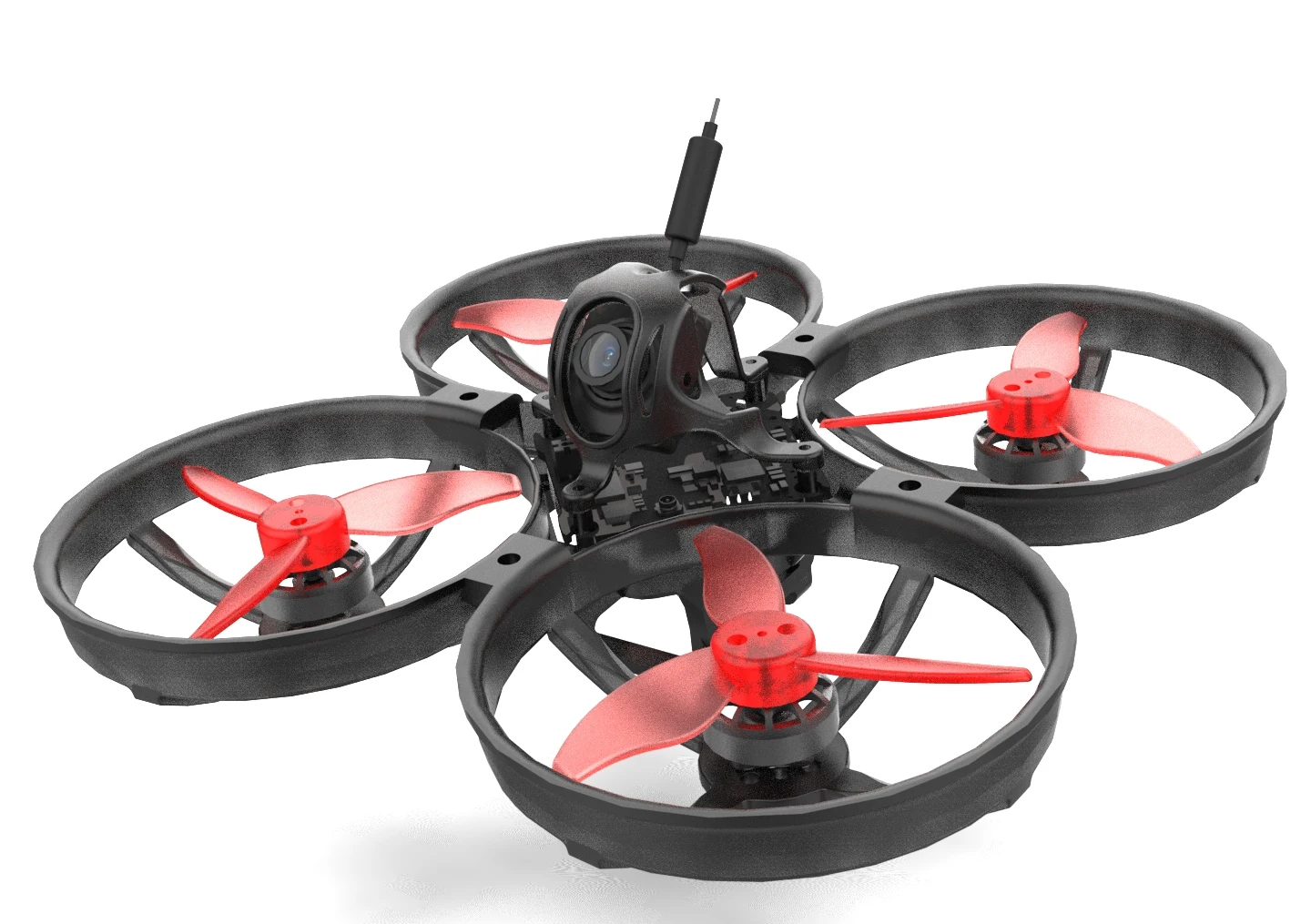

HappyModel Mobula8 HD 2S 85mm Digital Micro FPV Whoop Drone ELRS Receiver

Flight controller

CRAZYF405HD ELRS

CRAZYF405HD ELRS

CRAZYF405HD ELRS

CRAZYF405HD ELRS

ESC

Onboard 12A 4-IN-1

Onboard 12A 4-IN-1

Onboard 12A 4-IN-1

Onboard 12A 4-IN-1

Receiver

Onboard UART ELRS receiver ELRS V3.0

Onboard UART ELRS receiver ELRS V3.0

Onboard UART ELRS receiver ELRS V3.0

Onboard UART ELRS receiver ELRS V3.0

VTX and Camera

For DJI O3 Air unit

Avatar HD Mini lite

HDZERO whoop lite bundle

NO VTX and Camera

Frame

Mobula8 Frame

Mobula8 Frame

Mobula8 Frame

Mobula8 Frame

Canopy

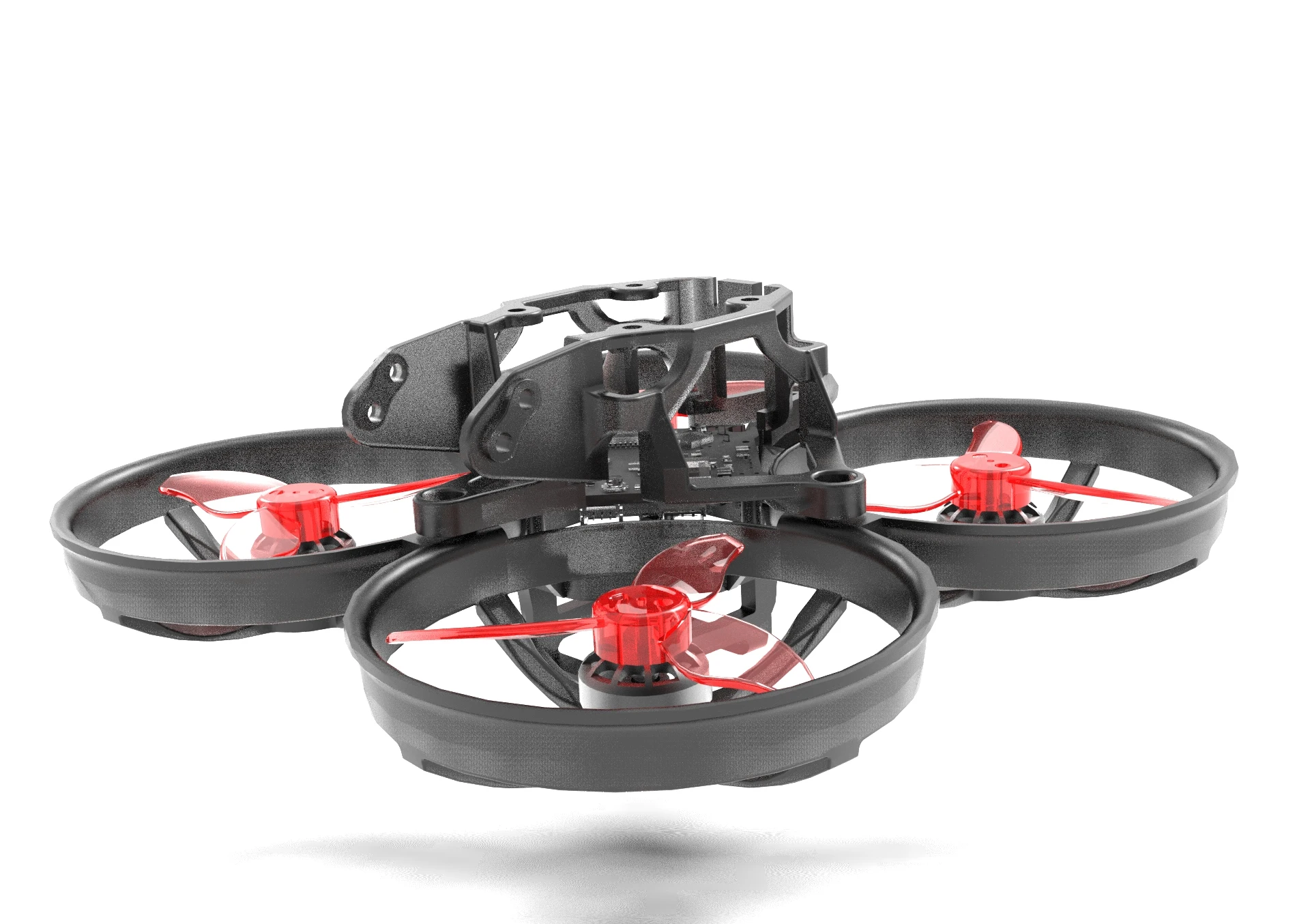

Mount bracket for DJI O3

Molding canopy

Molding canopy

Mount bracket for DJI O3

Dimension

120mmx120mmx45mm

120mmx120mmx48mm

120mmx120mmx47mm

120mmx120mmx45mm

Weight

80g

48g

46.5g

42.5g

Mobula8 Frame

1

CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4

1

EX1103 KV11000 brushless motor

4

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

1

Option1: For DJI O3 Air unit

1

Option2: Walksnail avatar HD Mini 1S lite kit

Option3: HDZERO Whoop Lite bundle

Option4: No VTX and camera version

Canopy

1

Screw driver

1

Propellers

Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

Flight controller

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270  (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G

Built-in BMP280 Barometer

Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110

Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19

Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

Onboard UART ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

For DJI O3 Air Unit

Works withFor  DJI FPV Goggles V2, For DJI Goggles 2, and For  DJI FPV Remote Controller 2

D-Cinelike mode for Vivid Colors

Flagship O3+ Video Streaming

Customizable Canvas Mode

155° Super-Wide FOV

1/1.7-Inch Sensor

Compact in Size

Walksnail version

Camera

Model    Avatar lite camera

Image Sensor 1/2.7”1nch

Resolution   1080P/60fps,720P/120fps,720P/60fps

Ratio       16/9  4/3

Lens 2.1mm

FOV     170°

Aperture     F2.0

Shutter Rolling Rolling shutter

Min.Illumination   0.001Lux

Weight 1.8g

Dimensions 14*14*16mm

VTX

Model Avatar mini 1s module

Communication Frequency 5.725-5.850GHz

Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;

MIC:<25dBm

I/O Interface JST1.0*6(Power in)JST0.8*4(USB)

Mounting Holes 25.5*25.5mm

Dimensions 30*30*6.5mm

Storage 8G

Recording 1080p/720p

Weight 5.1g

Operating Temperature -20-40℃

Channels 8

Wide Power Input 3.1V-5V

Supported FC System Betaflight

OSD Canvas mode

Bitrate 25mbps 50mbps

Latency Average delay 22ms

Antenna IPEX

HDZERO Version

HDZero Nano Lite Camera

14x16x11 mm

1.5gram

0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor

Excellent low light performance

Fov:

4:3: D:130° H:108° v:84°

16:9:D:122° H:108° V:65°

HDZero Whoop Lite VTX

1-3S Input

25mW/200mW RF Output-SmartAudio Support

25.5x25.5 M2 Soft Mounting- Antenna Retention

Removable Shielding Box- 32.5x32.5mm(29x29mm inner)

4.5grams/4mm Thickness (without shielding)
