Happymodel NEW Mobula8 O4 / Mobula7 O4 FOV Extender Kit UV ND8 ND16 Lens Filter for DJI O4 Camera Fit 25.5x25.5mm BWhoops

Happymodel NEW Mobula8 O4 / Mobula7 O4 FOV Extender Kit UV ND8 ND16 Lens Filter for DJI O4 Camera Fit 25.5x25.5mm BWhoops



Brand Name: Happymodel

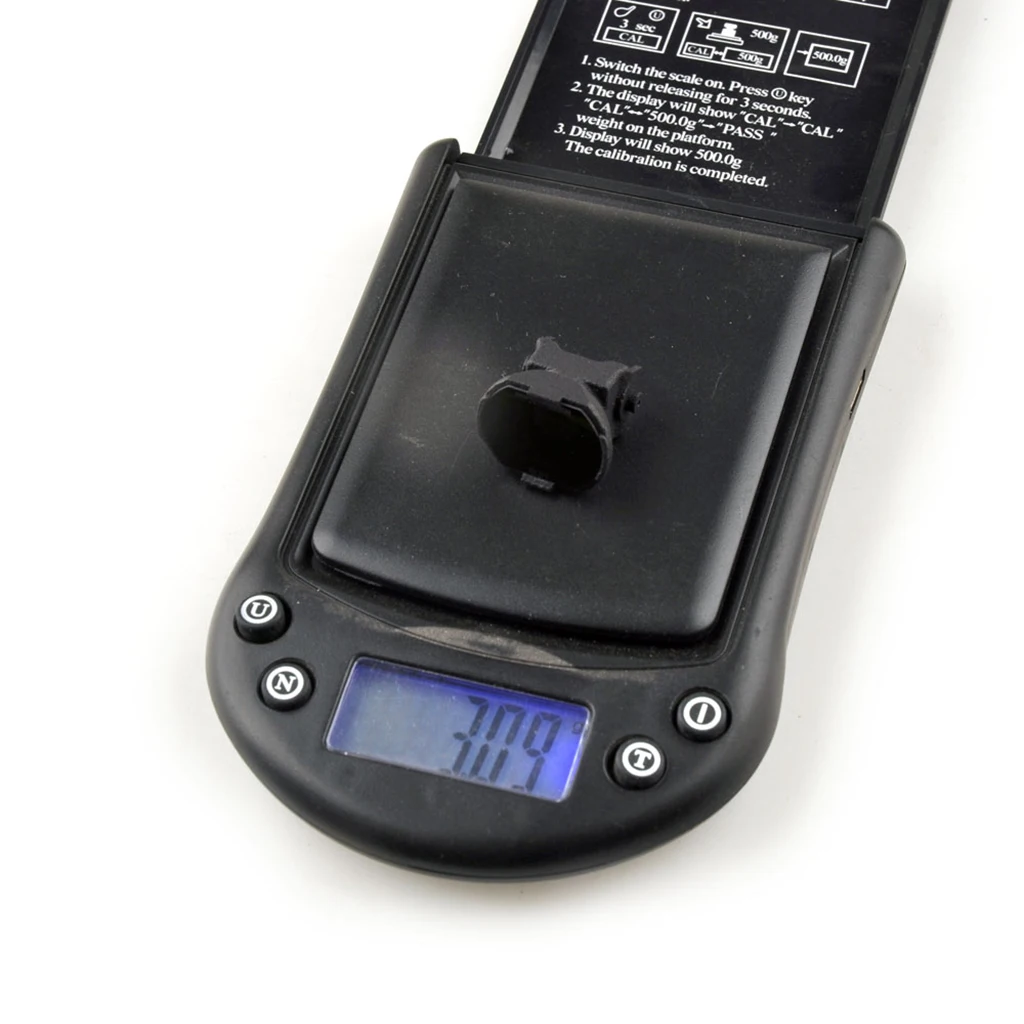

Weight: only 3.2gram

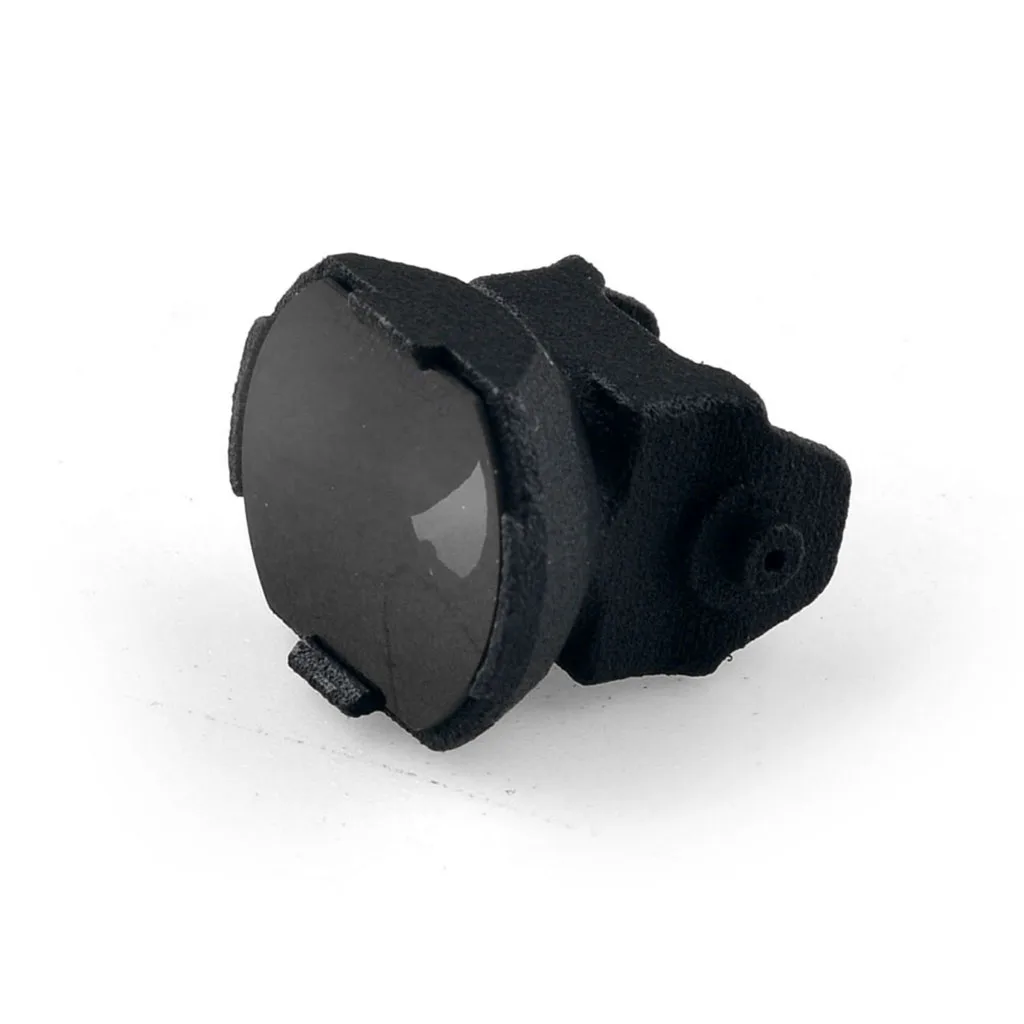

Built-in widening lens
FOV angle up to 150 degree

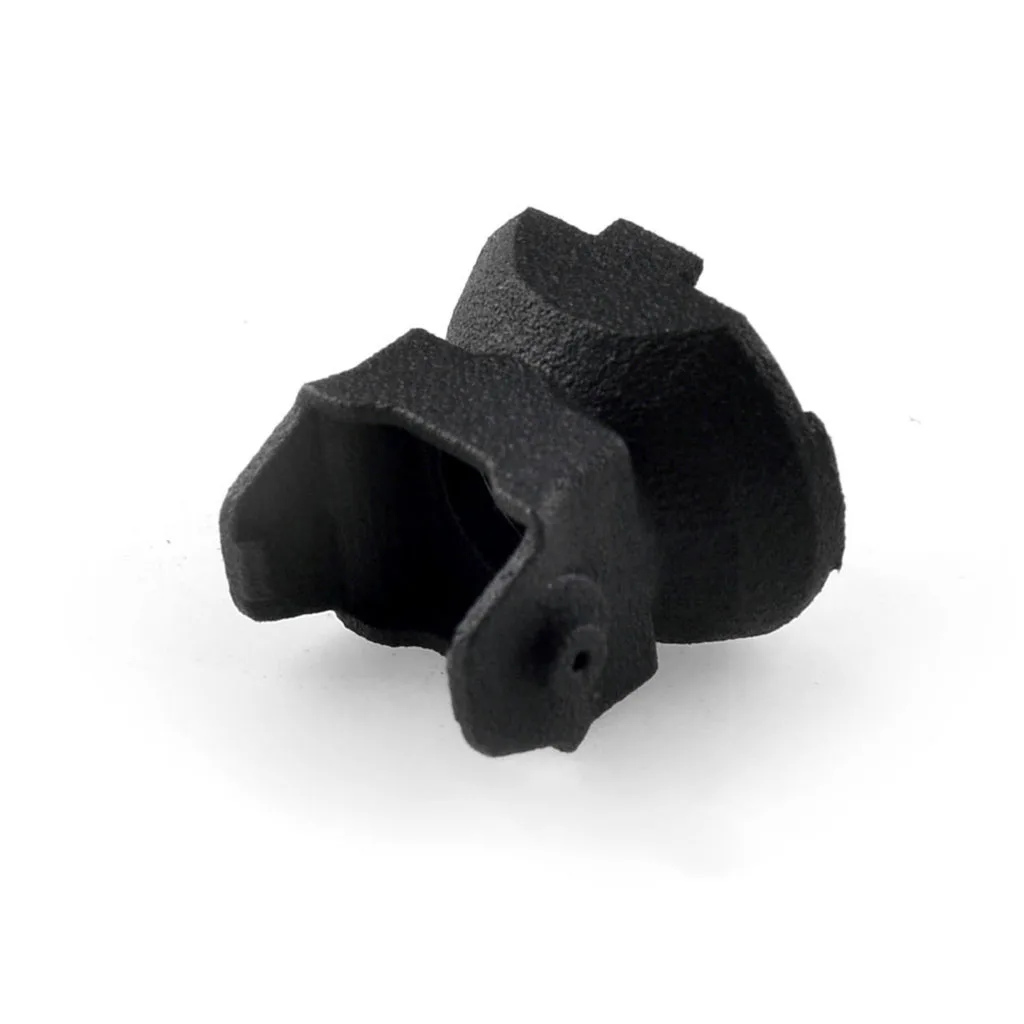

3d printed Camera holder

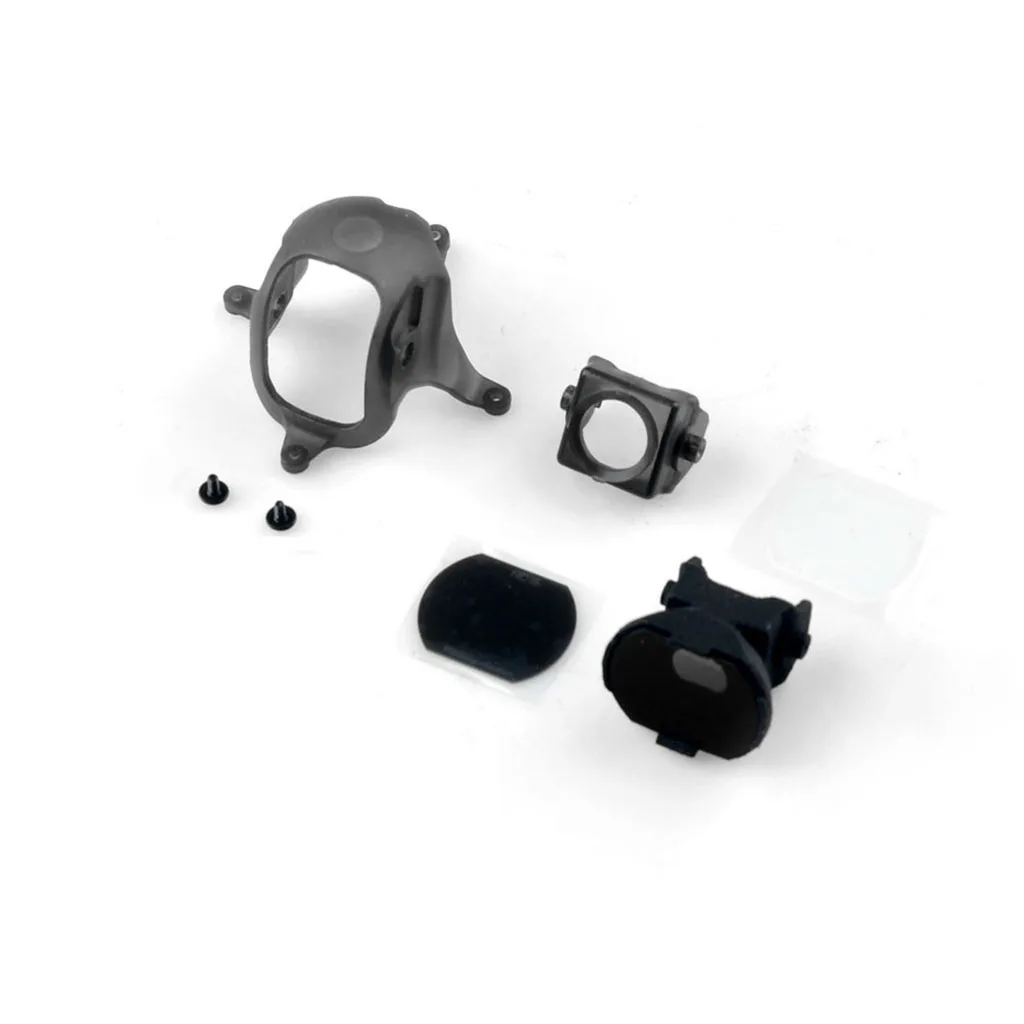

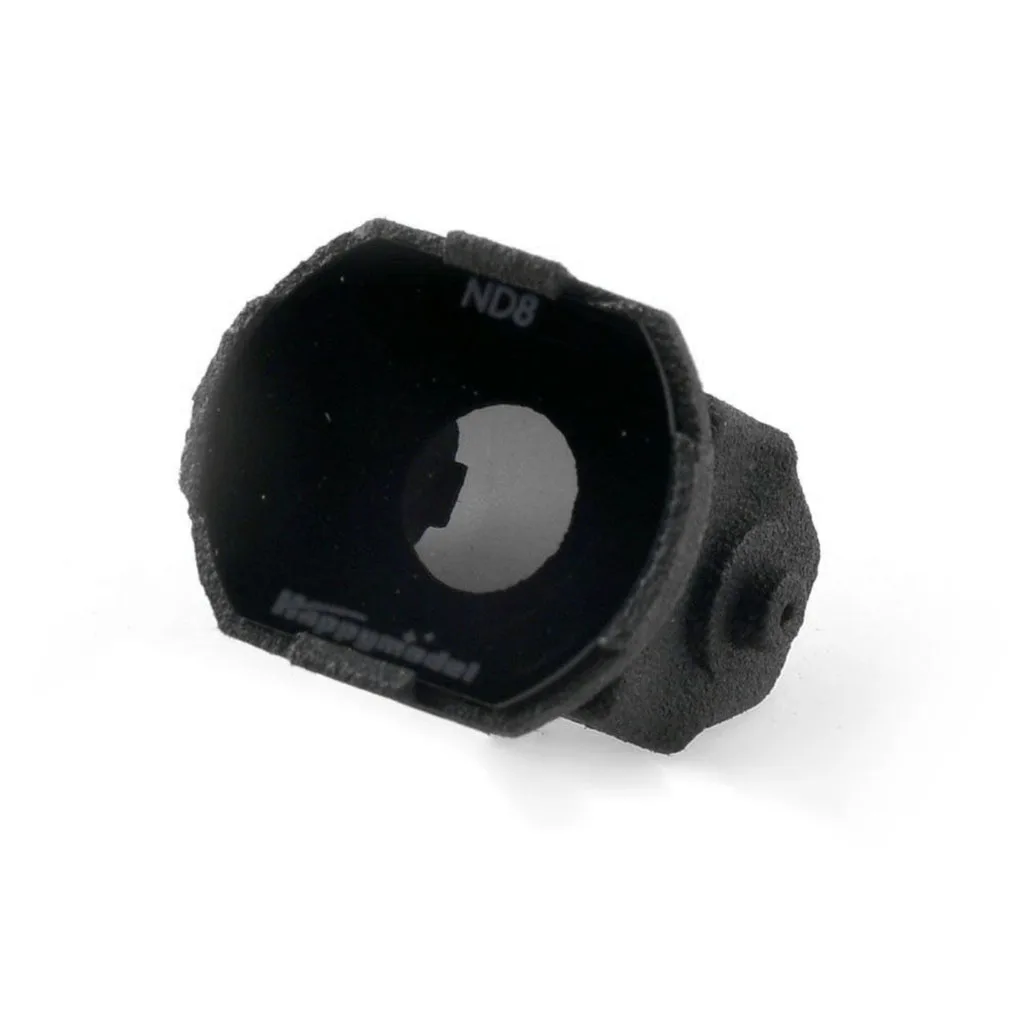

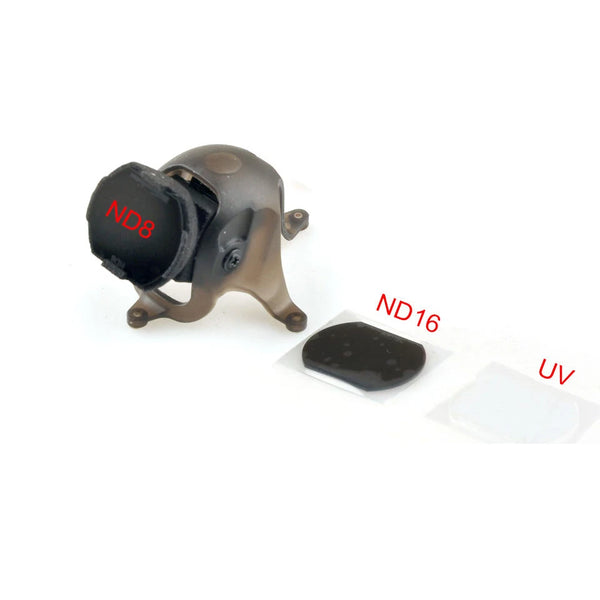

Include wide angle lens,UV filter, ND8 filter, ND16 filter and Mobula7/Mobula8 canopy

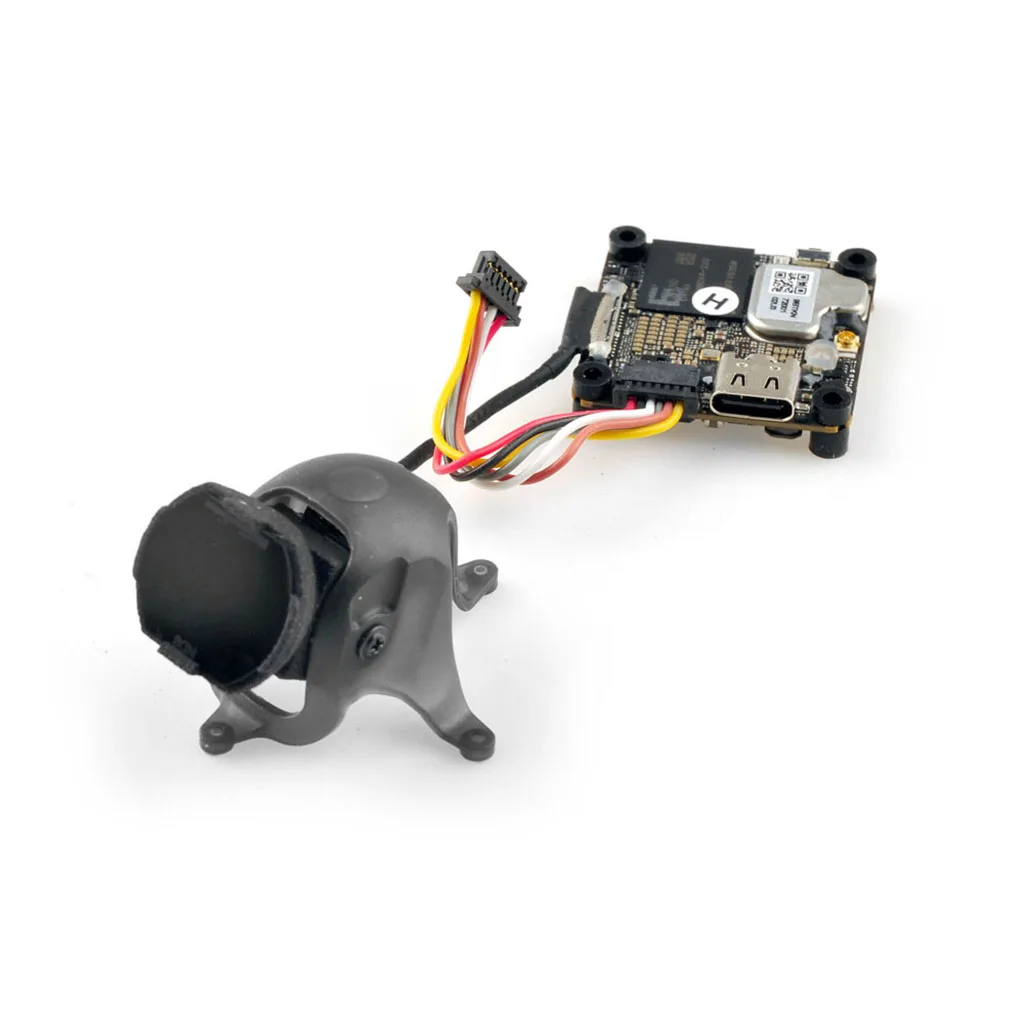

Compatible with Mobula7 O4 and Mobula8 O4 Angle-adjustable canopy
Fit most of the Traditional 25.5×25.5mm whoops when Used with Mobula7 O4 adjustable angle canopy

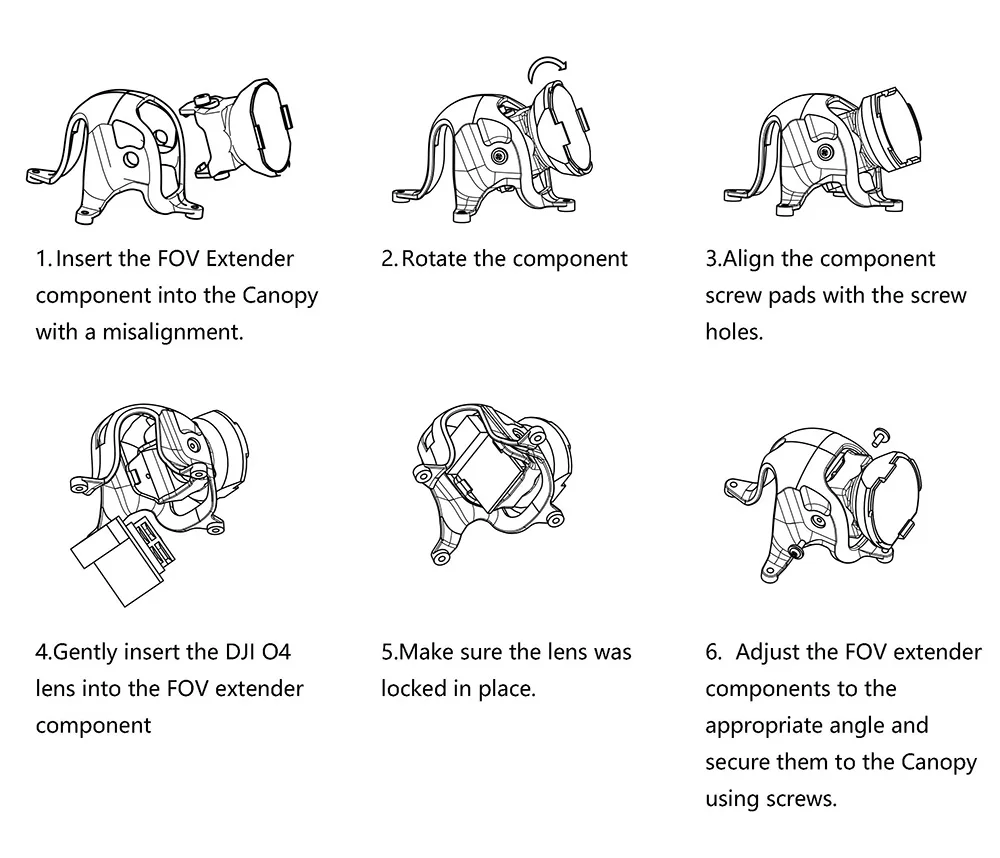

Assemble instructions:

1. Insert the FOV Extender component into the Canopy with a misalignment.

2. Rotate the component and align it with the screw holes.

3. Gently insert the DJI O4 lens into the FOV extender component until you hear a click when it locks in place.

4. Adjust the FOV extender components to the appropriate angle and secure them to the Canopy using screws.

Notes: O4 camera and VTX were not included in the package.
