HDZero Race V3 Digital HD Video Transmitter 720p 60fps 1080p 30fps 200mW 5.8Ghz VTX 30mm*30mm for RC FPV Goggles Drone

Description

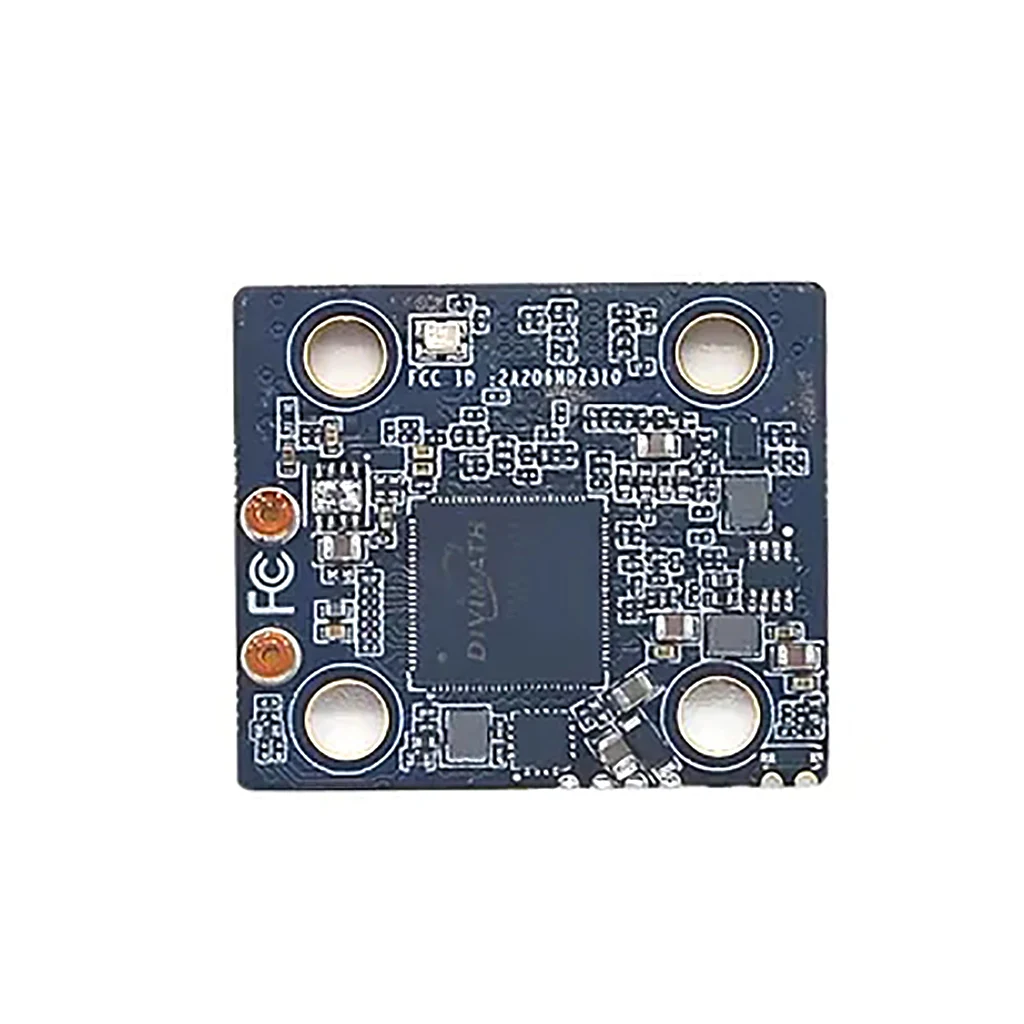

Designed for FPV racing, the HDZero Race V3 VTX is a 3rd generation digital video transmitter. With a voltage range starting at 4V, it can be powered by the 5V 1.5A regulator of most FCs or up to 12V for FCs that include an HD VTX plug. It is small (28x32x5mm) and light (5.5 grams). With a width of only 28mm, the VTX is now a similar width to many FCs, which improves durability and reduces weight. The antenna is securely attached with a metal bar and screws. No soldering is needed – just plug the wire harness into a compatible HD-ready FC.

The HDZero Race V3 VTX is also designed with durability in mind, rather than weight. This VTX is made with a 1.6mm thick PCB, in comparison to the 1.0mm PCB used in the Whoop lite VTX. Moreover, it uses more large package size components for stability consideration. For the smaller components, an additional glue coating is applied to increase crash protection. The HDZero Race V3 VTX offers high-quality video in 540p90, 720p60, and 1080p30 resolutions with 25/200mW switchable power on 5.8GHz.

Features

1.Easy installation without soldering, just plug the wire harness into a compatible HD-ready FC

2.High-quality video in multiple resolutions: 540p90, 720p60, and 1080p30

3.Improved durability and reduced weight with a width similar to many FCs

4.Additional glue coating for crash protection of smaller components

5.Secure attachment of antenna with a metal bar and screws

6.Switchable power options: 25mW and 200mW

7.Small and lightweight: 28x32x5mm, 5.5 grams

8.Large package size components for stability

9.Durable design with a 1.6mm thick PCB

10.Operates on a 5.8GHz frequency band

11.3rd generation digital video transmitter

12.Wide voltage range: 4V to 12V

13.Designed for FPV racing

Specifications
