Hobbywing 5A Ubec Air V2 2-8S 5v 6v 7.4V/ 10A 6v 7.4v 8.4v High Voltage Regulator Module Adjustable BEC for RC Car Parts


Regular price $14.86

Shipping calculated at checkout.

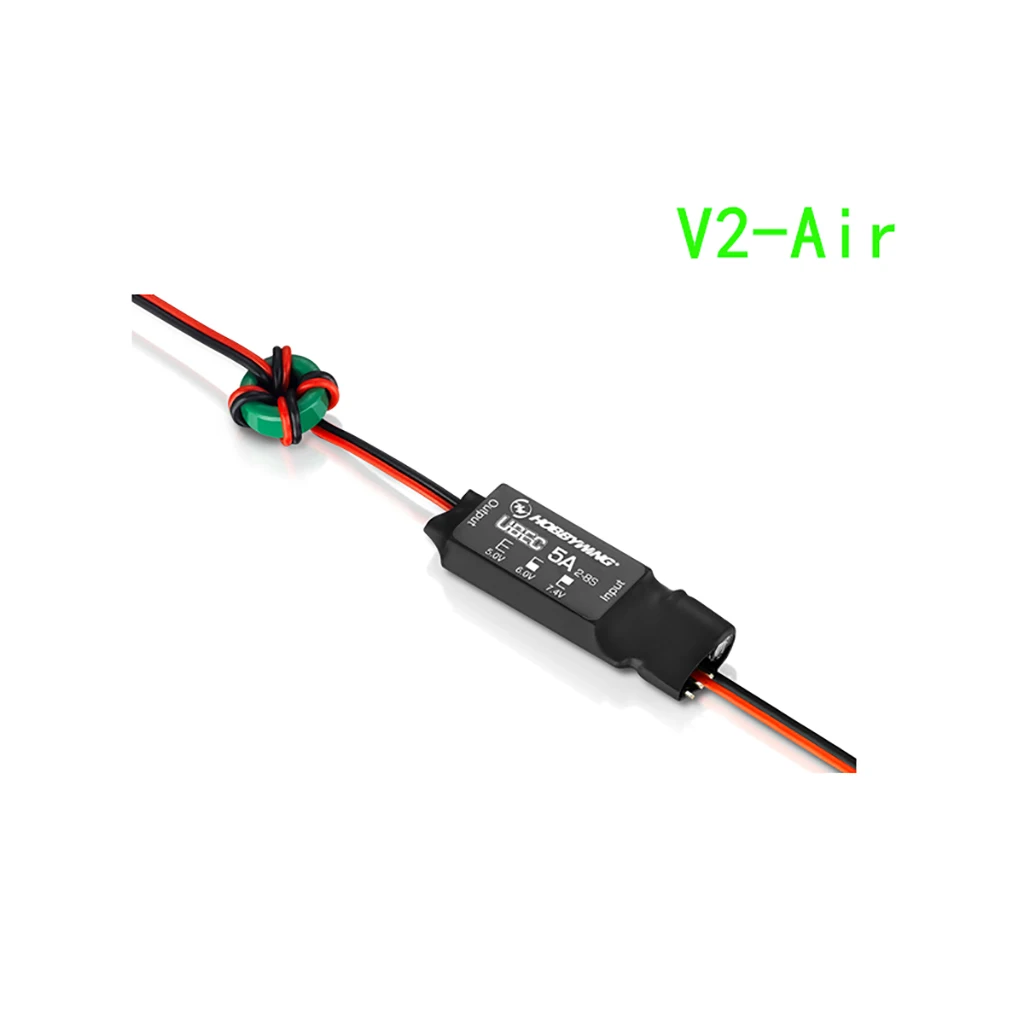

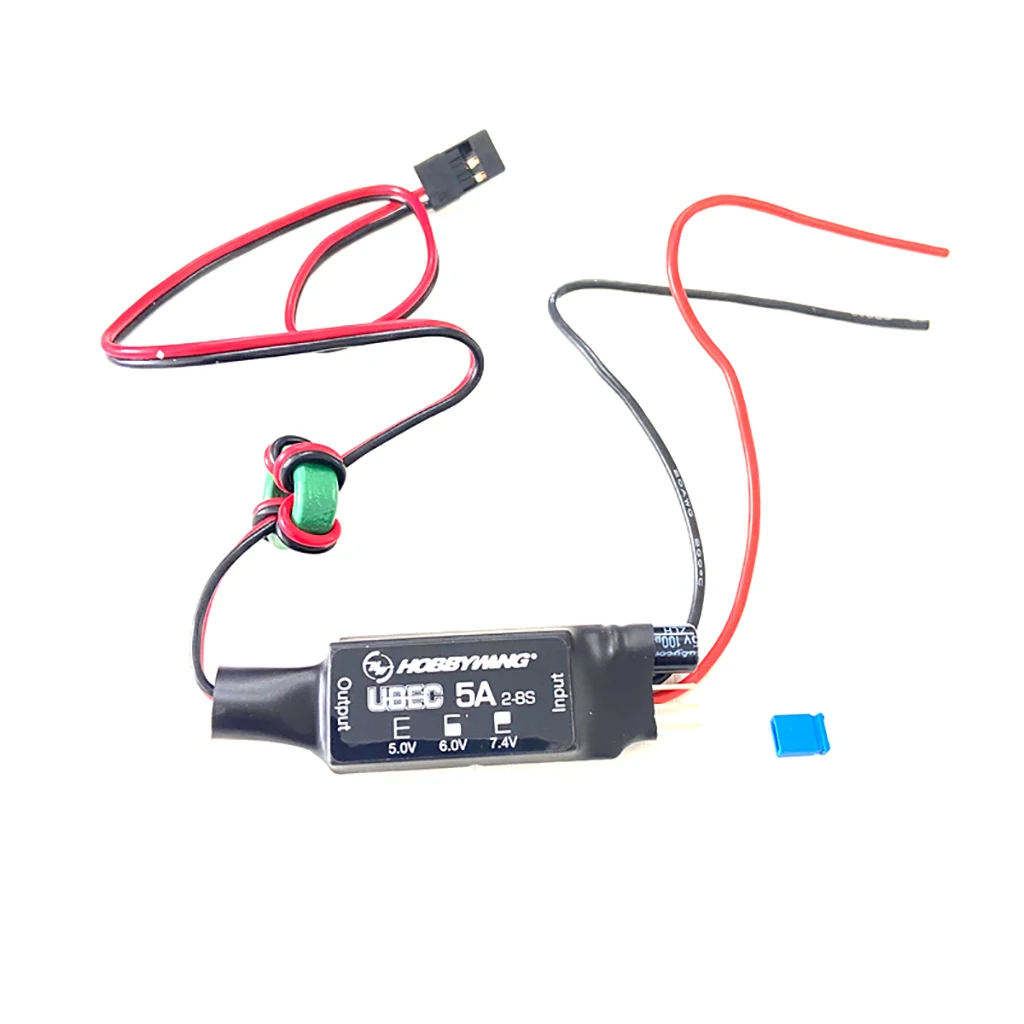

Model: UBEC 5A

Input voltage: 2-8 lithium batteries

Output voltage: 5.0/ 6.0/ 7.4 V (3 steps adjustable, jumper cap adjustment)

Output current: 5A continuously, 15A momentarily

Size: 50*17*10mm

Weight: 21g

Introduction to UBEC:

UBEC is an external DC voltage stabilizer, which works in the mode of switching stabilized power supply.

This UBEC can obtain a DC voltage suitable for the operation of the receiver and other equipment from a 2-8S lithium battery pack.

feature of product:

●Has a metal shield to help dissipate heat and reduce electromagnetic interference;

●Using high-efficiency DC-DC voltage regulator chip, the conversion efficiency exceeds 90%;

The output voltage of UBEC can be adjusted in three gears (5.0V / 6.0V / 7.4V), which can meet the use of servos with various voltage specifications:

●With overcurrent protection, output short circuit protection, overheating protection, safe and reliable;

●With LED indicator, it shows whether the UBEC working status is normal:

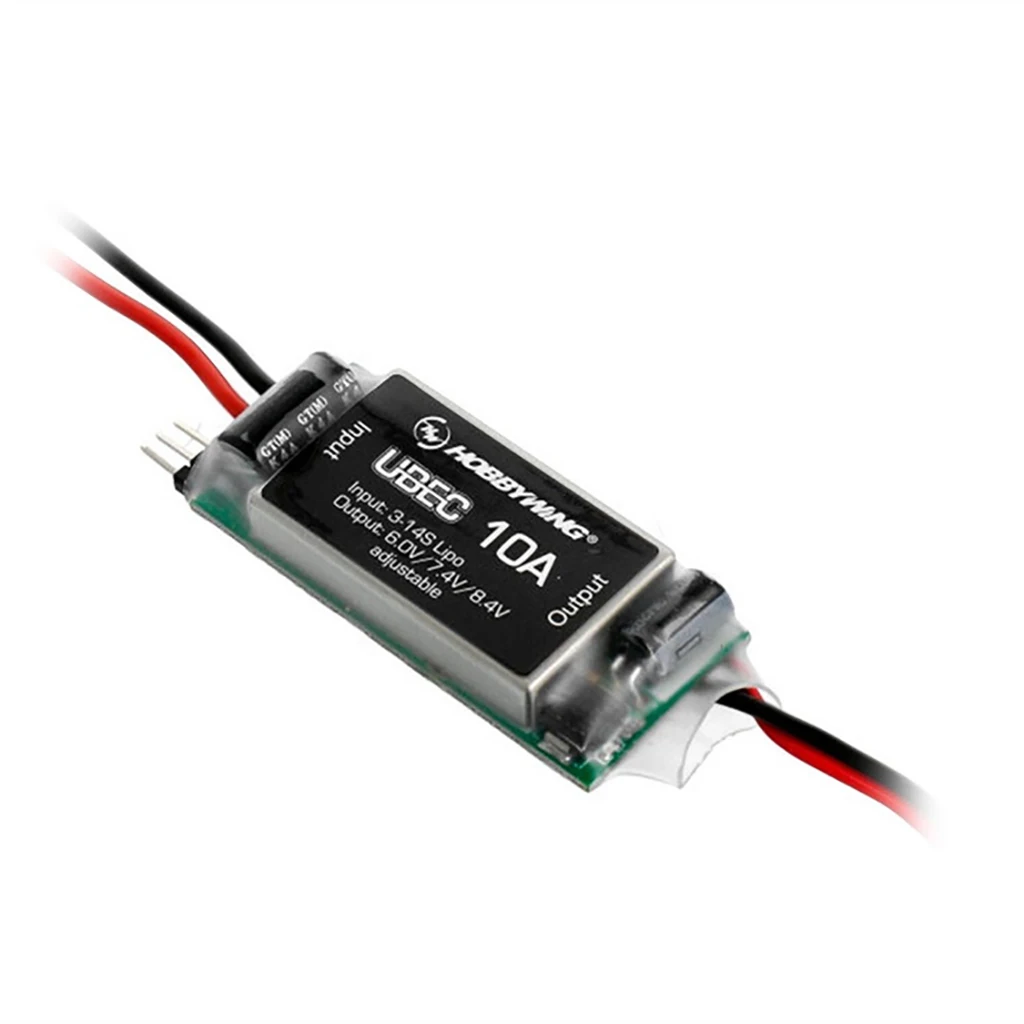

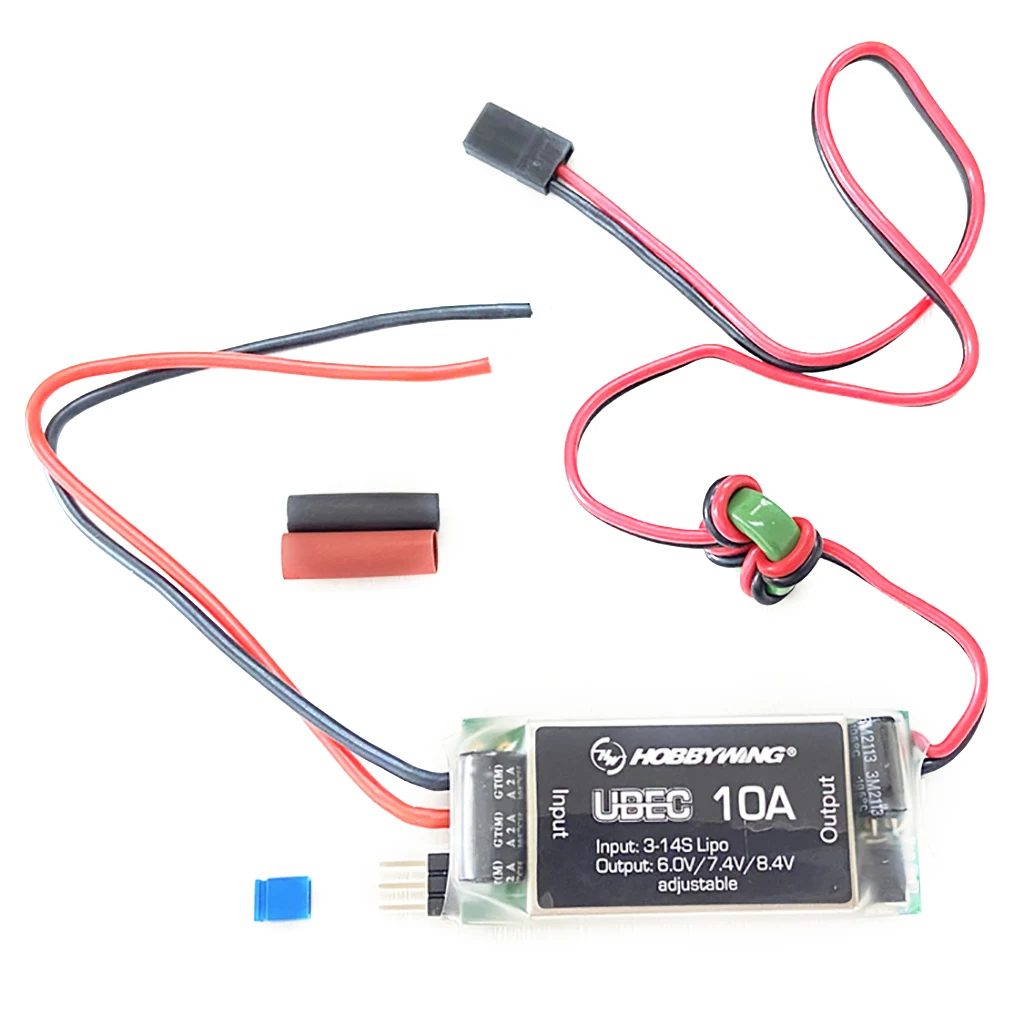

Model: UBEC 10A


technical parameter:

Input voltage: 3-14S (number of lithium battery cells)

Output voltage: 6.0V/7.4V/8.4V (adjusted by jumper cap)

Output current: 10A continuously, 25A instantaneously

Dimensions: 55x25x 12mm

Weight: 35g


The UBEC adopts DC--DC voltage regulator chip, and the conversion efficiency is over 90%. The UBEC

Available from 3- 14S lithium battery pack for receiver and other equipment operation

DC voltage and stably provide 10A output current, UBEC output voltage

Three gears are adjustable (6.0V/7.4V/8.4V), which can meet various voltage specifications

Use of steering gear and electrical equipment. At the same time, it has overcurrent protection and short output

circuit protection, overheating protection. safe and stable
