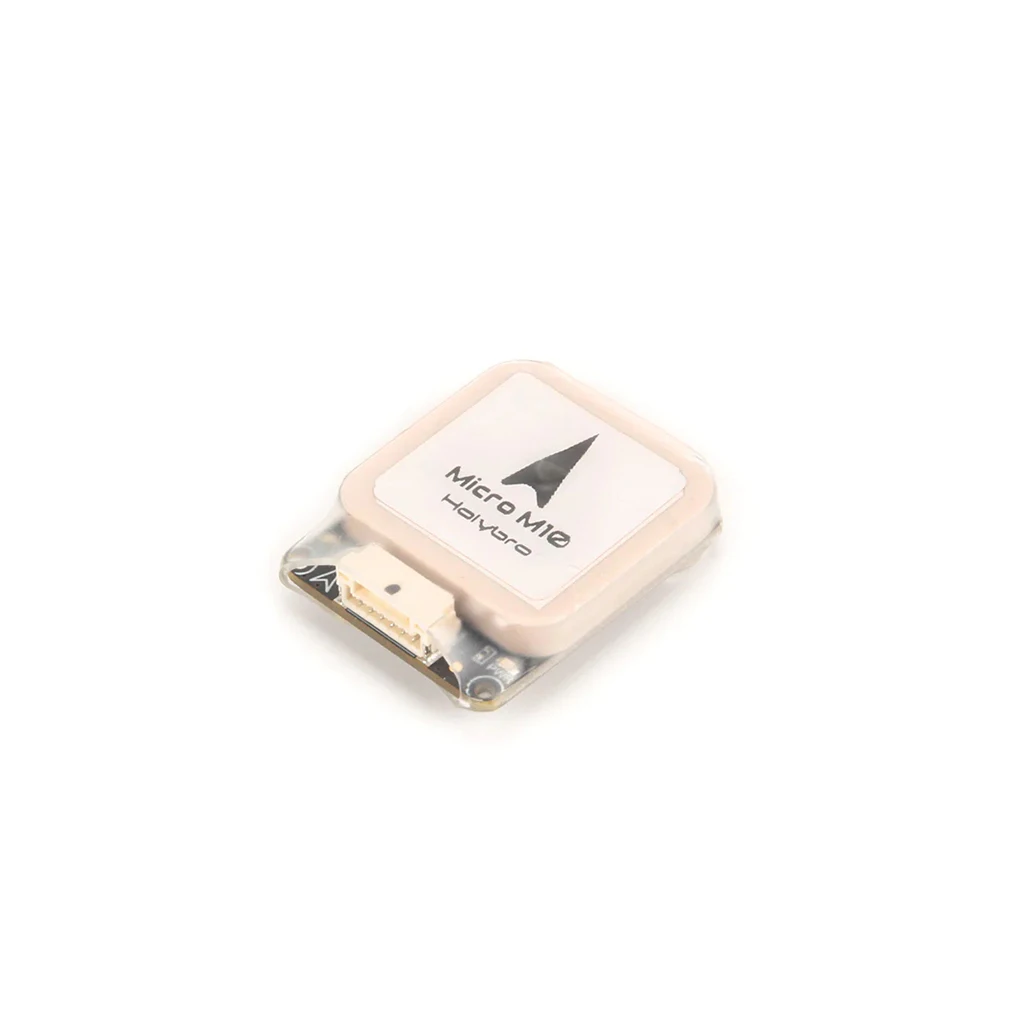

Holybro Micro M10 GPS with IST8310 Compass Ceramic Patch Antenna 32X26mm for RC Airplane FPV Freestyle Long Range Drone

Holybro

Sale price $40.47 Regular price ~~$60.71~~

Shipping calculated at checkout.

Holybro Micro M10 GPS with IST8310 Compass Ceramic Patch Antenna 32X26mm for RC Airplane FPV Freestyle Long Range Drone

Description:

This new design incorporates the Ublox latest 10 Generation GNSS Chip and IST8310 digital compass, providing a convenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Features

Newest Ublox 10th Gen GNSS

Fast & Accurate Positioning

IST8310 Compass

Small Form Factor

Specifications:

Micro M10 GPS
GNSS Receiver	Ublox M10 Receiver
Number of Concurrent GNSS	Up to 4 GNSS BeiDou Galileo GLONASS GPS QZSS
Compass	IST8310
Frequency Band	GPS L1 Galileo E1 GLONASS L1 BeiDou B1 SBAS L1 QZSS L1
Output Protocol	UBX (U-blox) NMEA
Nav. Update Rate	Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System	SBAS: WAAS, EGNOS, MSAS QZSS: L1S (SLAS)
Default Baud Rate	38400
Input Voltage	4.7-5.2V
Accuracy	1.5m
Speed Accuracy	0.05 m/s

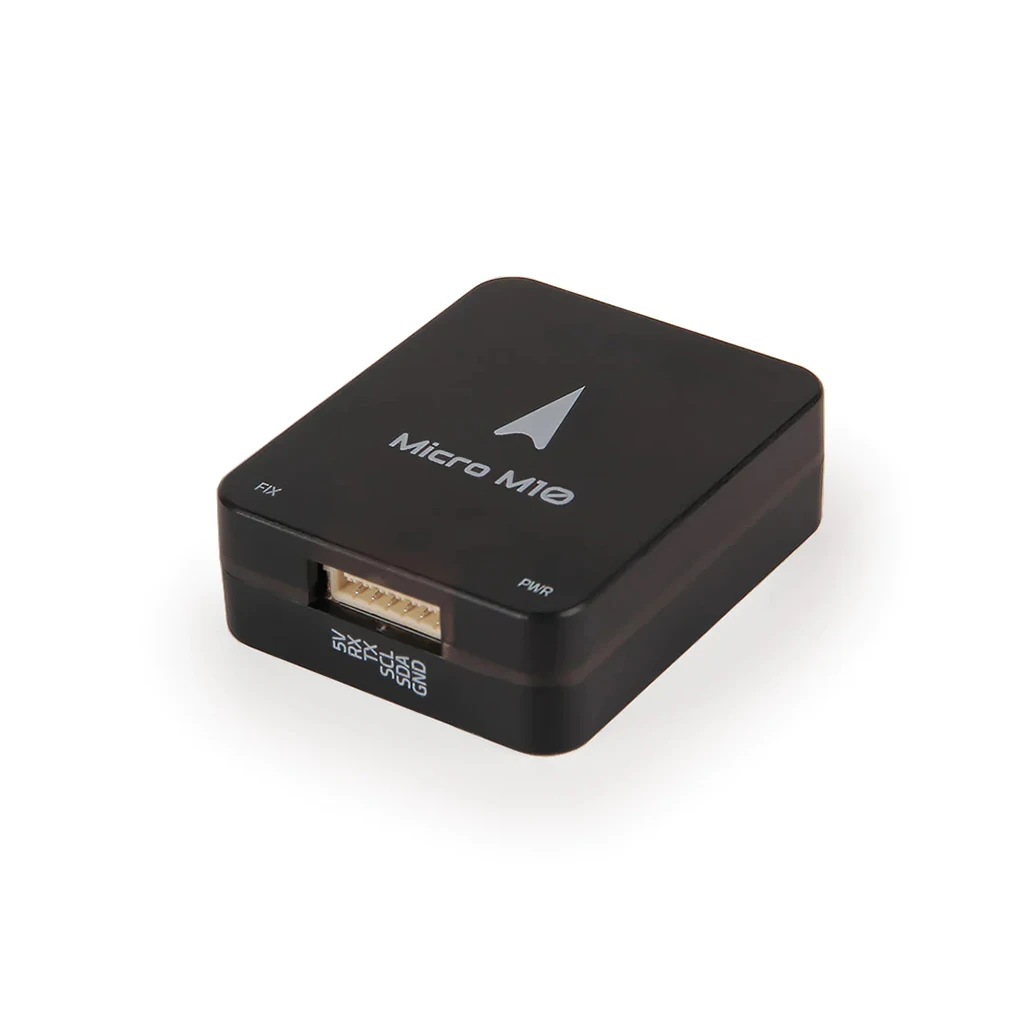

Port Type	JST-GH-6P
Antenna	25 x 25 x 4 mm ceramic patch antenna
Power consumption	Less than 200mA @ 5V
Operating Temperature	-40~80C

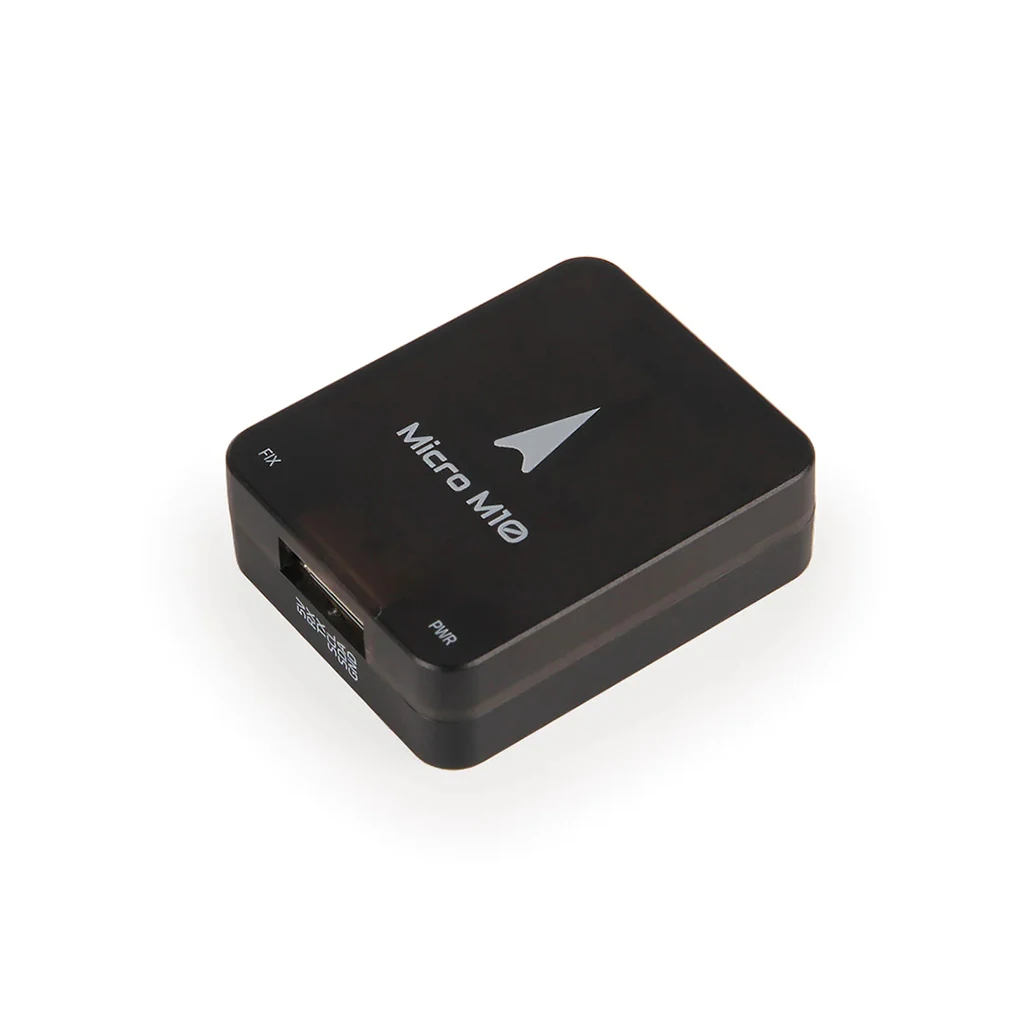

Dimension	32 x 26 x 9mm (w/o Case) 34 x 28 x 11mm (With Case)
Weight	14g (w/o Case) 16g (With Case)
Other Notes	LNA MAX2659ELT+ RF Amplifier
	Rechargeable Farah capacitance
	Low noise 3.3V regulator

Package Includes:

- 1x Micro GPS module *1
- 1x JST GH 6 Position Connector 15 cm
- 1x JST-GH 6pin Colored Silicon Cable 15 cm
