Holybro Remote ID WIFI / Bluetooth-Compatible Supported in PX4 / Ardupilot CAN Serial Protocol For RC Model Drone Quadcopter

Specification

Radio module:

Espressif ESP-C3 module

 Bluetooth-Compatible and WiFi 2.4GHz (ERP): + 20 dBm (100 mW)

Firmware:

ArduRemoteID (https://github.com/ArduPilot/ArduRemoteID).

Supports upgrading firmware via the web interface (“OTA”)

Supported in PX4 & Ardupilot (More Info)

Protocol: CAN & Serial


Interface:

1x JST GH 4-pin CAN (CAN) port

1x JST GH 6-pin TELEM (UART) port

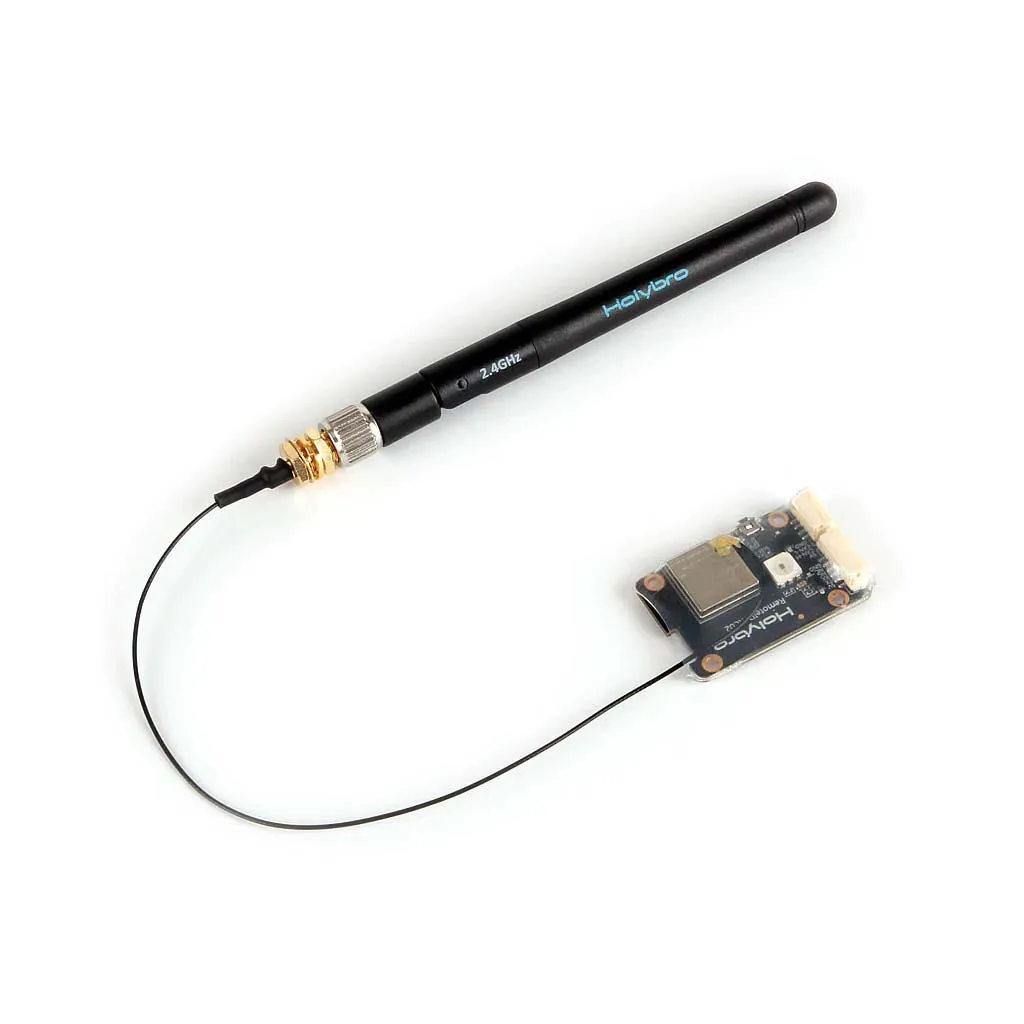

Antenna Connector type:

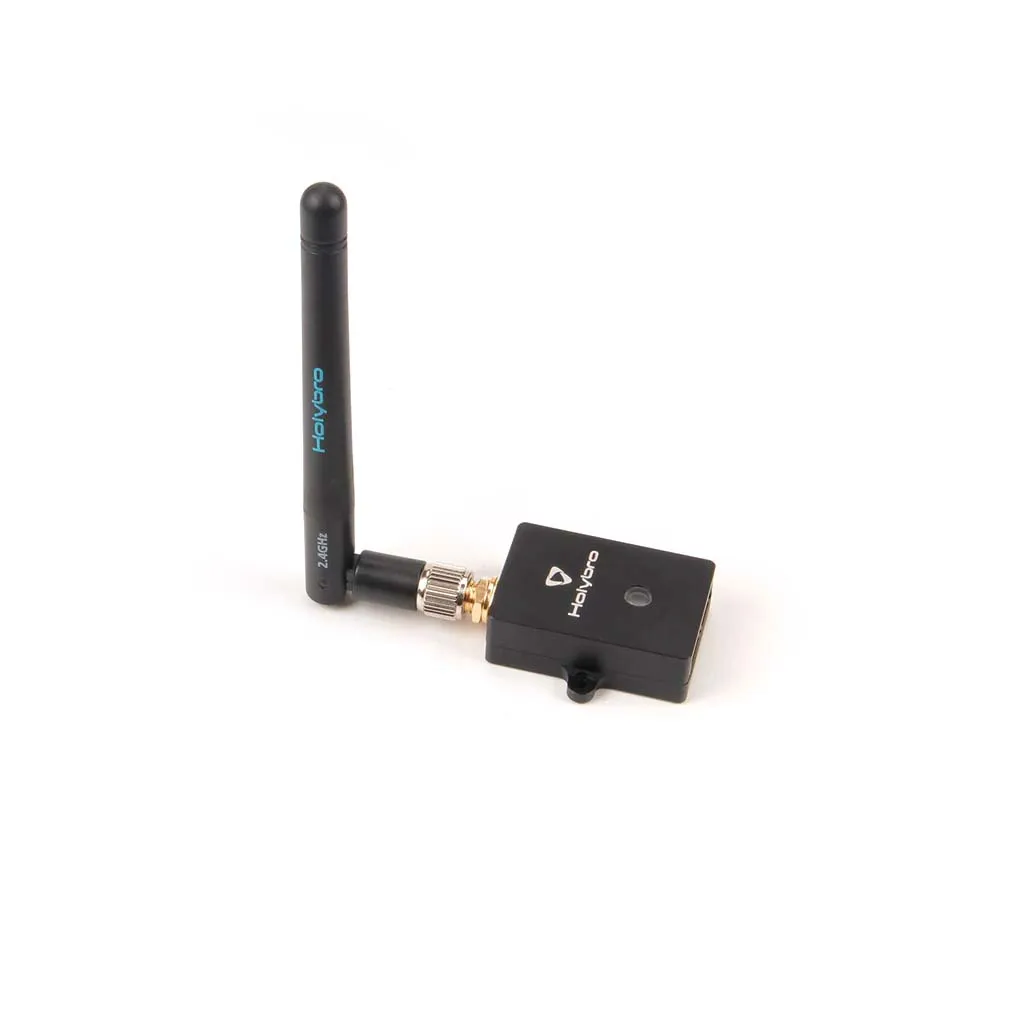

On CNC Case: SMA connector

On PCB: IPEX Connector

Range: > 5km detection range*

Power: 5V supplied from TELEM or CAN port

LED lights: Bright RGB status LED

Size:

Without case: 35.3 x 23.5 mm (not including antenna)

With CNC case: 38 x 26.5 x 11.5 mm (not including antenna)

Mount: M2 screws

Operating temperature: -40°C to +85°C

Weight:

PCB only: 4 g

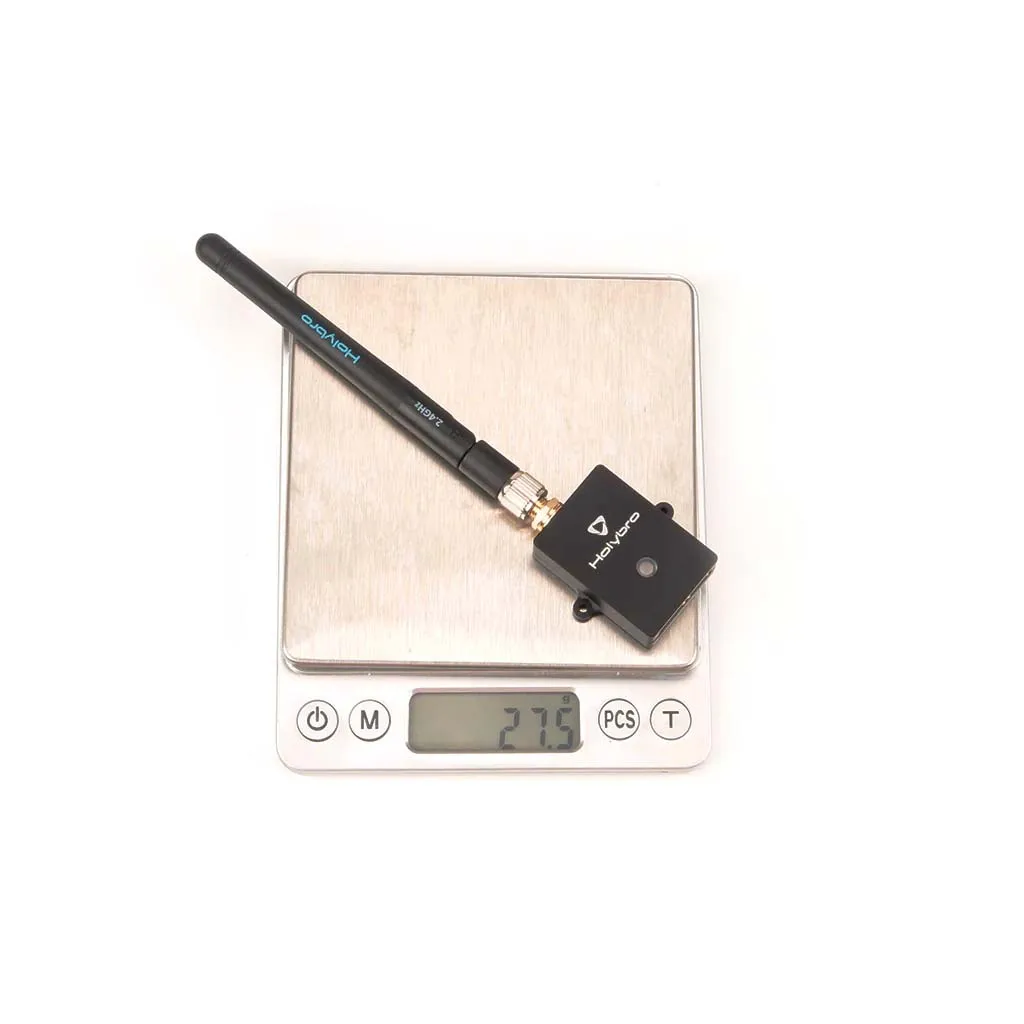

With CNC case & Antenna: 27.5g

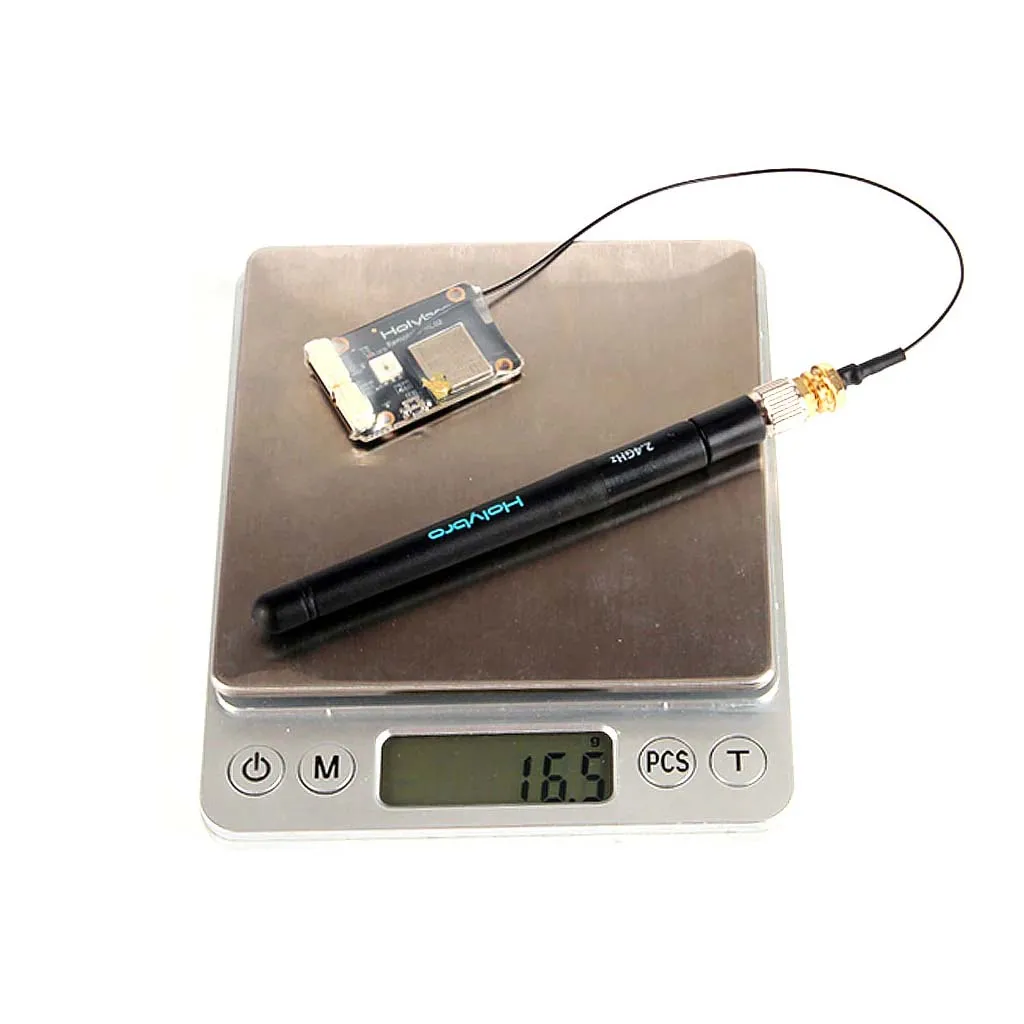

Without case & Antenna: 16.5g (Cable 20cm)

* The detection range depends on many factors such as the receiver antenna gain, transmission protocol, weather conditions, flying height, receiver height line of sight etc. With professional receivers a range of 5 km and more is possible.

Notice:

Holybro RemoteID Module is low cost, small size, and light weight module that broadcast information about UAVs in flight through WIFI & Bluetooth-Compatible . It supports both CAN and serial protocols. It is a FCC & CE approved radio module.

The products run open-source firmware (ArduRemoteID) and provides a so-called standard Remote ID solution, primarily target drone manufacturers & system integrators.

Note: This products is design for Standard Remote ID Solution, primarily target drone manufacturers & system integrators, as you need do you own approval process at the FAA (DoC submission) if you are in the USA. For the accurate & latest information related to this topic, please refer to the official governance website of your country.
