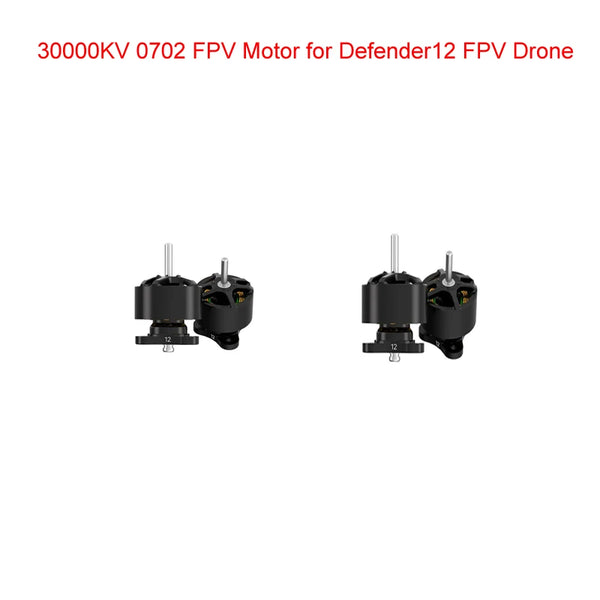

iFlight 30000KV 0702 FPV Motor for Defender12 FPV Drone Airplane Quadcopter

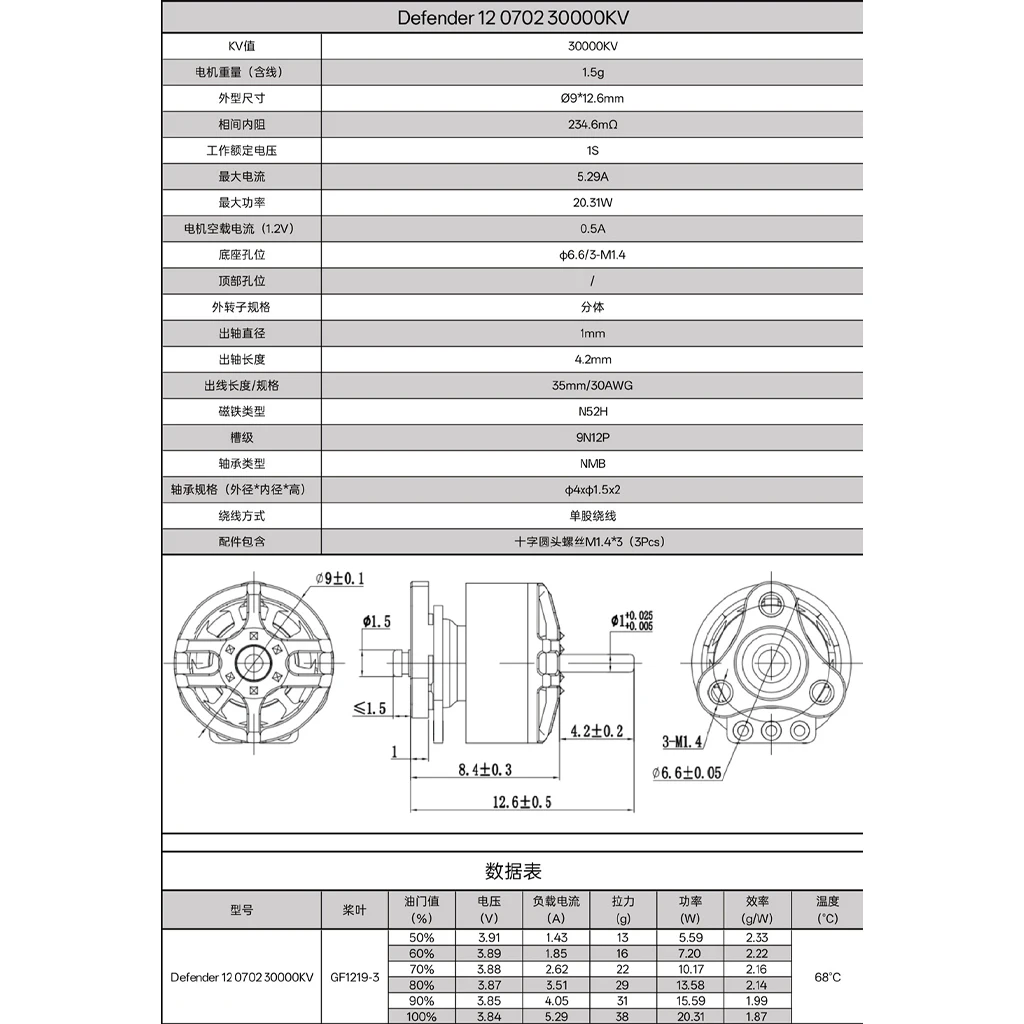

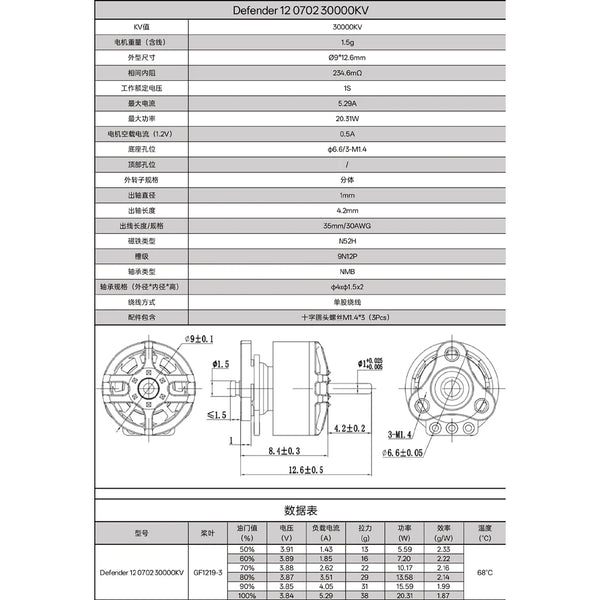

Specifications

Model: 0702

KV Rating: 30000 KV

Weight: 1.5g

Dimensions: 9*12.6mm

Phase Resistance: 234.6mΩ

Input Voltage: 1S

Maximum Current: 5.29A

Maximum Power: 20.37W

Base Hole Quantity: 3 Holes

Base Hole Spacing: 6.6/3-M1.4

Rotor Type: Split-type

Shaft Diameter: 1mm

Shaft Length: 4.2mm

Wire Specification: 35mm/30AWG

Magnet Type: N52H

Structure: 9N72P

Bearing Type: NMB

Bearing Size: 4×1.5×2（d×d1×d2）
