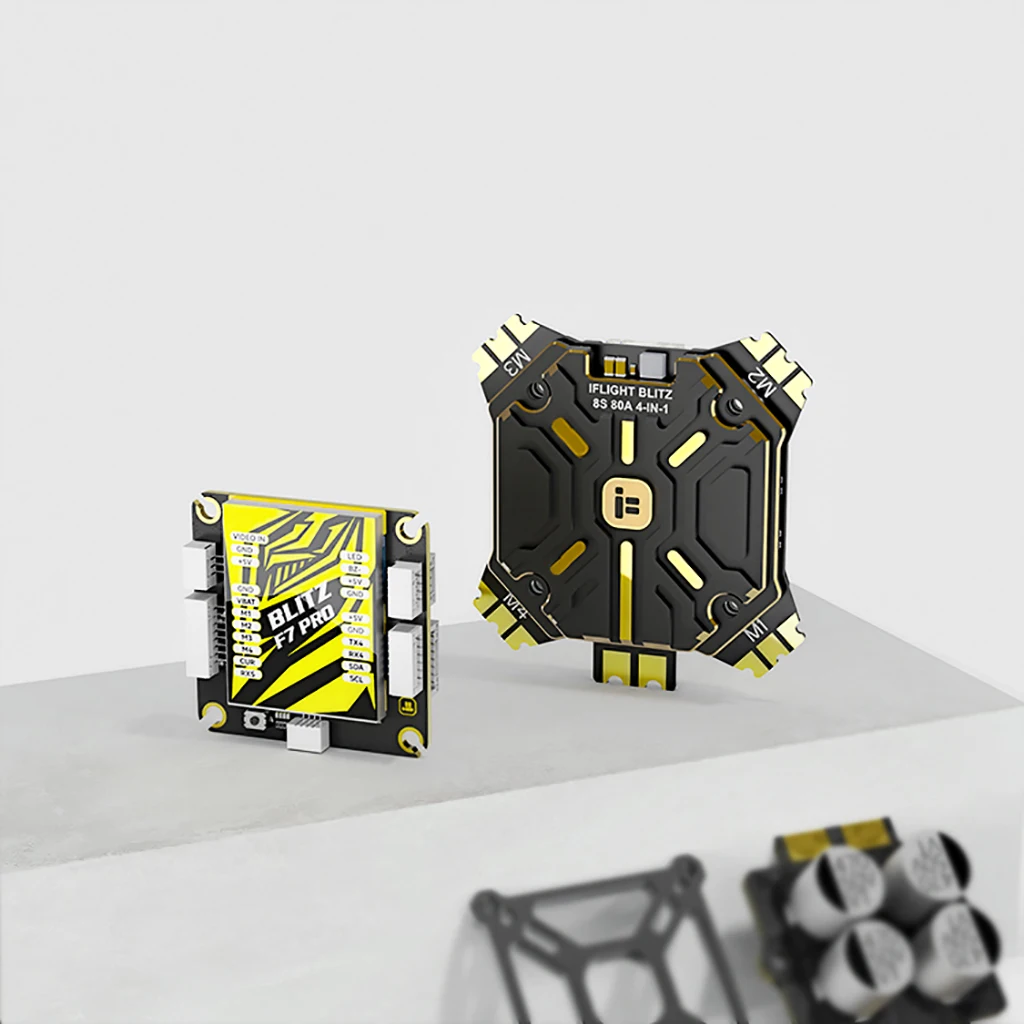

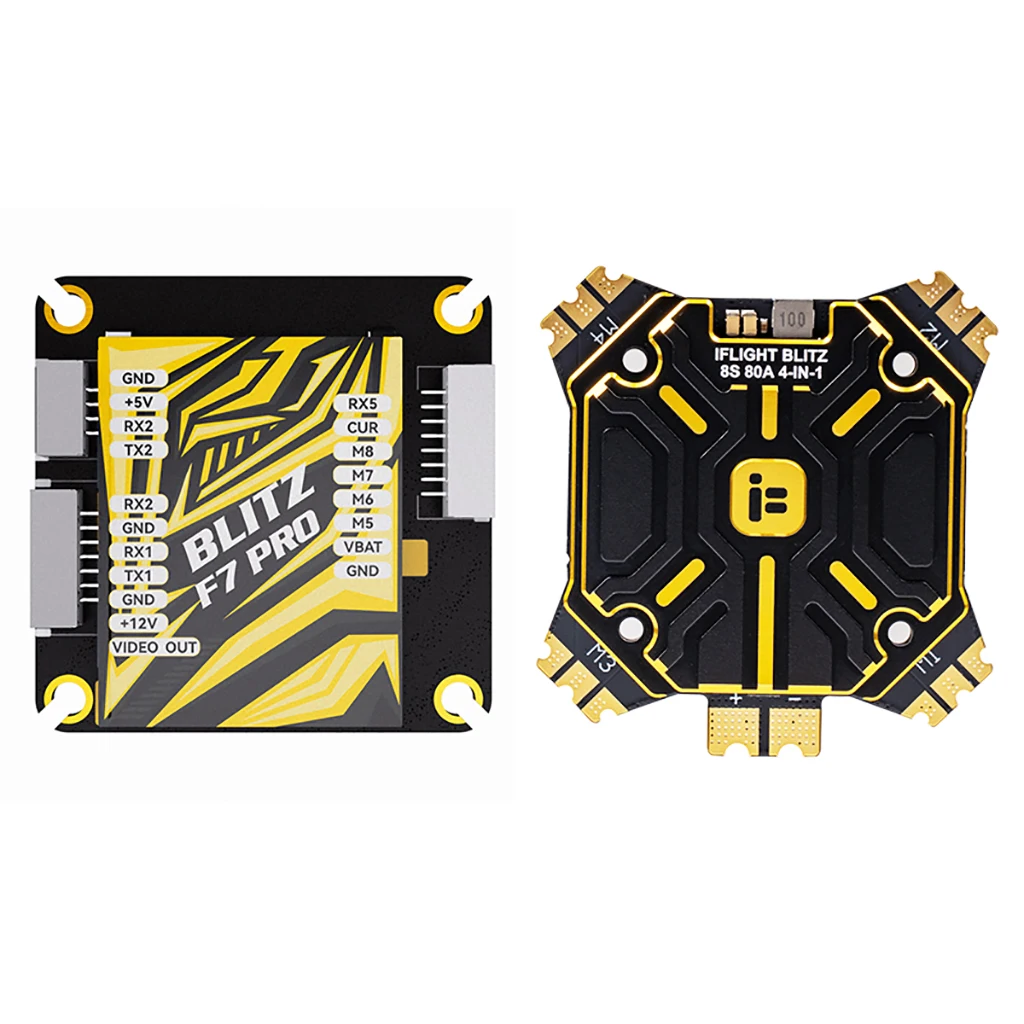

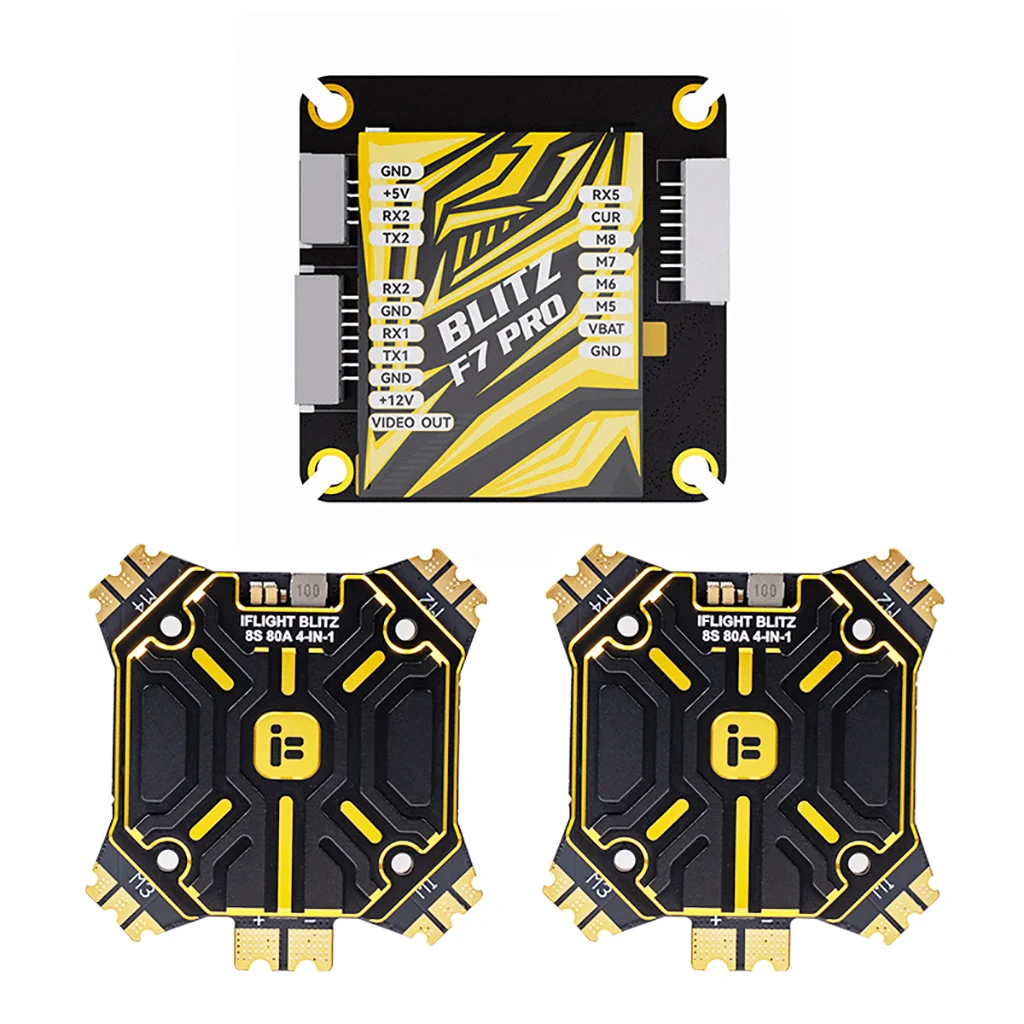

IFlight BLITZ E80 PRO BLHELI32 80A 4in1 ESC 2-8S LIPO 35X35mm BLITZ F7 PRO for RC Multirotor X-CALSS Cinelifter Drones Taurus X8

Sale

IFlight BLITZ E80 PRO BLHELI32 80A 4in1 ESC 2-8S LIPO 35X35mm BLITZ F7 PRO for RC Multirotor X-CALSS Cinelifter Drones Taurus X8

iFlight

Sale price $238.99 Regular price ~~$358.49~~

Shipping calculated at checkout.

Quantity

IFlight BLITZ E80 PRO BLHELI32 80A 4in1 ESC 2-8S LIPO 35X35mm for RC Multirotor X-CALSS Cinelifter Drones Taurus X8 DIY Part

PRODUCT DESCRIPTION

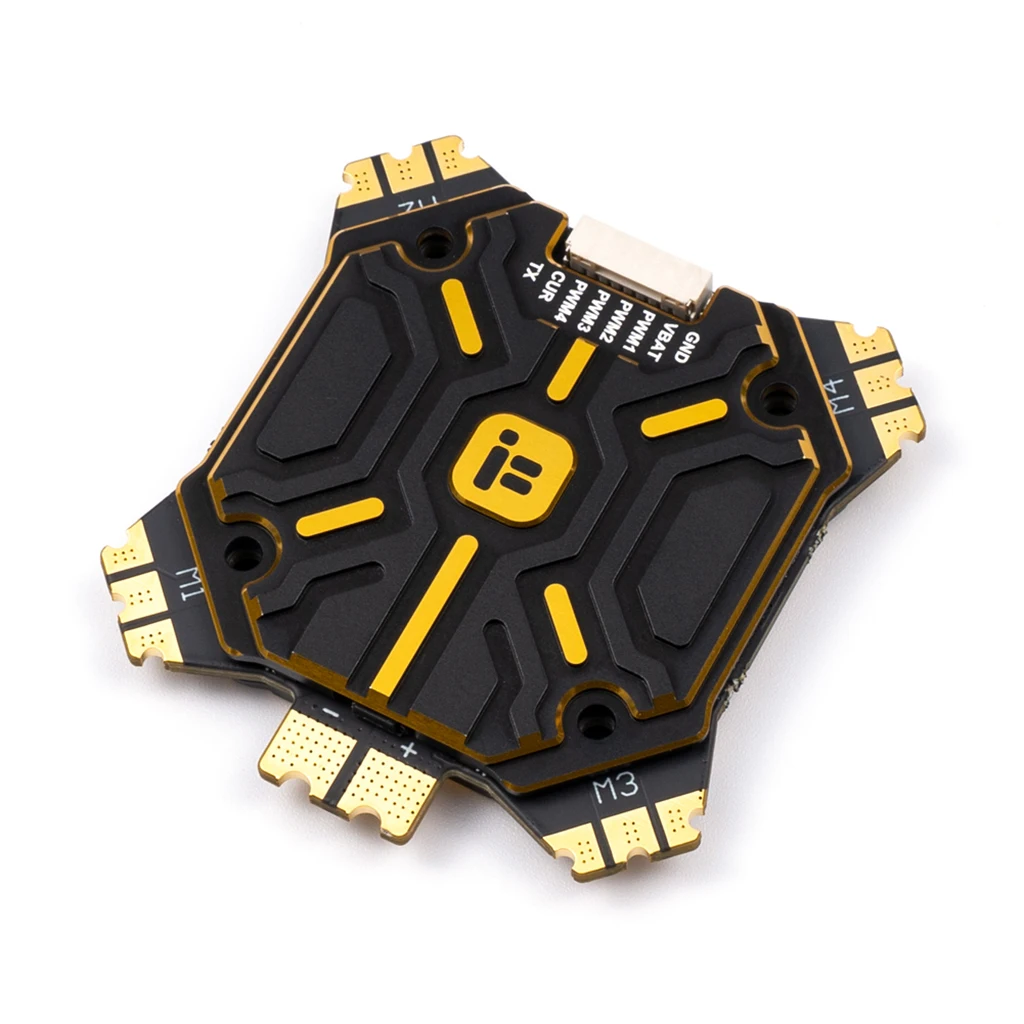

The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.

The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

Features:

- Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

- G071 MCU, 48mHz maximum clock speed;

- TDK MLCC Low ESR ceramic capacitors;

- Top grade PSMN1R0-40YLD MOSFET;

- 8 layers double-sided PCB board

Specification:

- BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases

- Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

- Constant current：80A，100A（Burst）

- Mounting Holes: 35*35mm/Φ3mm

- Current sensor: Yes, scale 100

- Firmware: IFLIGHT_BLITZ_G2

- Telemetry: Supported

- Weight:65g(±10)

- Volts input: 2-8S

- BEC: No

Package included:

- 1 x BLITZ E80 4-IN-1 Pro ESC (G2）

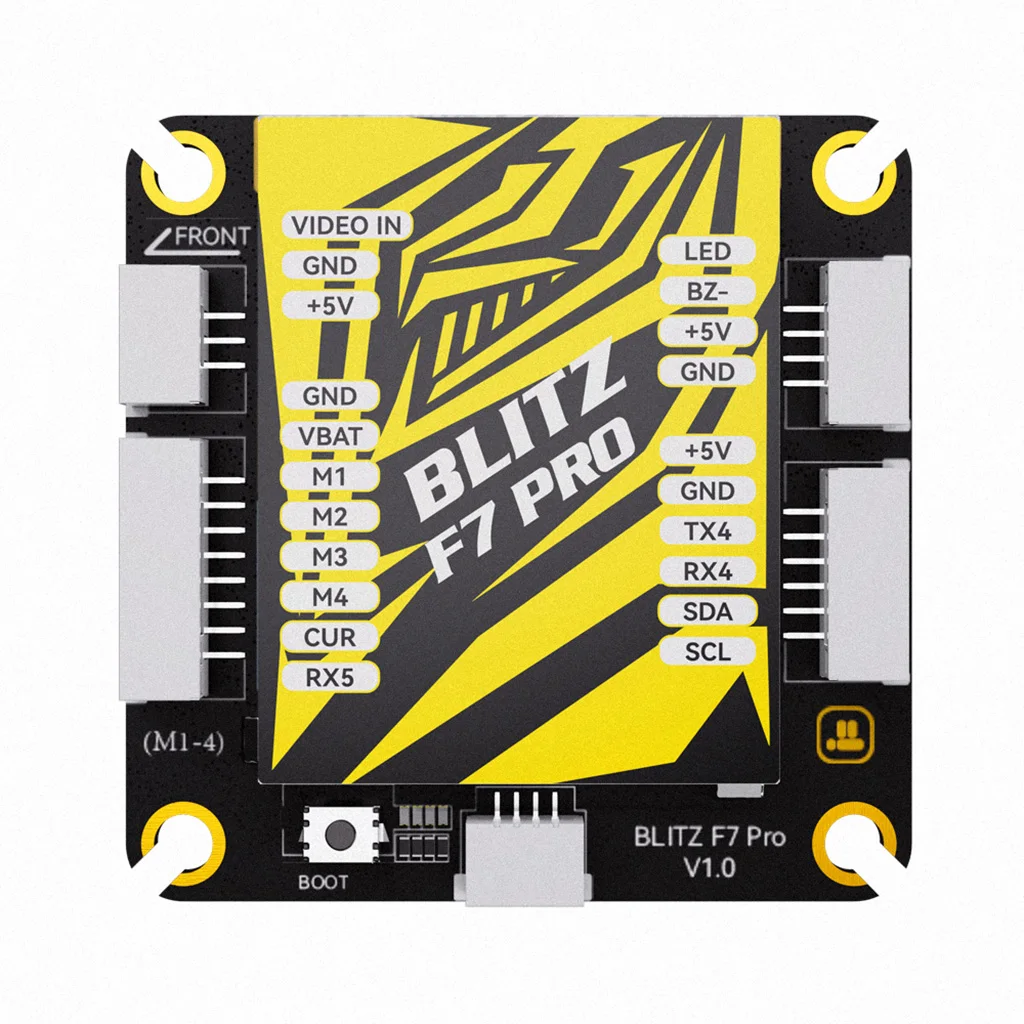

BLITZ F7 Pro Flight Controller
- Improved circuit design, better components, and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- 512MB BlackBox
- With LC filter

Specifications:
Mount pattern: 3535mm/ 4mm PCB hole diameter
Smartaudio/ IRC Tramp VTX protocol supported
Firmware target: IFLIGHT_BLITZ_F7_PRO
Input Voltage: 14.8V-34V (4S-8S LIPO)
Motor outputs: 4x (SH1.25 connector)
Flash: 512MB (Blackbox flash)
I2C serial: SDA/ SLA pads
Dimensions: 4141.5mm
Barometer: DPS310
OSD Chip: AT7456E
LED controller: Yes
MCU: STM32 F722
Weight: 17g (±2)
Beeper pad: Yes
Gyro: BMI270
UARTS: 6

Wiring suggestion:
- UART1 for VTX HD/Analog
- UART2 for Receiver
- UART4 for GPS
- UART5 for ESC Telemetry
- 8×Dshot/PWM outputs
- 1×I2C for GPS Mag

Tips
1. F722 MCU has an inner inverter.
2. SBUS,CRSF,ELRS,IBUS,DSM ETC... can be connected to any unused UART_RX, we suggest you connect to Uart_RX2
3. Frsky SmartPort, Tramp & Smartaudio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX, we suggest you connect to Uart_TX2
