IFlight Borg 60R/60RS ECS MINI F7 FC/ Borg MINI H7 FC Flight Control for FPV Drone

Note:Pls note the flight controller Borg MINI F7 FC &Borg MINI H7 FC.

Note Pls note the ECS Borg 60R&Borg 60RS ECS.

If have any questions pls contact us,thanks you!

Description：

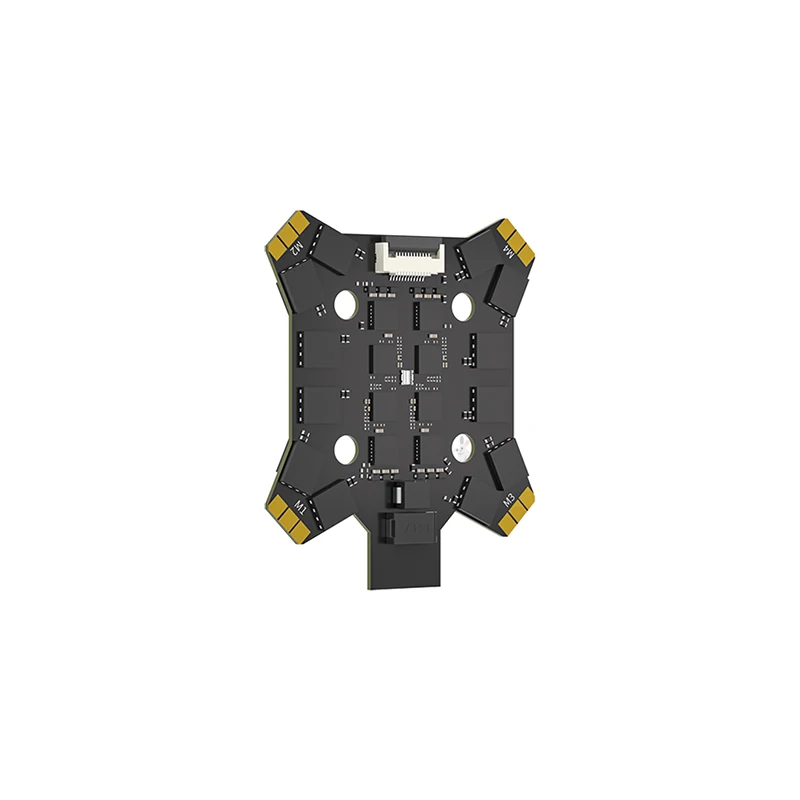

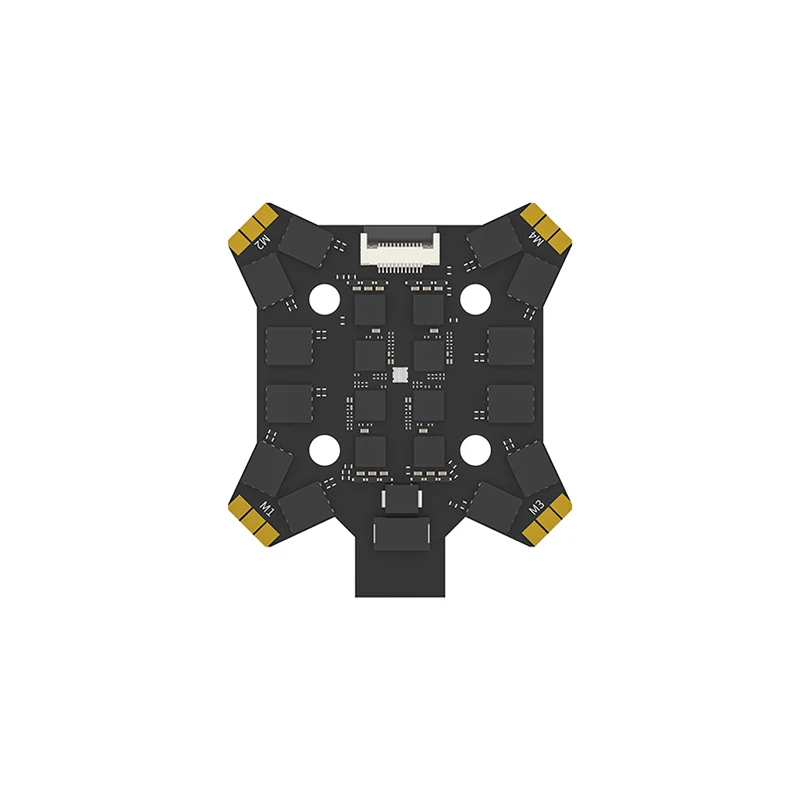

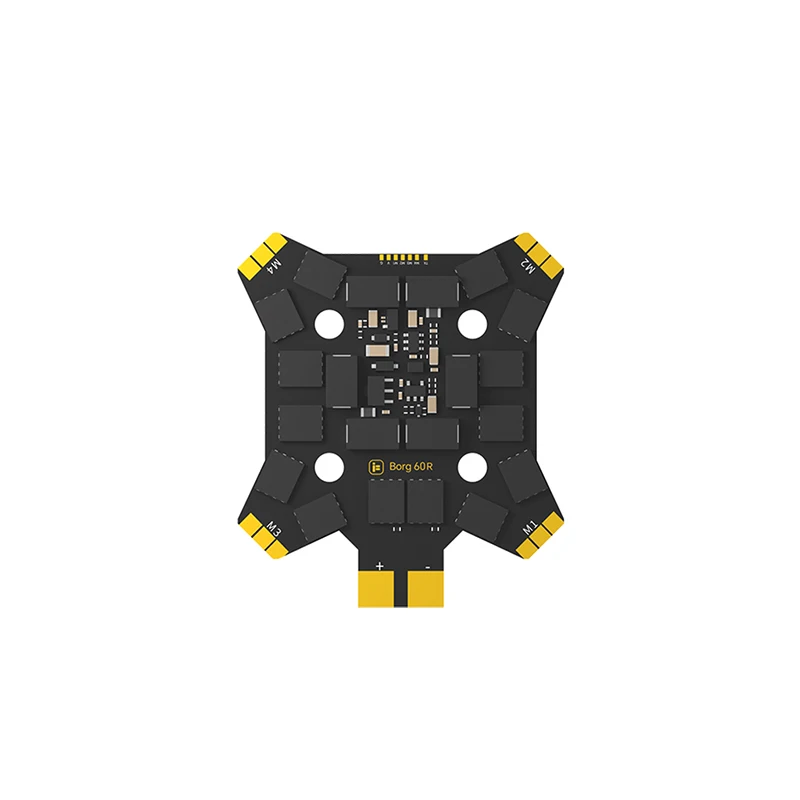

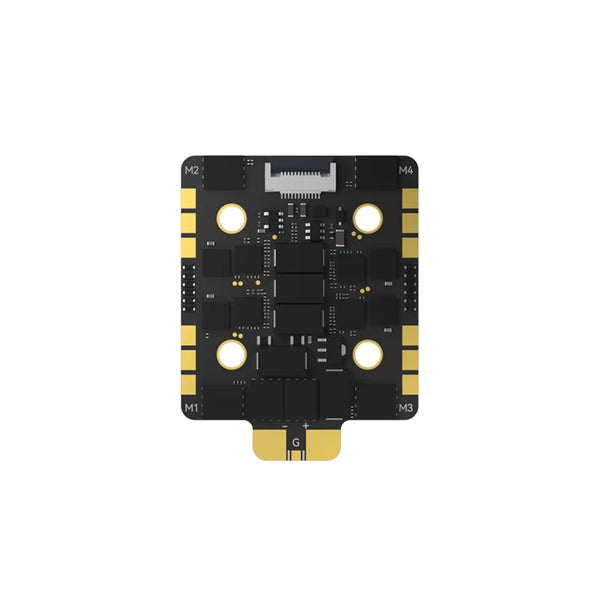

Borg 60R ECS

Introducing the All-New Borg Series – Power Meets Precision!

The new ESCs feature an integrated anti-spark filter, providing protection against voltage spikes that can damage your equipment. Designed with high polymer capacitors, this ESC eliminates the need for external capacitors in 5-inch racing models, simplifying installation and reducing weight. Experience enhanced reliability and performance with this cutting-edge technology, tailored for the demands of competitive racing.

Features

Support 4- 8S Battery Input for versatile power options.

8-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.

Integrated Anti-Spark Filter protects your equipment from voltage spikes.

Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.

FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC.



Specifications

Product Name: Borg 60RS ESC

Input Voltage: 4-8S; Support LIHV battery

Max. Continuous Current: 60A

Max. Burst Current: 65A (10s)

MCU: STM32G071N

Driver: FD6288

Firmware: BL32 (32bit ESC)

Target: IFLIGHT_BLITZ_G3 32.9

Current Sensor: No

BEC: No

Telemetry: Supported

Bidirectional DSHOT: Supported

Dimensions: 45*35mm±1

Mounting Holes: 20 x20 mm/Φ4mm

Weight: 14.1g±1

Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

Packing List

1 x Borg 60RS ESC

1 x Cables set

4 x silicon grommets

Description

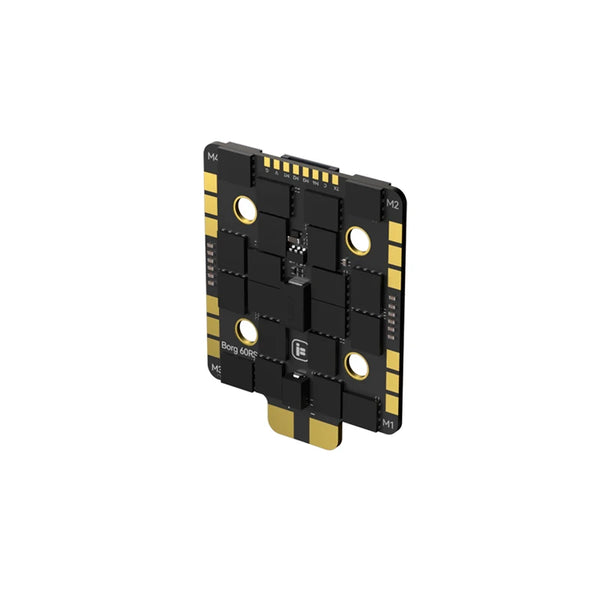

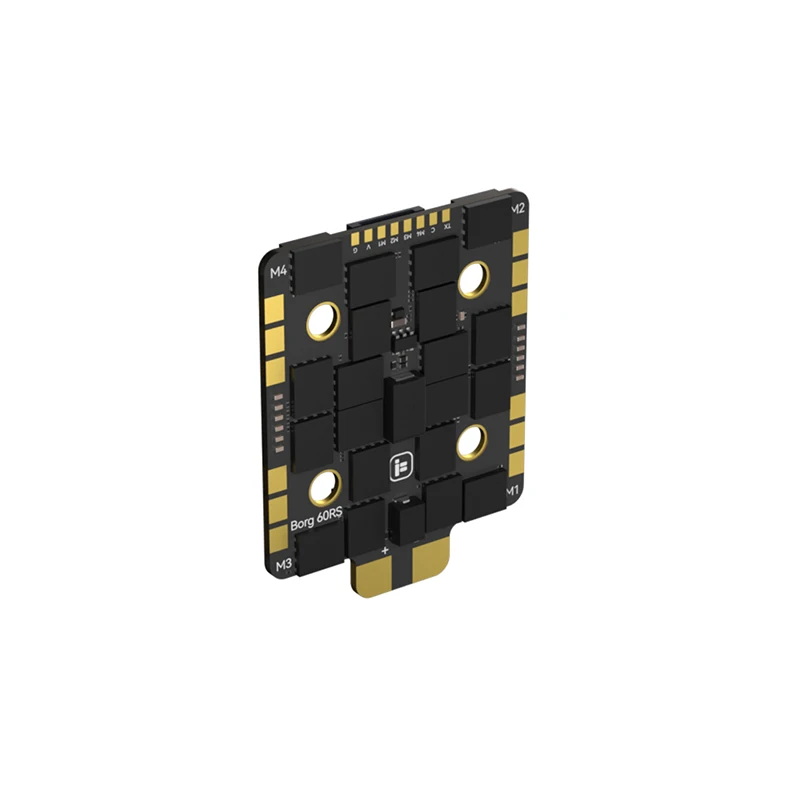

60RS ECS

Introducing the All-New Borg Series – Power Meets Precision!

The new ESCs feature an integrated anti-spark filter, providing protection against voltage spikes that can damage your equipment. Designed with high polymer capacitors, this ESC eliminates the need for external capacitors in 5-inch racing models, simplifying installation and reducing weight. Experience enhanced reliability and performance with this cutting-edge technology, tailored for the demands of competitive racing.

Features

Support 4- 8S Battery Input for versatile power options.

8-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.

Integrated Anti-Spark Filter protects your equipment from voltage spikes.

Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.

FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC.

Specifications

Product Name: Borg 60RS ESC

Input Voltage: 4-8S; Support LIHV battery

Max. Continuous Current: 60A

Max. Burst Current: 65A (10s)

MCU: STM32G071N

Driver: FD6288

Firmware: BL32 (32bit ESC)

Target: IFLIGHT_BLITZ_G3 32.9

Current Sensor: No

BEC: No

Telemetry: Supported

Bidirectional DSHOT: Supported

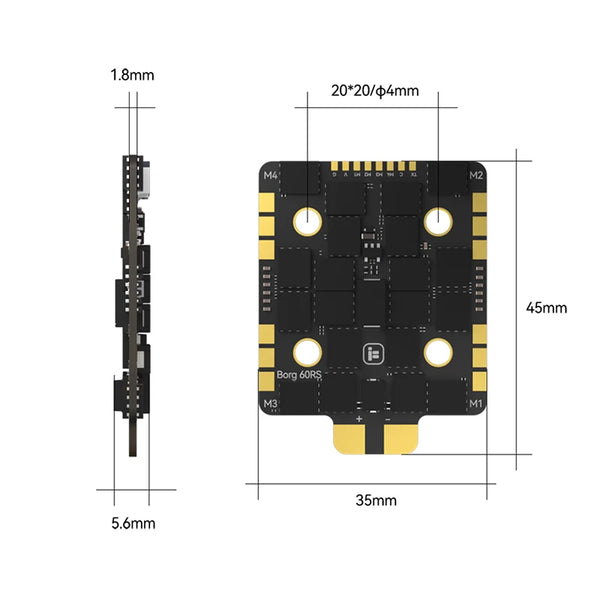

Dimensions: 45*35mm±1

Mounting Holes: 20 x20 mm/Φ4mm

Weight: 14.1g±1

Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

Packing List

1 x Borg 60RS ESC

1 x Cables set

4 x silicon grommets

Description

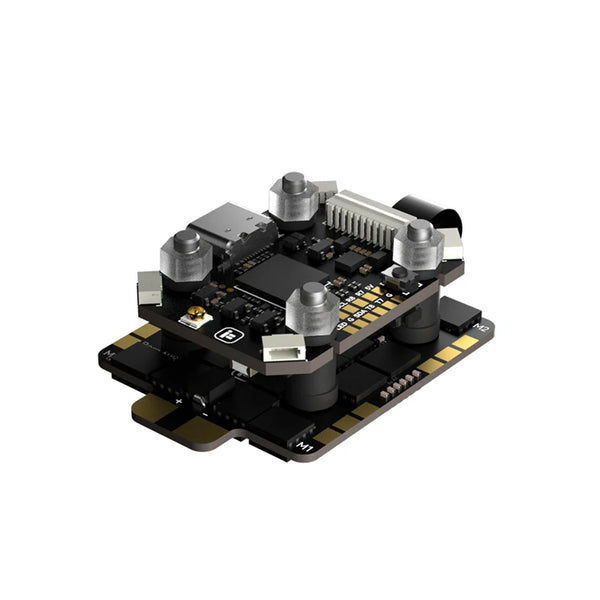

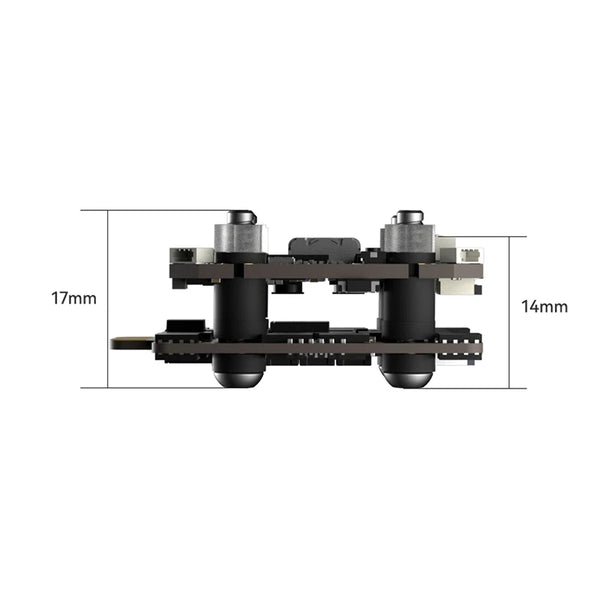

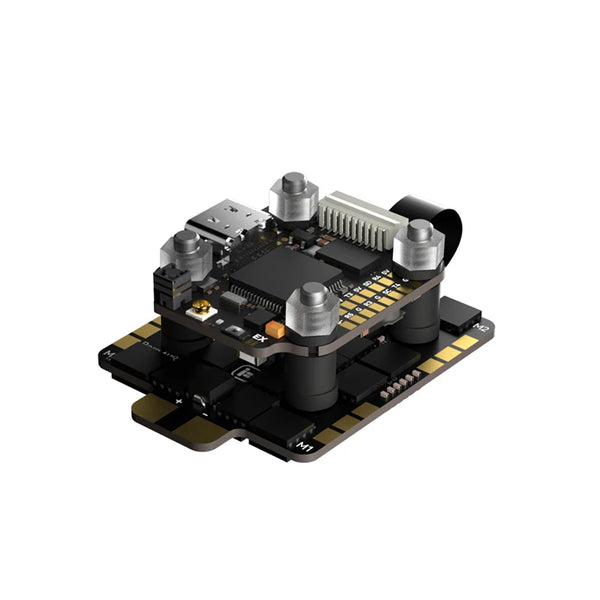

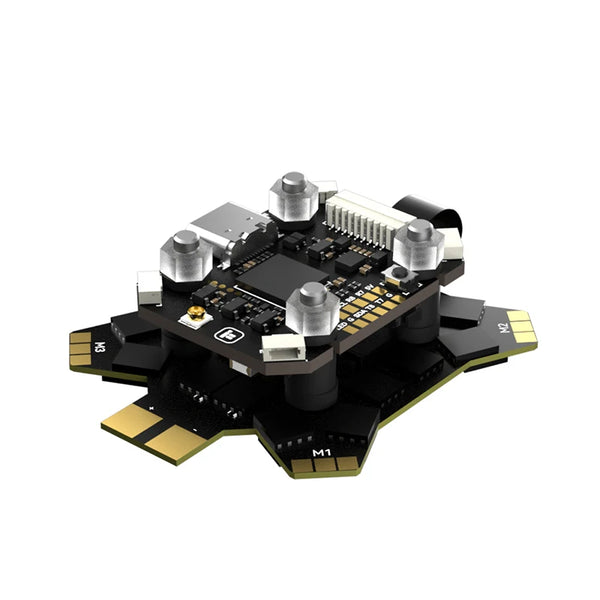

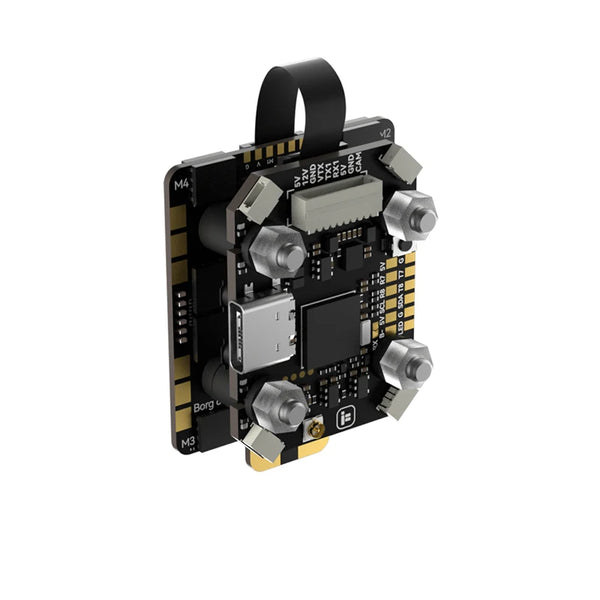

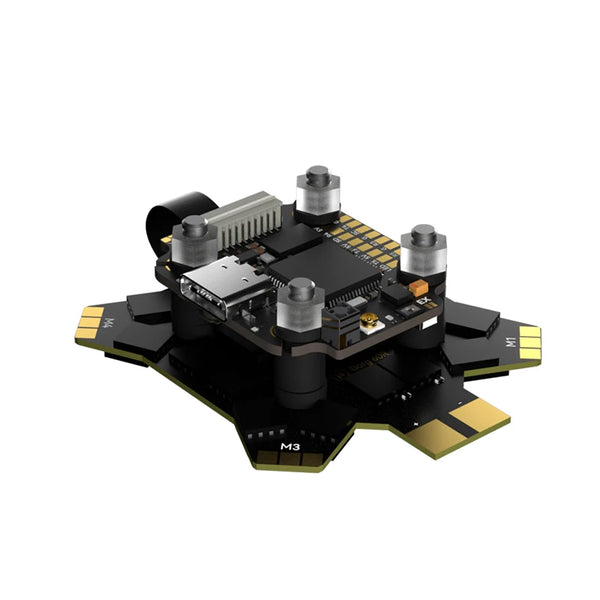

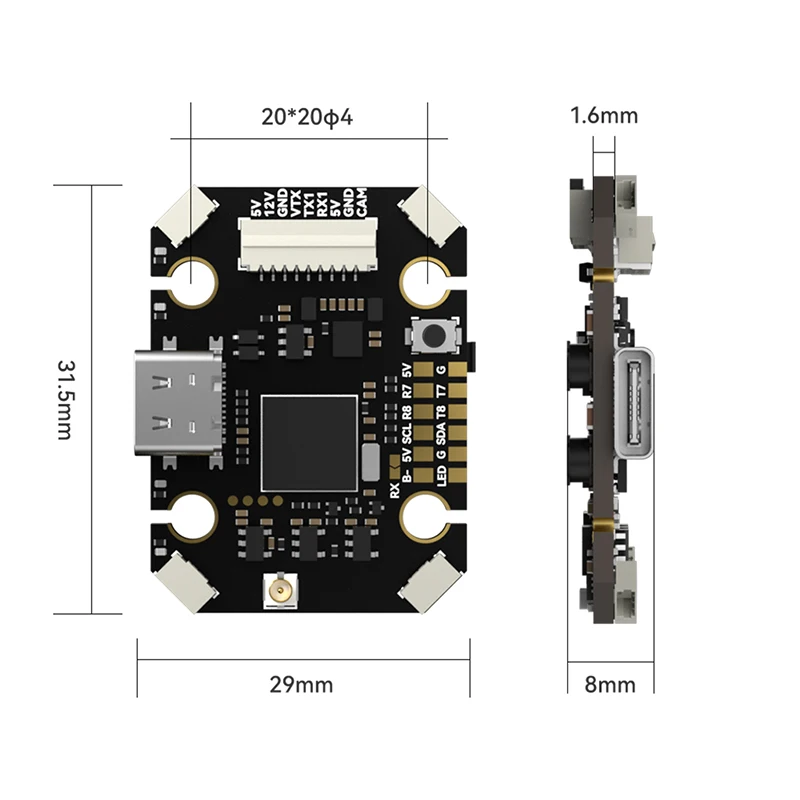

 Borg Mini H7 Flight Stack

Introducing the All-New Borg Series – Power Meets Precision!

The Borg Mini H7 Flight Stack is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series!

Features

Flight Controller Features

Supports 4S to 8S battery inputs, offering versatility for various racing setups.

Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.

FPC cables ensure secure connections with ESCs enhance reliability across.

Onboard ELRS 2.4G receiver with external antenna, supports switching to external receivers.

Onboard 4 LED strip interfaces with short-circuit protection, so an LED short circuit will not affect flight controller operation.

ESC Features

Support 4- 8S Battery Input for versatile power options.

8-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.

Integrated Anti-Spark Filter protects your equipment from voltage spikes.

Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.

FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC.

Specifications

Flight Controller Specifications

Product Name: Borg Mini H7 Flight Controller  - SMD Receiver

Input voltage: 4-8S; Support LIHV battery

MCU: STM32H743VIH6

Gyro: ICM42688

OSD Chip: AT7456E（LGA）

Flash: 32MB (Blackbox flash)

UARTS: 5

Motor outputs: 4

I2C serial: Support

VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero

LED controller: Yes

Beeper pad: Yes

Betaflight Firmware target: IFLIGHT_BORG_Mini_H7

Mount pattern: 20*20 φ4

Dimensions: 36*27mm±1

Weight: 7.7g±1

BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

SMD Receiver Specifications

MCU: ESP8285

RF: SX1281

Receiver Type: 2.4GHz

Telemetry power: 100mW (20dBm)

LNA: YES

Lua Script: iFlight 2400 RX

TCXO: Yes

Firmware: iFlight2.4GHz_2400_RX

ESC Specifications

Product Name: Borg 60RS ESC

Input Voltage: 4-8S; Support LIHV battery

Max. Continuous Current: 60A

Max. Burst Current: 65A (10s)

MCU: STM32G071N

Driver: FD6288

Firmware: BL32 (32bit ESC)

Target: IFLIGHT_BLITZ_G3 32.9

Current Sensor: No

BEC: No

Telemetry: Supported

Bidirectional DSHOT: Supported

Dimensions: 45*35mm±1

Mounting Holes: 20 x20 mm/Φ4mm

Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.

FC Wiring Suggestion

UART 1 for VTX HD / Analog

UART 2 for ESC Telemet

UART 4 for On-board Receiver

UART 7 for GPS or other sensors that require a serial port

UART 8 for GPS or other sensors that require a serial port

Packing List

1 x Borg Mini H7 Flight Controller With SMD Receiver

1 x Borg 60RS 4-in-1 ESC

1 x Cable set

5 x silicon grommets

VTX_ON_OFF Mode Command

resource PINIO 1 PD10

set pinio_config = 1,1,1,1

set pinio_box = 40,41,255,255

set box_user_1_name = VTX_ON_OFF

aux 0 40 8 900 2100 0 0

save

Note

The iFlight product is for fun purposes only and does not support autonomous flight.

Description

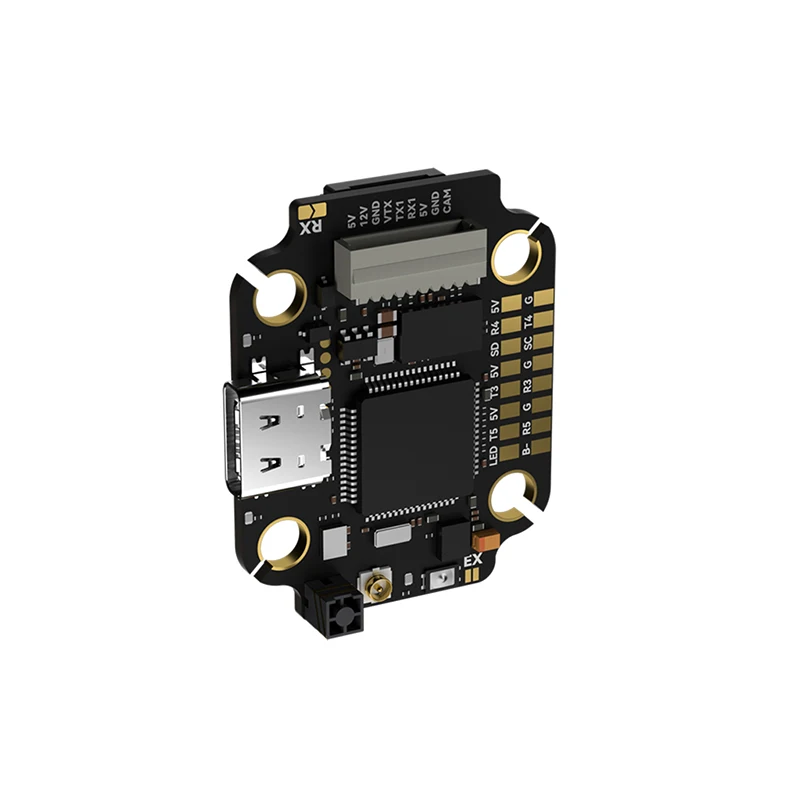

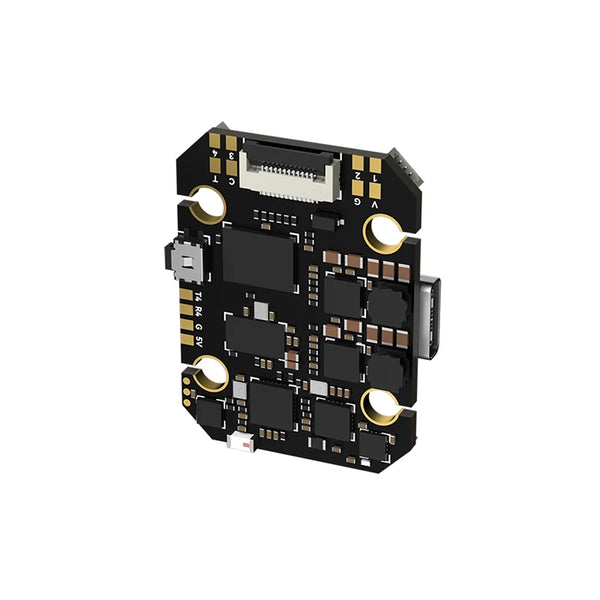

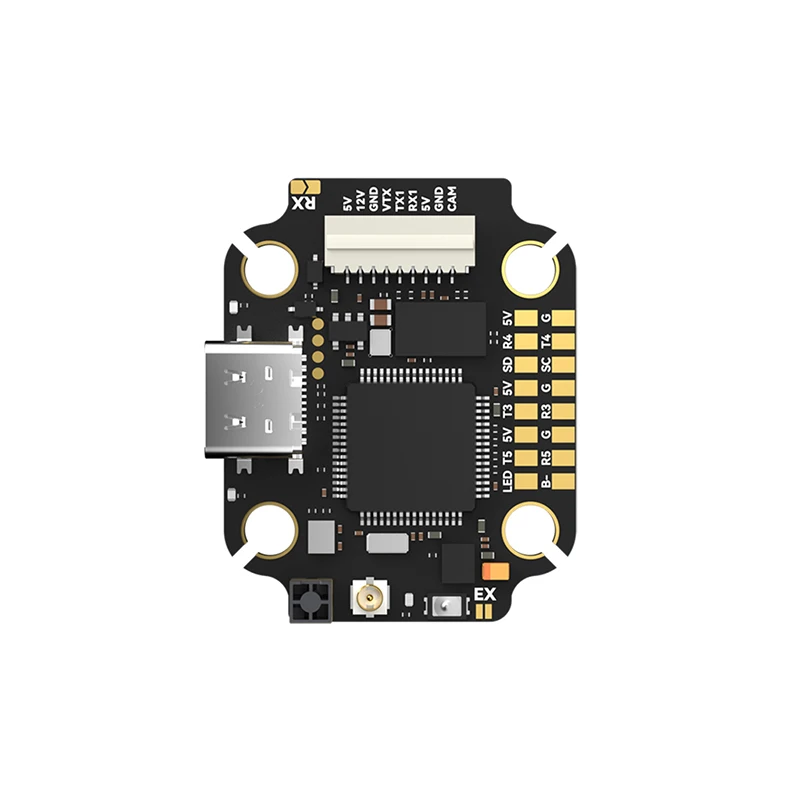

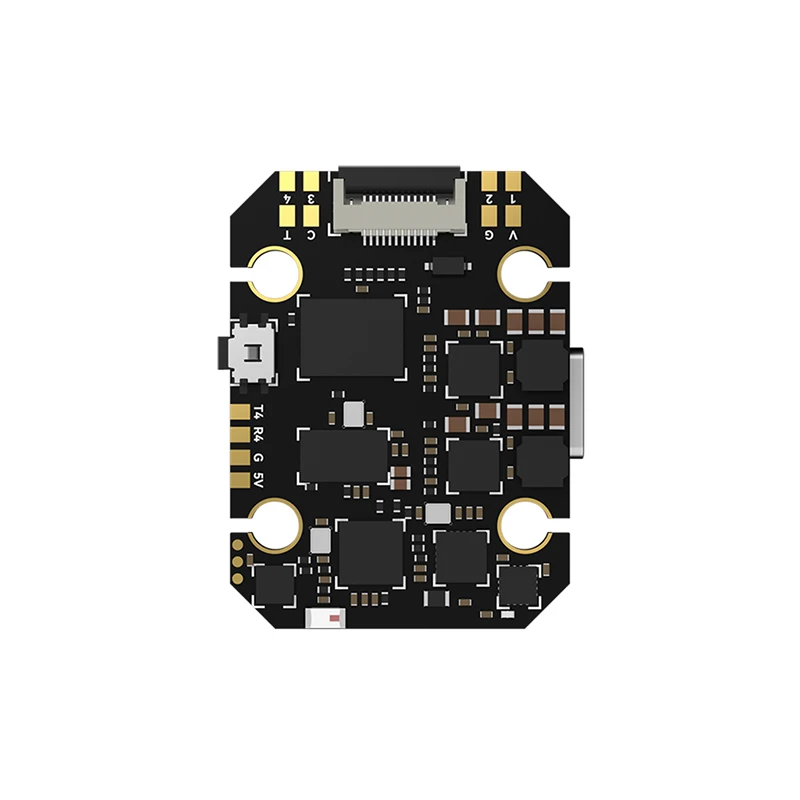

Borg Mini F7 Flight controller

Introducing the All-New Borg Series – Power Meets Precision!

The Borg Mini F7 Flight Controller (With Receiver) is custom-built for racing FPV and delivers exceptional performance. This advanced controller comes with a built-in ELRS 2.4GHz receiver and integrated antenna. It delivers a stable signal connection and smoother flight control during use.

Beyond its internal receiver, the Borg Mini F7 Flight Controller (With Receiver) also supports external receivers. This lets you tailor your device setup to fit your unique racing requirements. Upgrade your FPV racing experience with the state-of-the-art Borg Series!

Features

Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.

Supports 4S to 8S battery inputs, offering versatility for various racing setups.

Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.

FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.

Specifications

Flight Controller Specifications

Input voltage: 4-8S; Support LIHV battery

MCU: STM32F722RET6

Gyro: ICM42688

OSD Chip: AT7456E（LGA）

Flash: 16MB (Blackbox flash)

UARTS: 6

Motor outputs: 4

I2C serial: Support

VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero

LED controller: Yes

Beeper pad: Yes

Betaflight Firmware target: IFLIGHT_BLITZ_F722

Mount pattern: 20*20 φ4

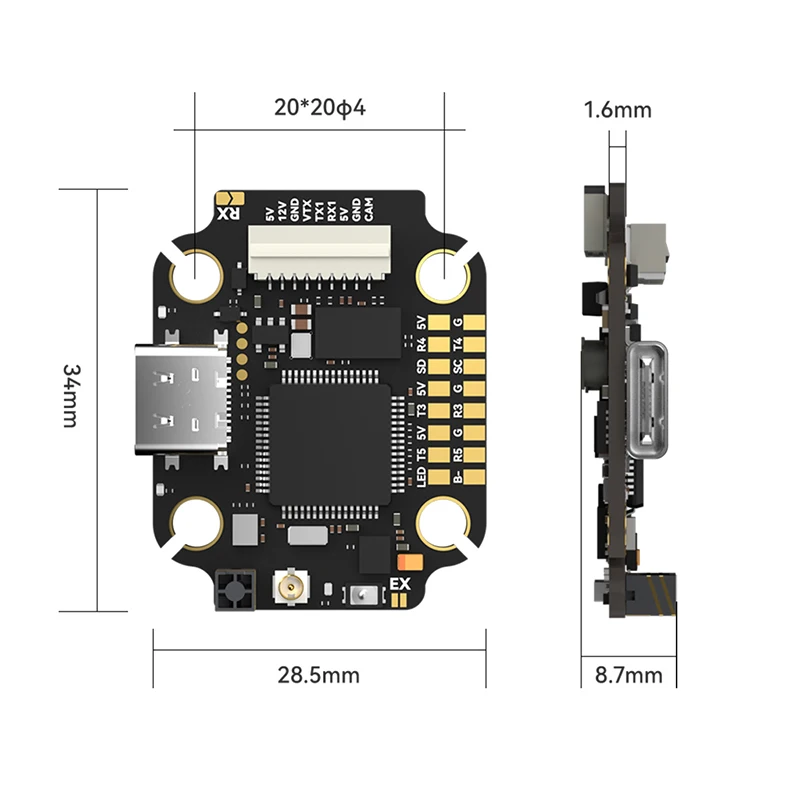

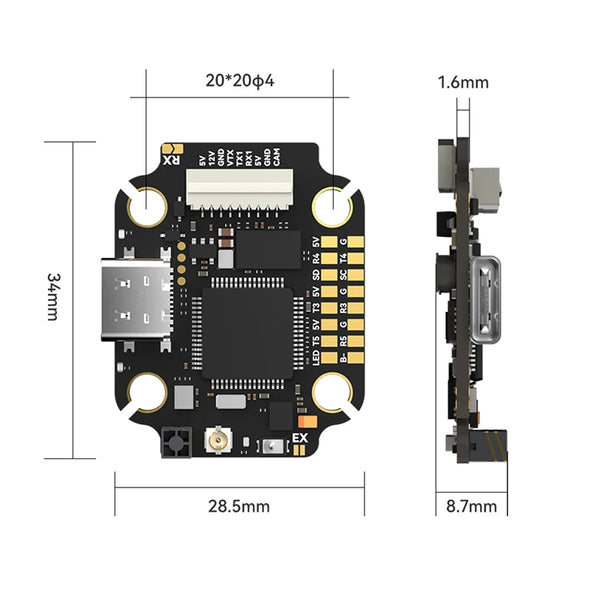

Dimensions: 34*28.5mm±1

Weight: 6.8g±1

BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

SMD Receiver Specifications

MCU: ESP8285

RF: SX1281

Receiver Type: 2.4GHz

Telemetry power: 17mW (12.3dBm)

LNA: No

Lua Script: iFlight 2.4GHz Nano

TCXO: Yes

Firmware: iFlight 2.4GHz Nano RX

FC Wiring Suggestion

UART 1 for VTX HD / Analog

UART 2 for On-board Receiver

UART 3 for GPS or other sensors that require a serial port

UART 4 for GPS or other sensors that require a serial port

UART 5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemet

Packing List

1 x Borg Mini F7 Flight Controller With SMD Receiver

1 x Cable set

5 x silicon grommets

VTX_ON_OFF Mode Command

resource PINIO 1 C0

set pinio_config = 1,1,1,1

set pinio_box = 40,41,255,255

set box_user_1_name = VTX_ON_OFF

aux 0 40 8 900 2100 0 0

save

Note

The iFlight product is for fun purposes only and does not support autonomous flight.
