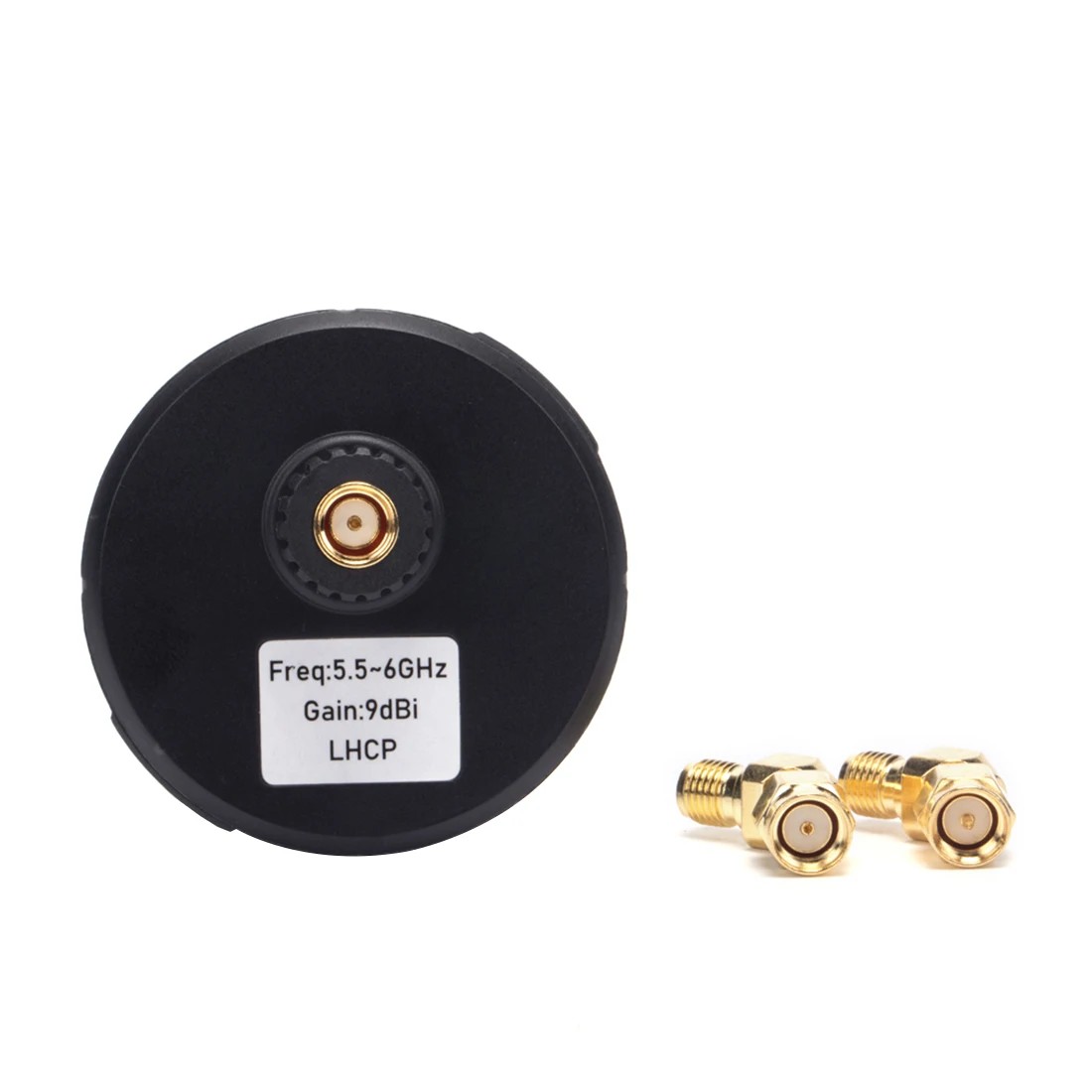

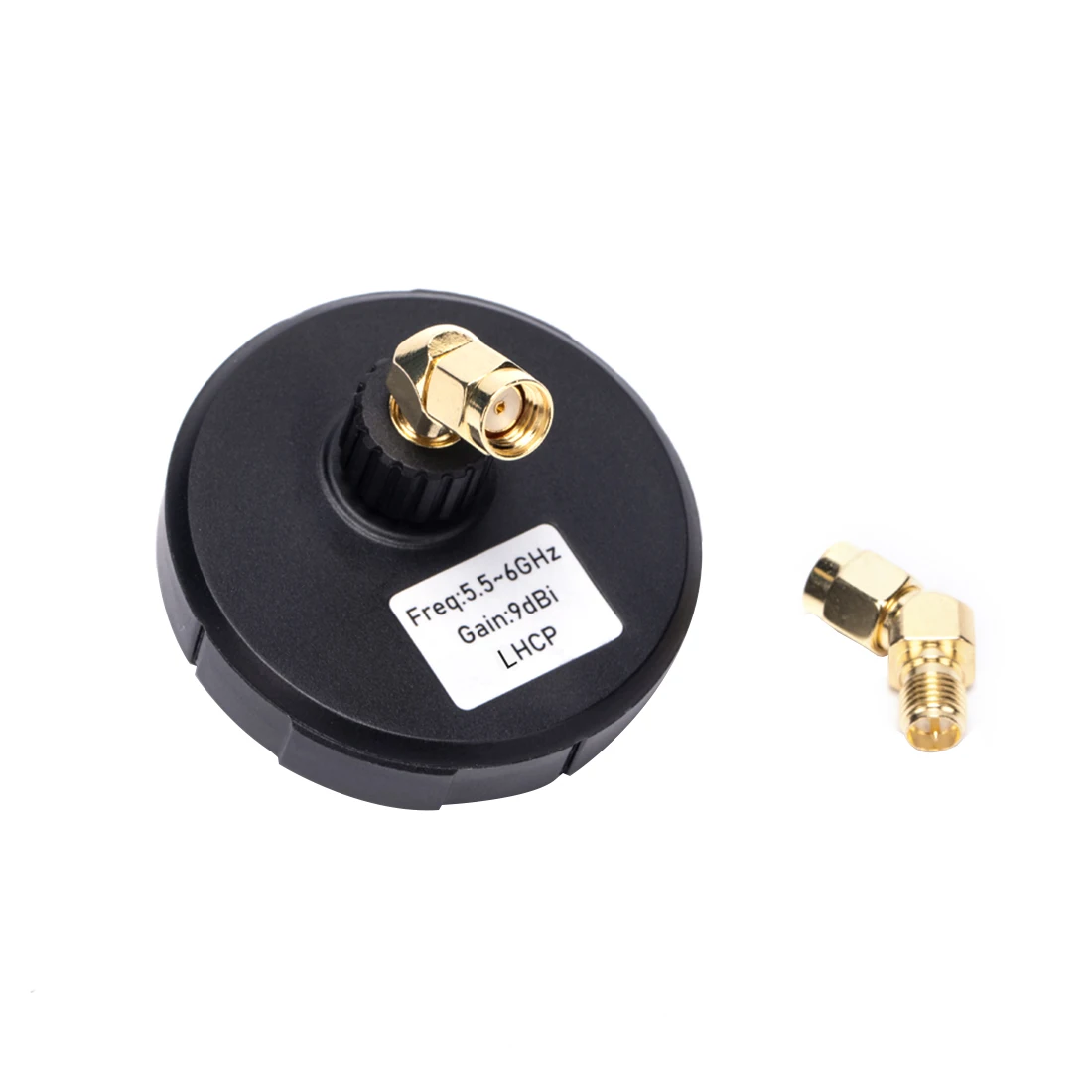

IFlight Pigeon 5.8G Circular Polarization Directional 9dBi Gain FPV Patch Antenna RP-SMA LHCP RHCP w/2PCS 45 Degree Adapter Part

Circularly polarized directional antenna with a gain of 9dBi and a radiation angle of 75 degrees in the vertical and horizontal directions. In actual flight, it is recommended to use frequency 5.5G-5.9G.


Features:

Center frequency: 5.65GHz

Bandwidth: 5.4-5.9GHz

Gain: 9 dBi

Axial ratio: <1.5

Impedance: 50 ohms

Horizontal half power angle: 75°

Vertical half power angle: 75°

Polarization: (LHCP) Left Circular Polarization / (RHCP) Right Circular Polarization

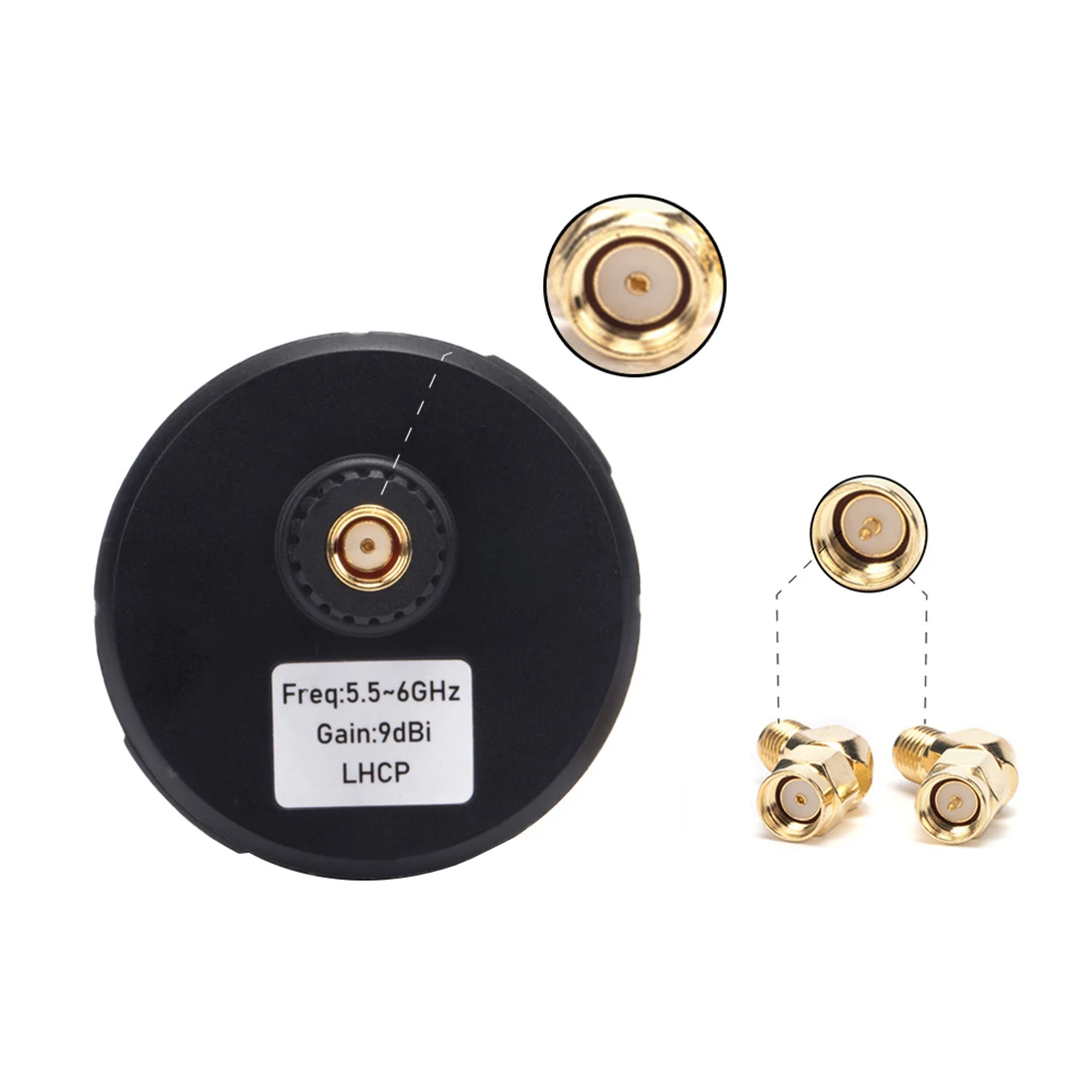

Connector:RP-SMA/SMA Antenna

Size: 49mmx13mm

Weight: 25.1g
