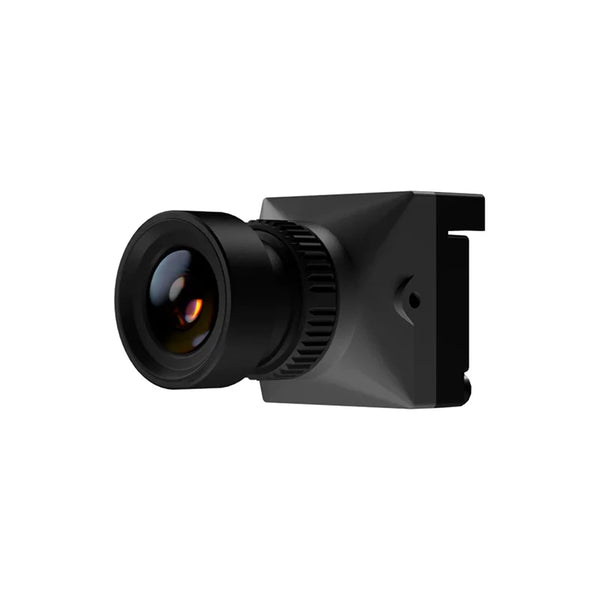

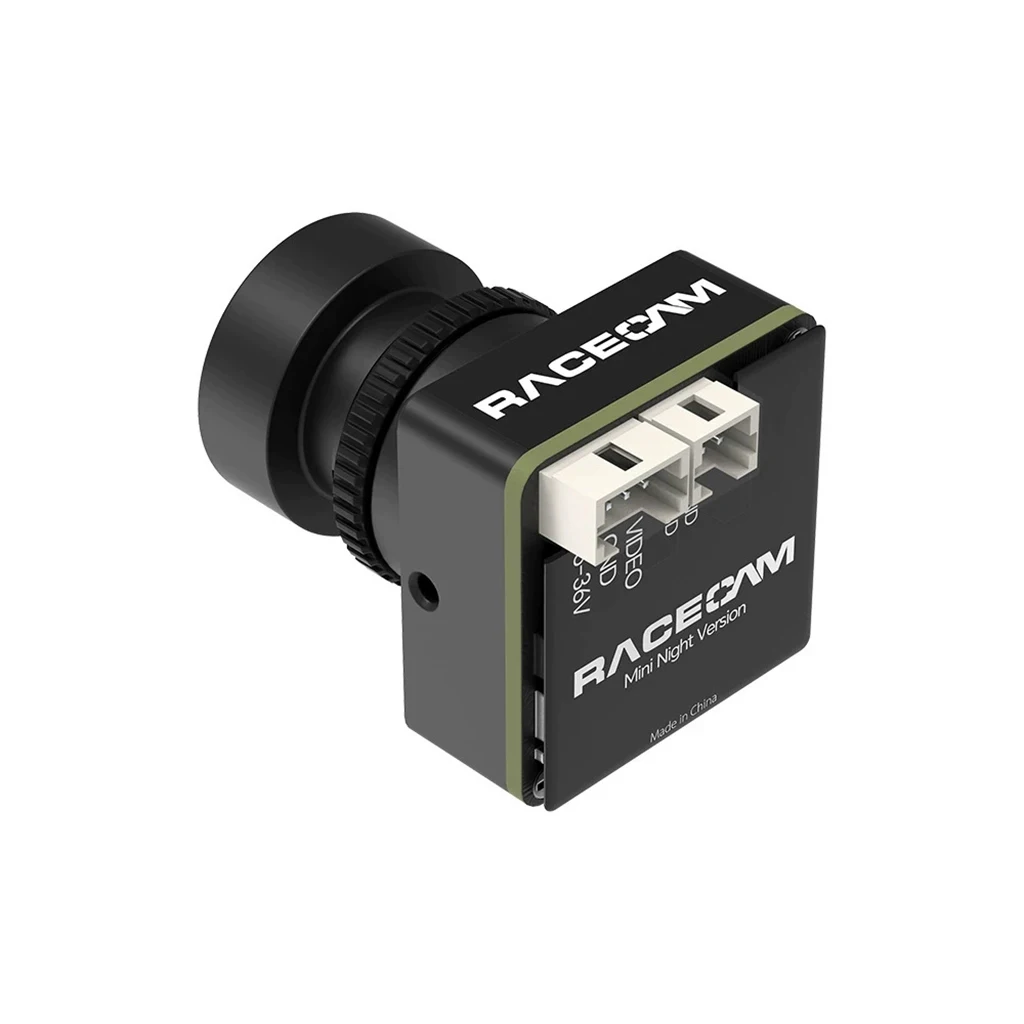

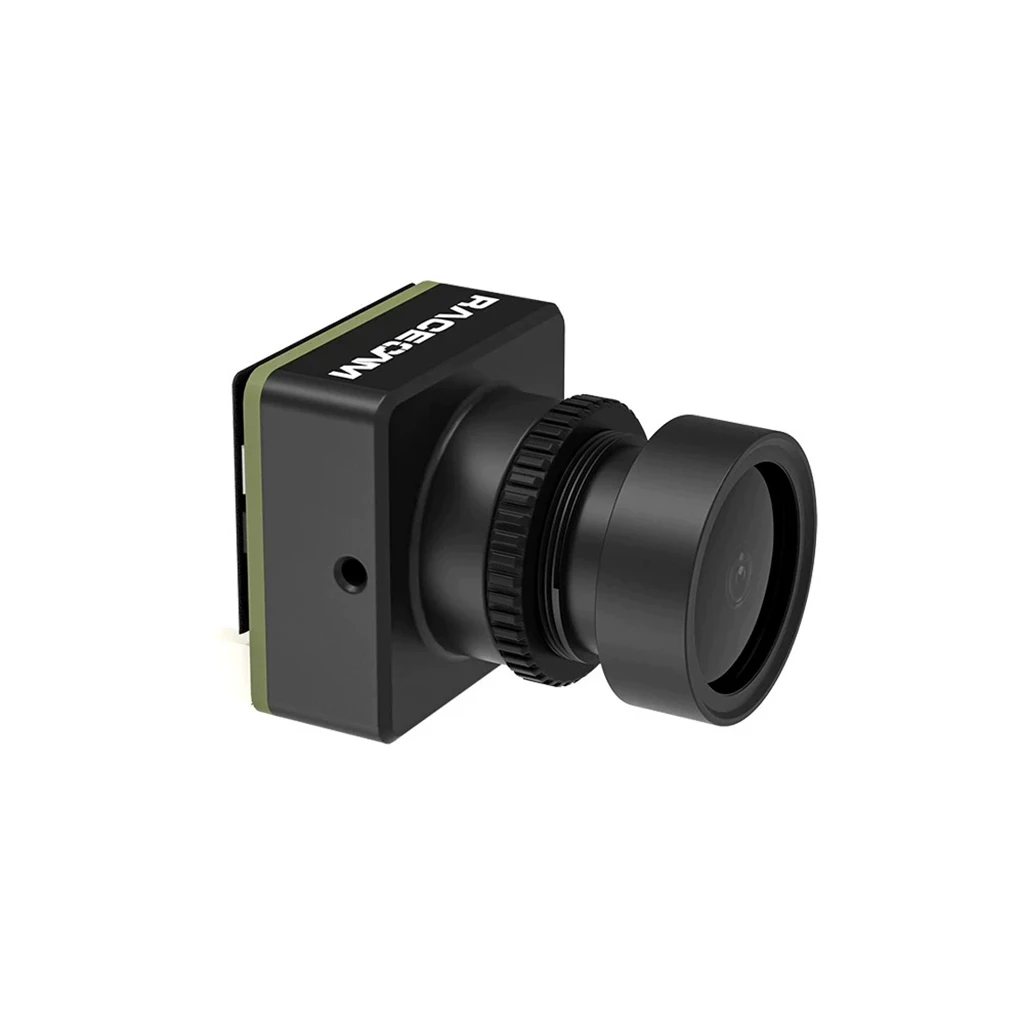

iFlight RaceCam Mini Night Version V1.1 FPV Camera 1800TVL 1/1.8" CMOS 5-40V OSD for Drone Quadcopter

Product Description

Overview
The RaceCam Mini Night Version V1.1 is a high-performance ultra-low-light mini camera designed for demanding applications such as FPV racing, car backup systems, industrial inspection, and surveillance. Featuring a large 1/1.8" CMOS sensor and F1.0 large aperture, it delivers stunning image quality even in near-dark environments (0.000001 Lux). With Super WDR (HDR), 3D noise reduction, and wide voltage input (5V-40V), this camera ensures reliable operation in various lighting and power conditions.

Key Features

• Ultra-Low Light Performance – 0.000001 Lux @ F1.0, captures clear color images in extreme darkness.

• High Resolution – 1800TVL horizontal resolution, 4.0µm pixel size, and 8MP lens for sharp details.

• 1/1.8" CMOS Sensor – Larger sensor size for better light sensitivity and dynamic range.

• Super WDR (HDR) – Handles high-contrast scenes, avoiding overexposed or dark areas.

• Wide Voltage Input – 5V to 40V DC, suitable for 12V/24V vehicles and various power systems.

• Low Power Consumption – Only 60mA @12V, energy-efficient.

• OSD Menu Support – Easy on-screen configuration (short press middle button to enter OSD settings).

• Adjustable Image Settings – Aspect ratio (4:3 / 16:9), video format (PAL/NTSC), scene modes (Auto/Color/B&W/EX).

• 3D Noise Reduction – Clean, low-noise image even in low light.

• Wide Operating Temperature – -20°C to 70°C, reliable in harsh environments.

• Compact Size – 29×19×19mm, fits into tight spaces.

Specifications

Package Included
1 x RaceCam Mini Night Camera
1 x OSD Menu Control Board (for settings)
(Note: Wiring harness and power cable not included, refer to pinout: 5V-40V, GND, VIDEO OUT, and OSD control pins)

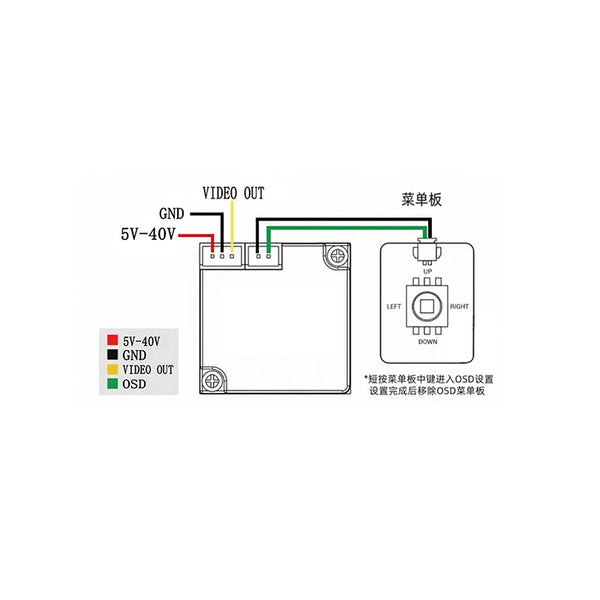

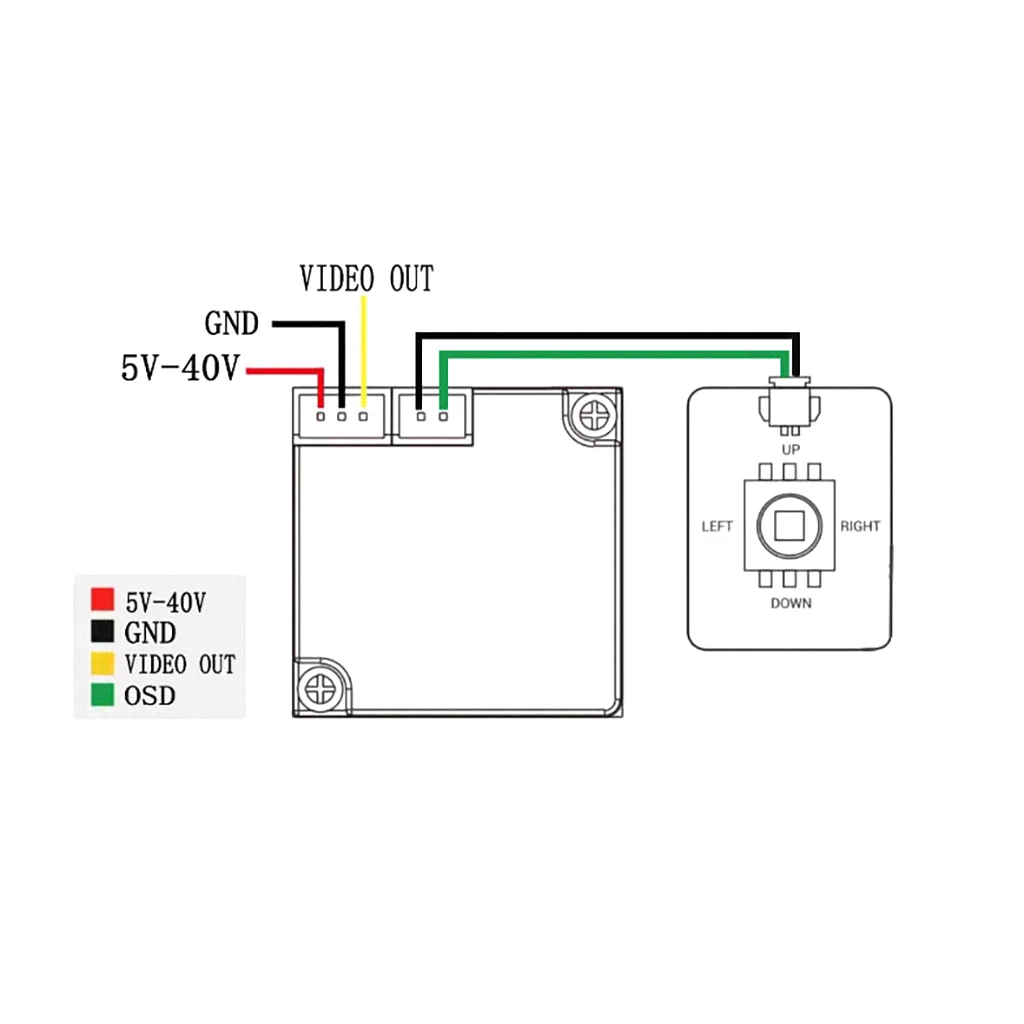

Wiring Instructions

• Red wire: 5V-40V positive

• Black wire: GND

• Yellow wire: VIDEO OUT

• OSD board connection: short press middle button to enter OSD menu, then use up/down/left/right to adjust. Remove OSD board after settings are saved.

Applications

• FPV drone / RC car racing

• Car rearview / backup camera

• Industrial endoscope / inspection

• Home security / surveillance

• Night vision projects

Note
This camera outputs analog video (CVBS). A compatible display or video capture device with CVBS input is required. The OSD board is only for configuration and should be disconnected after use.
