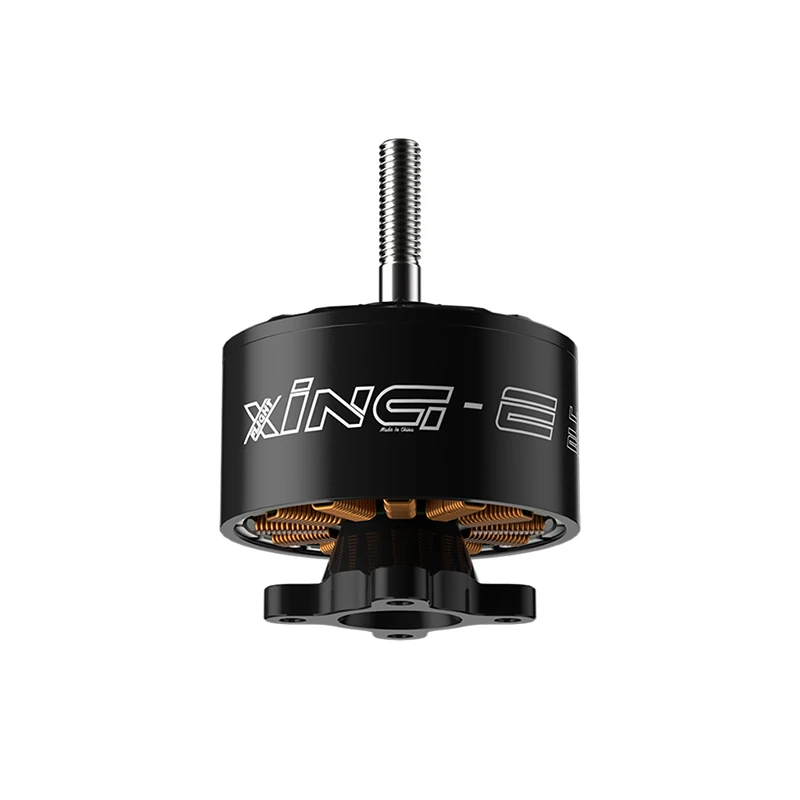

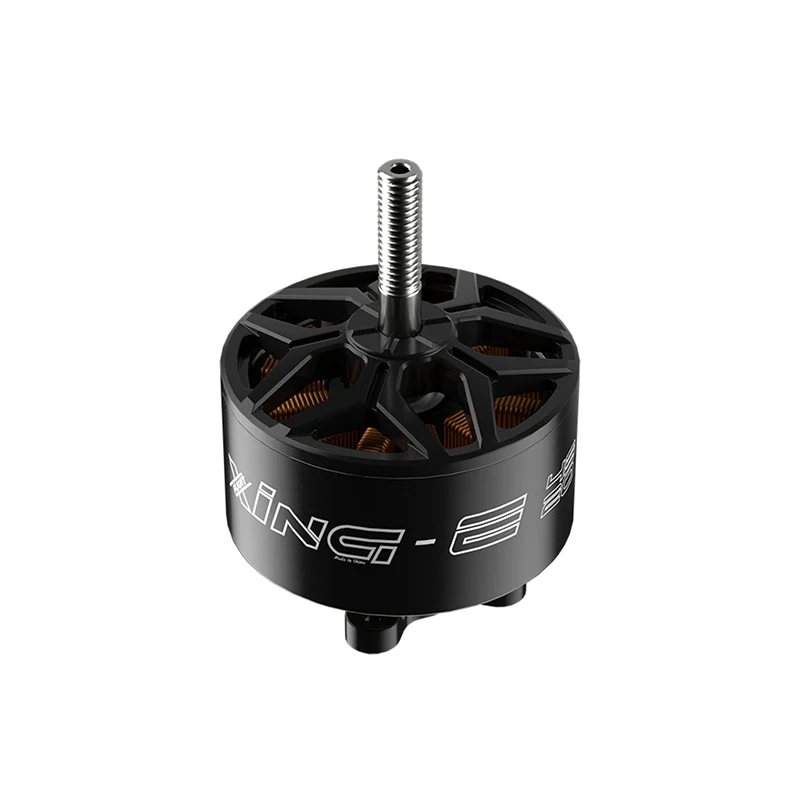

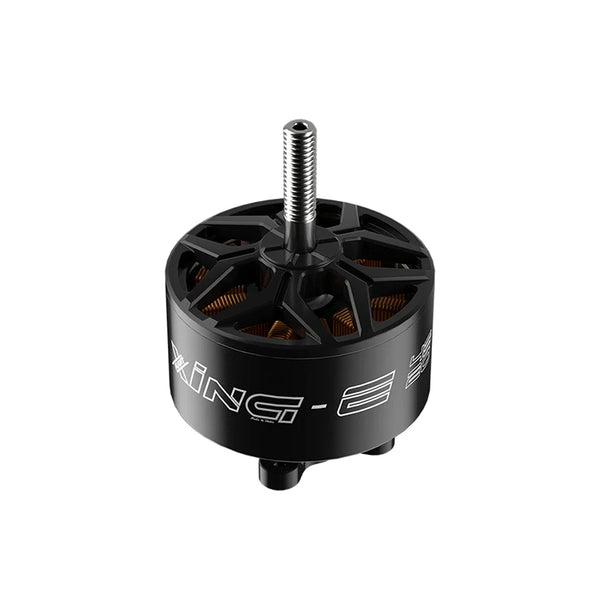

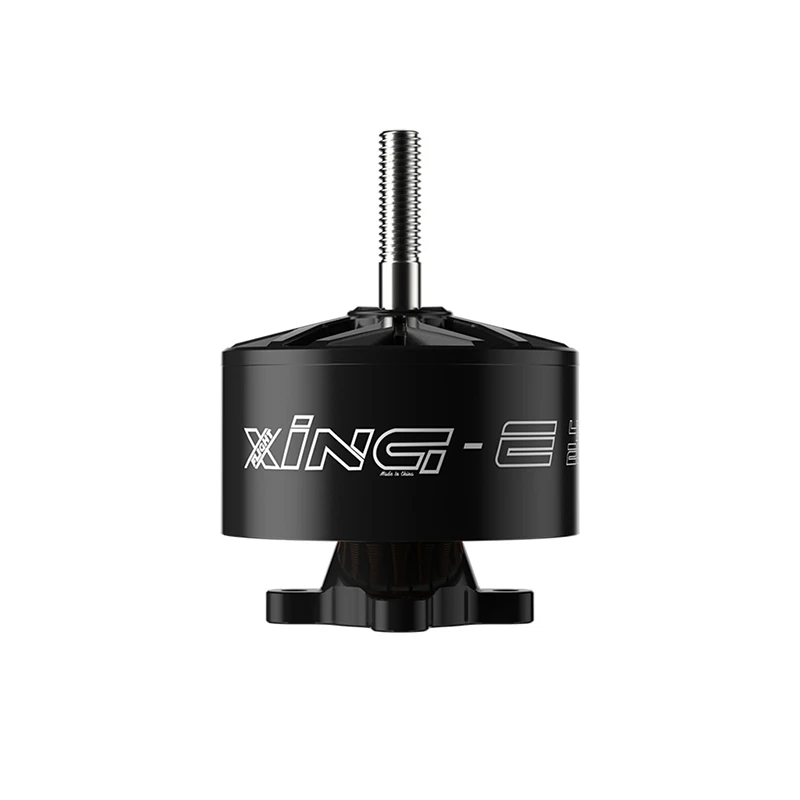

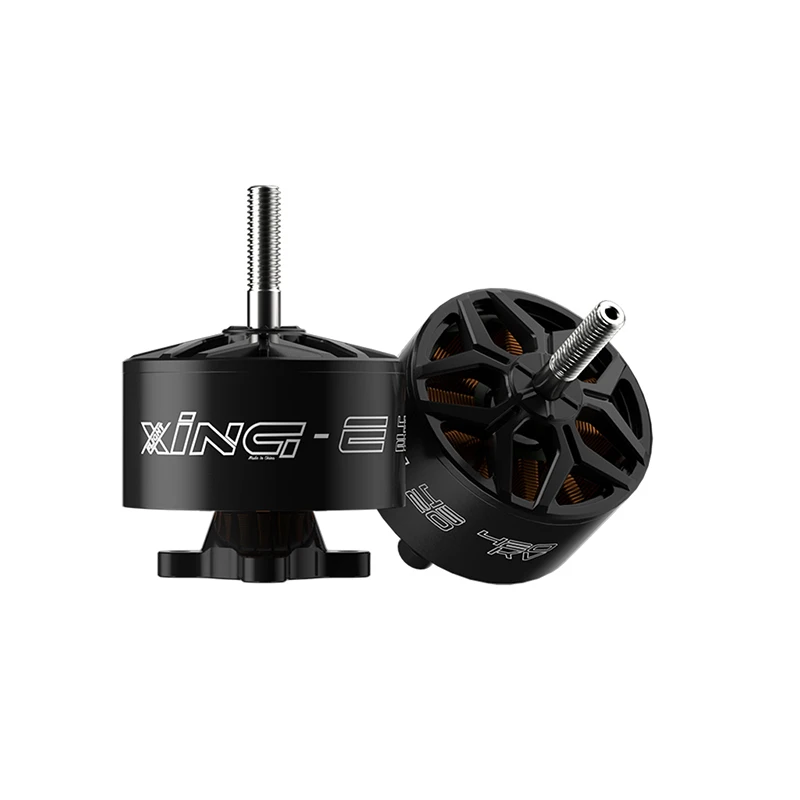

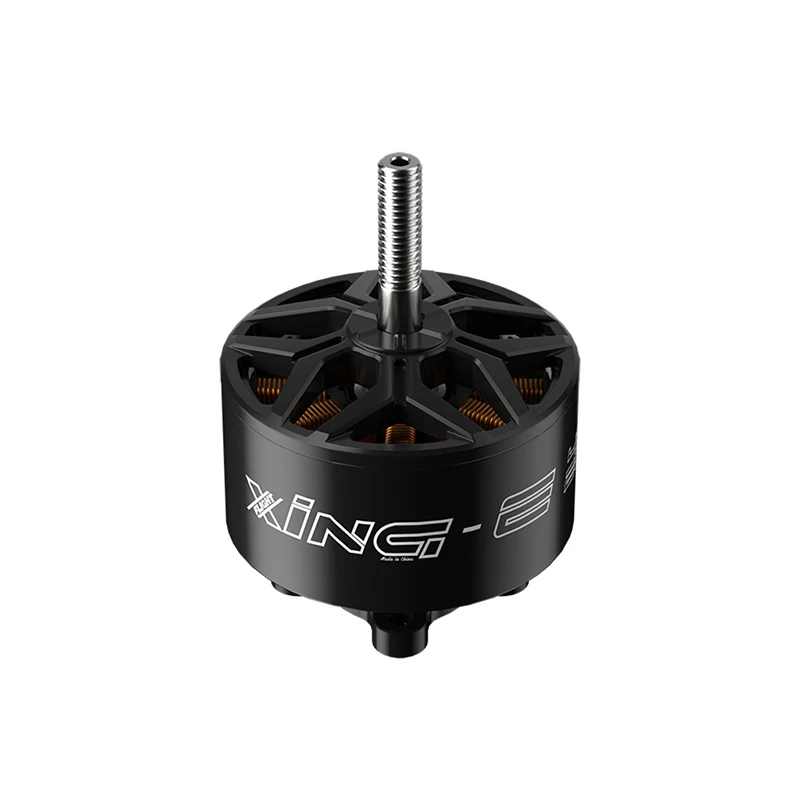

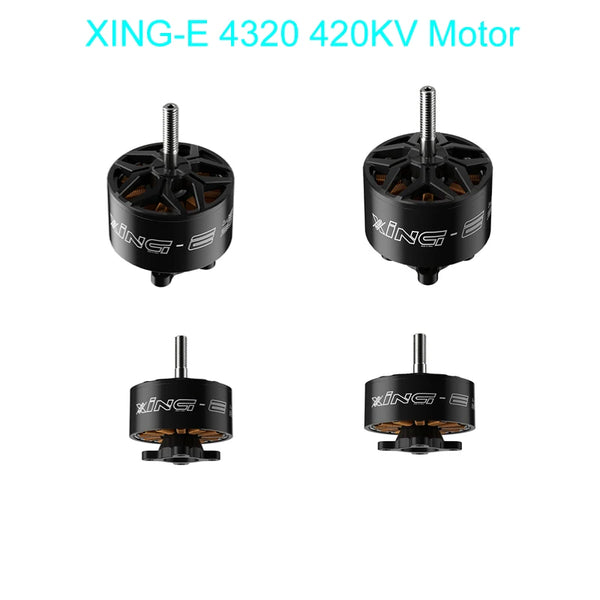

iFlight XING-E 4320 420KV Motor High-performance Motor for XL15 For X class Quadcopters Drone

Description

XINGE 4320 420KV black motor is a high-performance motor engineered for reliability and stable power. Designed specifically for the upcoming XL15, it's the ideal choice for professional Xclass quadcopters.

Specifications

Model: XING-E 4320 Motor

KV: 420KV

Weight(including wire): 296.5g

Dimension: φ50.5*69.5mm

Interphase Resistance: 43.97mΩ

Input Volts: 8S

Peak Current: 71A

Max Watt: 2224.78W

Mounting Holes: φ30/4-M4

Rotor Specifications: Segmented Bell

Shaft Diameter: 6mm

Shaft Protruding Length: 24.9mm

Lead: 600mm/16AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Specification: φ15*φ6*5/φ13*φ6*5

Winding: Multi-strand copper winding

Packing List

1 x XING2 4320 420KV Motor

4 x M4x12 Screws

4 x M4*10 Screws

1 x M6 Flange Nut
