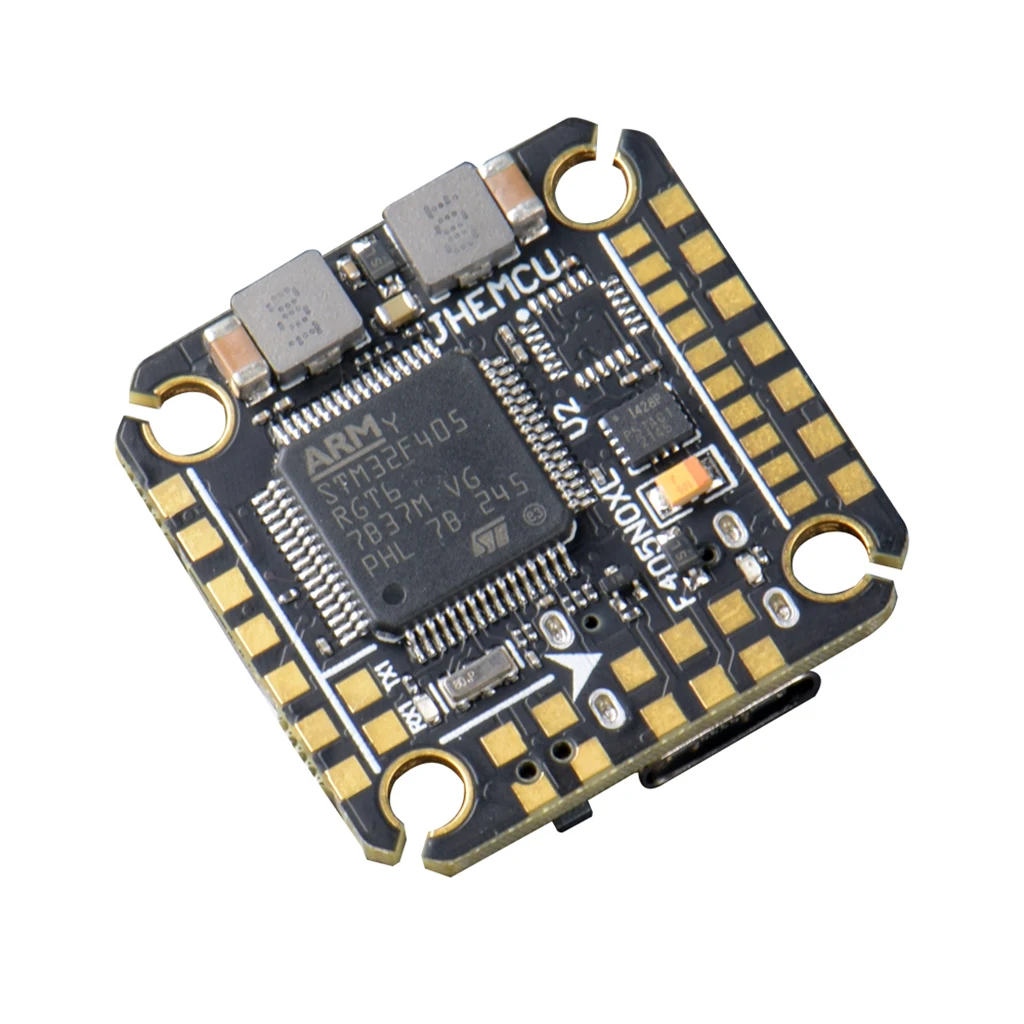

JHEMCU F405 NOXE V2 Flight Controller Baro OSD 5V 10V Dual BEC 3-6S for FPV Drone DIY Parts 20X20mm

Specification:

Specification:

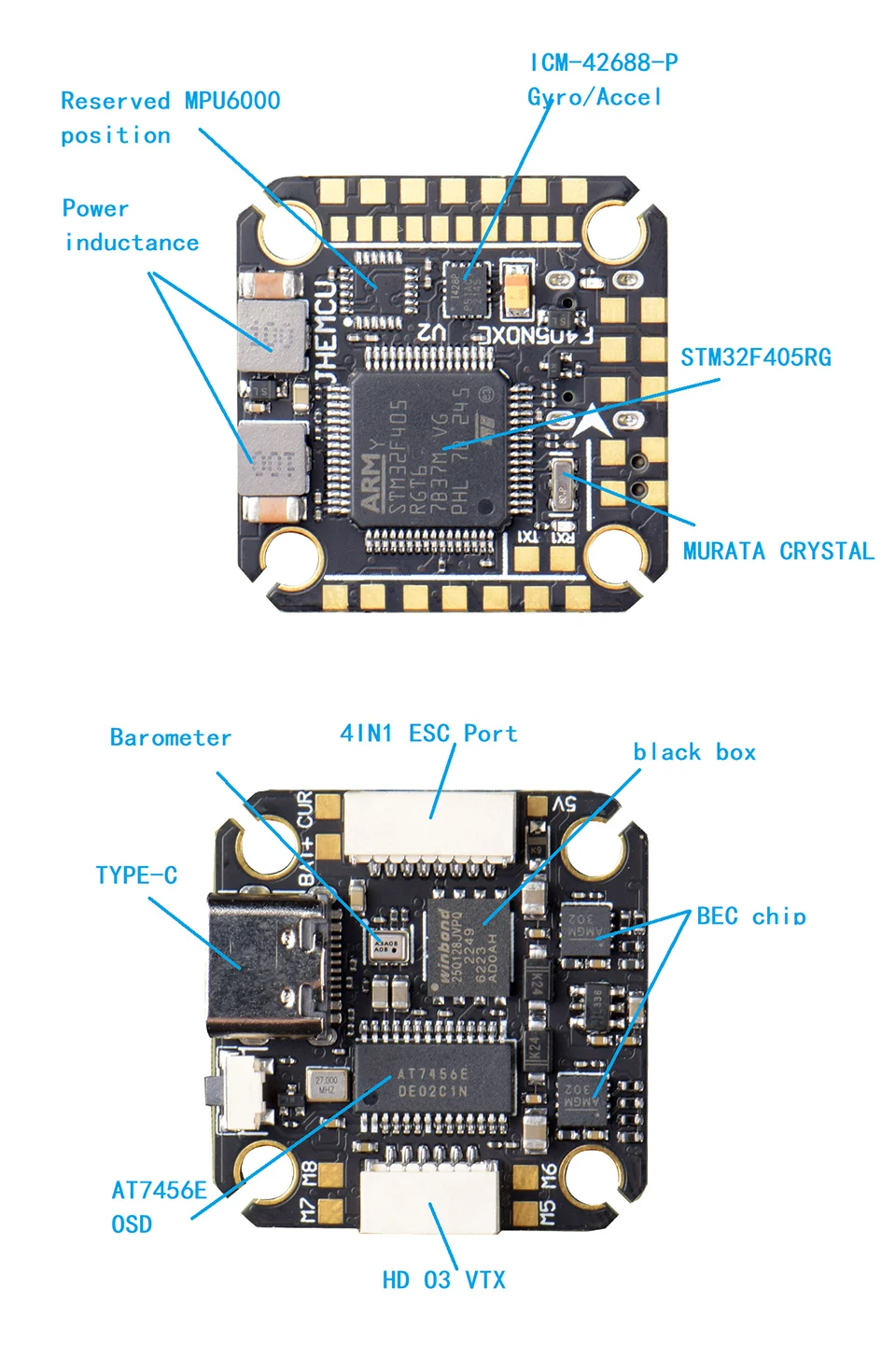

Model:  F405 NOXE V2
MCU：STM32F405/168M
IMU:  ICM-42688-P/Gyro/Accel
OSD：AT7456E
Baro：YES
Blackbox：16MB
Input voltage:  3S-6S（11.5V-26V）
5V-BEC：5V/2.5A ±0.1V
10V-BEC: 10V/2A ±0.1V
Receiver：ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
GPS:   YES
Compass：YES
HD O3：YES
USART: UART1,UART3,UART4,UART6
IIC：  IIC1
Led_Strip: YES
Buzzer:  5V
ESC signal: Dshot150，Dshot300，Dshot600
USB: Micro USB
Current port：YES
Voltage sensor：YES
DFU button：YES
FC Firmware:  betaflight_4.4.2 JHEF405PRO.HEX
Size:  27*27MM
Mounting Hole: 20*20*3MM
Weight:  4.6g
