JMT 8 sets 350KV Brushless Disk Motor High Thrust W/ Mount + 40A ESC for 3-6s Octacopter Multi Rotor F05423-B

JMT

Sale price $217.90 Regular price $283.27

Shipping calculated at checkout.

8sets 350KV Brushless Disk Motor High Thrust W/ Mount + JMT 40A ESC for 3-6s Octacopter Multi Rotor

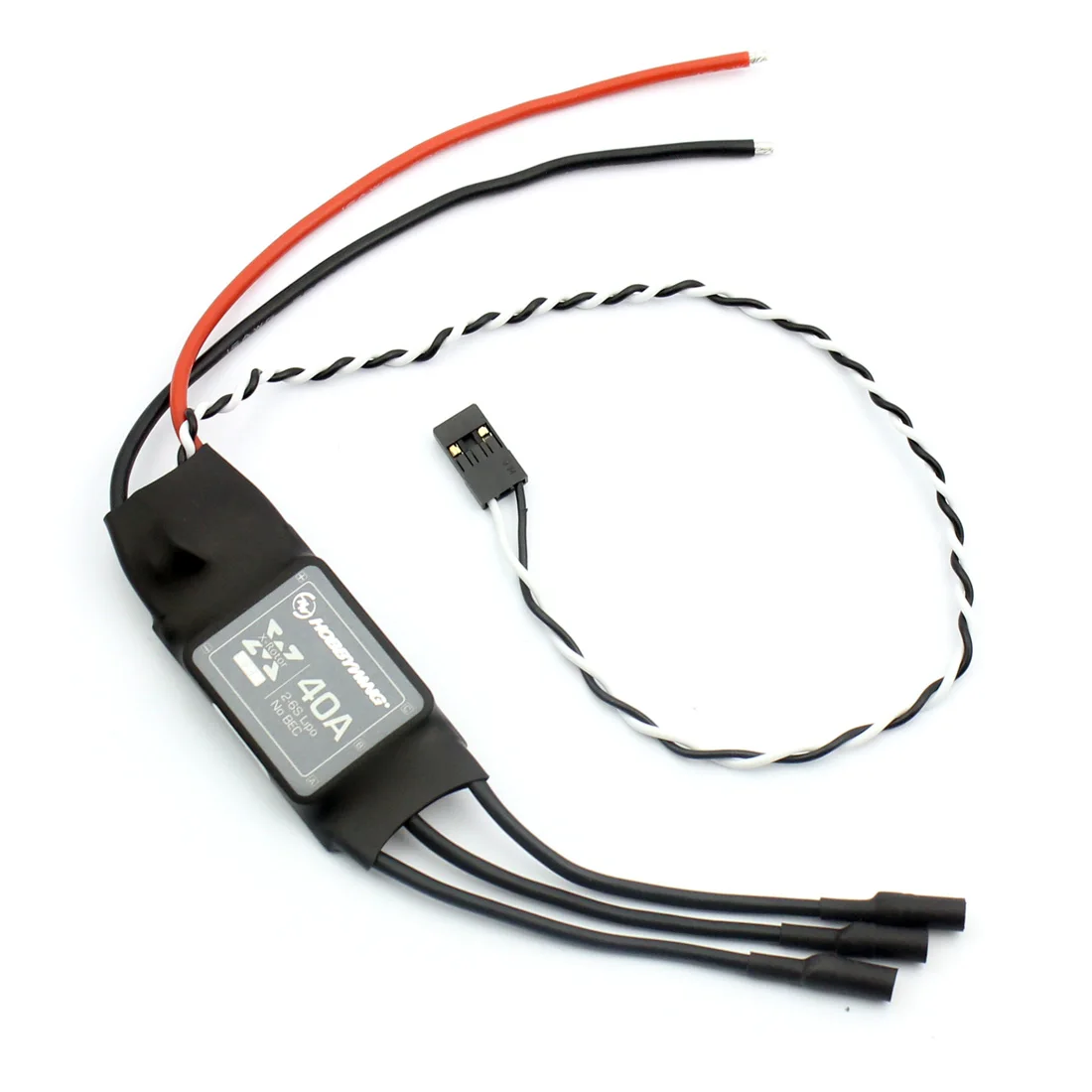

 Hobbywing XRotor 40A ESC X 8

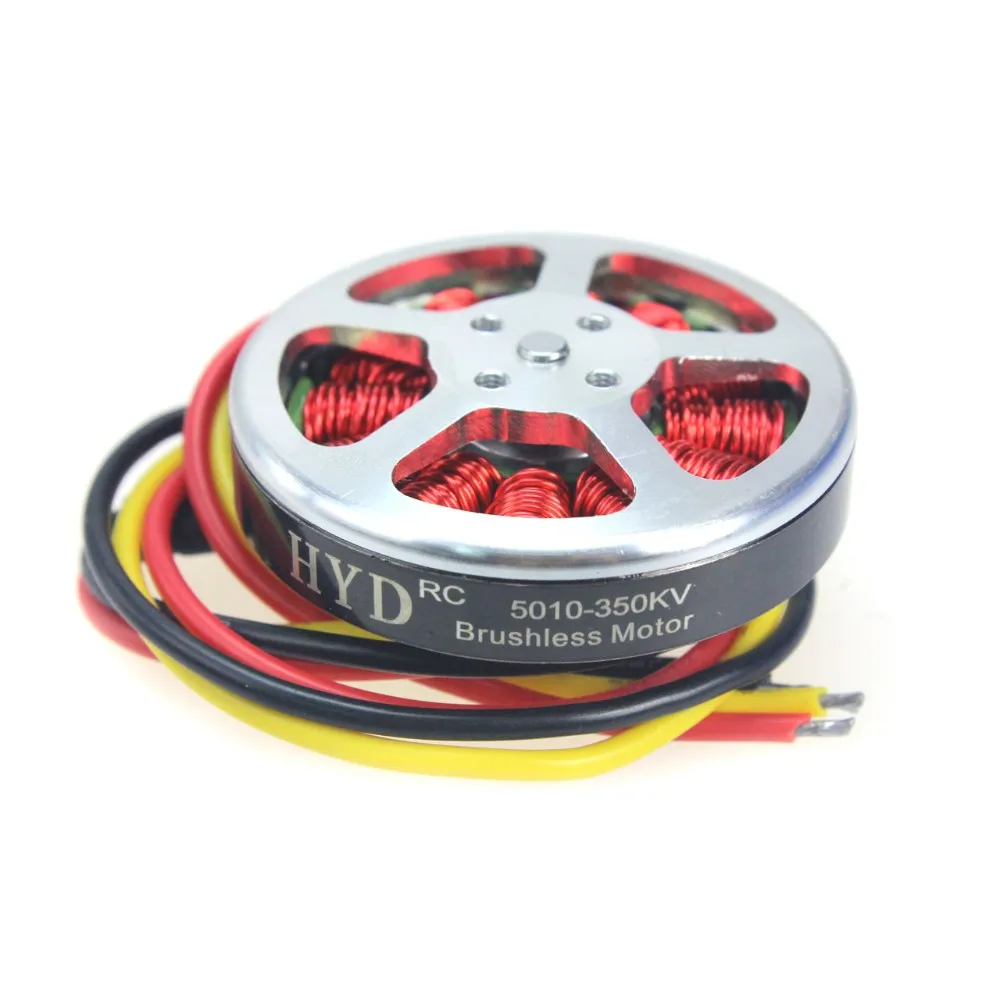

350KV Brushless Disk Motor X  8

ESC Controller Board X 1 (gift)



F05423-B(4)
F05423-B(0)







1, the use of a hidden motor shaft design, more effective protection of the motor shaft.
2, the use of a new type of propeller design, performance is more stable, demolition is more convenient.
3, the use of the 0.2mm stator, the load temperature lower, increase in efficiency.
Excellent workmanship, quality assurance, energy saving high efficiency




KV:350 KV
Shaft diameters: 4 mm
Weight:about 105 g (with leads)

This ESC With the English instruction.

  • Before producing, the manufacturer have set up the program, the ESC do not need additional program.



1 Specification

1.1 Output: Continuous 40A, Burst 60A up to 10 Secs.

1.2 Input Voltage:Pentium-40A:2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.

1.3 BEC:Pentium-40A: 3A / 5V (Switch mode).

1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)

1.5 Size: 55mm (L) * 28mm (W) * 12mm (H).

1.6 Weight: Pentium-40A: 35g.

Note: The old version Pentium-40Auses built-in linear mode BEC, but the new version uses switch mode BEC to enhance the output ability.


2Features:

2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.

2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

2.3 Programmable Items:Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: resetall the programmable items totheir default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

3 Advantages

3.1Military standard capacitorof extreme low resistance increases the ability of prevention of unwanted RF noise during flying. 3.2Extreme low resistancePCB is usedatthe power output section, the whole ESC hassuper current endurance capability. 3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability. 3.4 Compatible with Hobbywing's.
