BETAFPV Air Image Transmission Simulation 5.8G FPV 1S Crossover Mini Racing Event Image Transmission

BETAFPV Air Image Transmission Simulation 5.8G FPV 1S Crossover Mini Racing Event Image Transmission

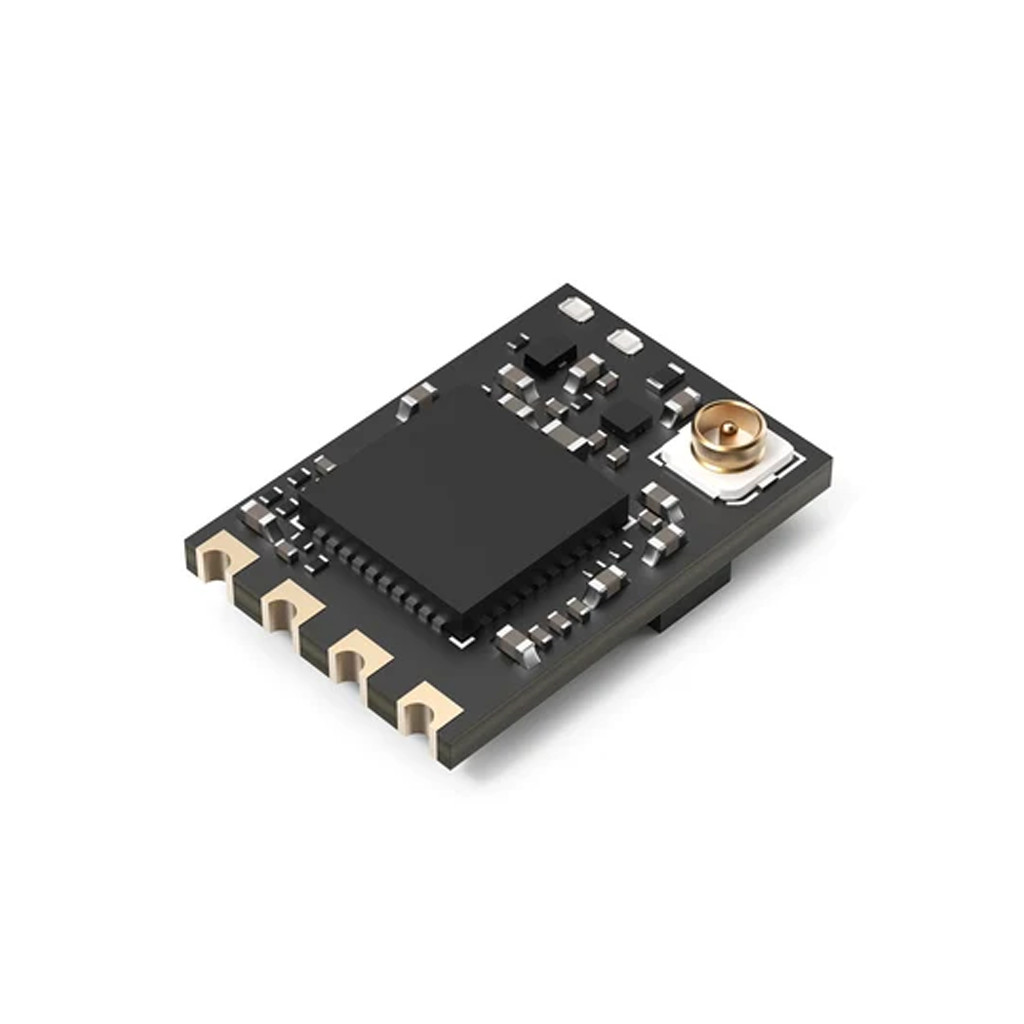

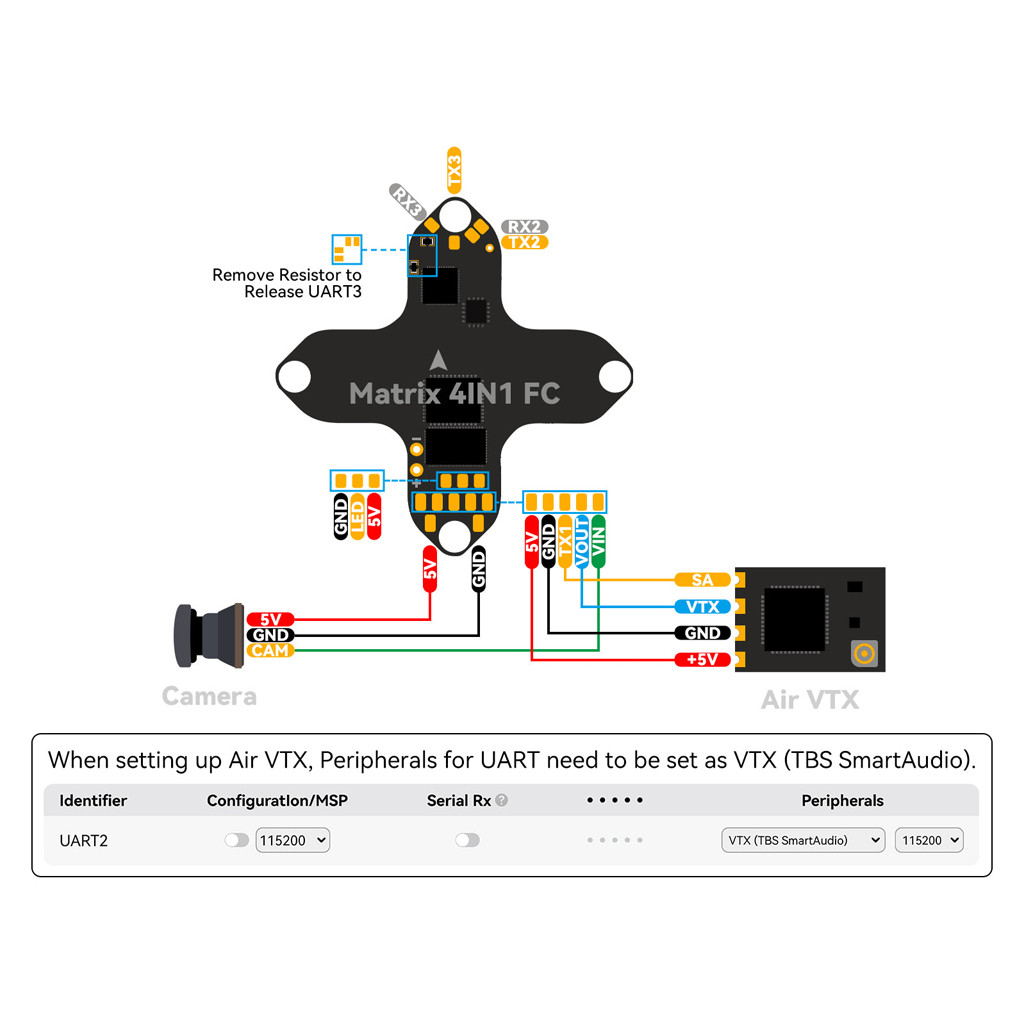

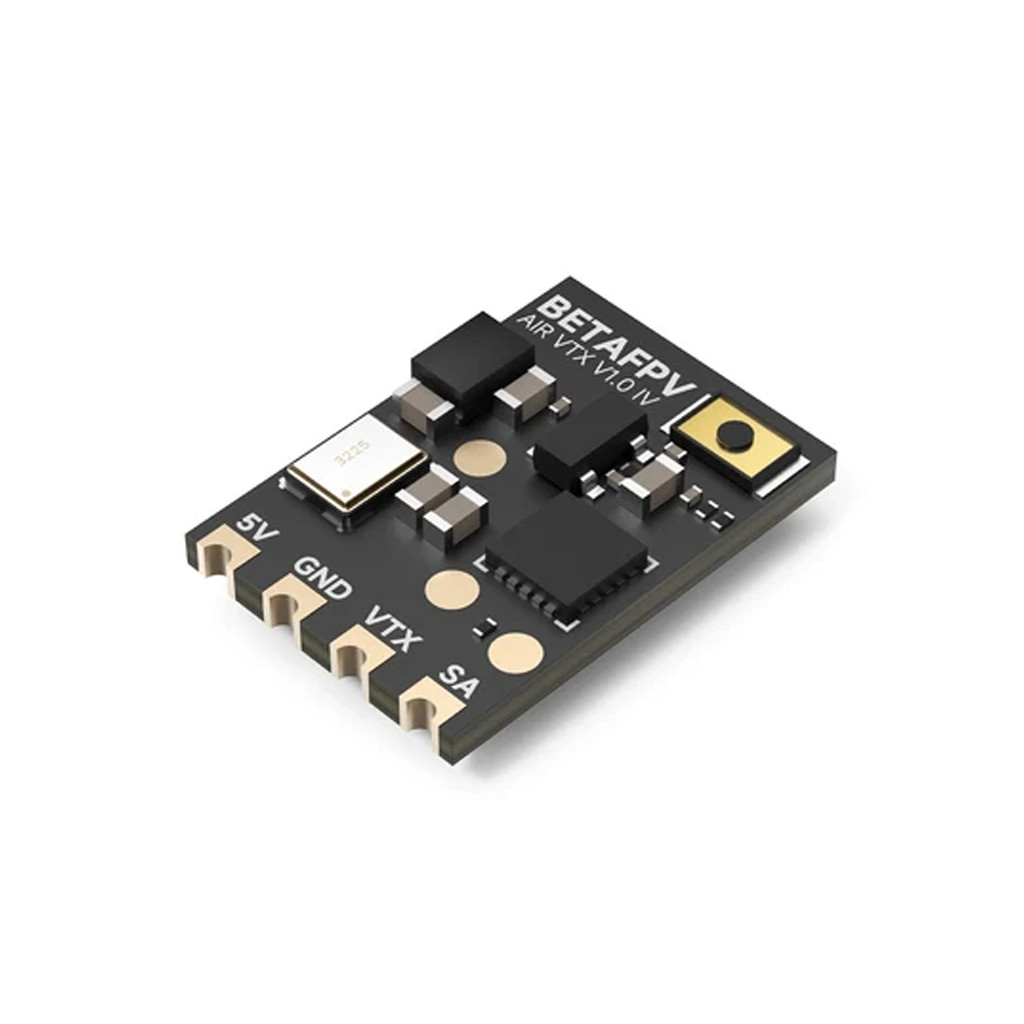

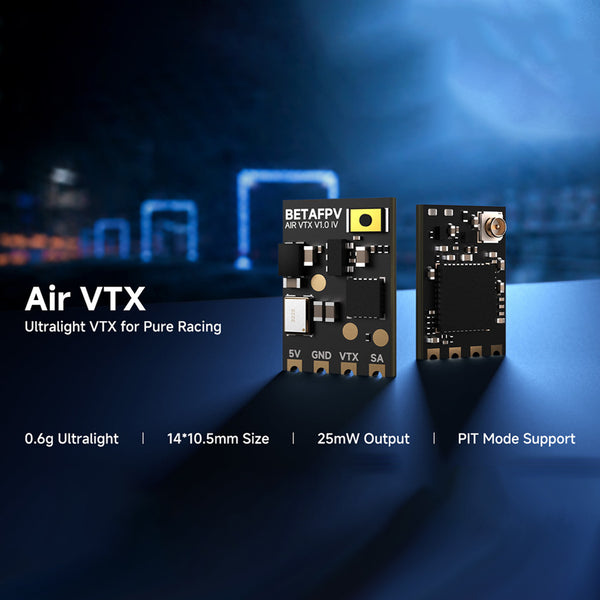

The Air VTX is an analog video transmitter built for pilots who demand simplicity, weight savings, and race-ready performance. Weighing just 0.6g and measuring only 14×10.5mm, it delivers clean 25mW output with PIT mode support. Pair it with the Matrix 1S 4IN1 FC for greater flexibility and a cleaner custom build.

=============

Specifications

Operating voltage: 5V

Operating current: 150 mA (25mW)

VTX internal size: 14*10.5mm

Antenna connector: IPEX

Output power: 25/PIT

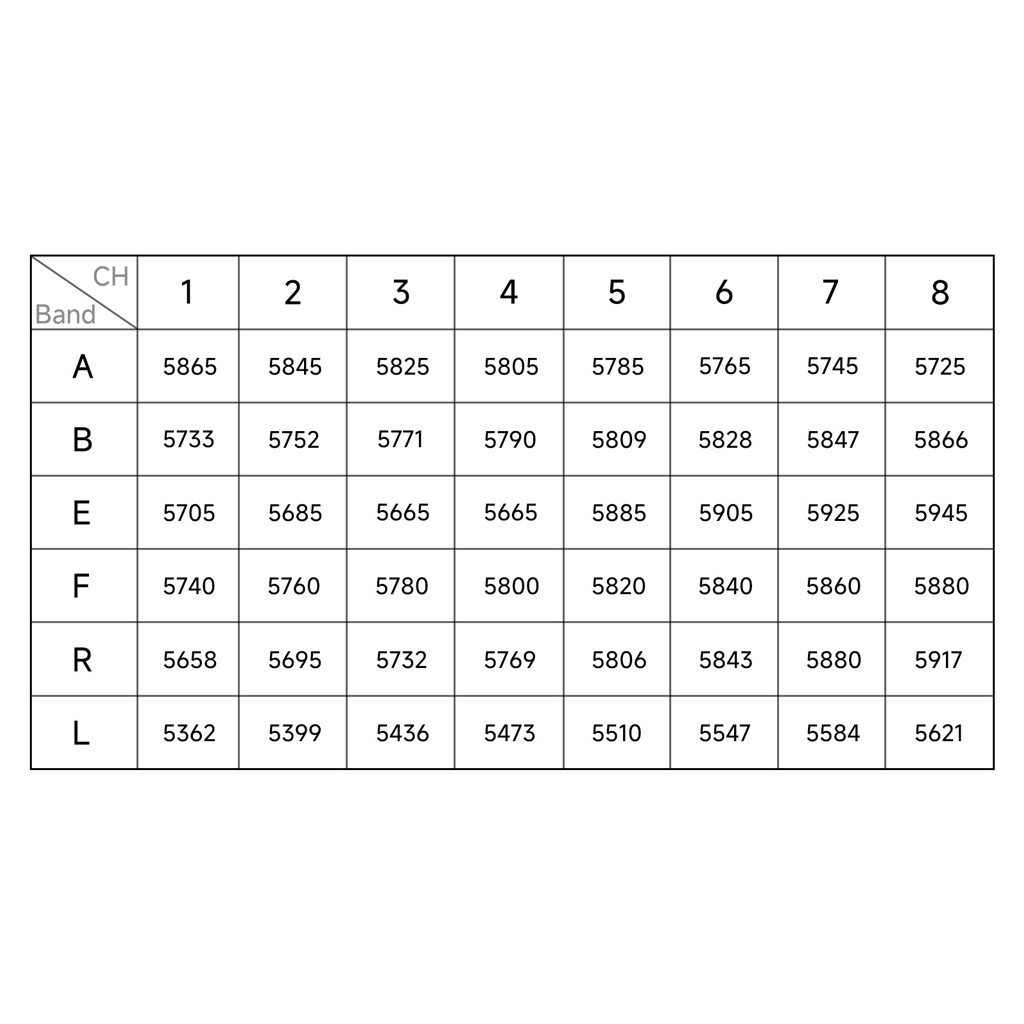

Frequency: 5.8GHz 48 channels, with Raceband: 5658-5917MHz

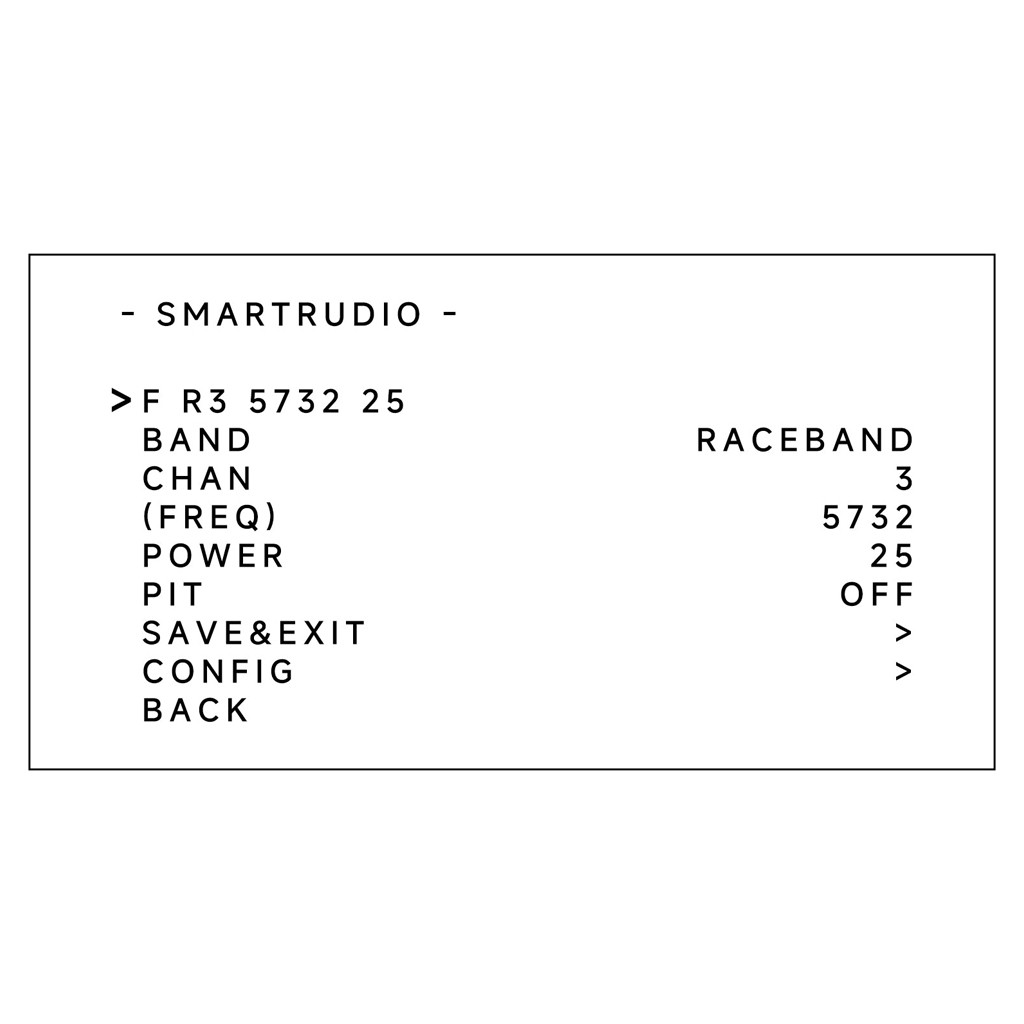

Channel SEL: SmartAudio 2.0

Video format: PAL/NTSC

Modulation type: FM

Frequency control: PLL

All harmonic: Max -50dBm

Frequency stability: ±100KHz (Typ.)

Frequency precision: ±200KHz (Typ.)

Channel carrier error: ±1.5dB

Antenna port: 50 Ω

Operating temperature: -10℃~+80℃

Weight: 0.6g (antenna excluded)

==========

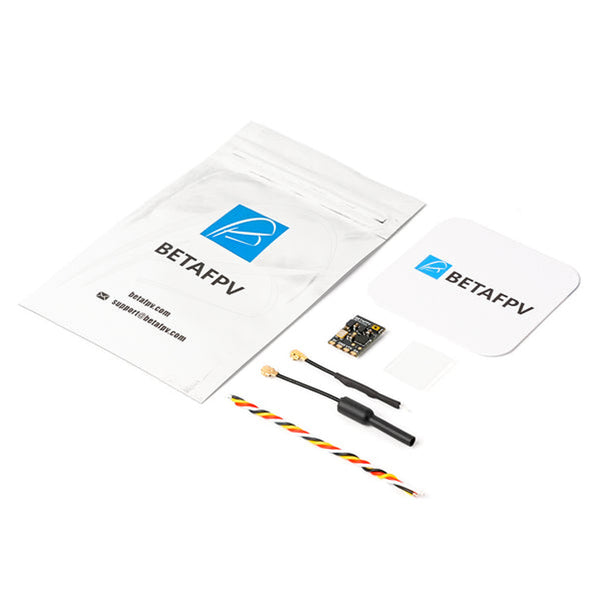

Package

1 * Air VTX

1 * Connecting Wire

1 * 5.8GHz Copper Wire

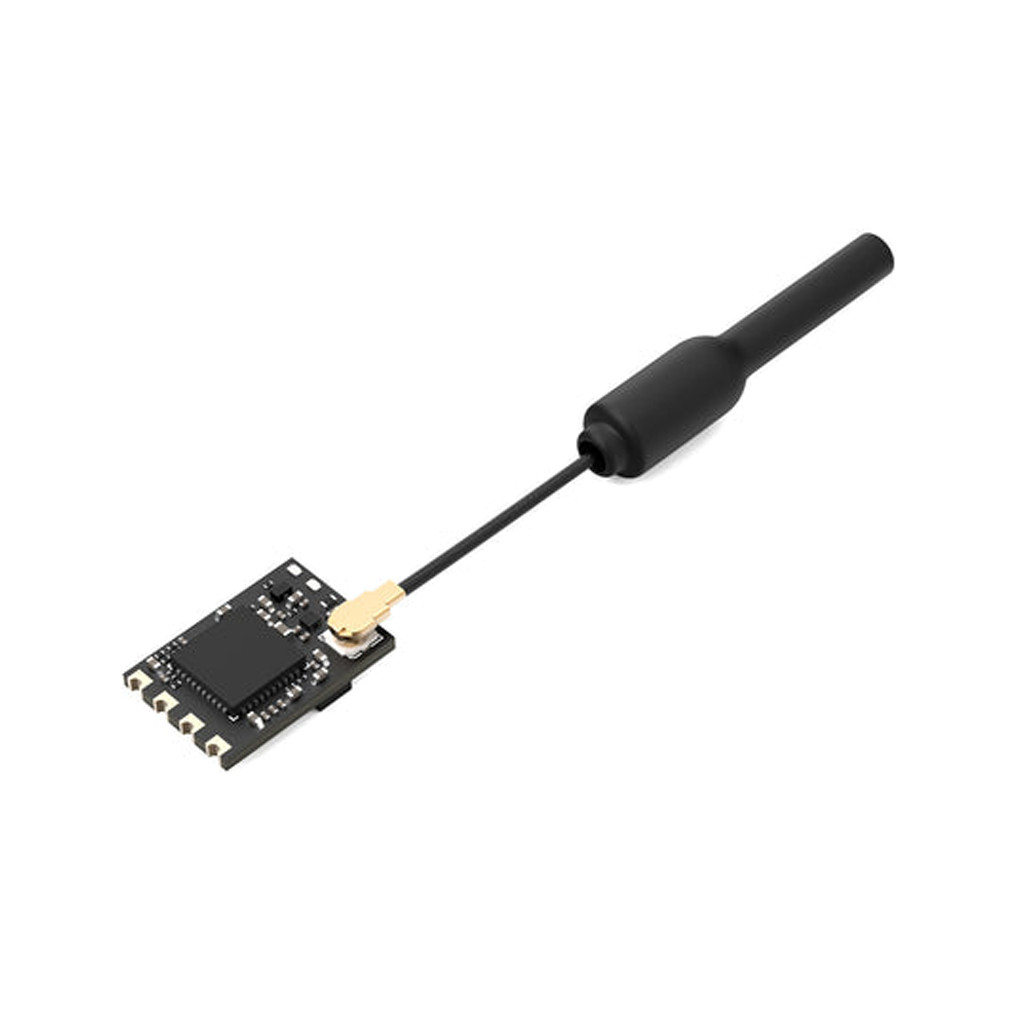

1 * 5.8GHz Whip Antenna

1 * Heat Shrink Tube
