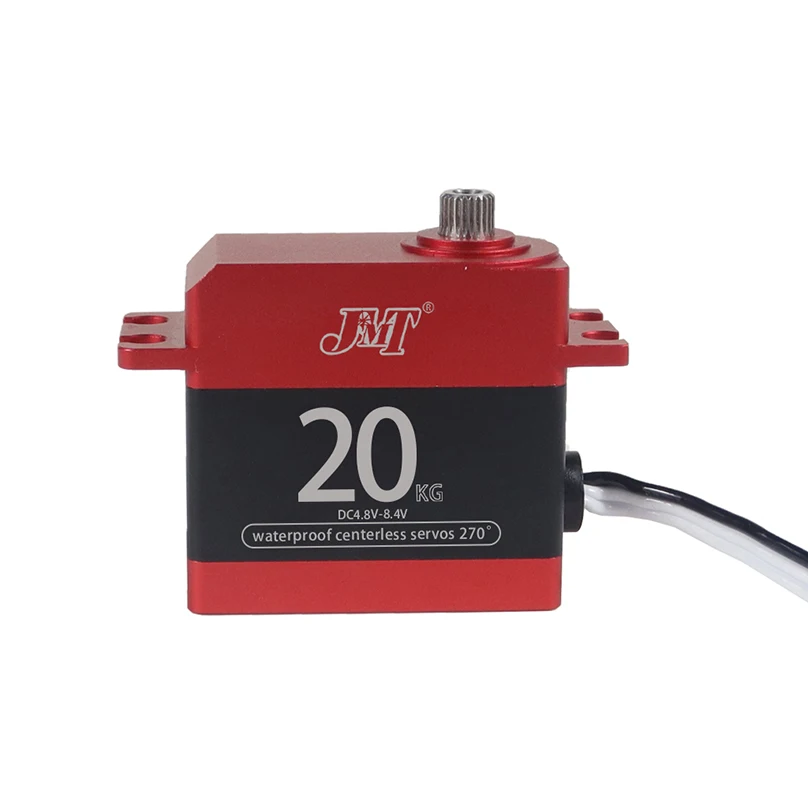

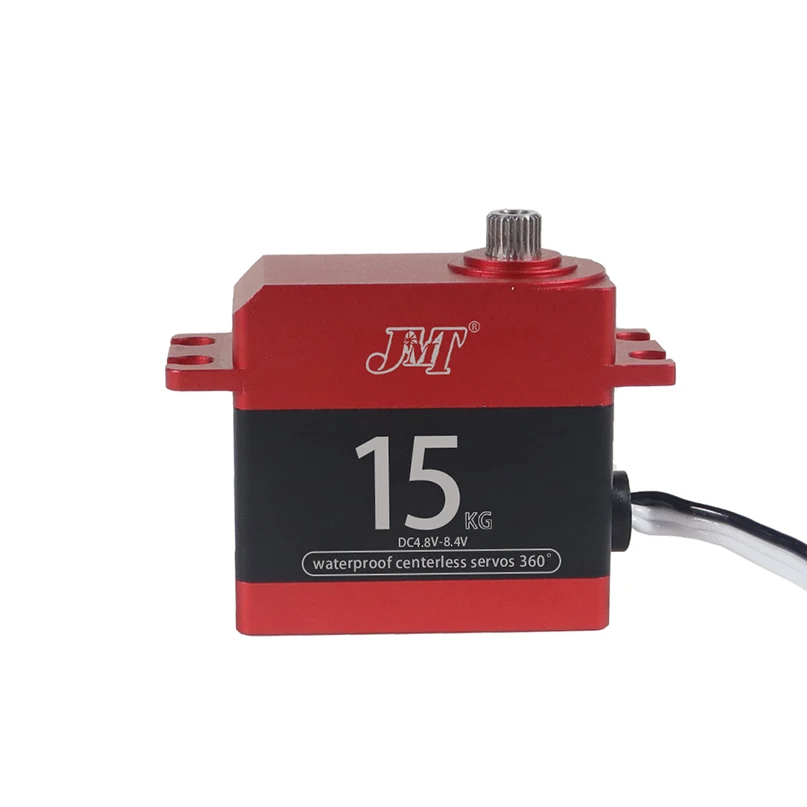

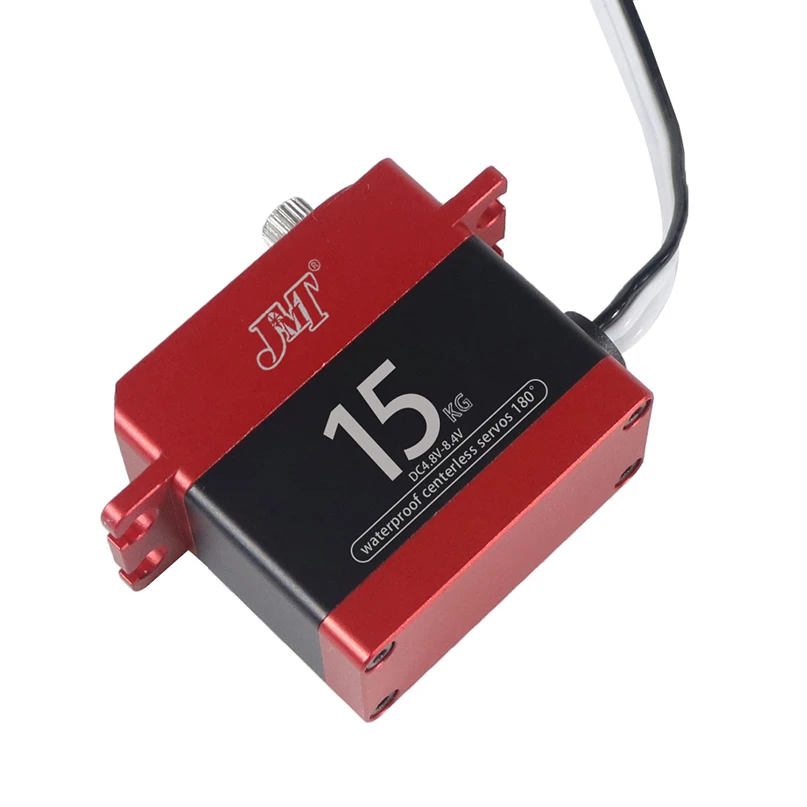

JMT Waterproof Servo 20KG 30KG 35KG 40KG 180 270 360Degree Large Torque Digital Servo Metal Gear For RC Truck 1/8 1/10 Car

JMT

Sale price $50.03 Regular price $65.04

Shipping calculated at checkout.

JMT Waterproof Servo 20KG 30KG 35KG 40KG 180 270 360Degree Large Torque Digital Servo Metal Gear For RC Truck 1/8 1/10 Car



- High precision metal gears with hard anodizing

-CNC aluminum center shell,

Control system: PWM control (1500 u-sec is the center point)

Working voltage: 4.8V~8.4V

Working Temperature: -20C°~+60C°

Torque: 4.8V /17.2kg.cm

6.0V /20.3kg.cm

Idle speed: 4.8V/0.10sec/60 degree

6.0V/0.13sec/60deg

Steering angle: 180 / 270 degrees

Idle current: 4.8V/470mA 6.0V /650mA

Charging current: 4.8V/750mA 6.0V /950mA

Dead band: 3usec

Lifetime:>15000 times without load

Travel angle: 60°±10°

Drive type: MOS drive

Motor type: core motor

Potentiometer Type: Direct Drive

Signal Amplifier Type: Digital

Size: 40.0X20.0X37.8mm

Weight: 62g (without accessories)

Ball bearing: 2BB

Gear material: metal gear

Housing material: PA66 + 40% fiber

Wire length: 260mm

Wire gauge no and plug type: 26AWG, JR plug

Brown Wire: Negative

Red wire: Positive

Orange Wire: Singal

Application: RC car, RC plane, helicopter
