High Torque 4.6KG 22G Metal Gear Digital Servo For 1/8 1/10 14 RC Car DIY Robot Arm Airplane

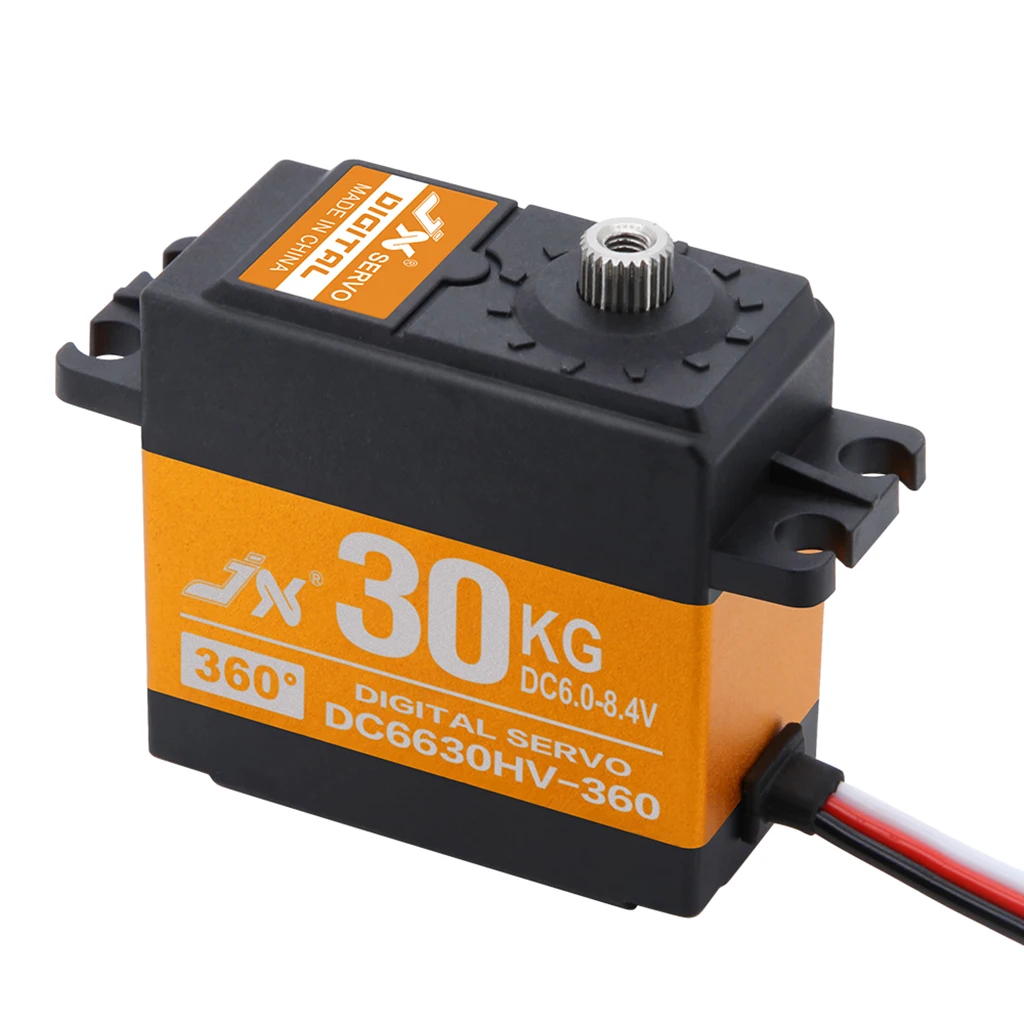

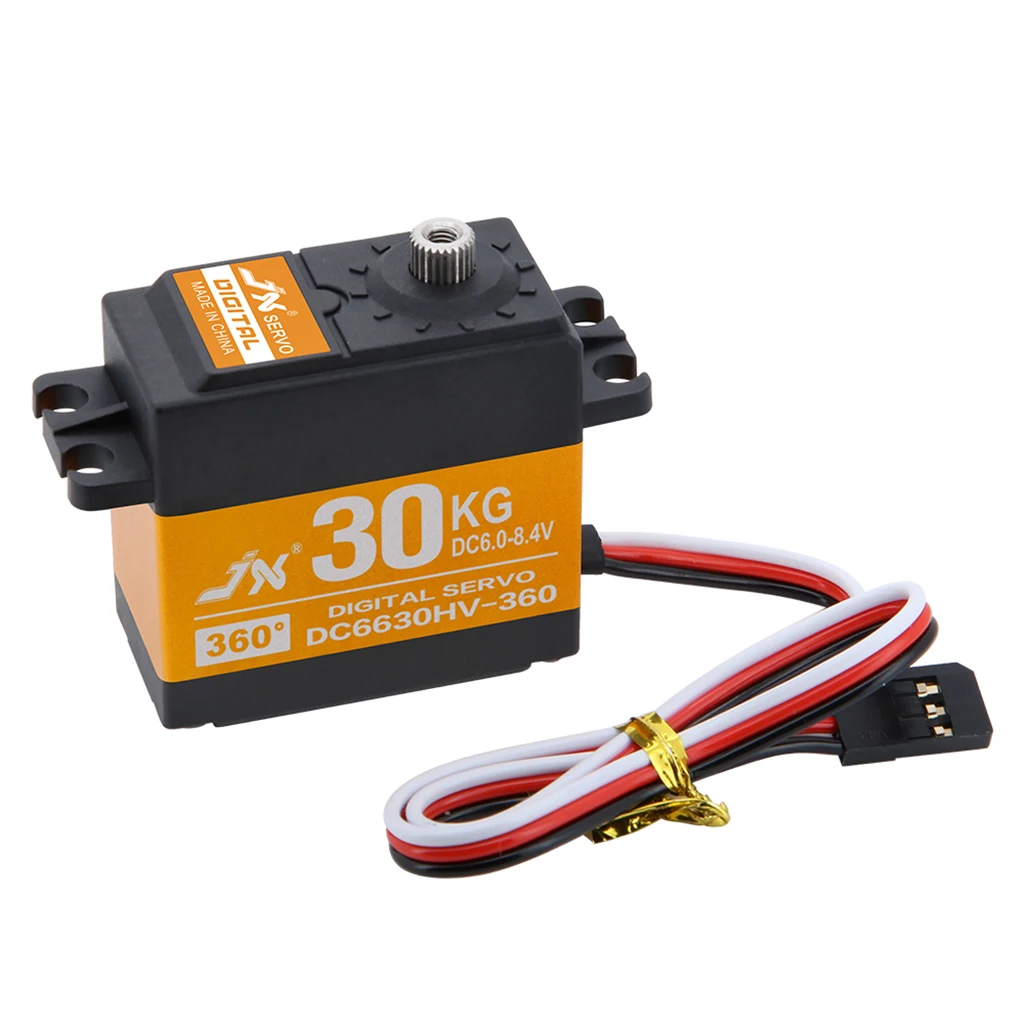

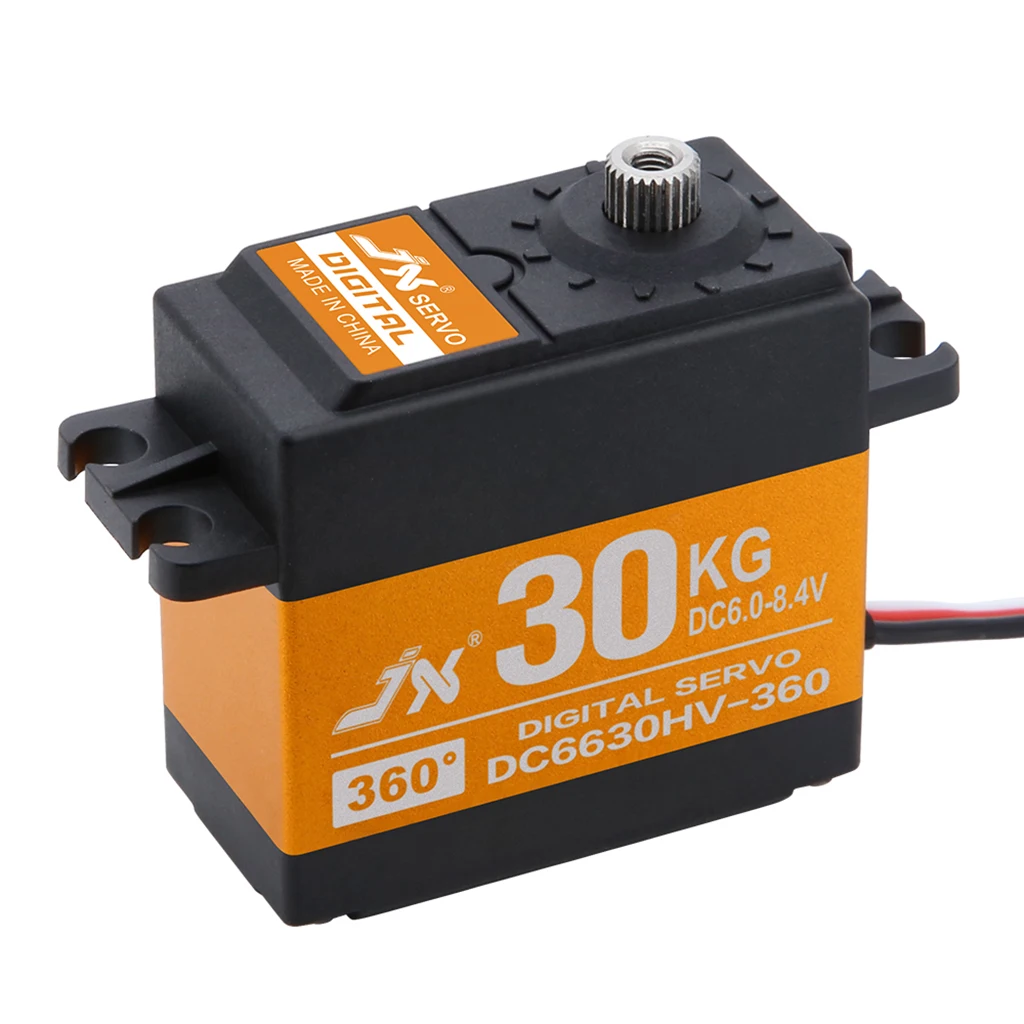

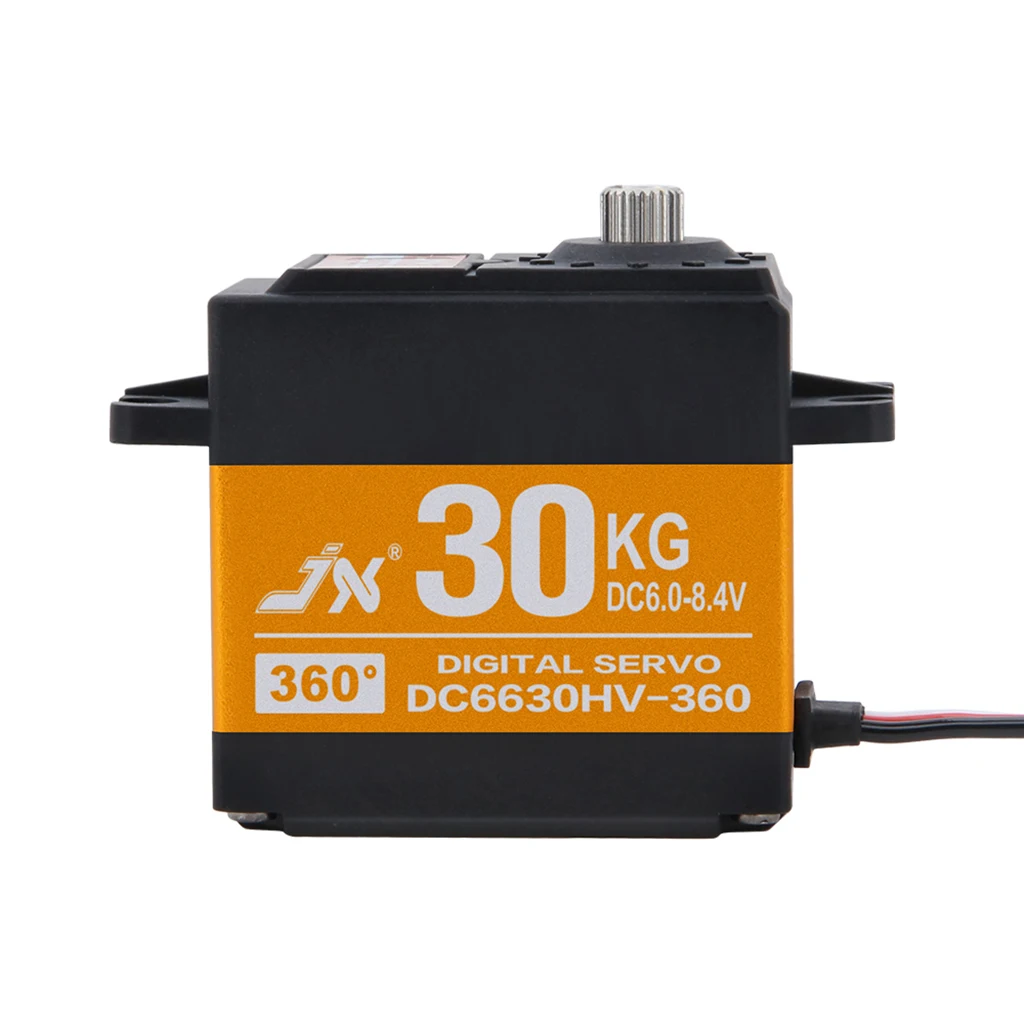

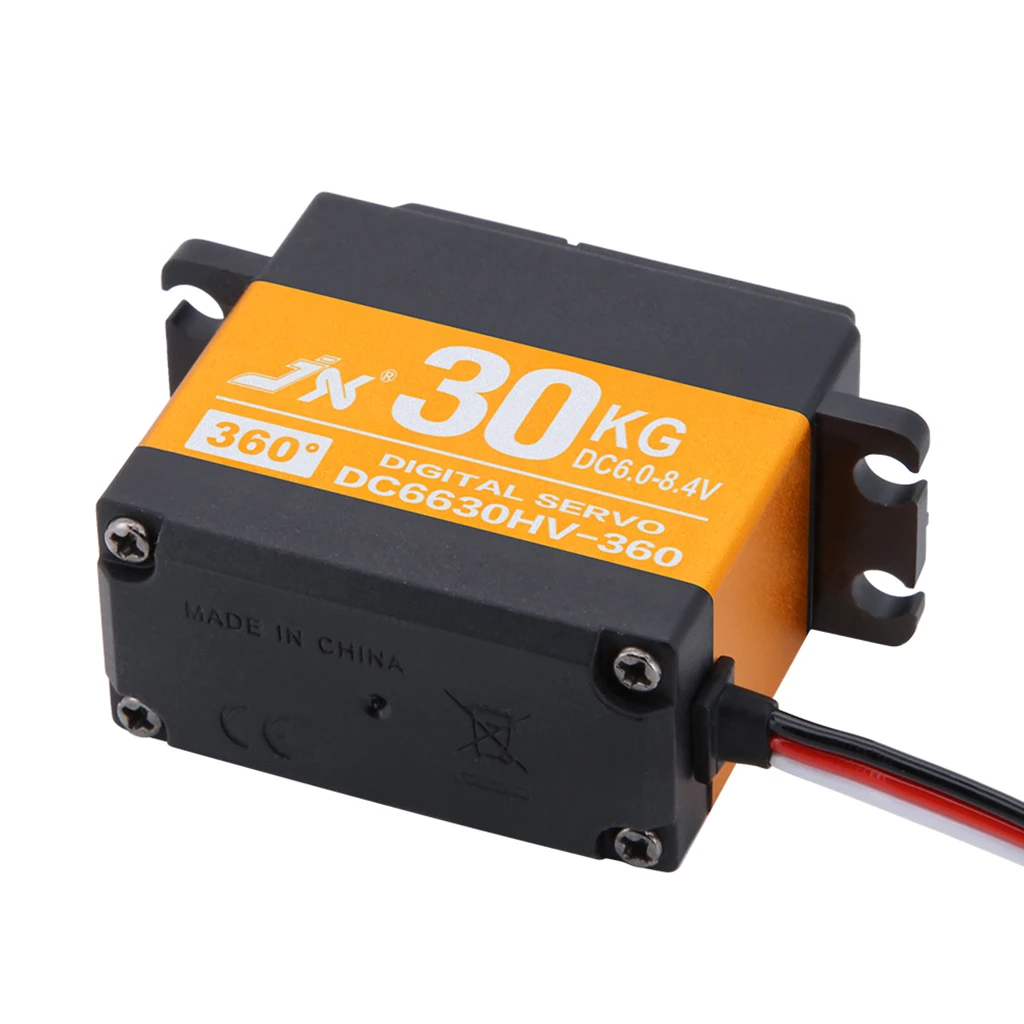

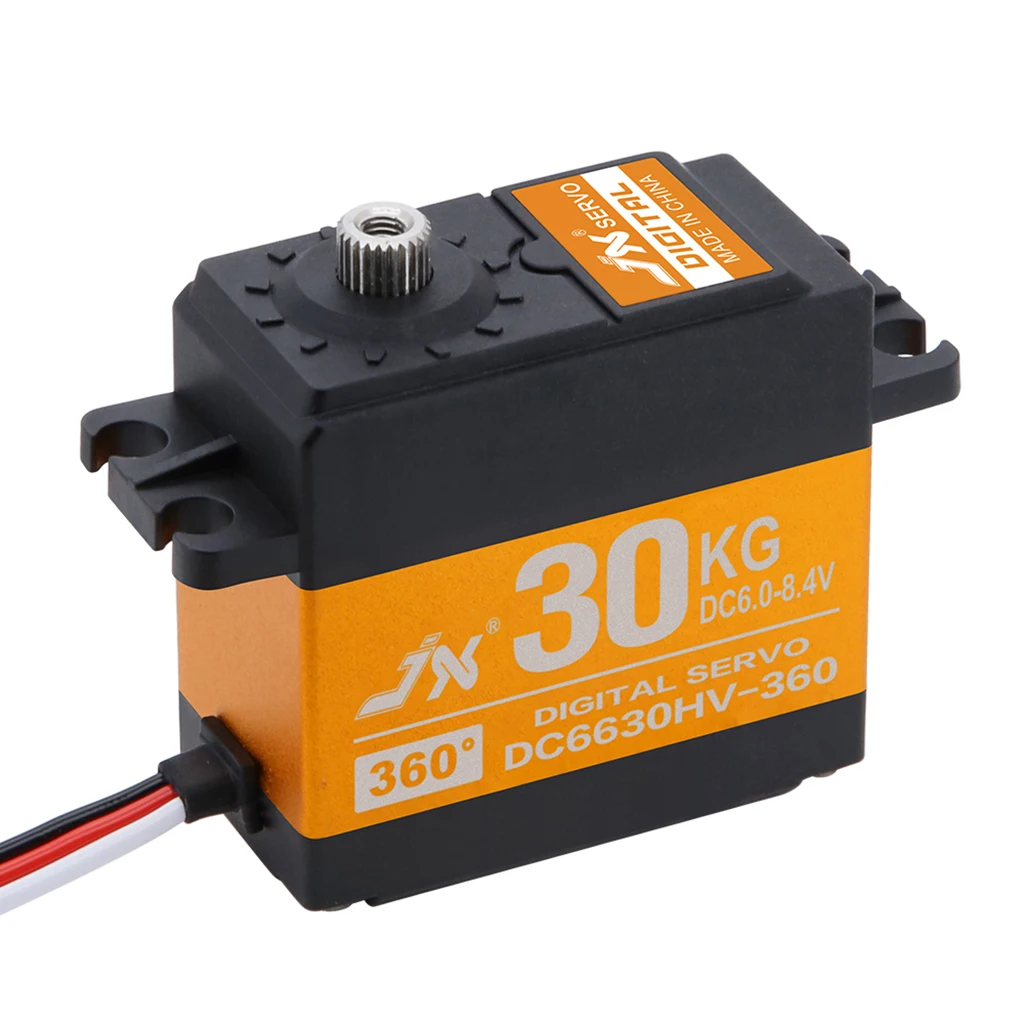

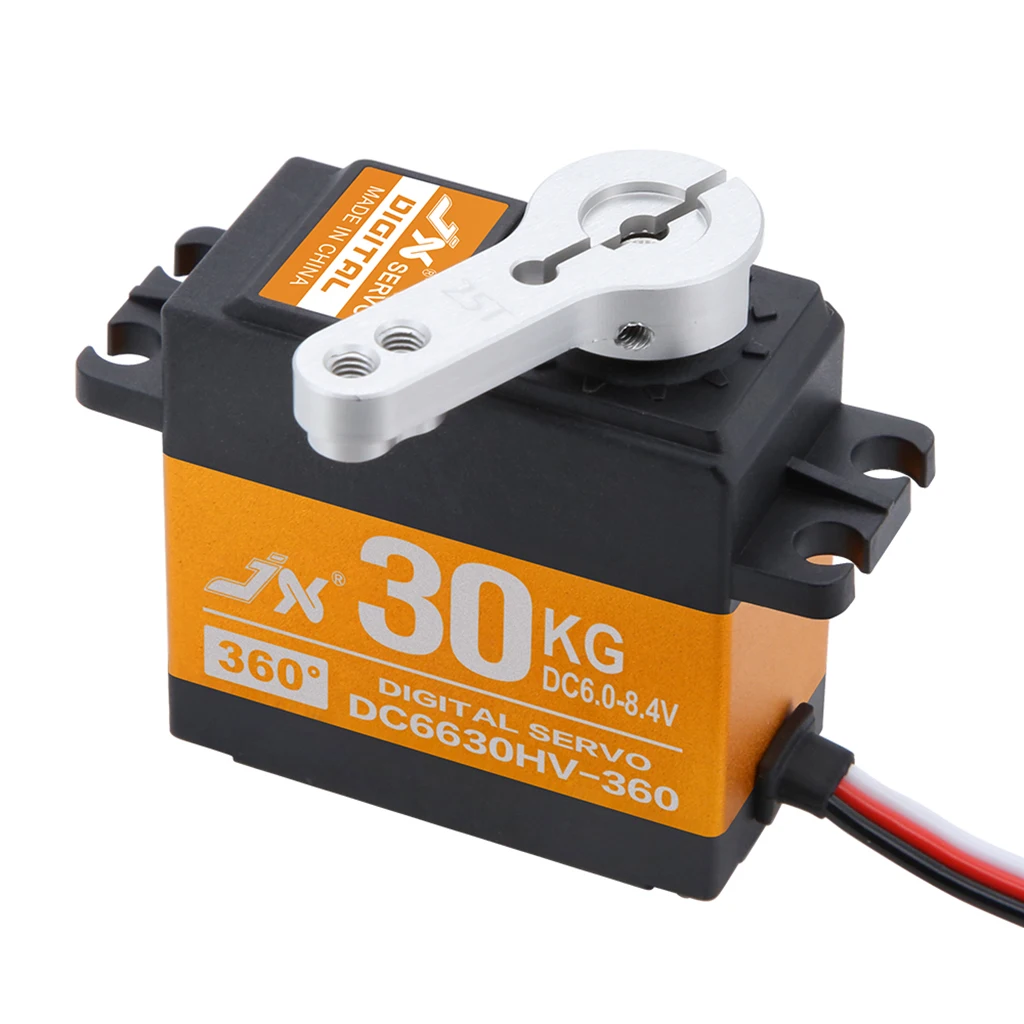

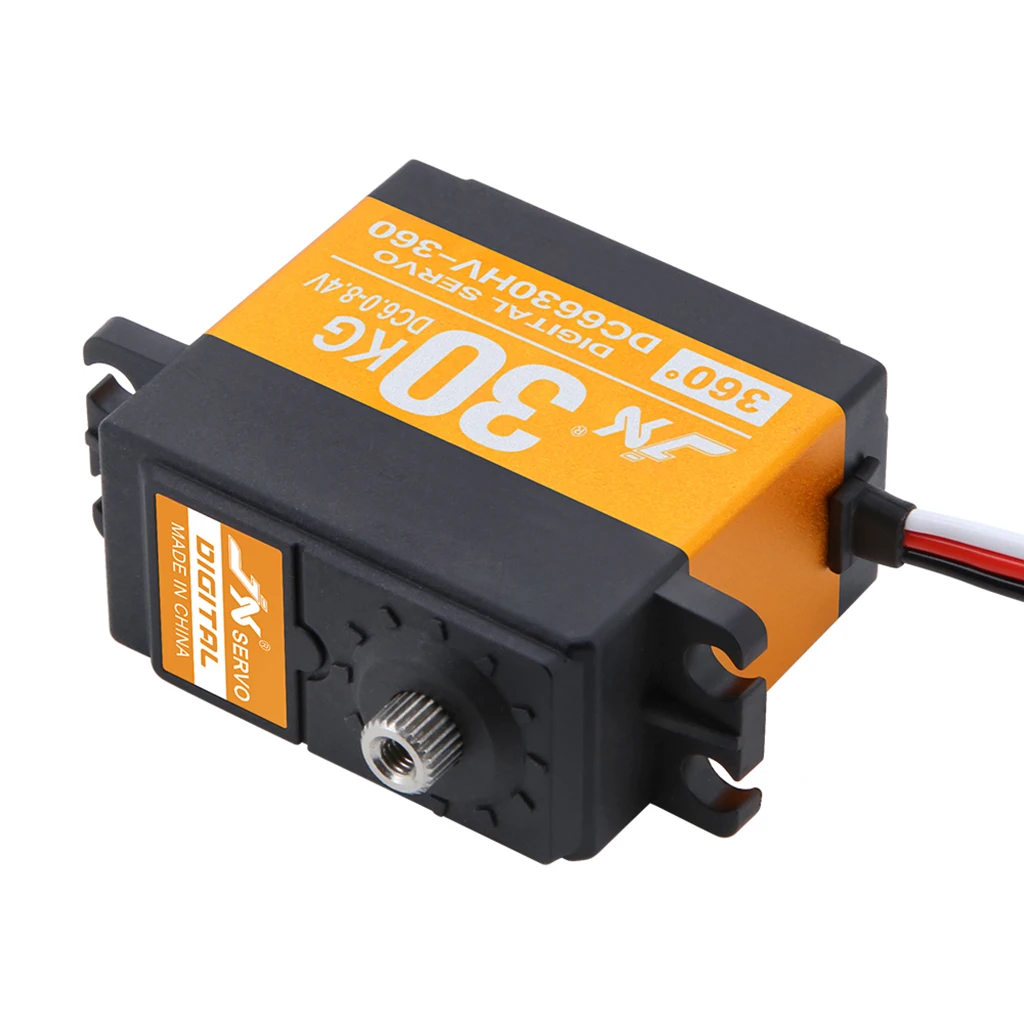

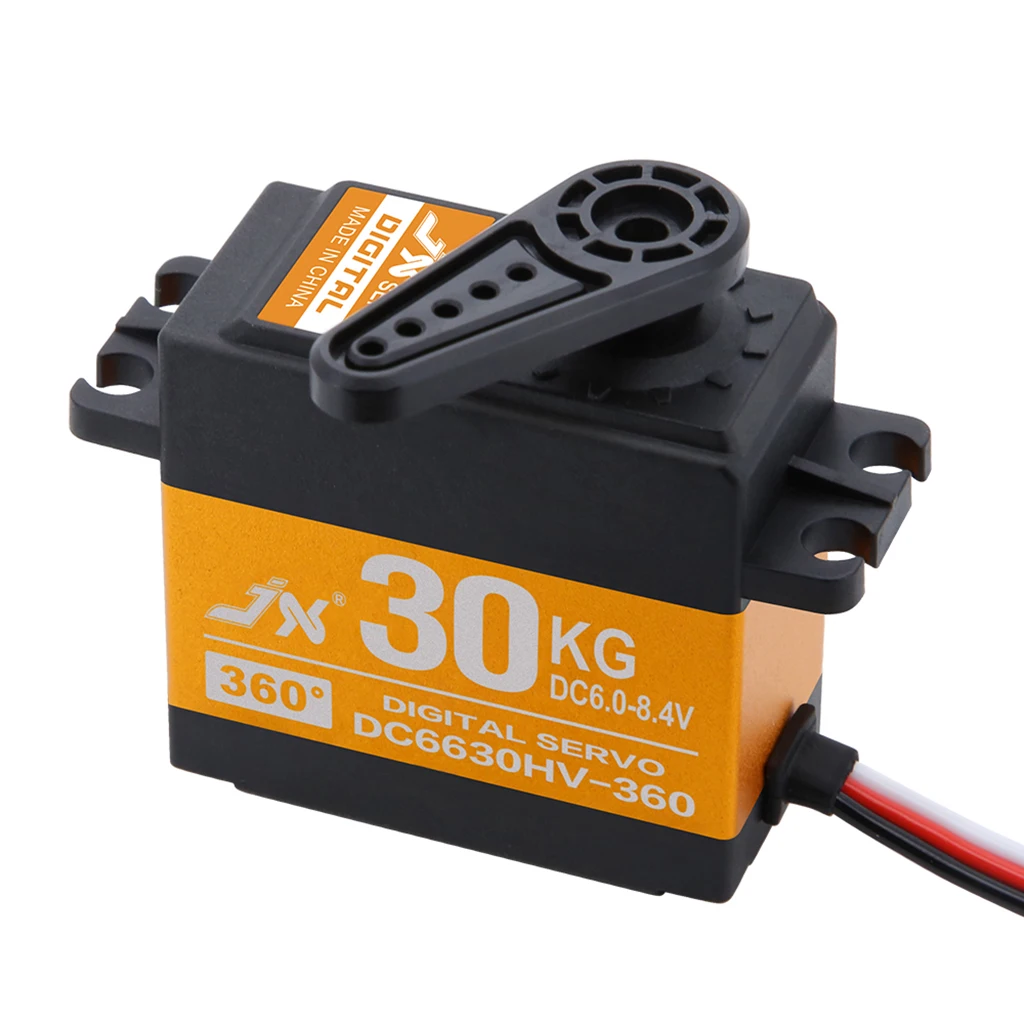

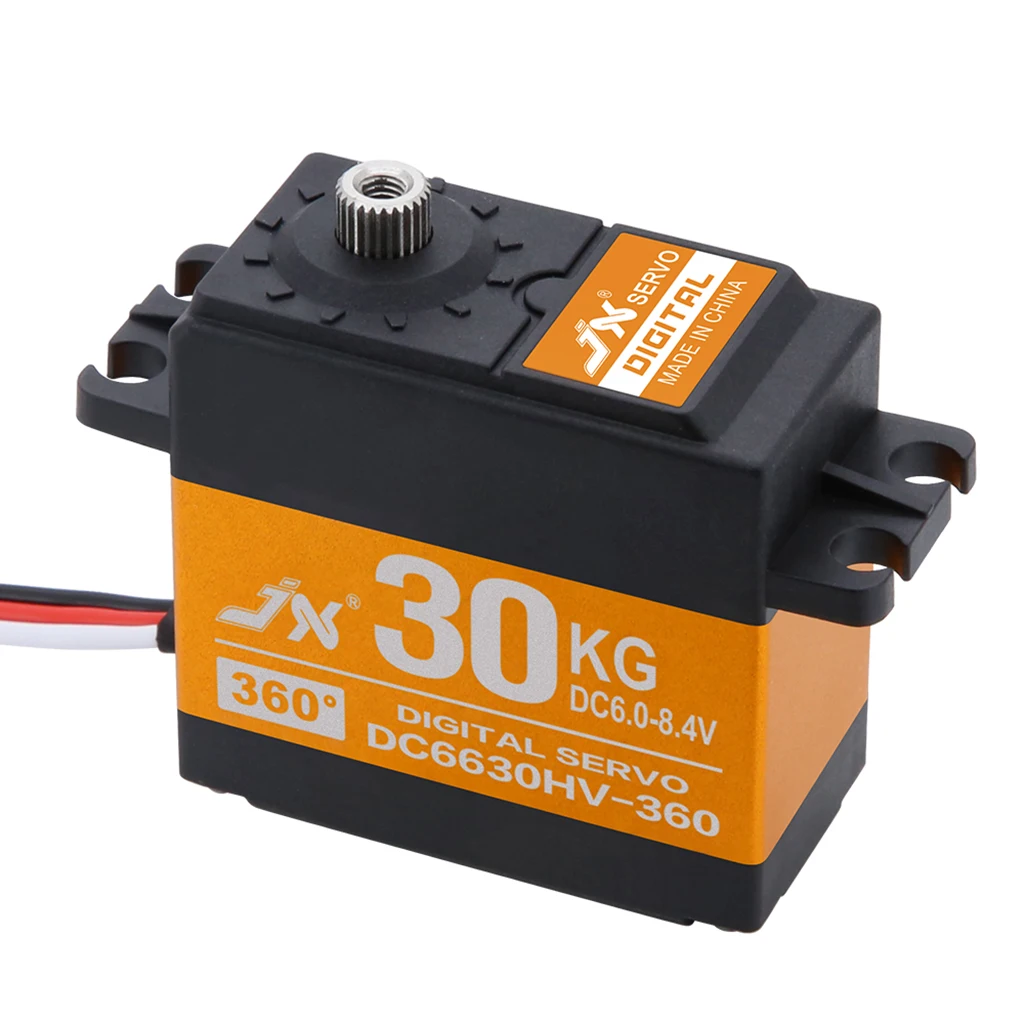

DC6630HV Servo

Max Angle:180°/270°/360°

Pulse width:1000-2000μs=90°/800-2200μs=170°

Pulse width:500-2500μs=180°/500-2500μs=270°

Dead band: 4μs

Working frequence:1520μs / 330hz

Motor: Core Motor

Voltage Range:6.0-8.4V

Operating Speed (6.0V): 0.13 sec/60°

Operating Speed (8.4V): 0.11sec/60°

Stall Torque (6.0V): 22 kg.cm

Stall Torque (8.4V): 30 kg.cm

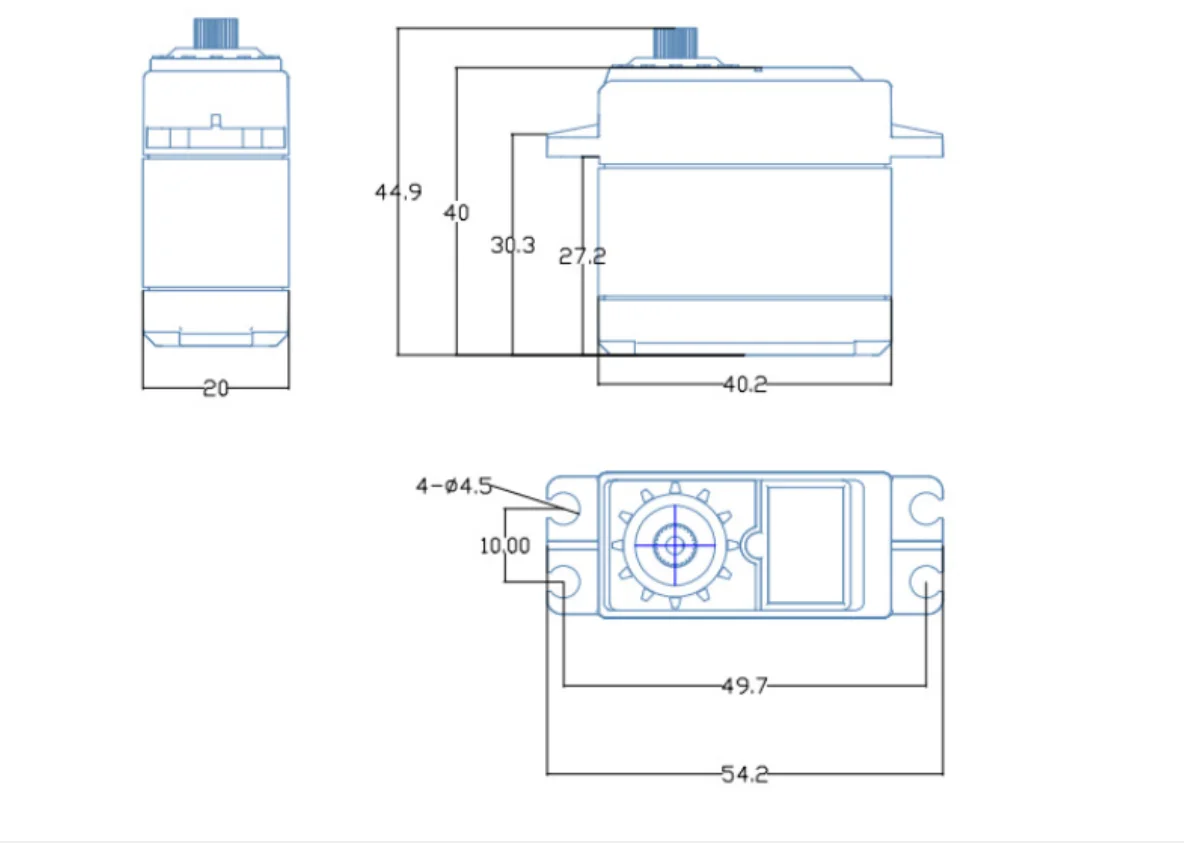

Dimensions: 40.2X20X40mm

Weight:  66 g

Connector Wire Length: JR  260 mm

Bearing: 2BB

Gear Teeth:25T

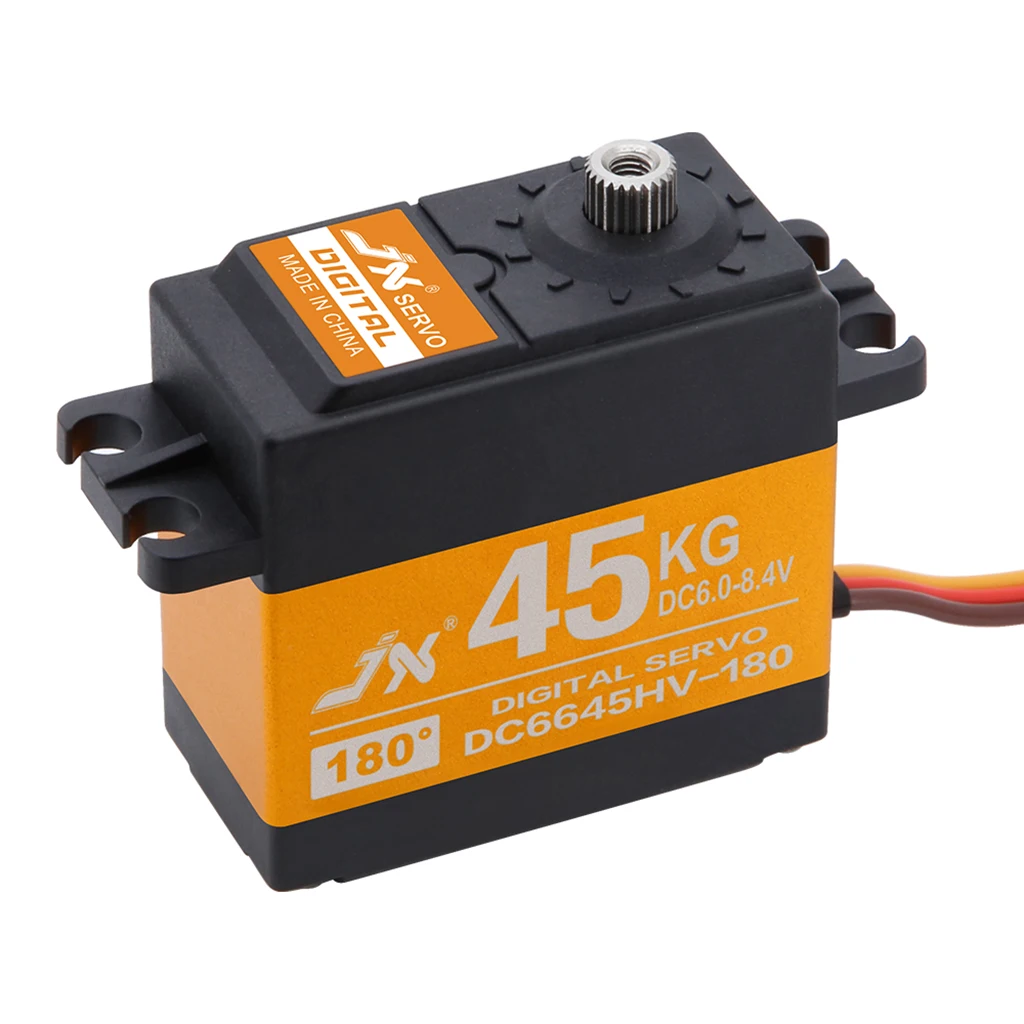

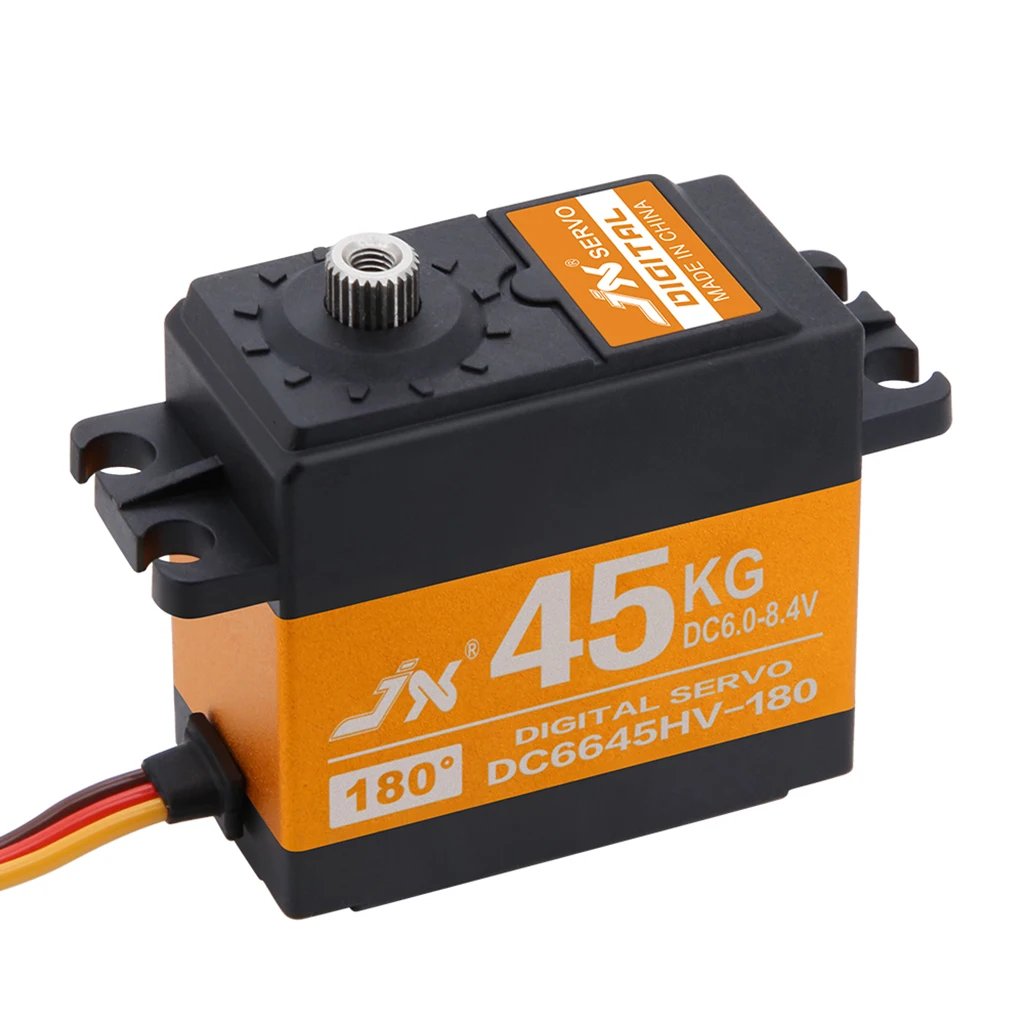

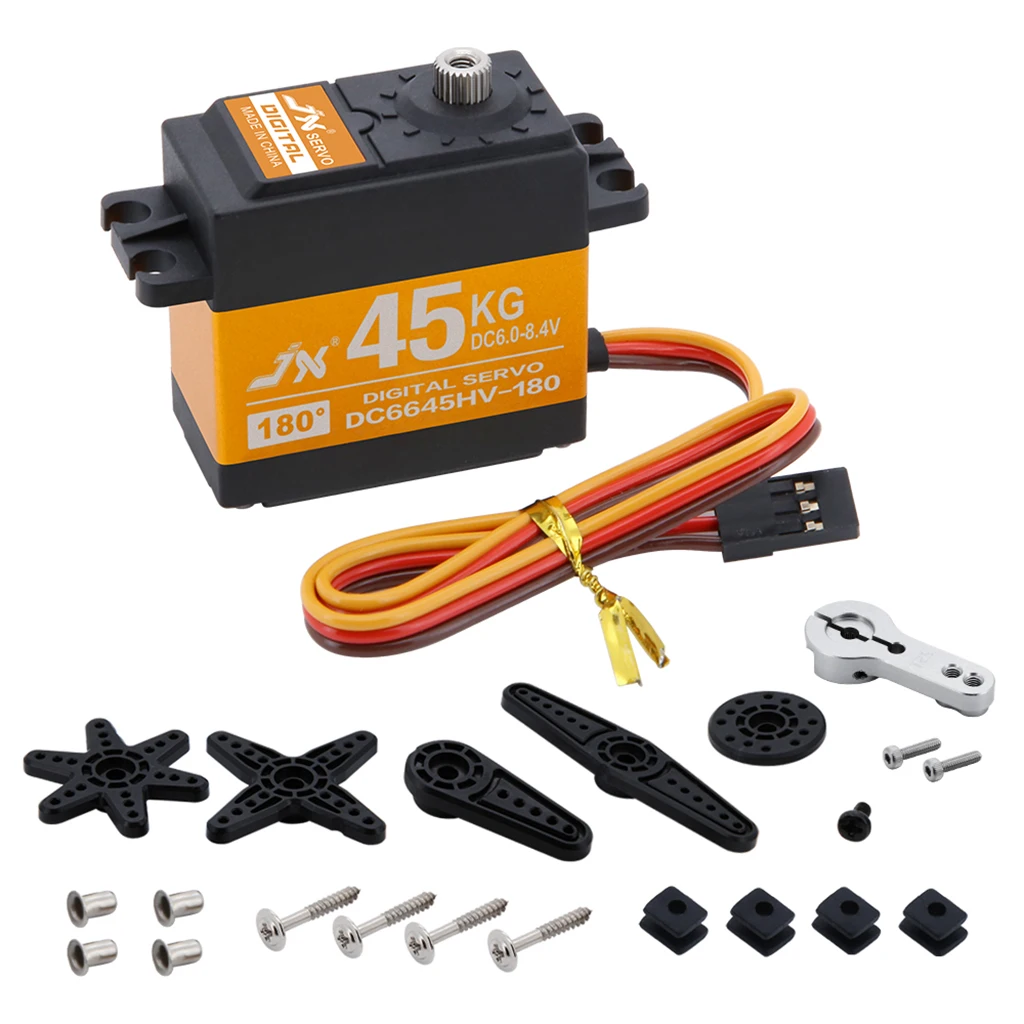

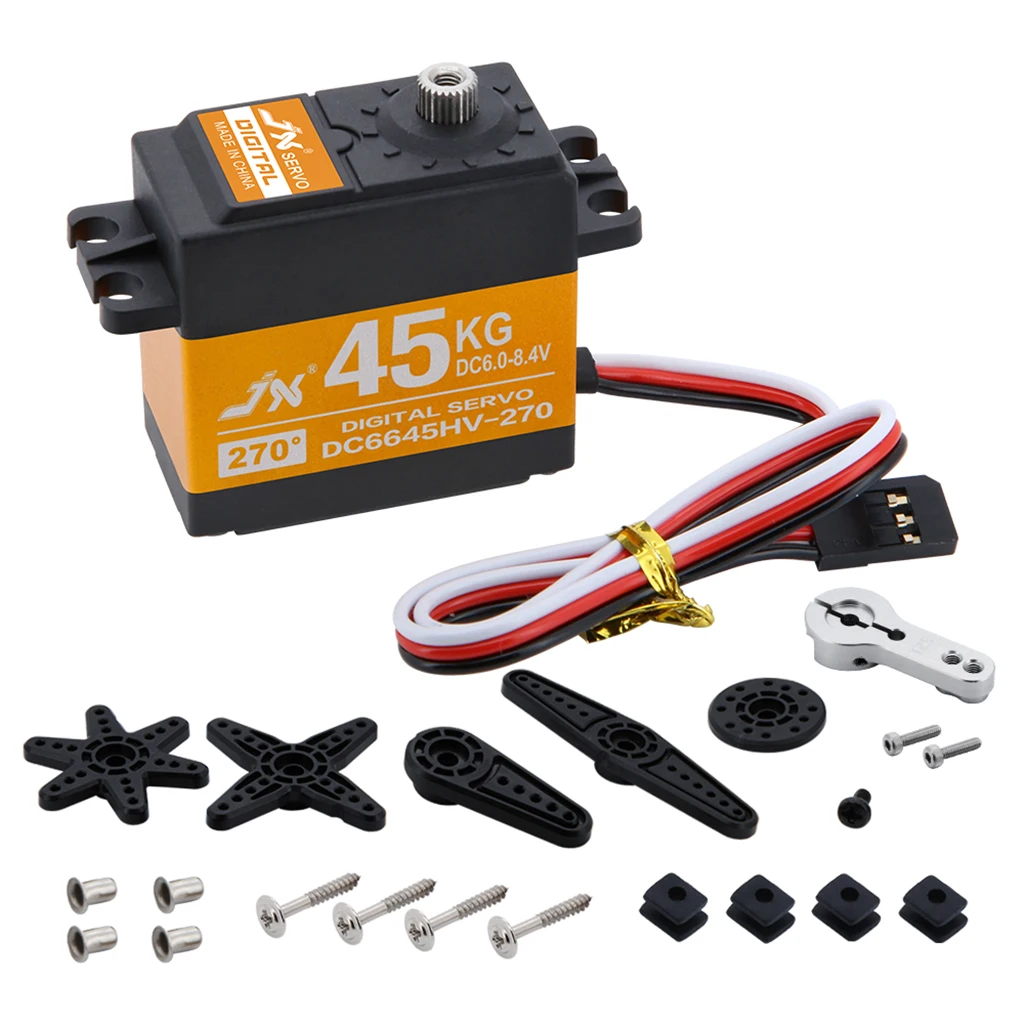

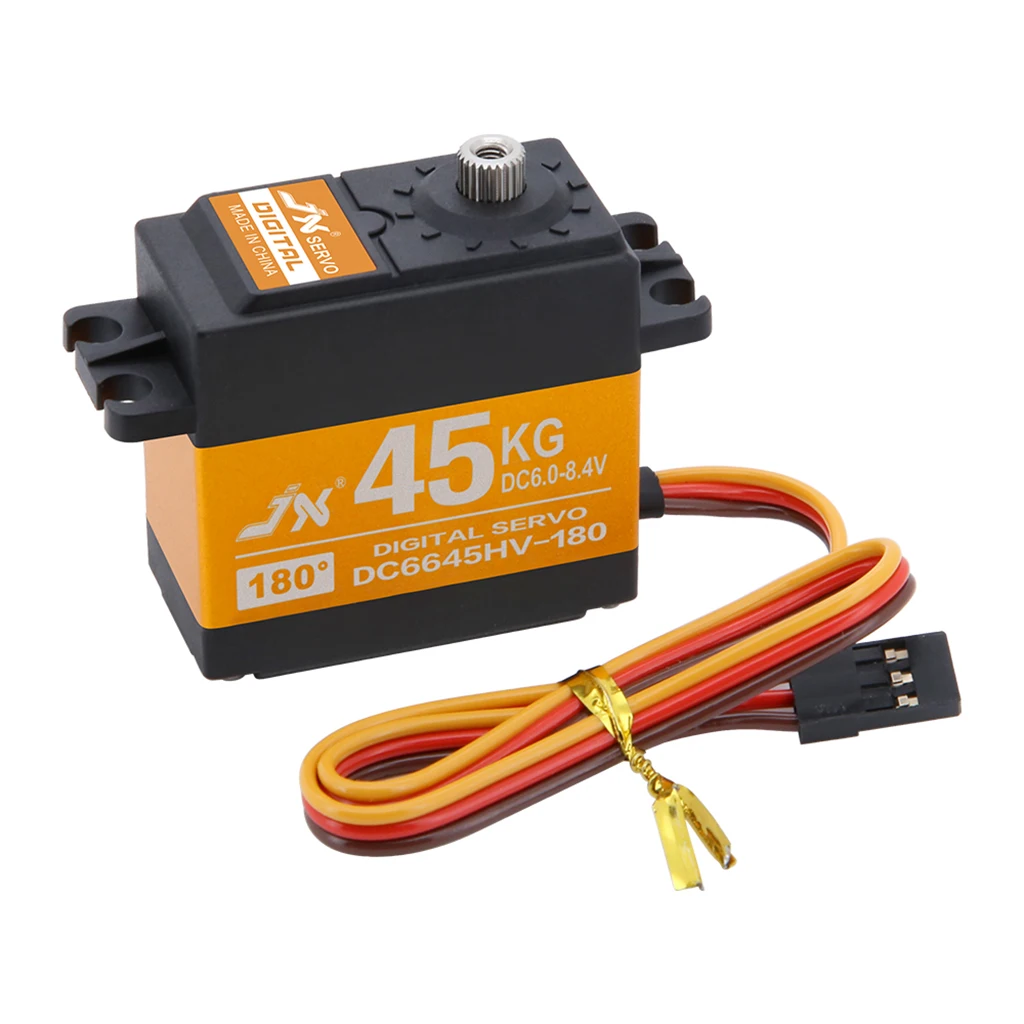

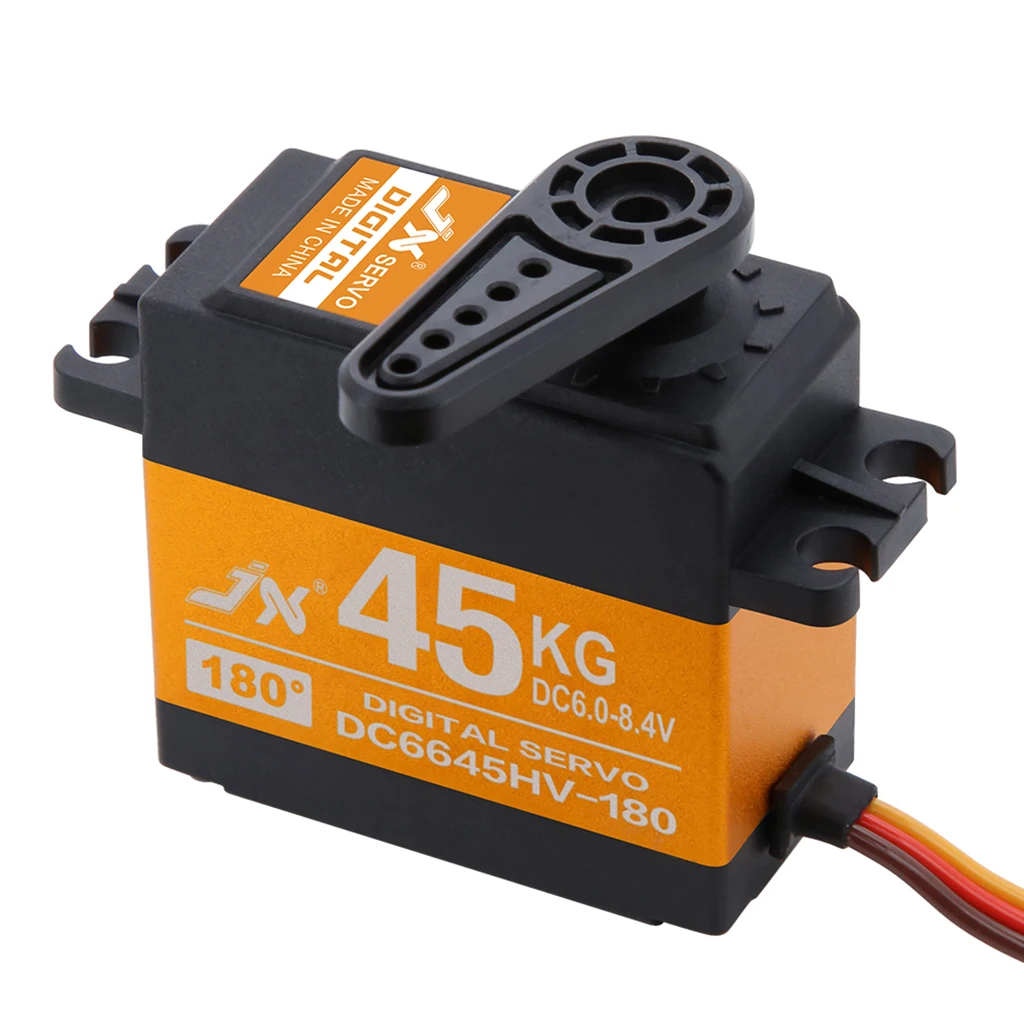

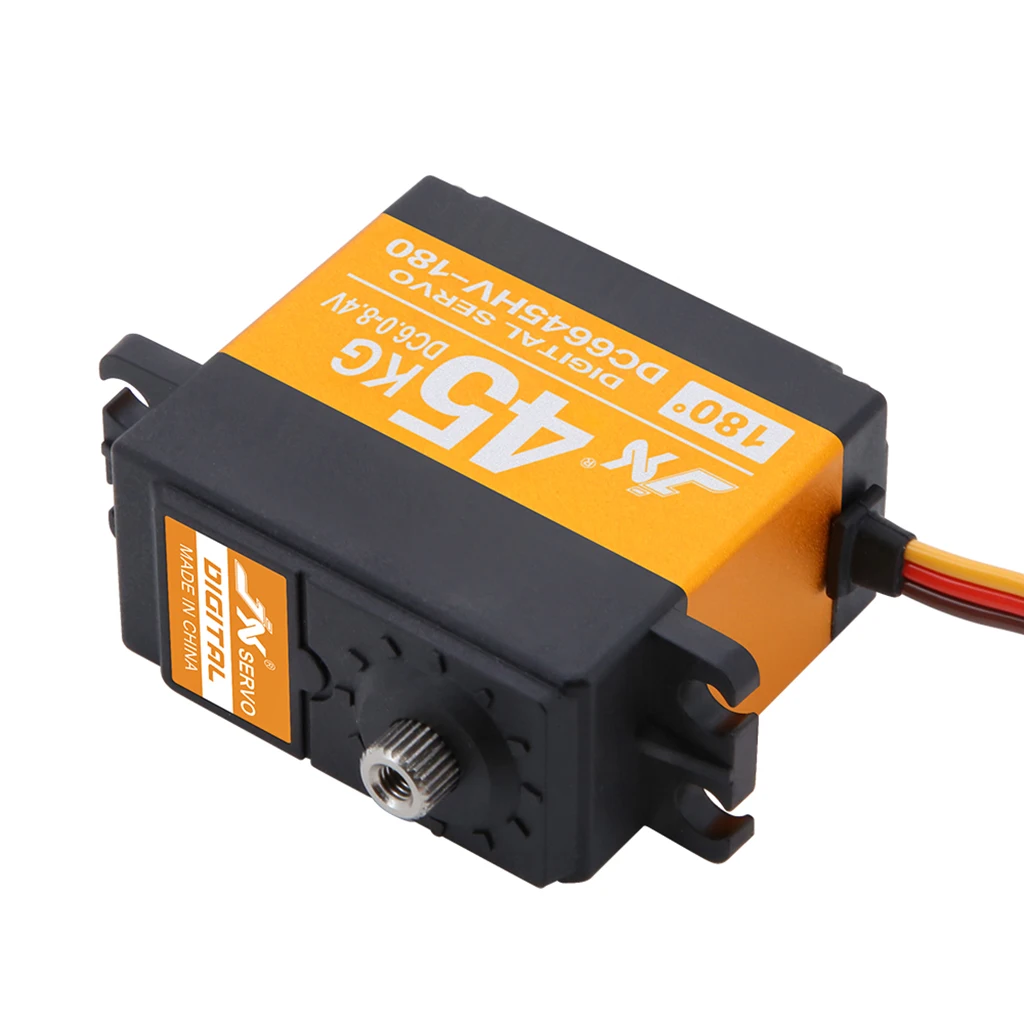

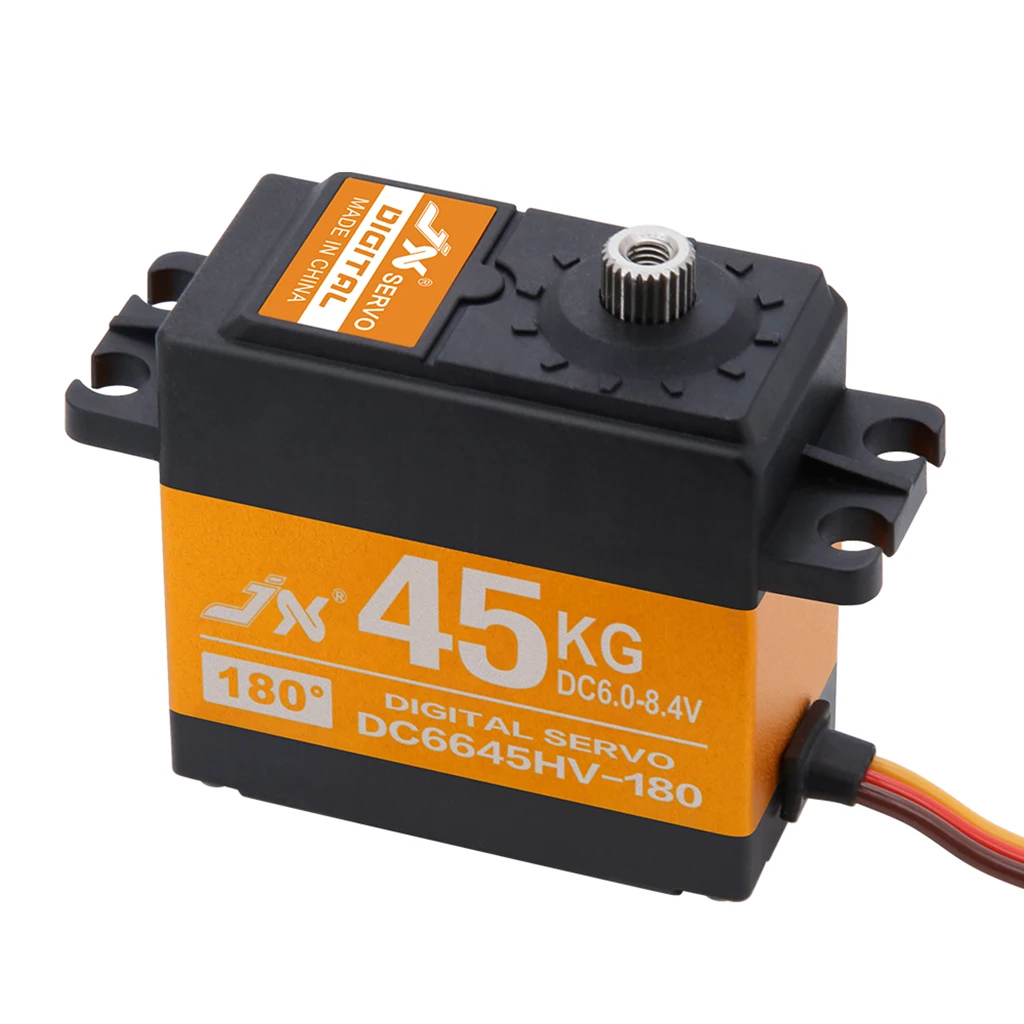

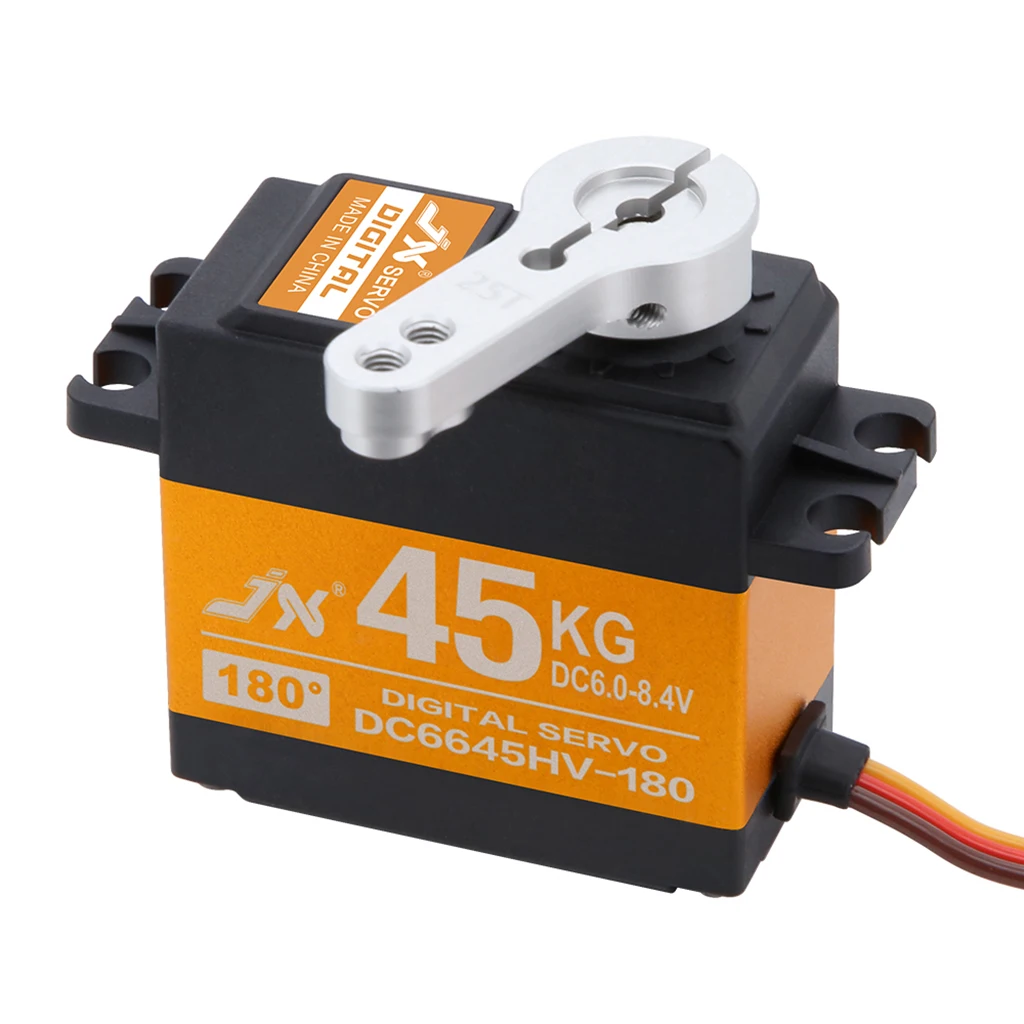

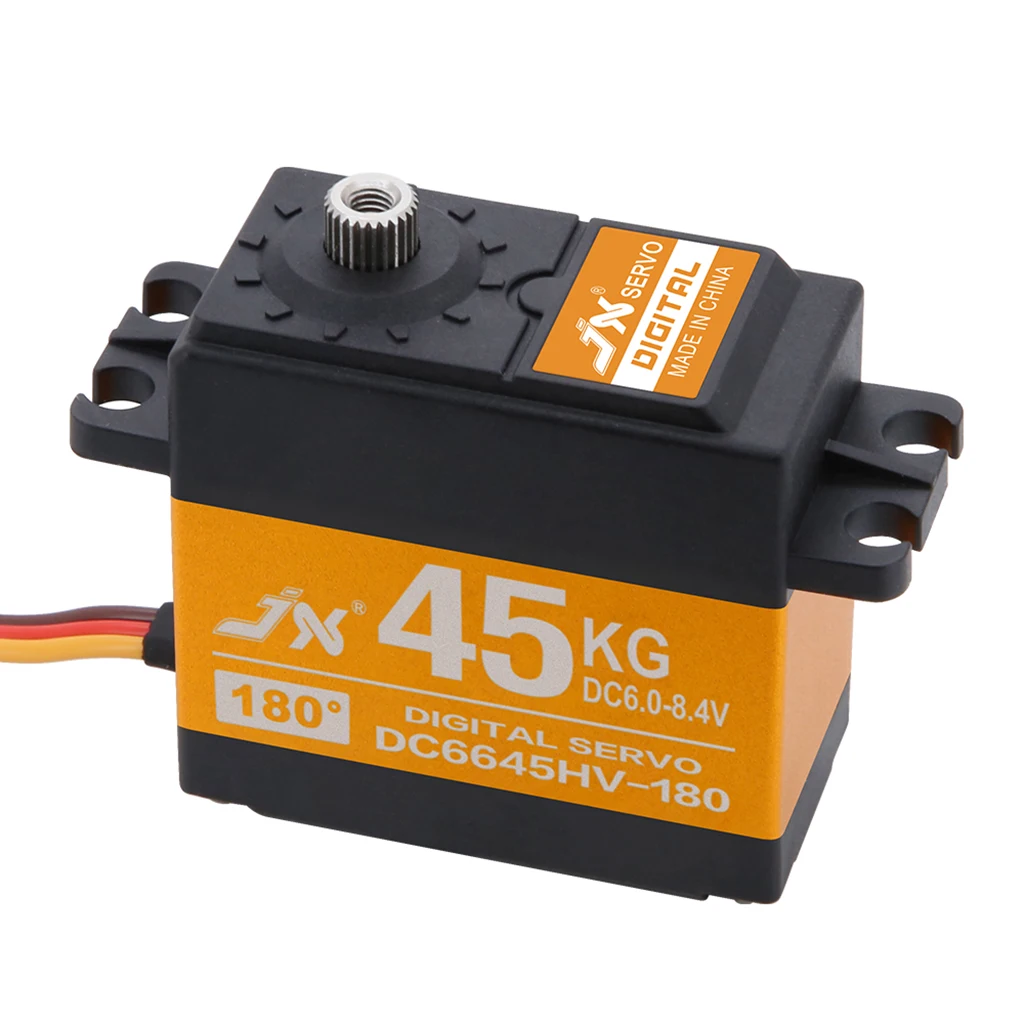

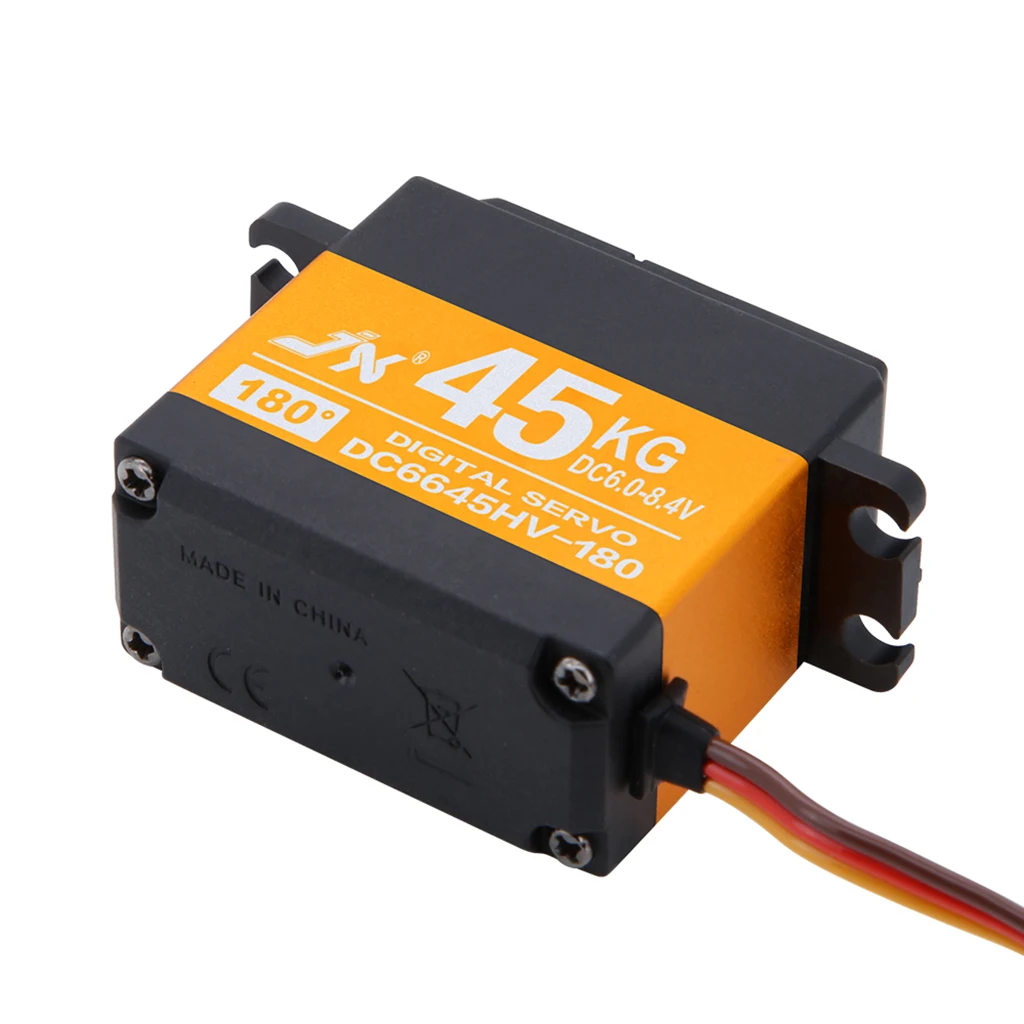

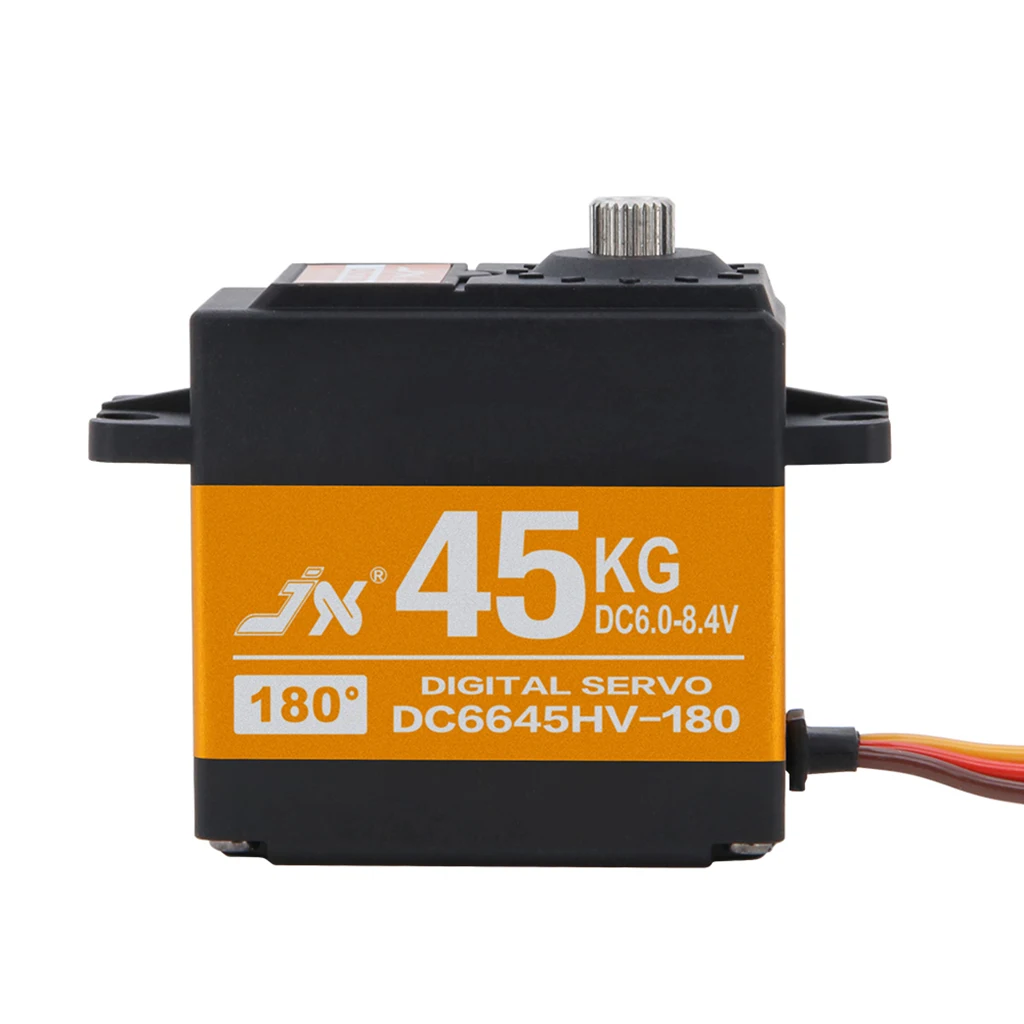

DC6645HV Servo

Max Angle:180°/270°/360°

Pulse width:1000-2000μs=90°/800-2200μs=170°

Pulse width:500-2500μs=180° /500-2500μs=270°

Dead band: 4μs

Working frequence:1520μs / 330hz

Motor: Core Motor

Voltage Range:6.0-8.4V

Operating Speed (6.0V): 0.13 sec/60°

Operating Speed (8.4V): 0.10sec/60°

Stall Torque (6.0V): 33 kg.cm

Stall Torque (8.4V): 45 kg.cm

Dimensions: 40.2X20X40mm

Weight:  66 g

Connector Wire Length: JR  260 mm

Bearing: 2BB

Gear Teeth:25T
