JX PDI-HV4216MG 16KG /PDI-HV4220MG 20KG All CNC Metal Brushless Motor Servo For Drone FPV RC Car

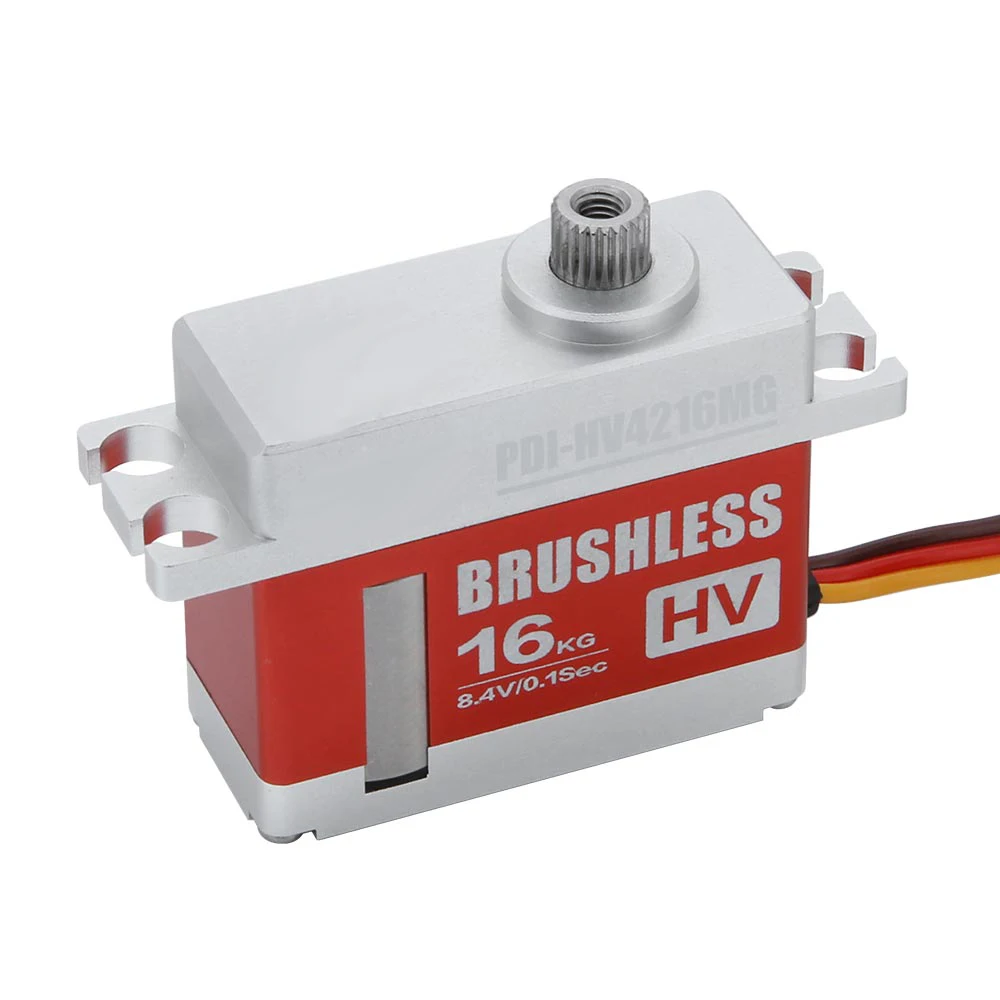

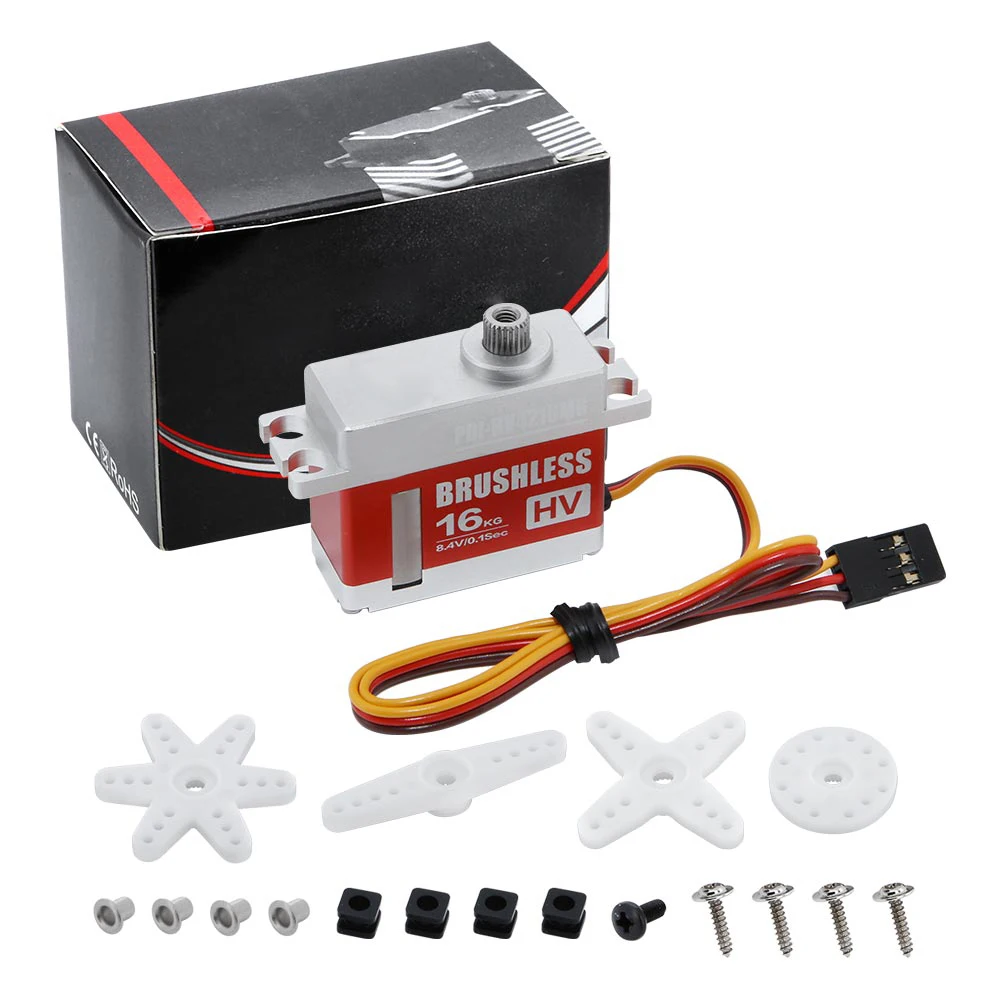

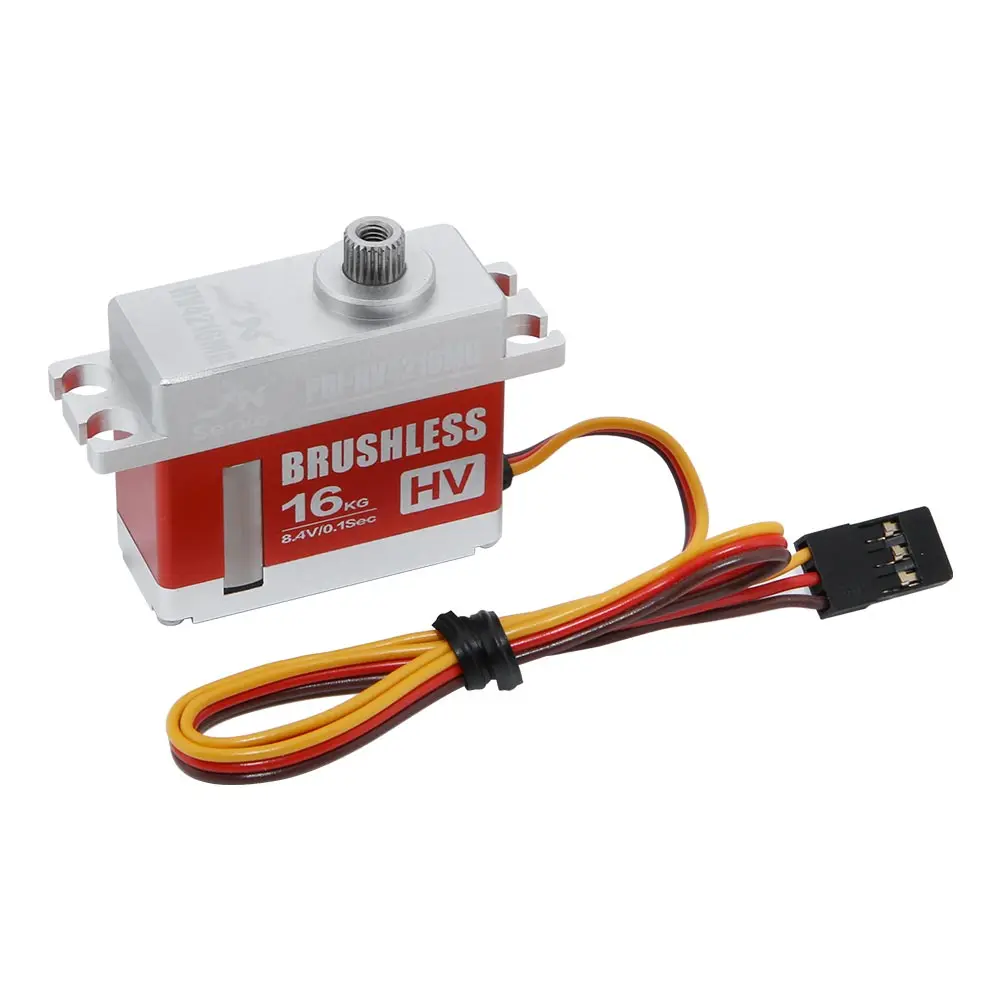

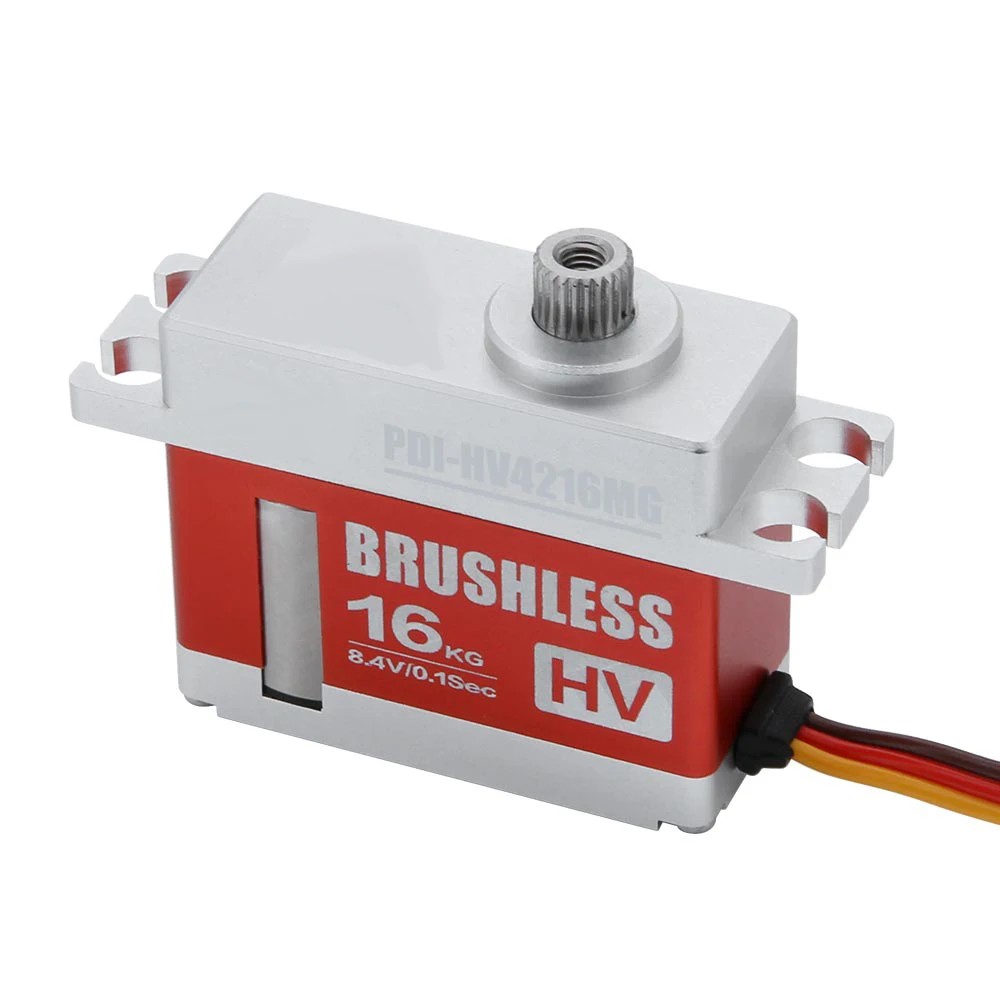

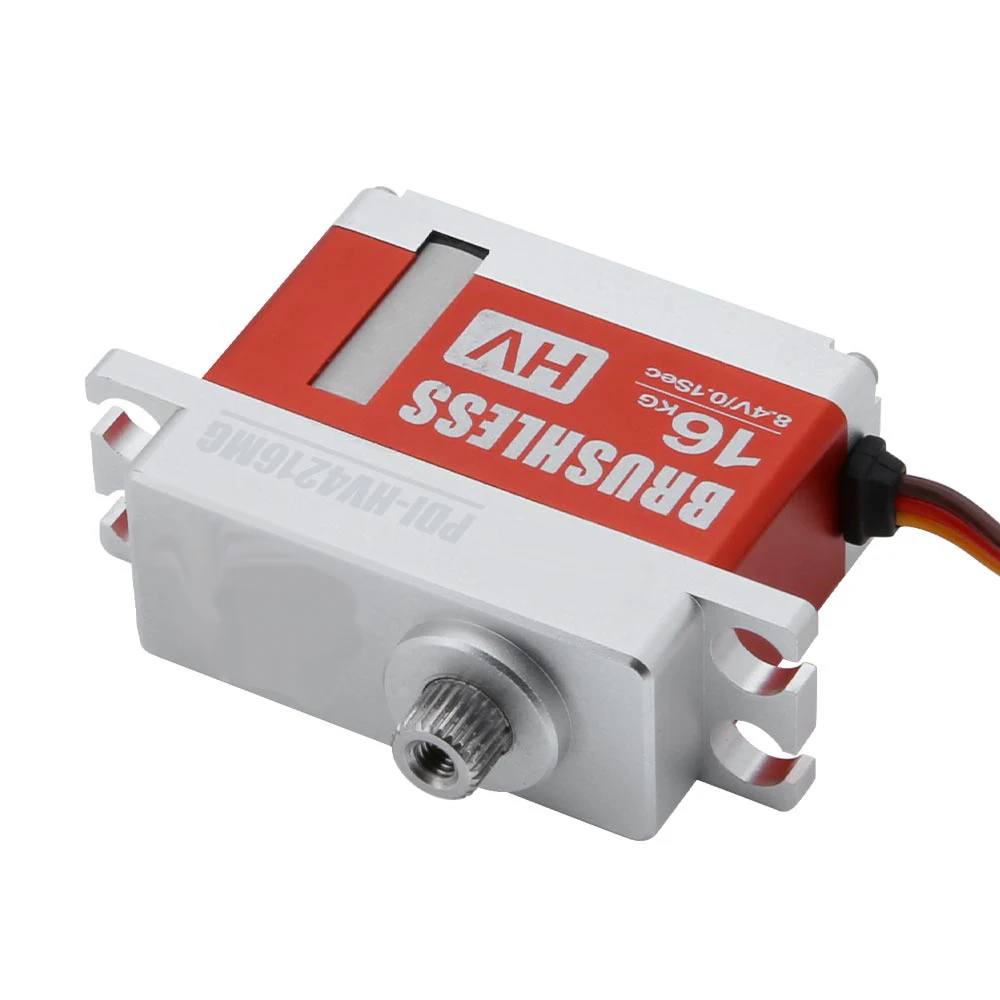

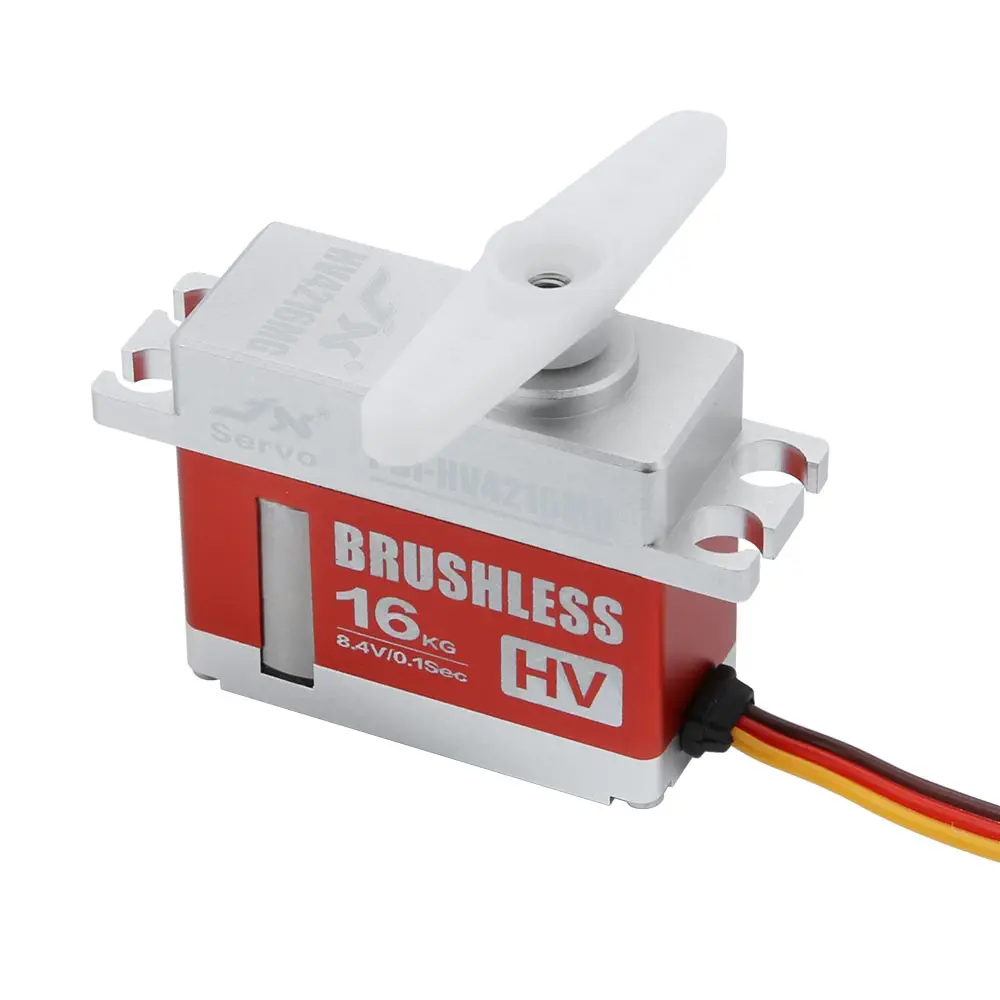

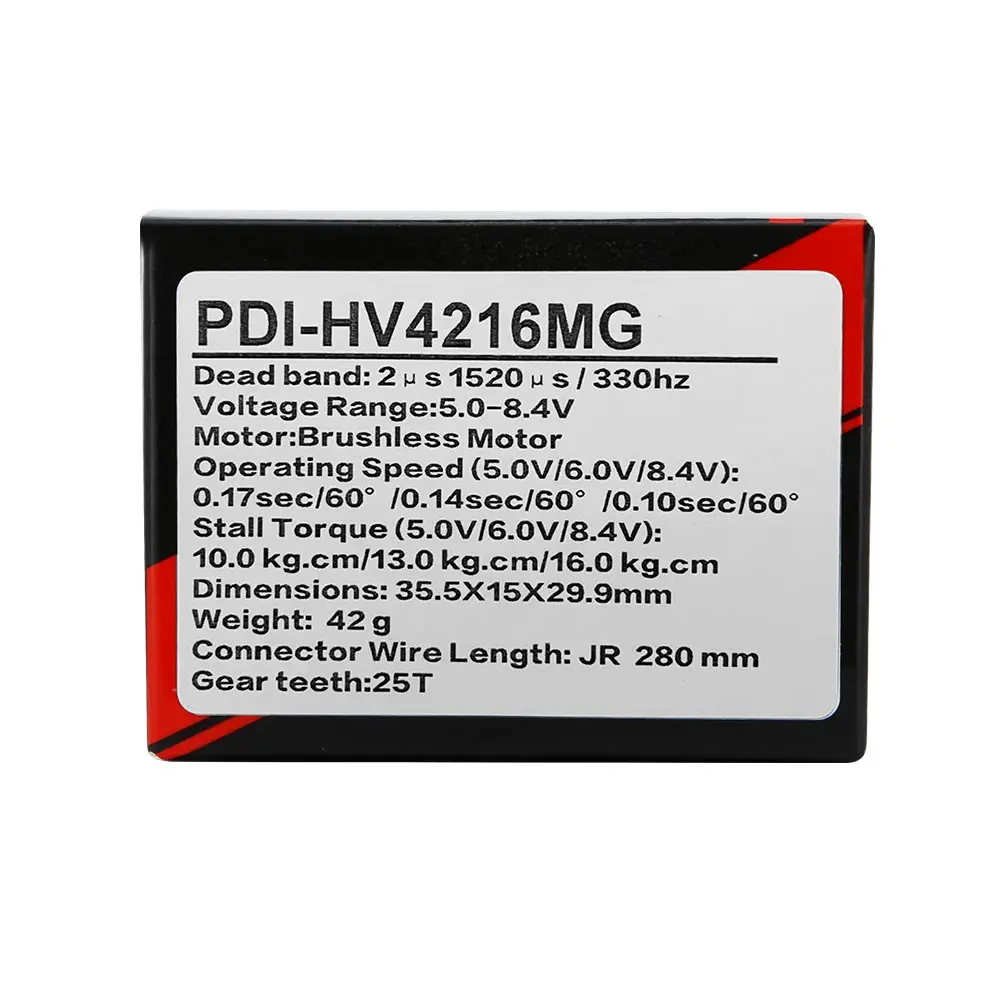

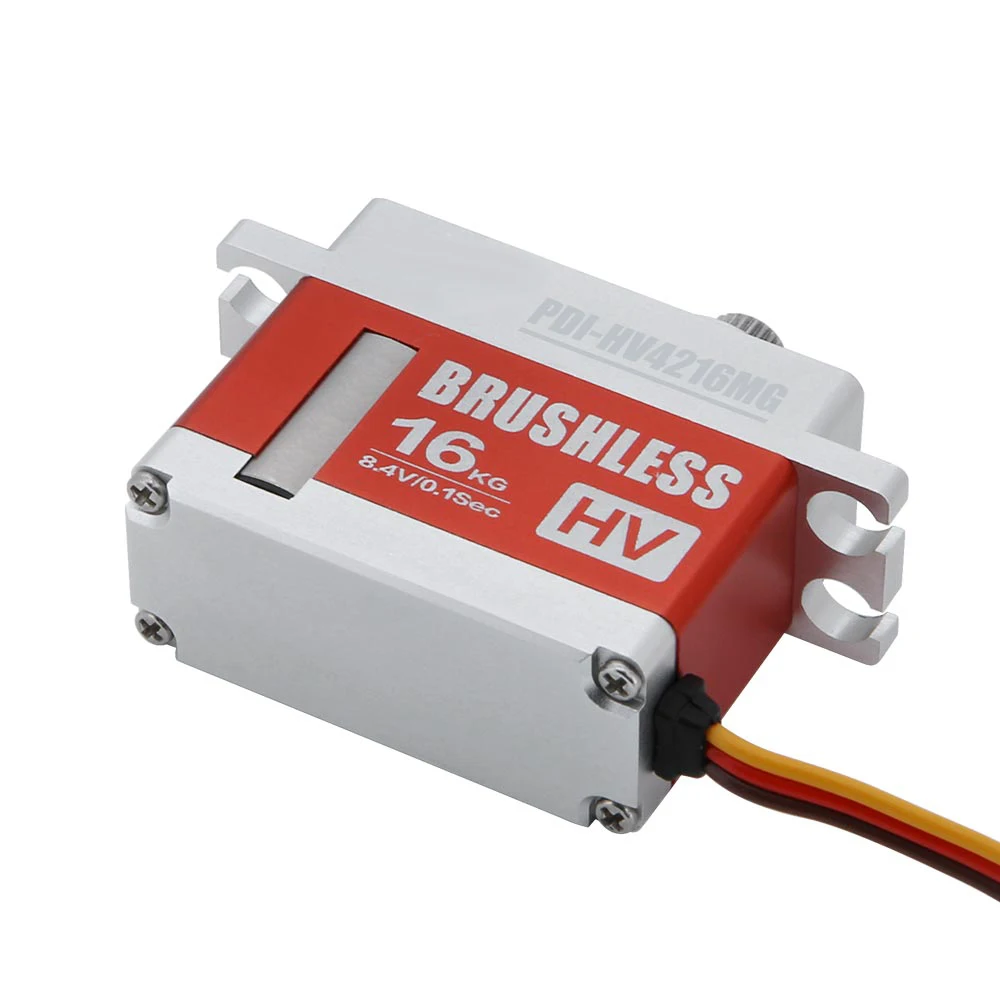

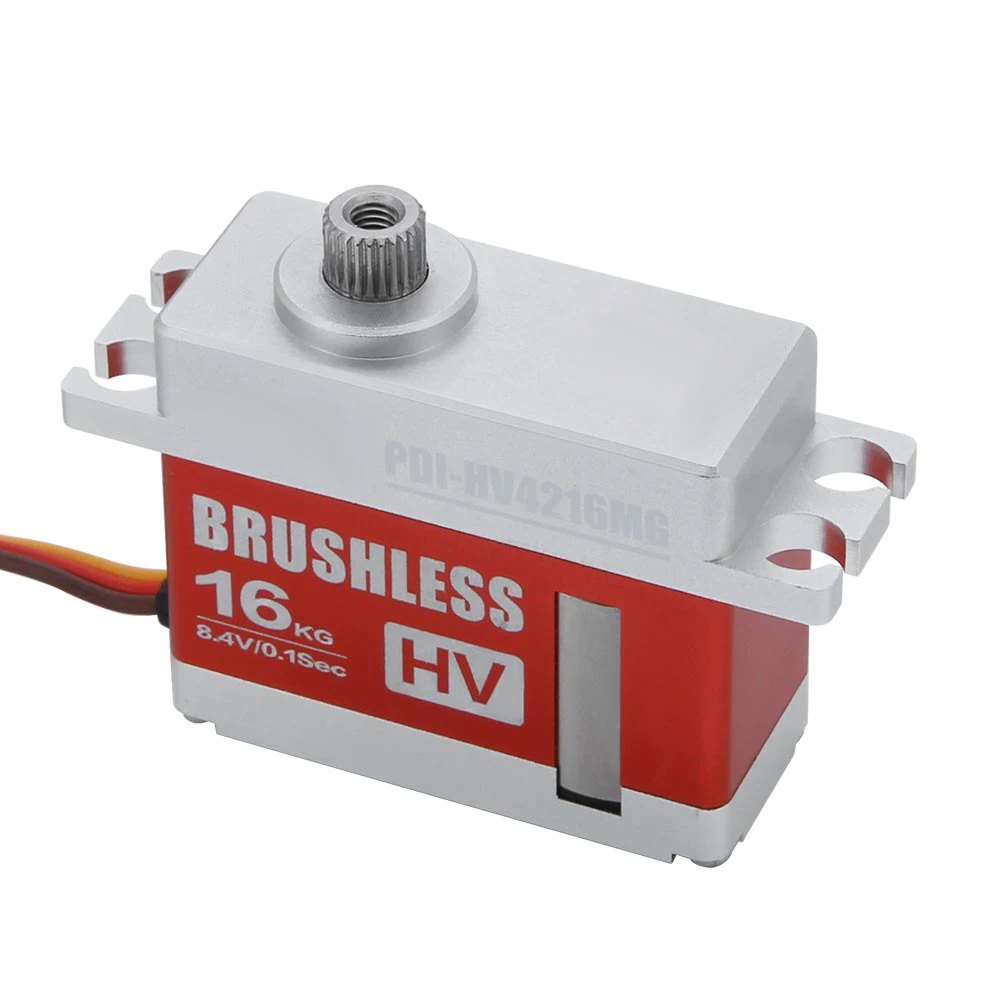

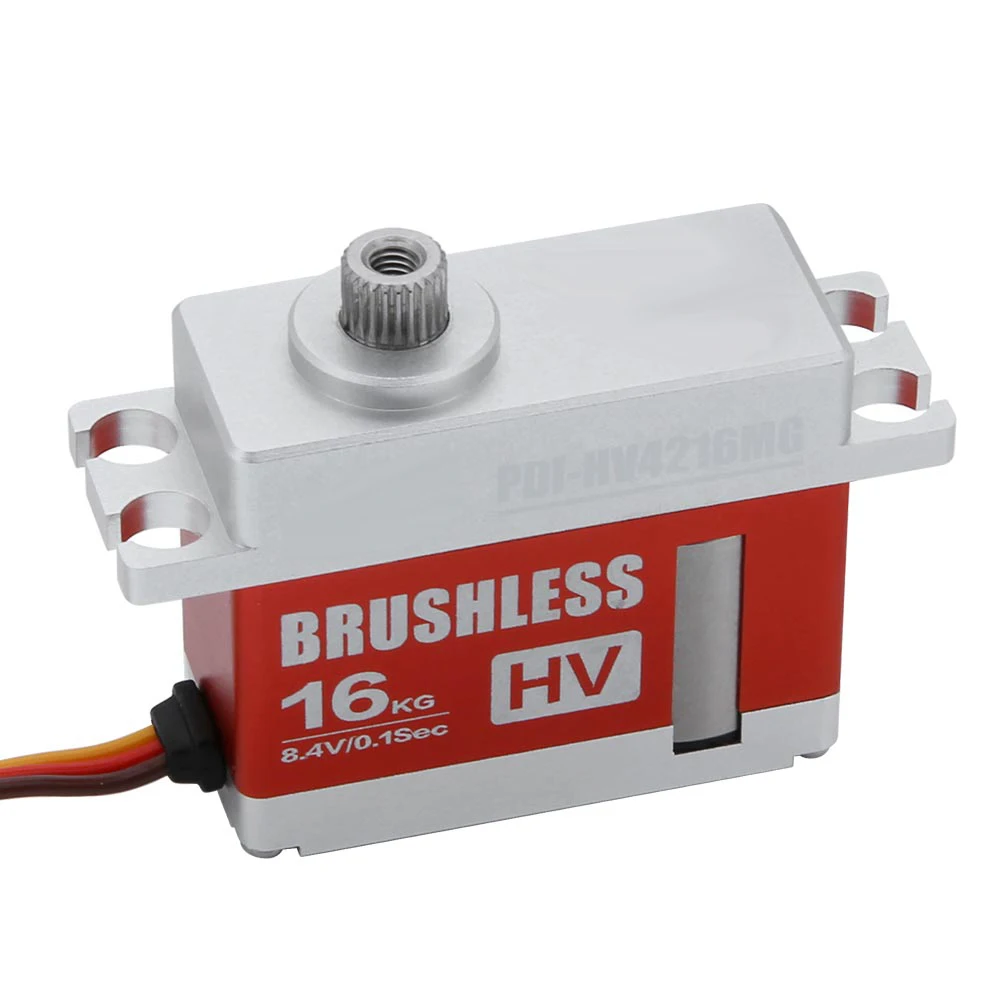

JX PDI-HV4216MG 16KG  All CNC Metal Brushless Motor Servo For Drone FPV RC Helicopter



Dead band: 2μs

Motor:Brushless Motor

Working frequence: 1520μs / 330hz

Operating Voltage:  DC5.0~8.4 V

Operating Speed (5.0V): 0.17sec/60°

Operating Speed (6.0V): 0.14 sec/60°

Operating Speed (8.4V): 0.10 sec/60°

Stall Torque (5.0V):10.0 kg.cm

Stall Torque (6.0V):13.0 kg.cm

Stall Torque (8.4V):16.0 kg.cm

Dimensions: 35.5X15X29.9mm

Weight: 42 g

Connector Wire Length: JR280 mm

Bearing: 2BB

Gear Teeth:25T
Medium-sized brushless all-metal servo

Cable length: JR280mm (brown, red, orange)

Laser-etched dimensions: top of upper cover 15 × 17 mm, side of upper cover 33 × 7 mm, centre housing 25 × 15 mm

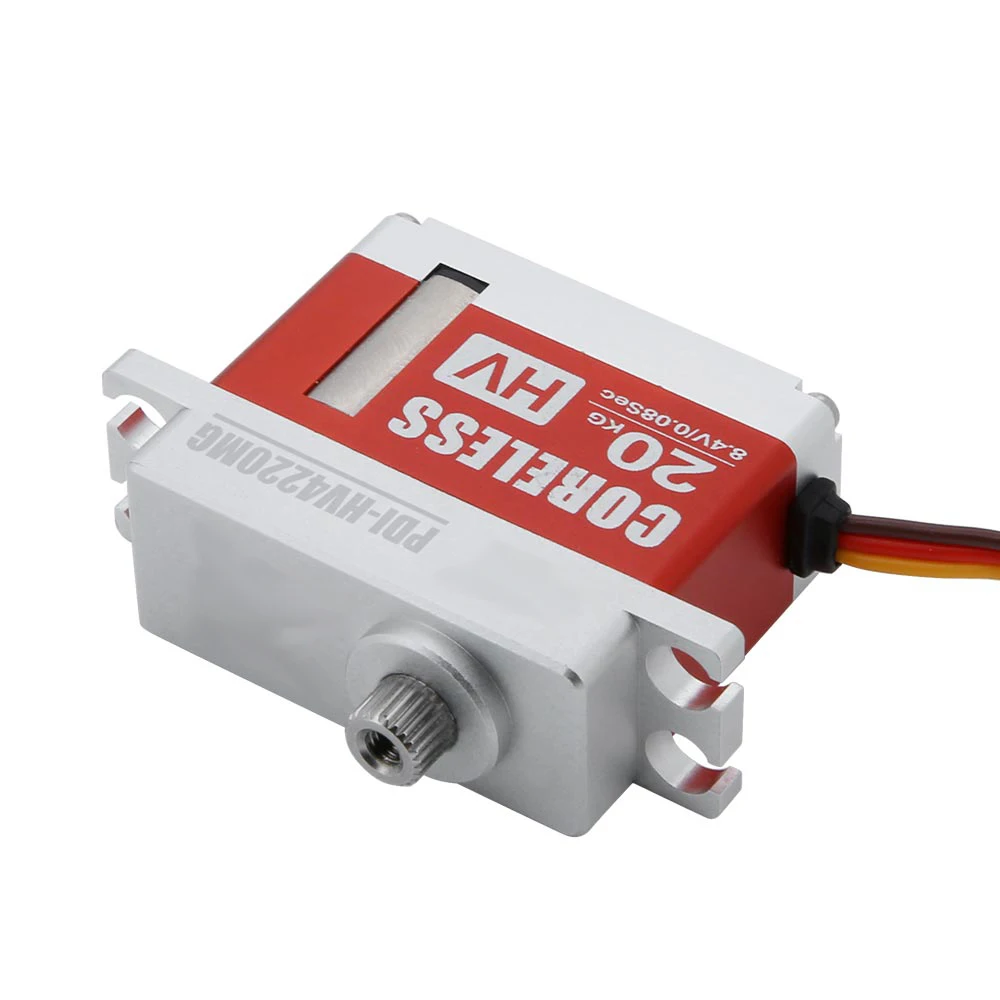

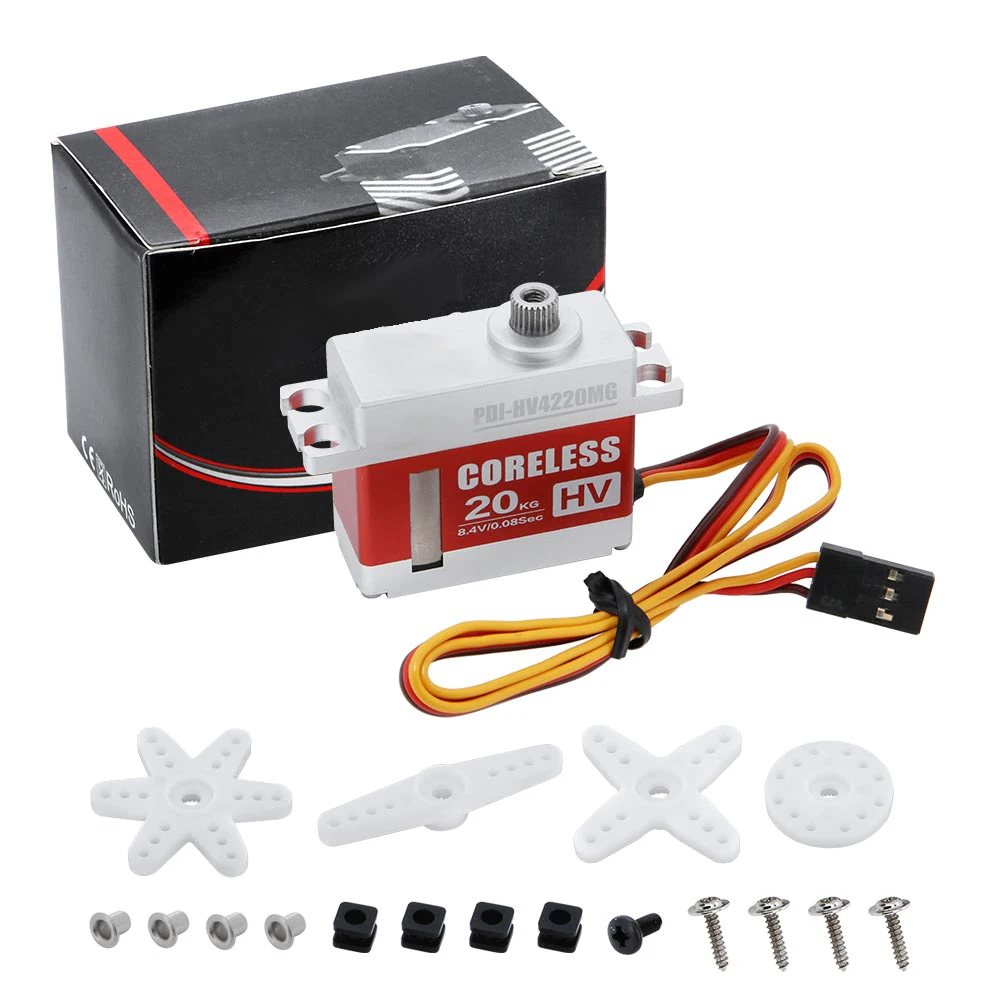

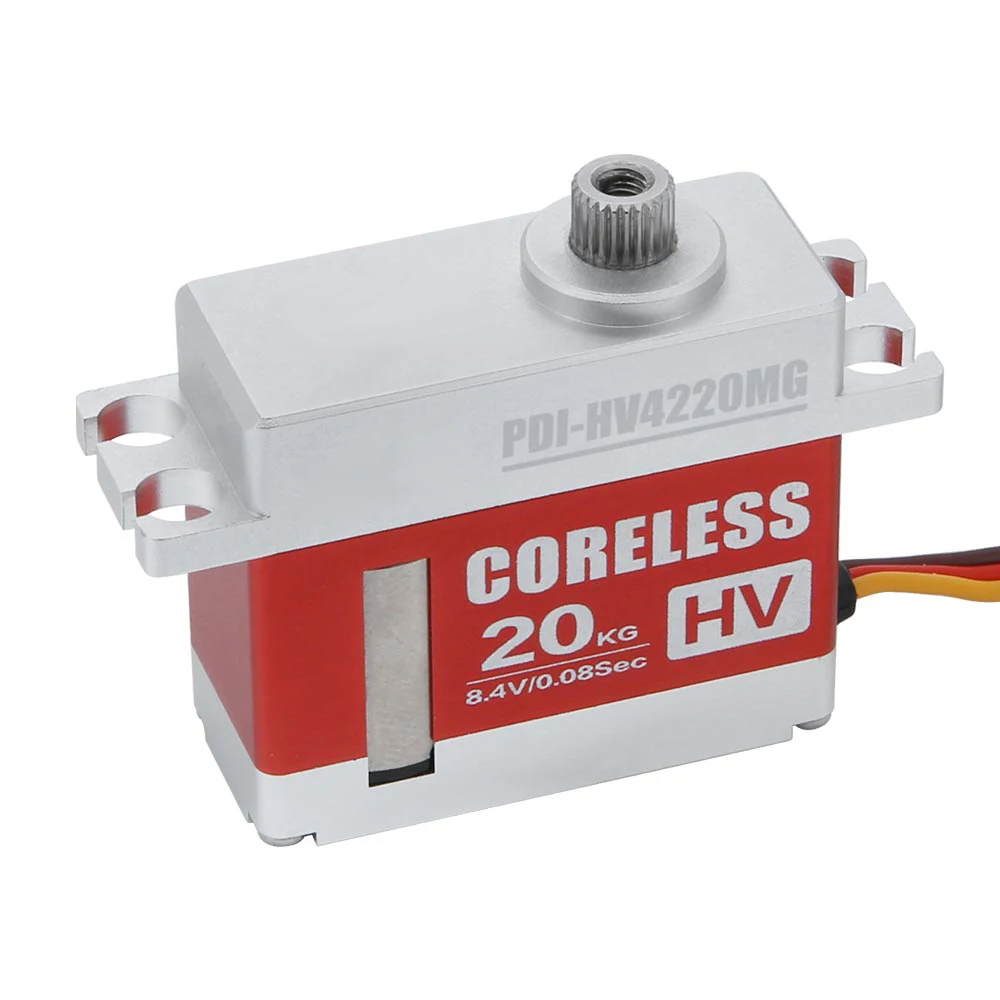

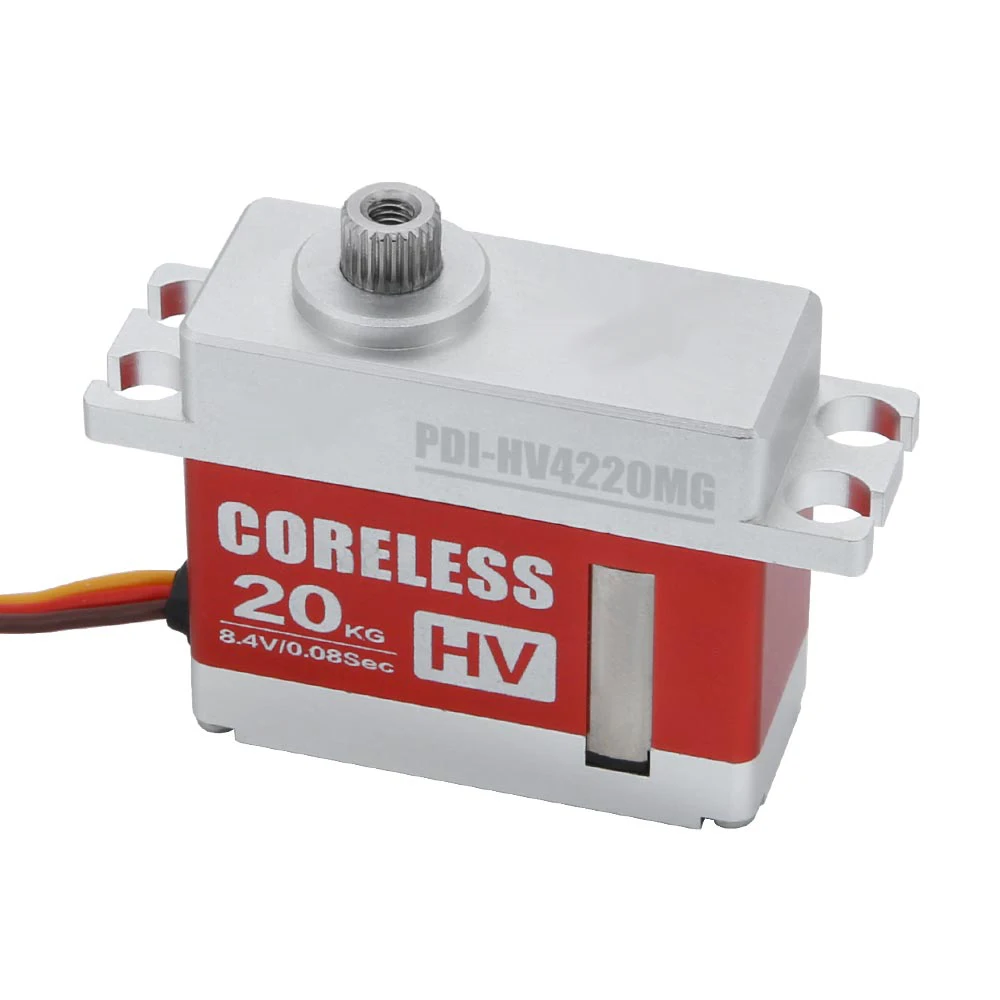

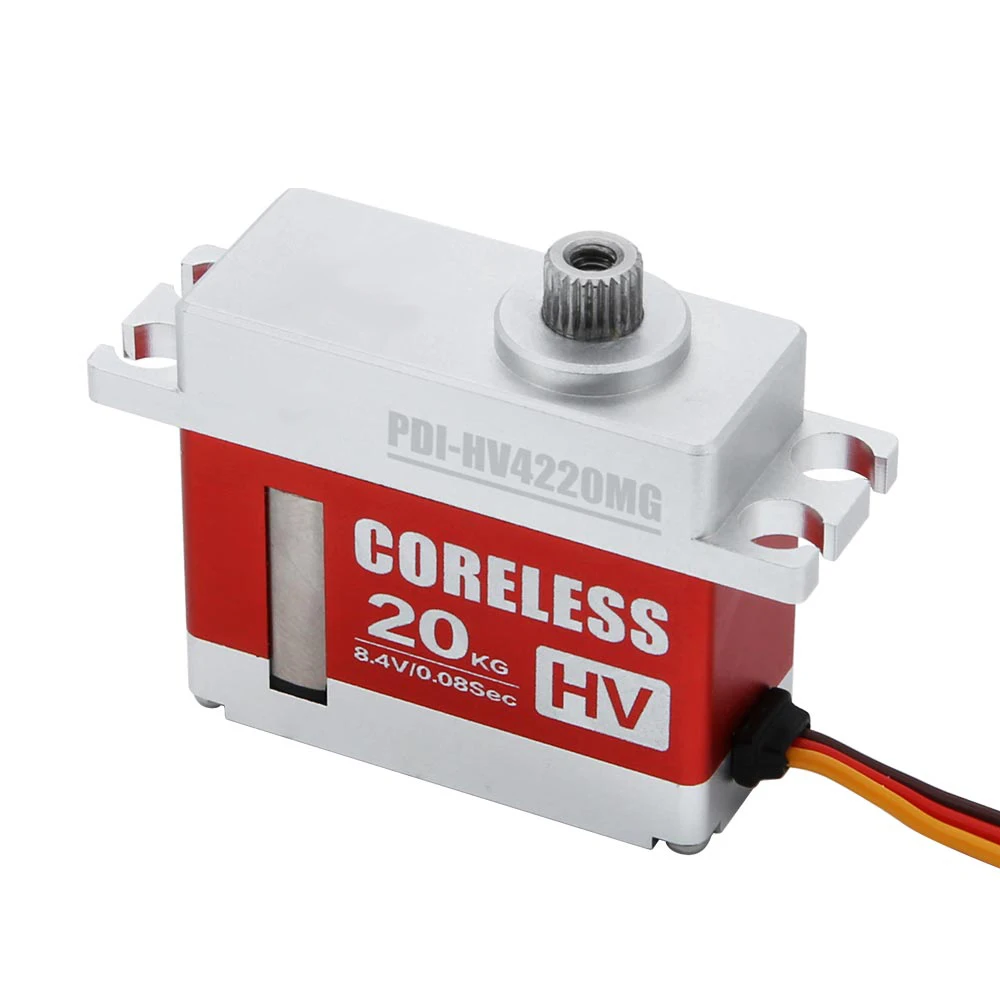

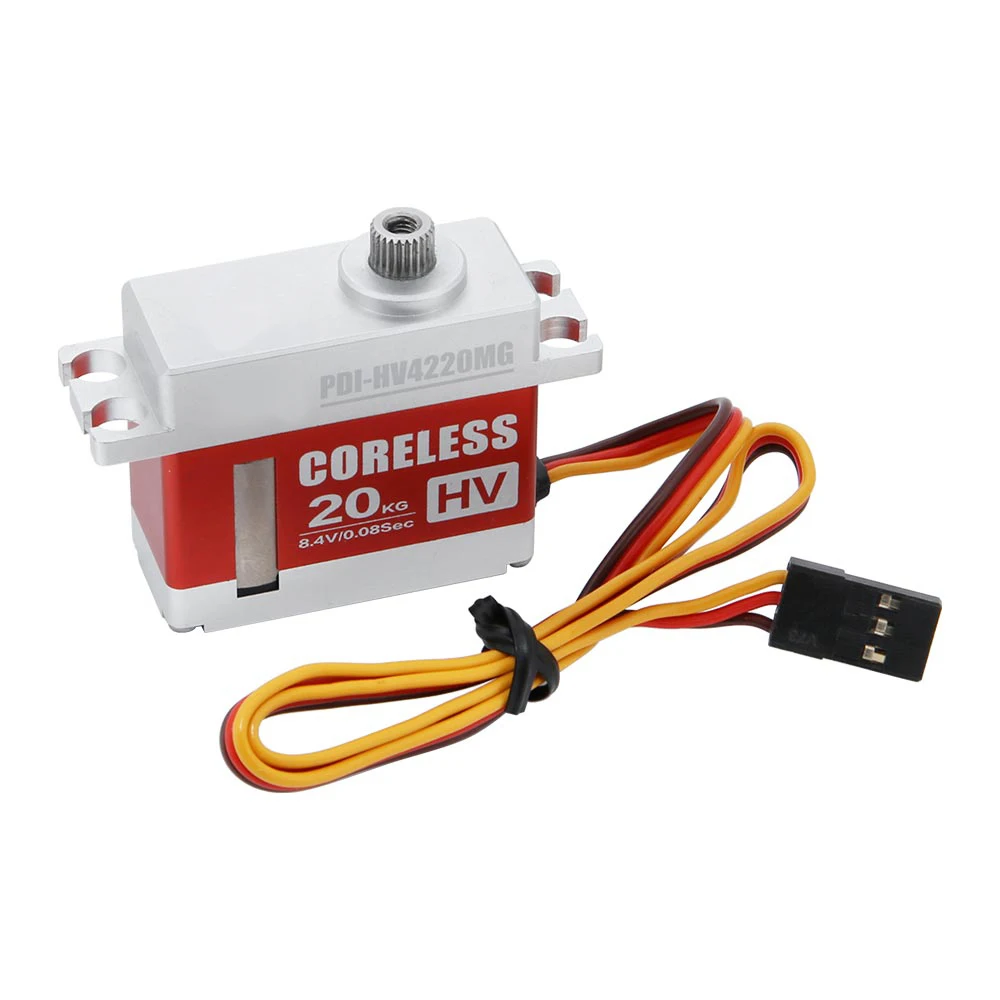

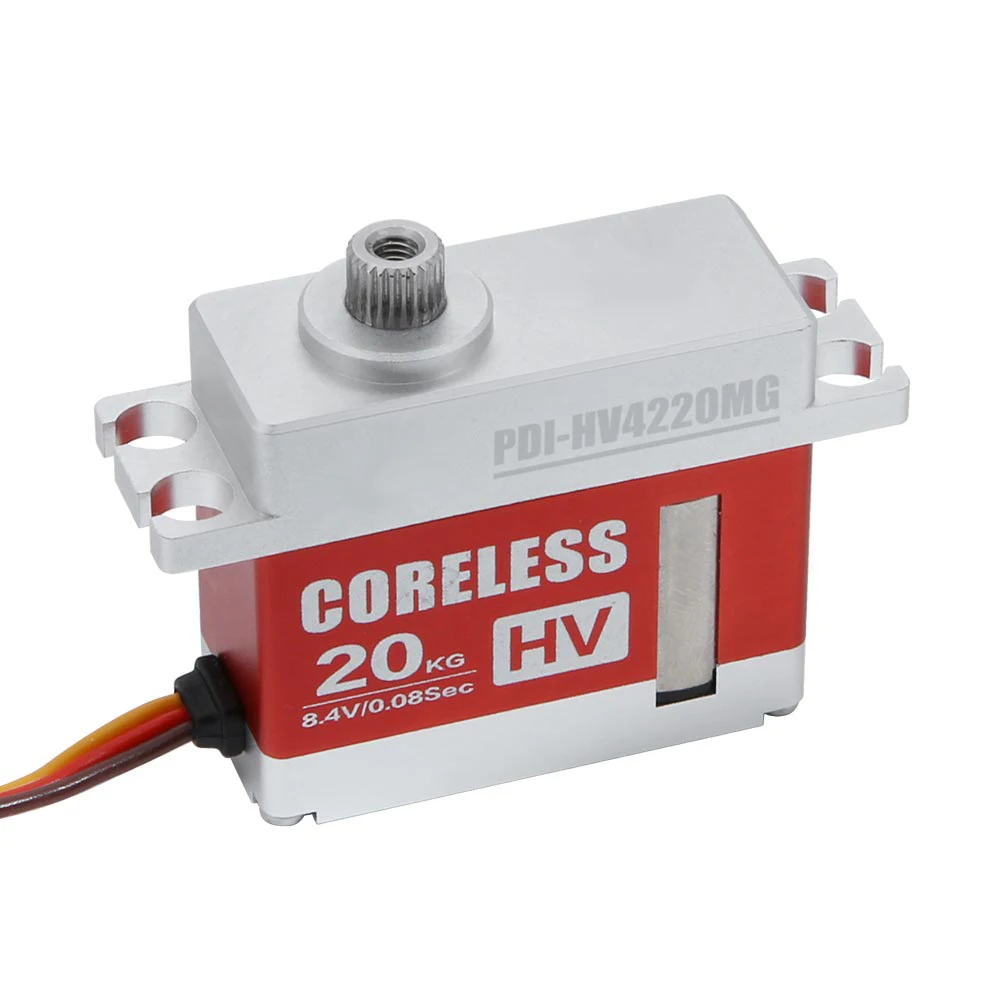

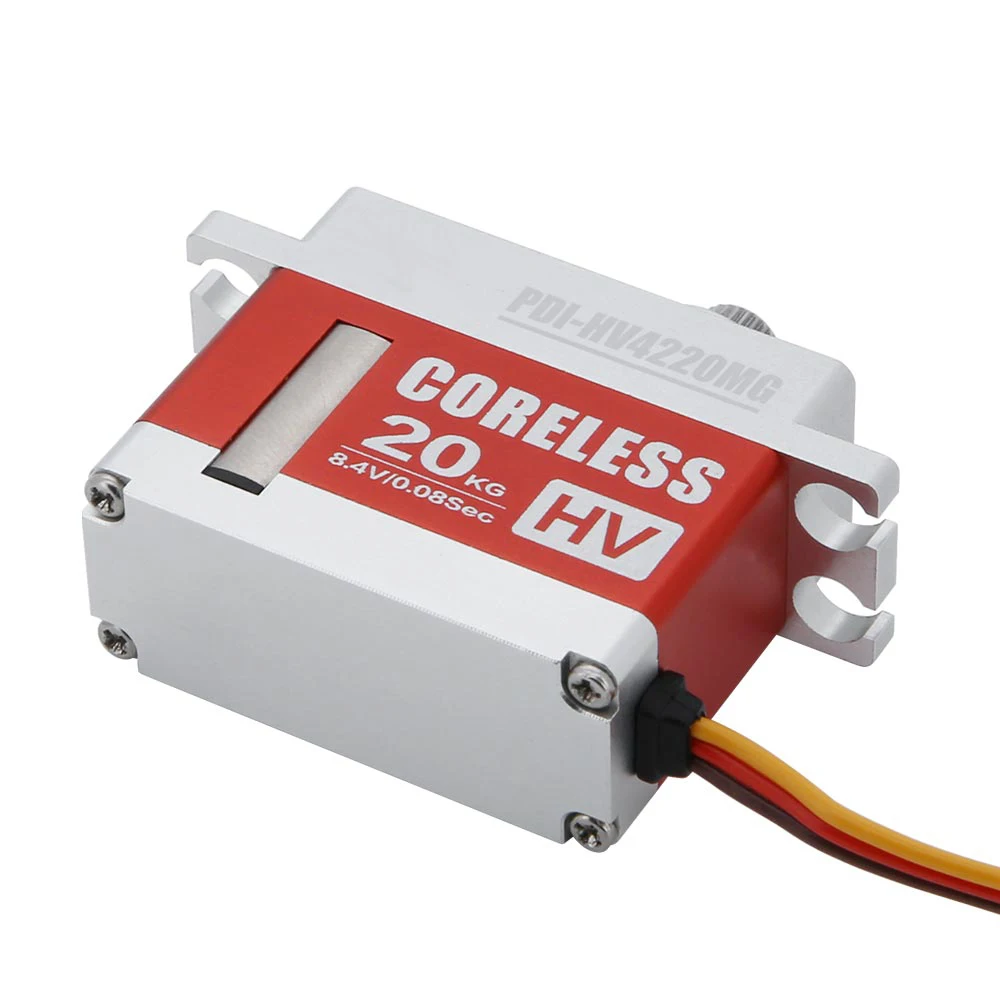

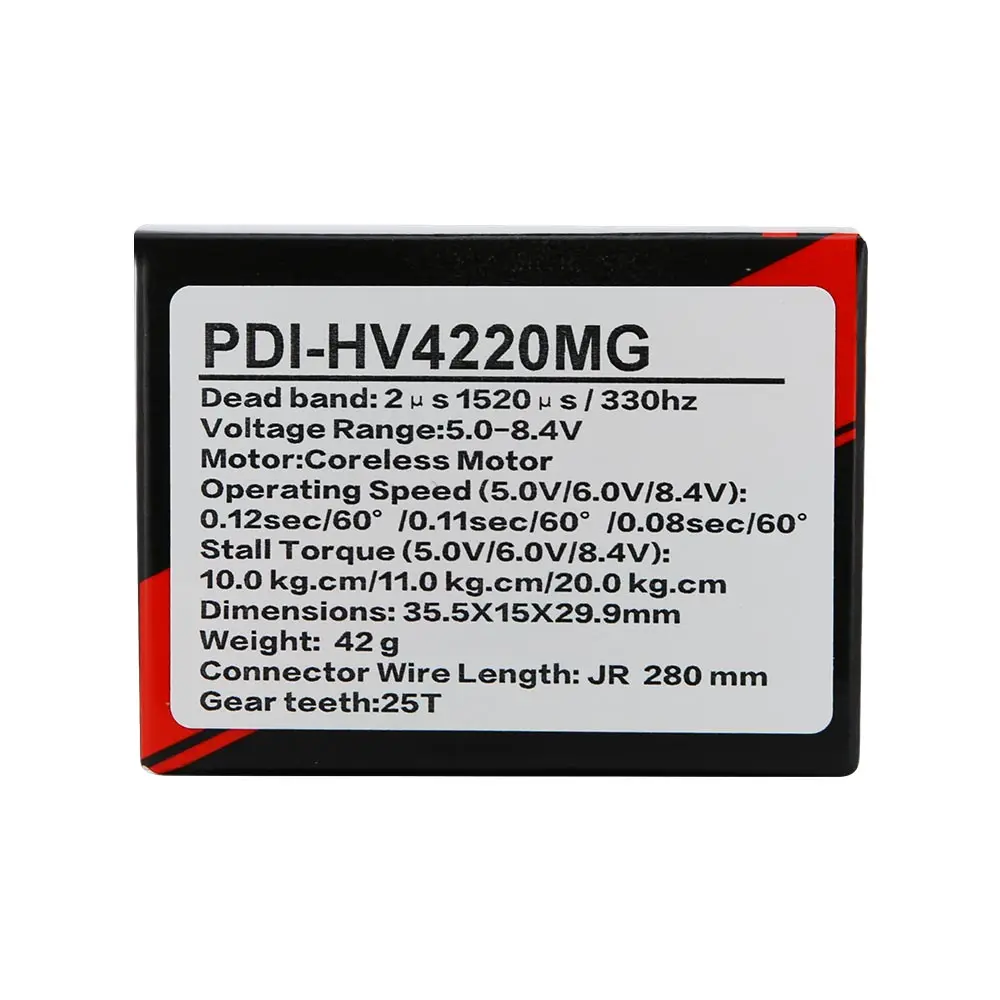

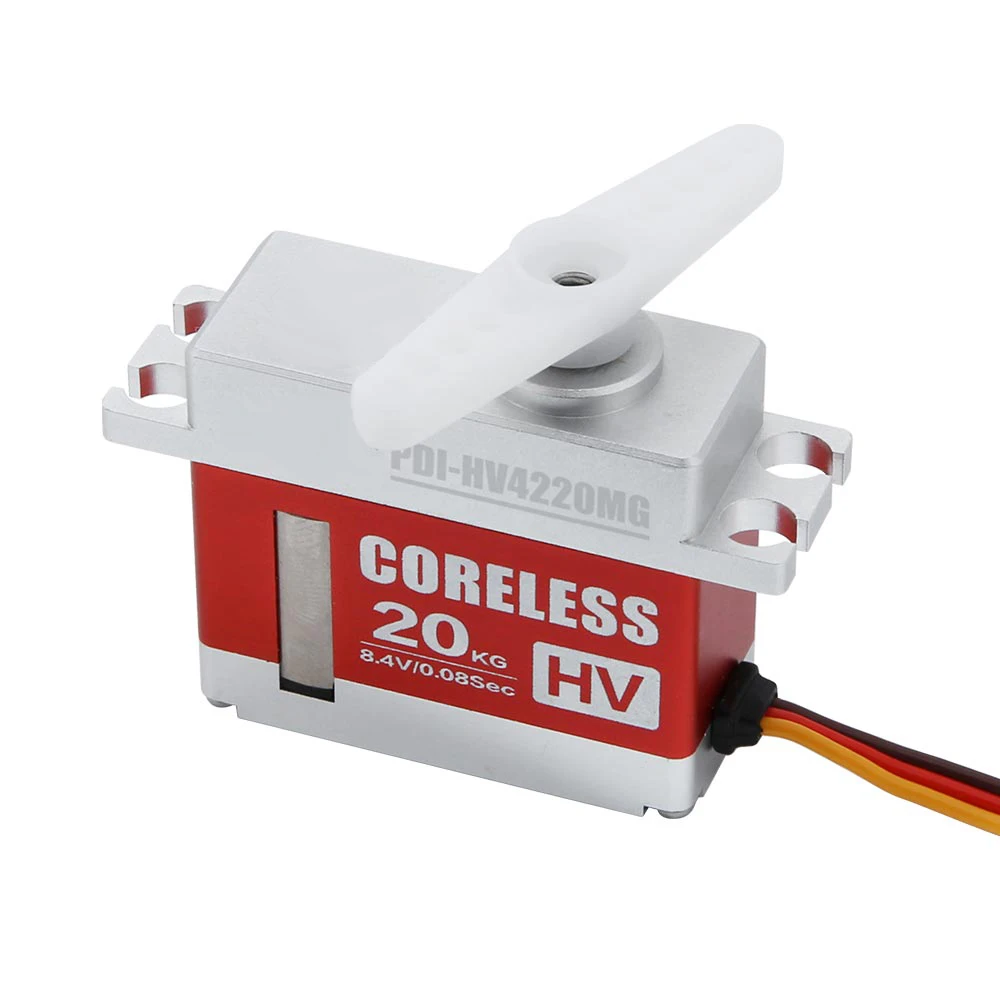

JX PDI-HV4220MG 20KG All CNC Metal Brushless Motor Servo For Drone FPV RC Helicopter

Dead band: 2μs

Motor:Coreless Motor

Working frequence: 1520μs / 330hz

Operating Voltage:  DC5.0~8.4 V

Operating Speed (5.0V): 0.12sec/60°

Operating Speed (6.0V): 0.11 sec/60°

Operating Speed (8.4V): 0.08 sec/60°

Stall Torque (5.0V):10.0 kg.cm

Stall Torque (6.0V):11.0 kg.cm

Stall Torque (8.4V):20.0 kg.cm

Dimensions: 35.5X15X29.9mm

Weight:  42 g

Connector Wire Length: JR280 mm

Bearing: 2BB

Gear Teeth:25T
Medium-sized hollow-cup all-metal servo

Cable length: JR280mm, brown-red-orange

Laser-etched dimensions: top of upper cover 15 × 17 mm, side of upper cover 33 × 7 mm, centre housing 25 × 15 mm
