JX Servo PDI-1102MG /PDI-1103MG Micro Metal Gear Digital Servo 3.7-5.5V Coreless Servo For RC Car Airplane Drone

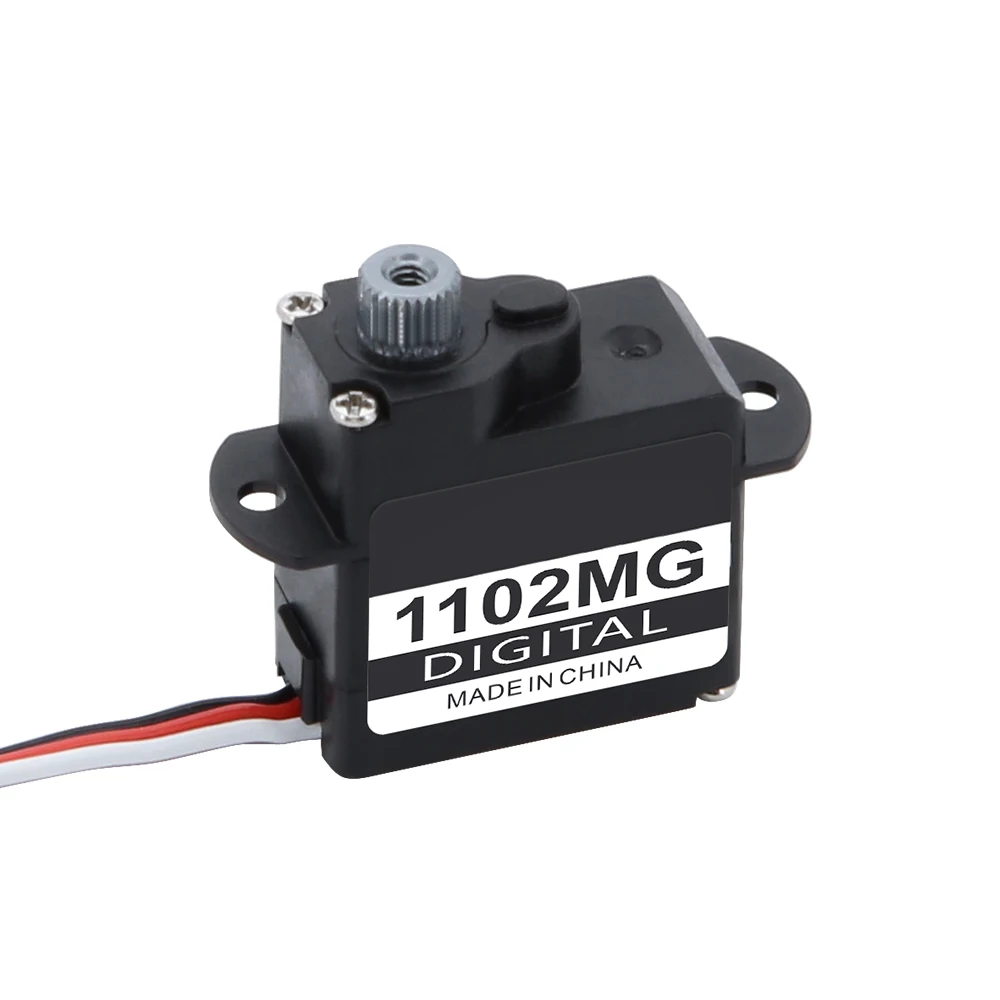

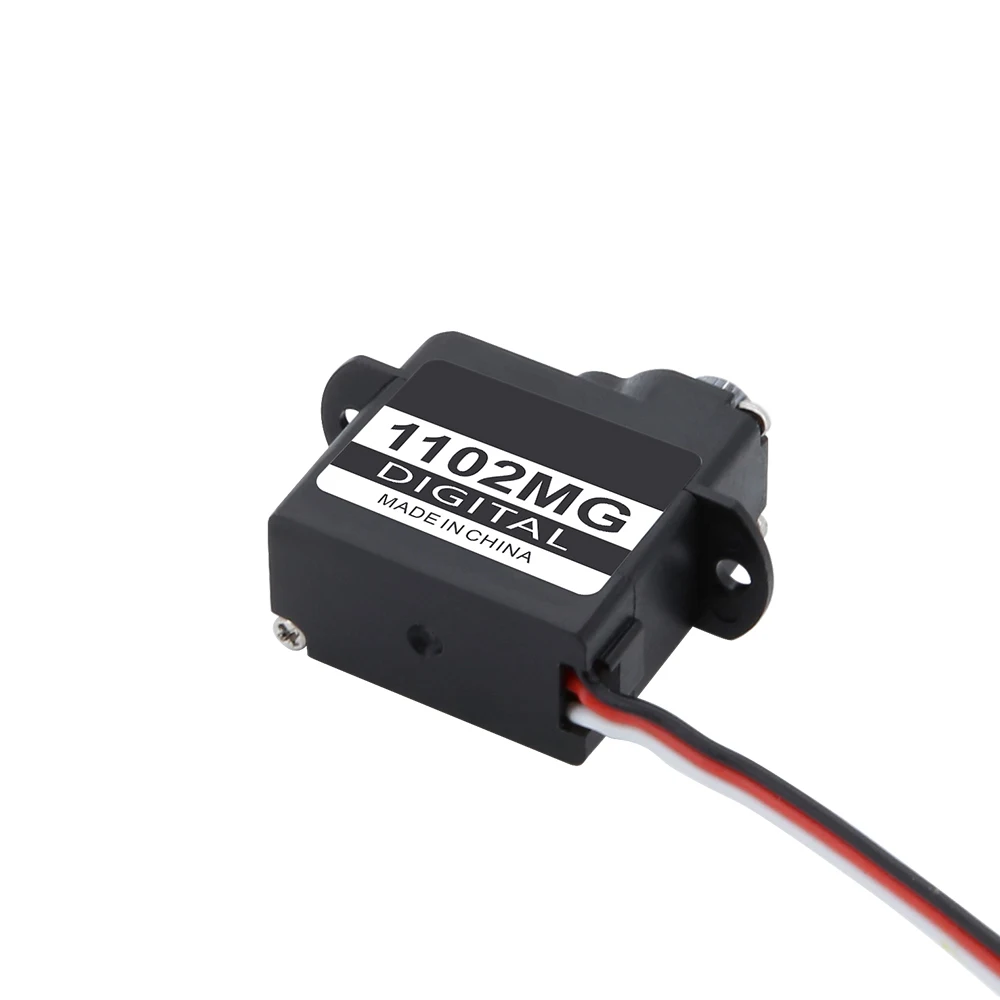

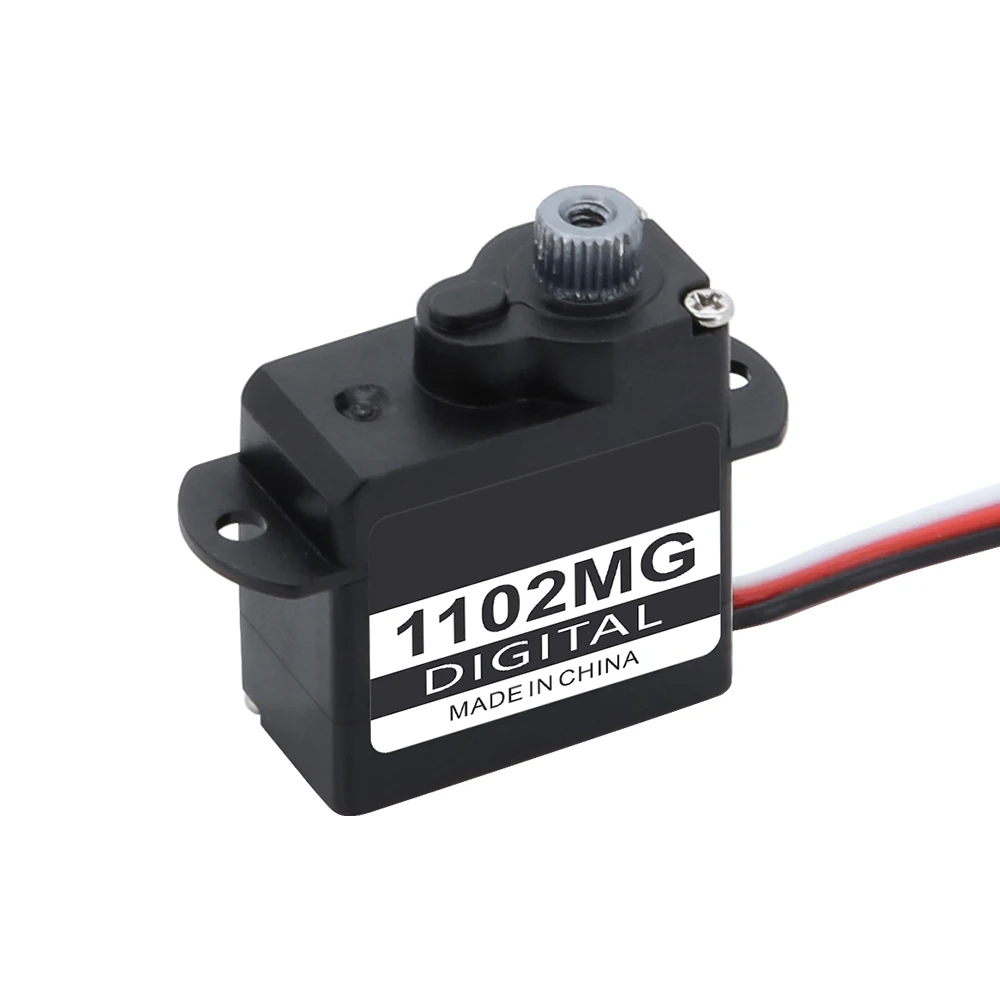

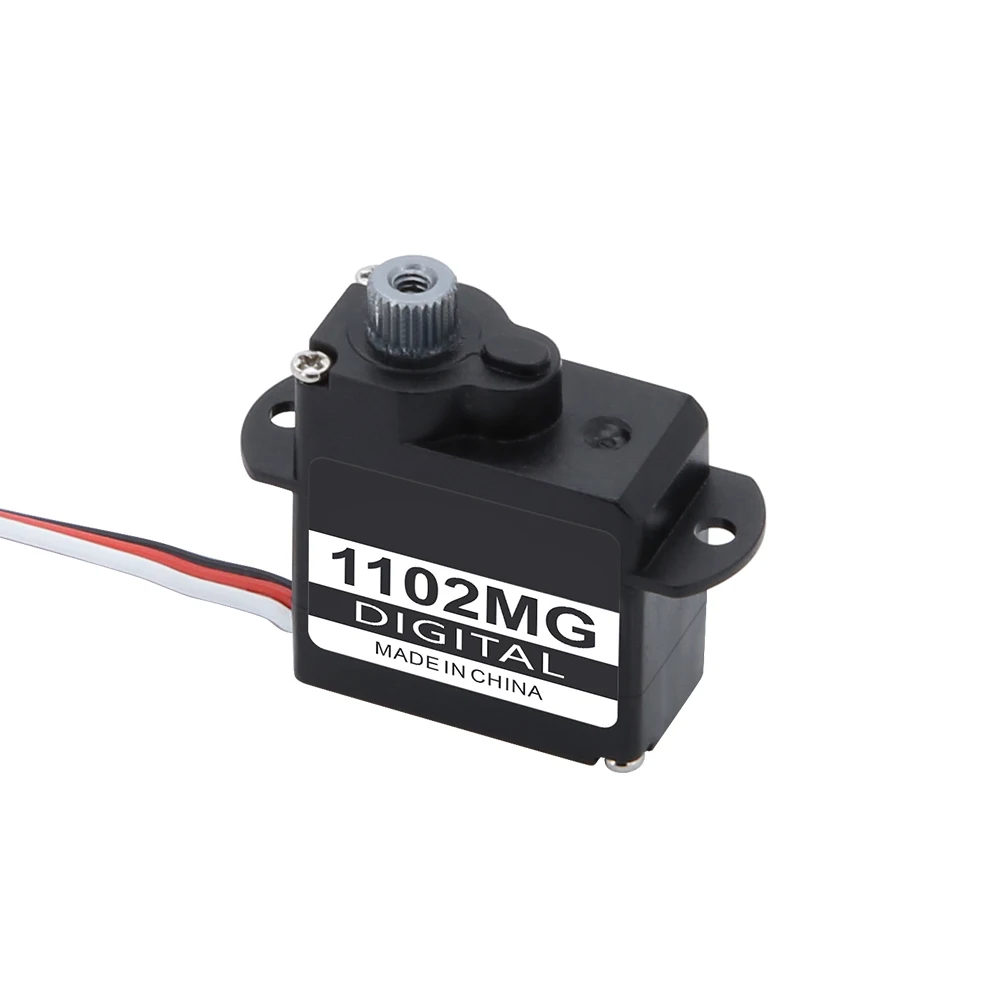

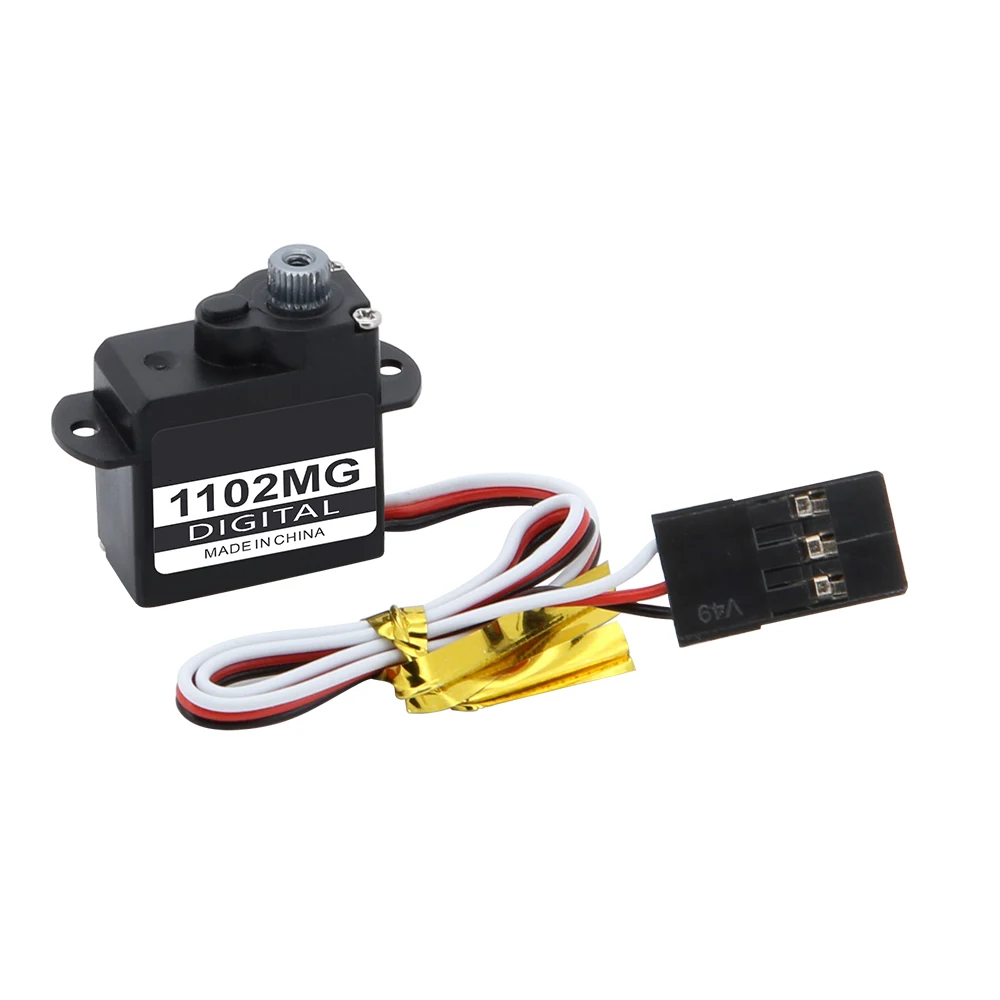

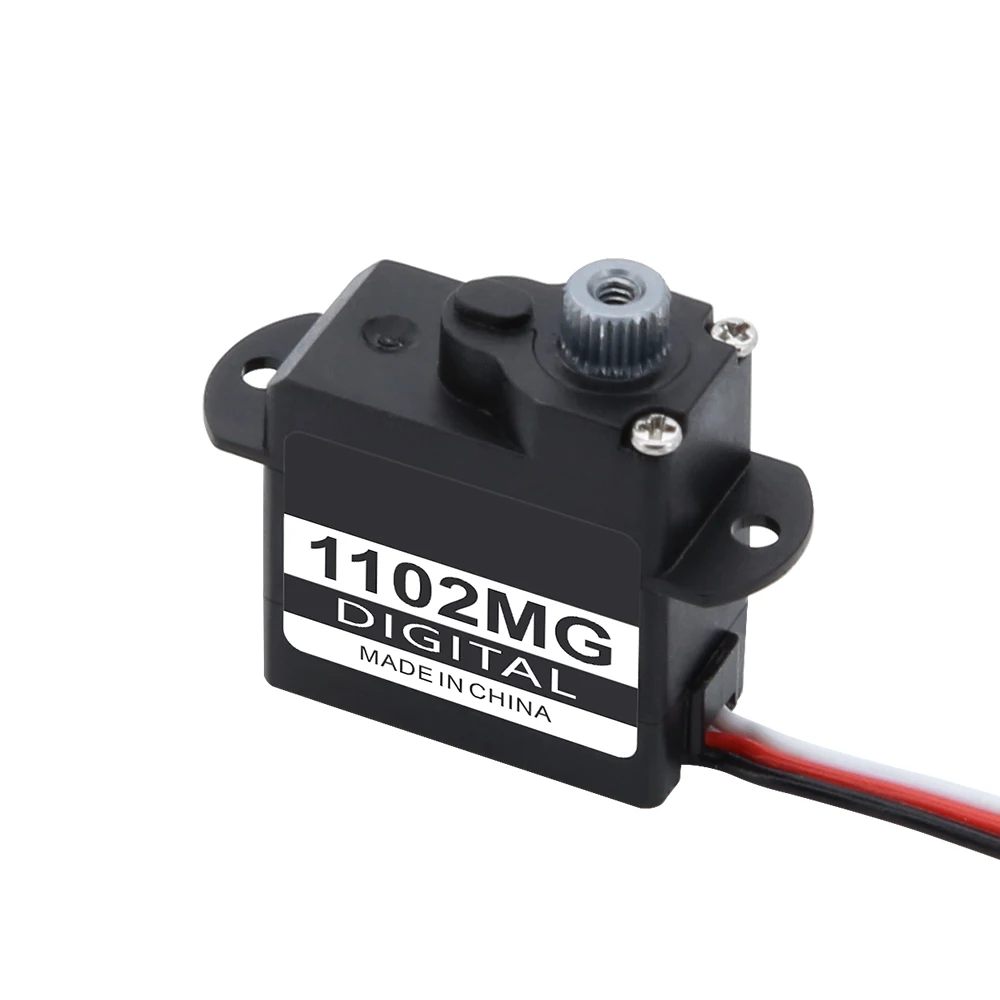

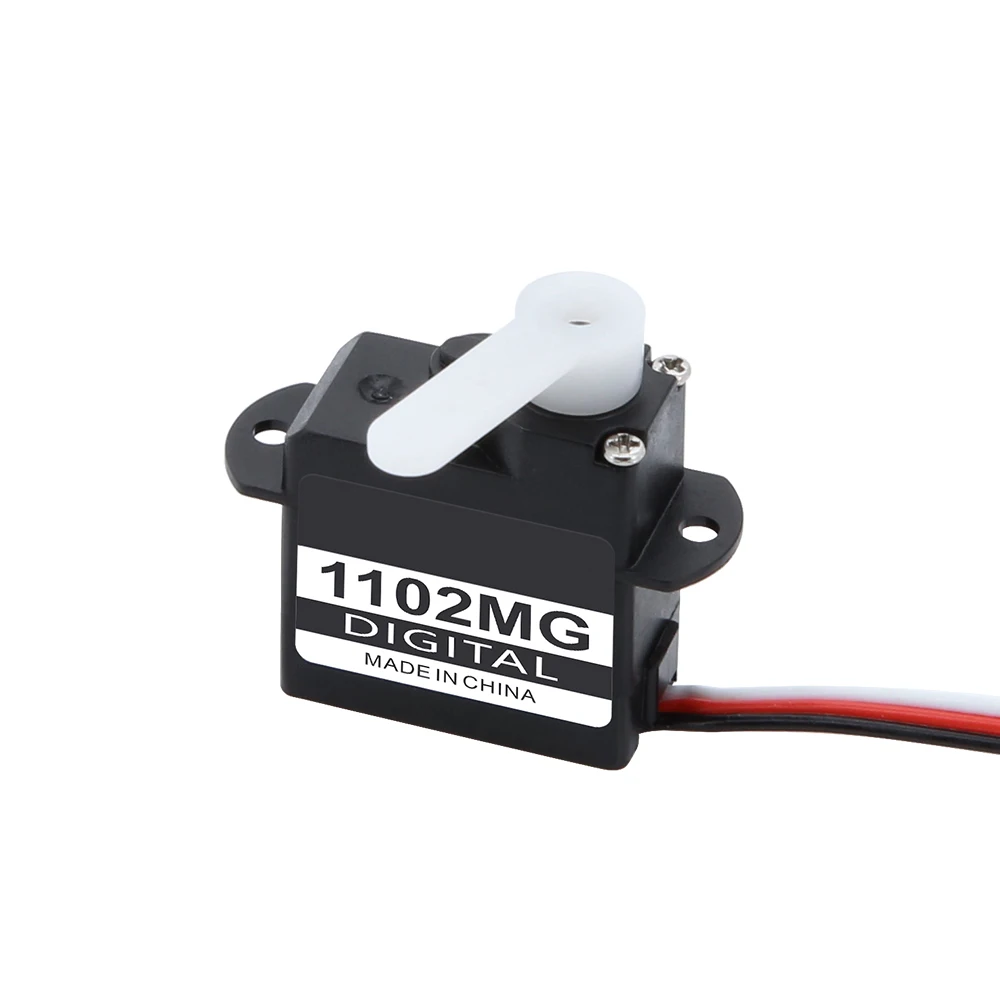

JX Servo PDI-1102MG

Dead Band: 2μs

Working Frequence: 1520μs / 330HZ

Motor:Coreless Motor

Operating Voltage:  DC3.7-5.5 V

Operating Speed (3.7V): 0.10sec/60°

Operating Speed (5.0V): 0.09sec/60°

Stall Torque (3.7V): 0.55kg.cm

Stall Torque (5.5V): 0.75kg.cm

Dimensions: 16.4x8.5x17.3mm

Weight: 3.4g

Connector Wire Length: JR  150 mm

Gear Teeth:28T

2g metal-toothed micro servo, centre housing sticker dimensions 14 × 10 mm, power cable: JR black, red and white, 150 mm

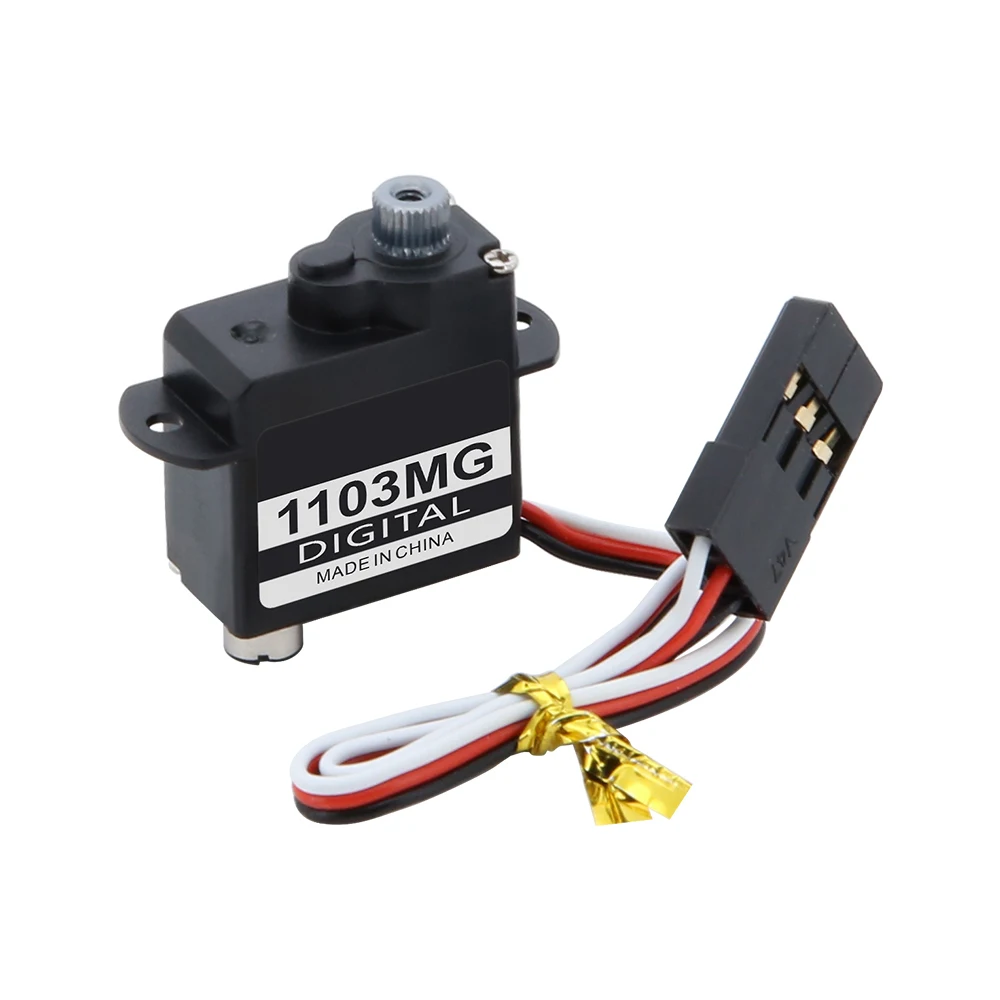

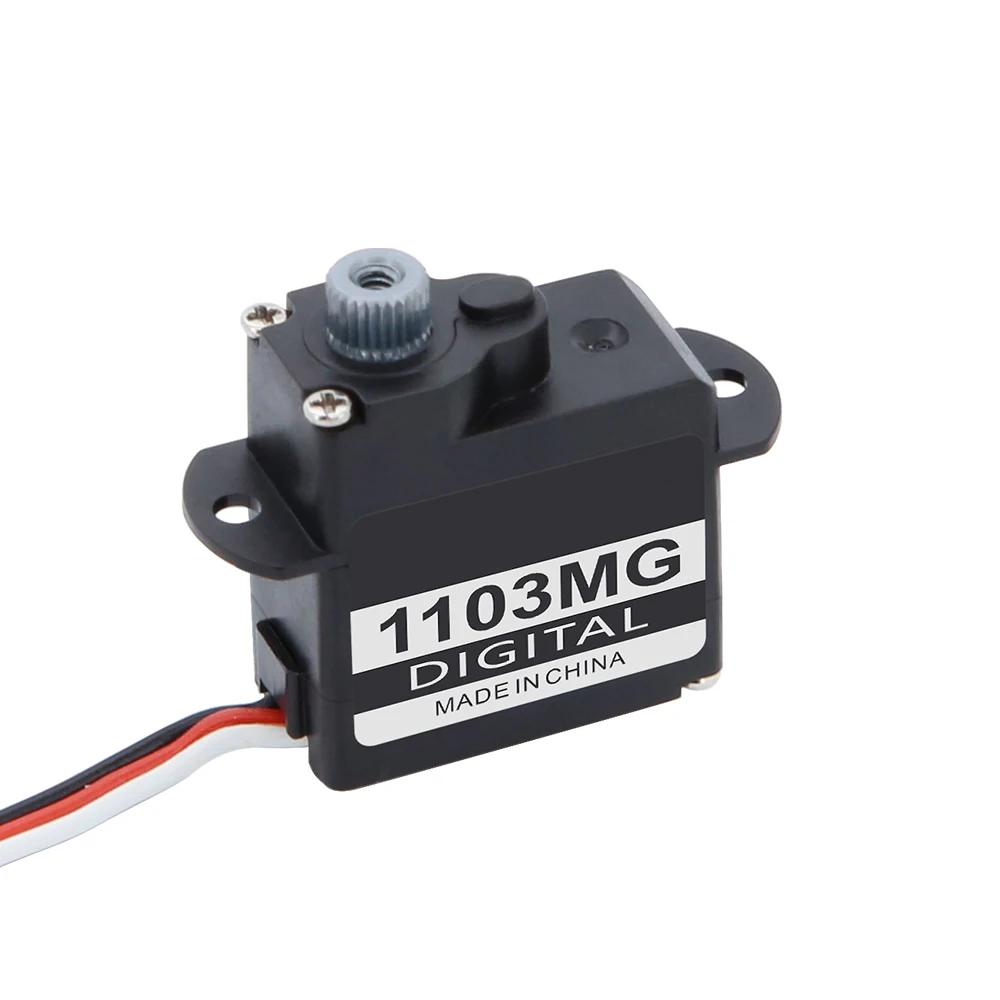

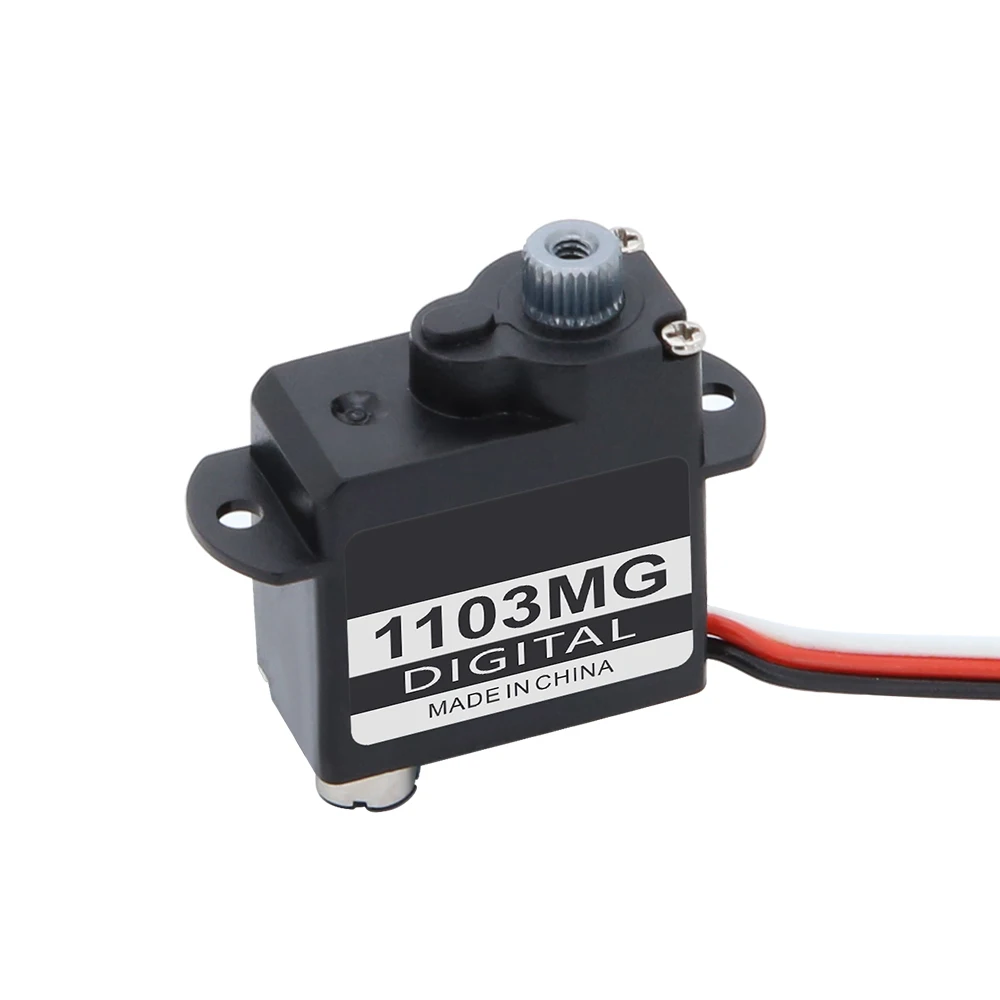

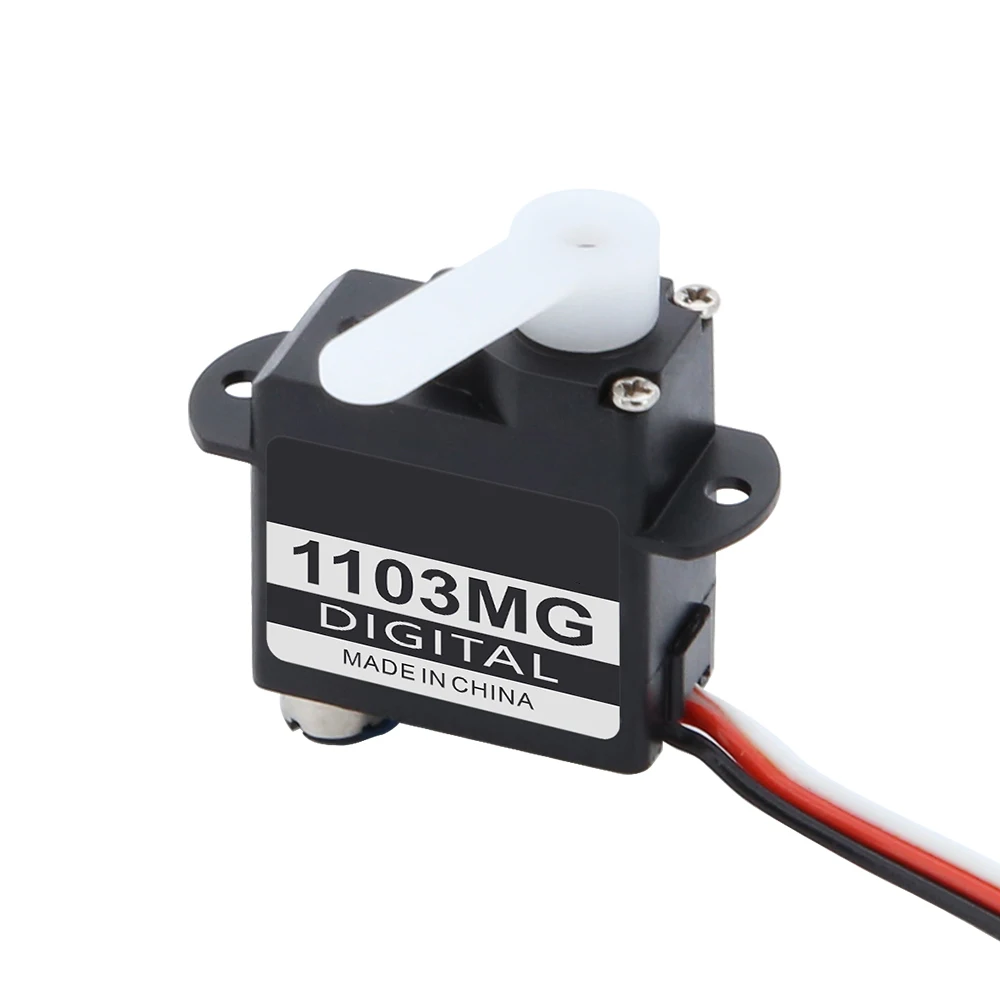

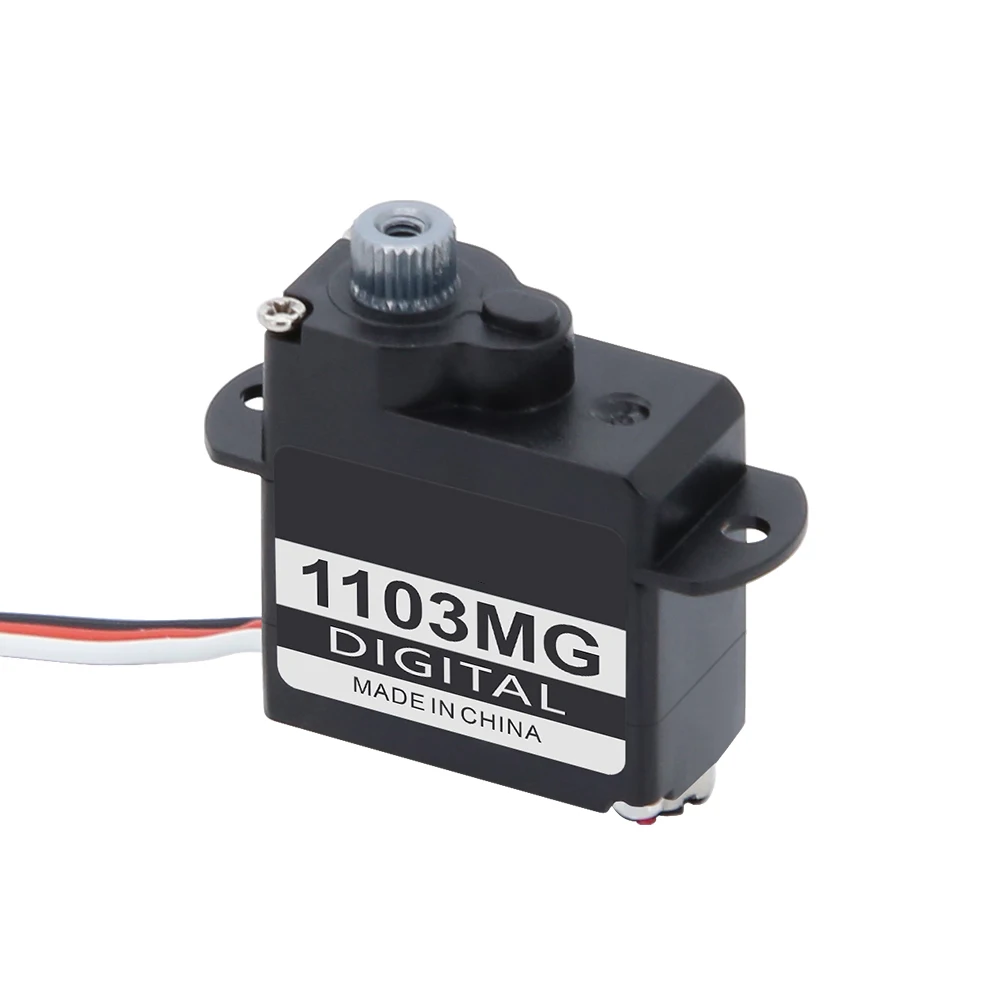

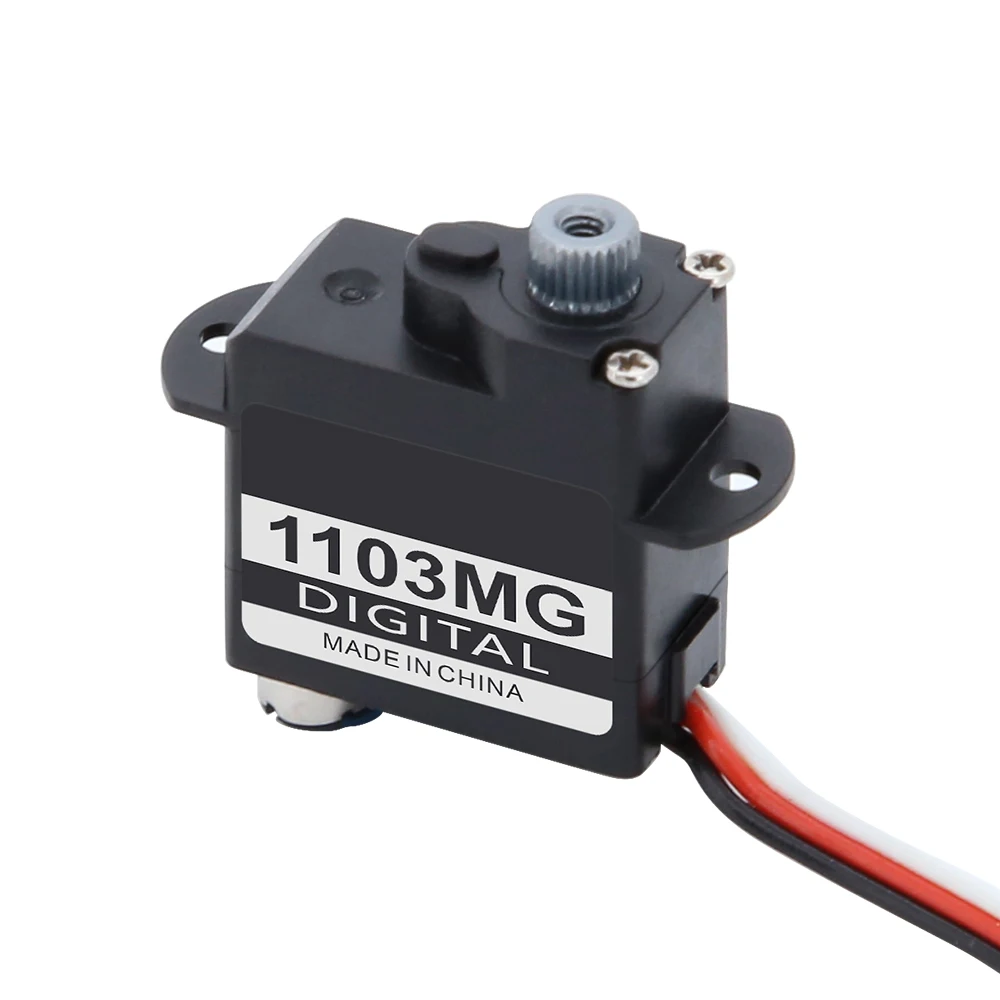

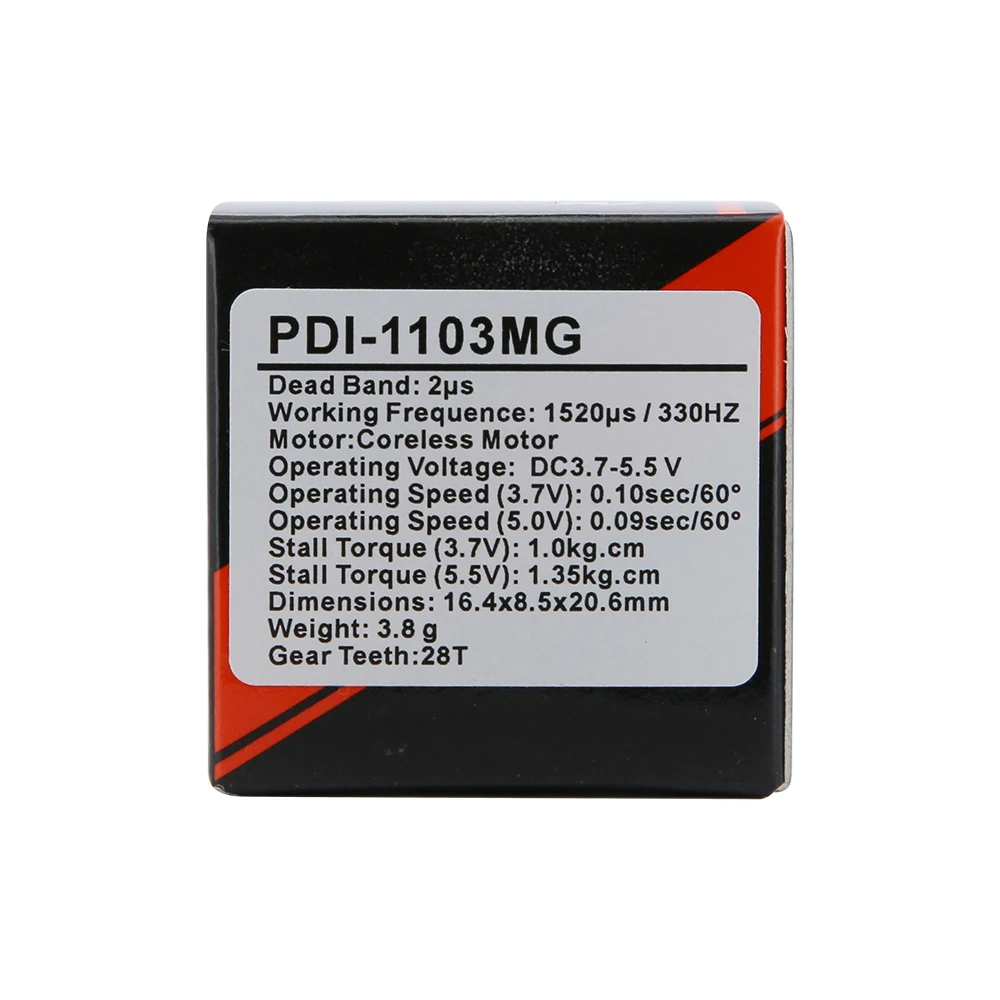

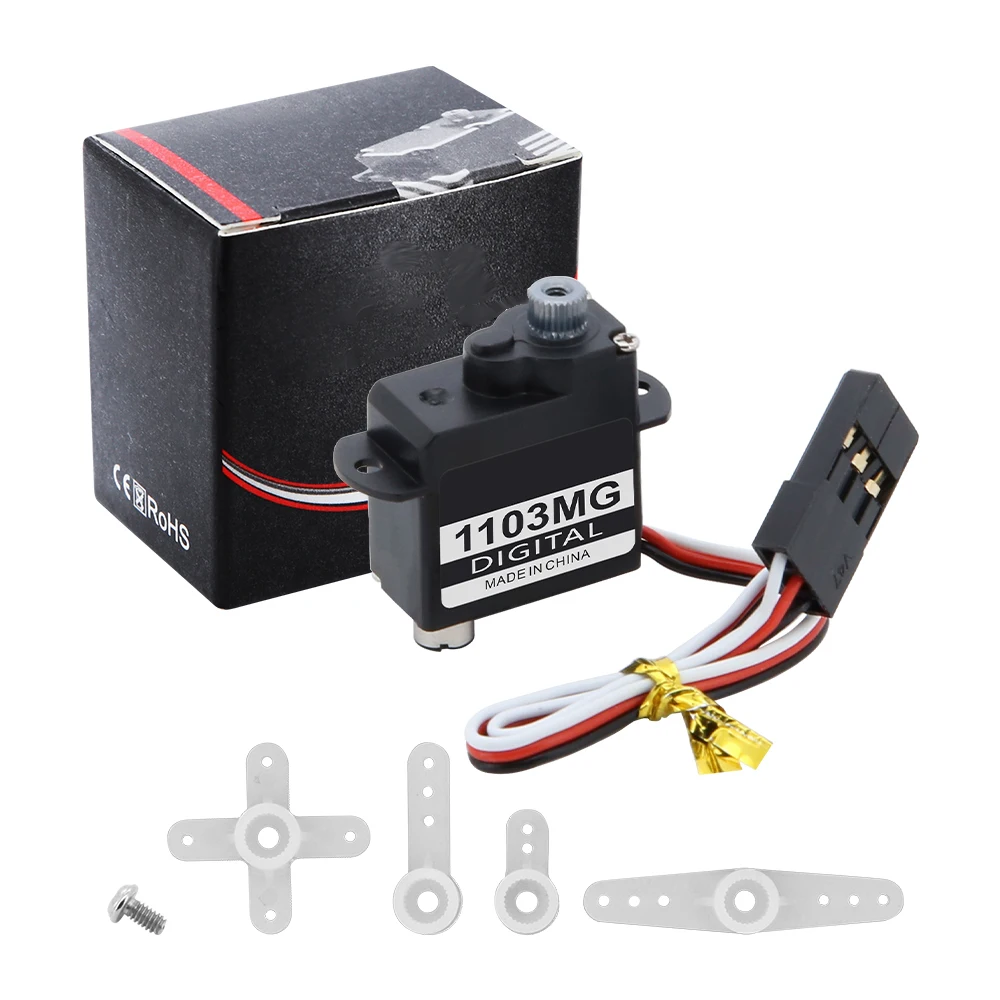

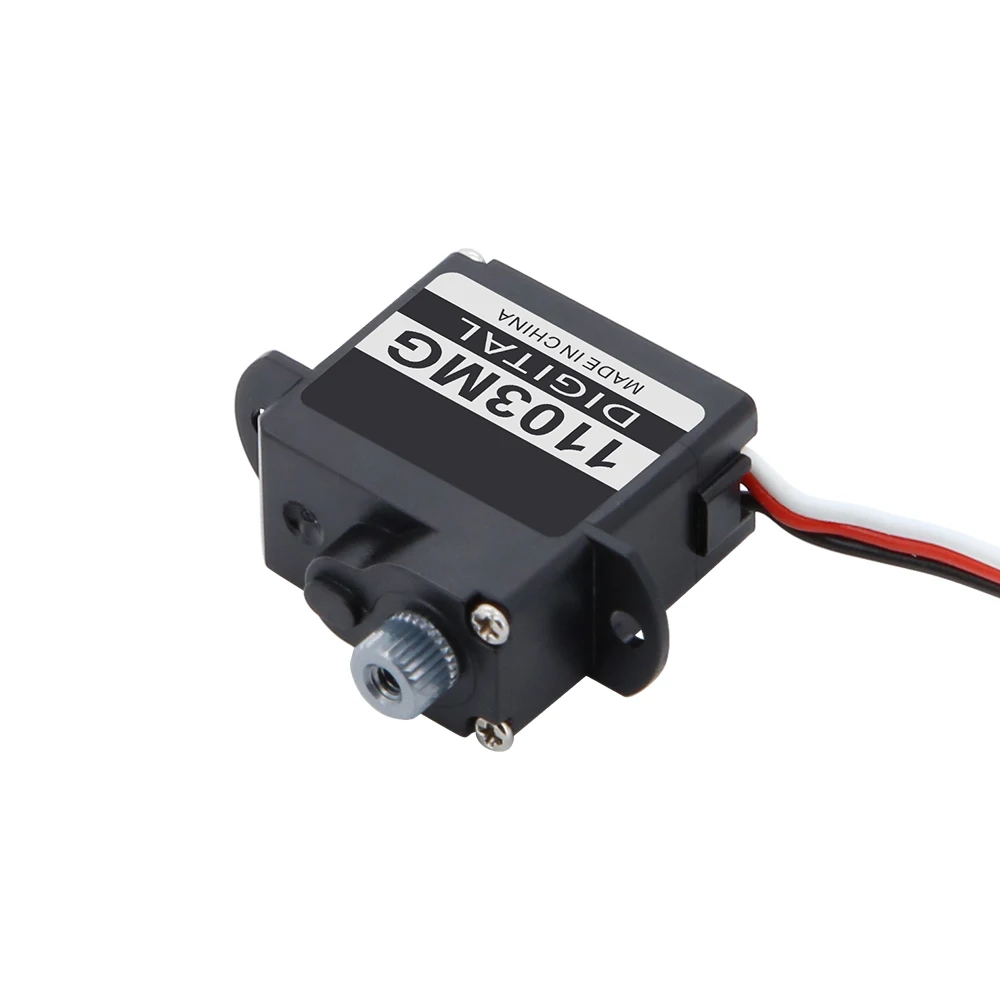

JX Servo PDI-1103MG Micro Metal Gear Digital Servo


Dead Band: 2μs

Working Frequence: 1520μs / 330HZ

Motor:Coreless Motor

Operating Voltage:  DC3.7-5.5 V

Operating Speed (3.7V): 0.10sec/60°

Operating Speed (5.0V): 0.09sec/60°

Stall Torque (3.7V): 1.0kg.cm

Stall Torque (5.5V): 1.35kg.cm

Dimensions: 16.4x8.5x20.6mm

Weight: 3.8 g

Connector Wire Length: JR  150 mm

Gear Teeth:28T

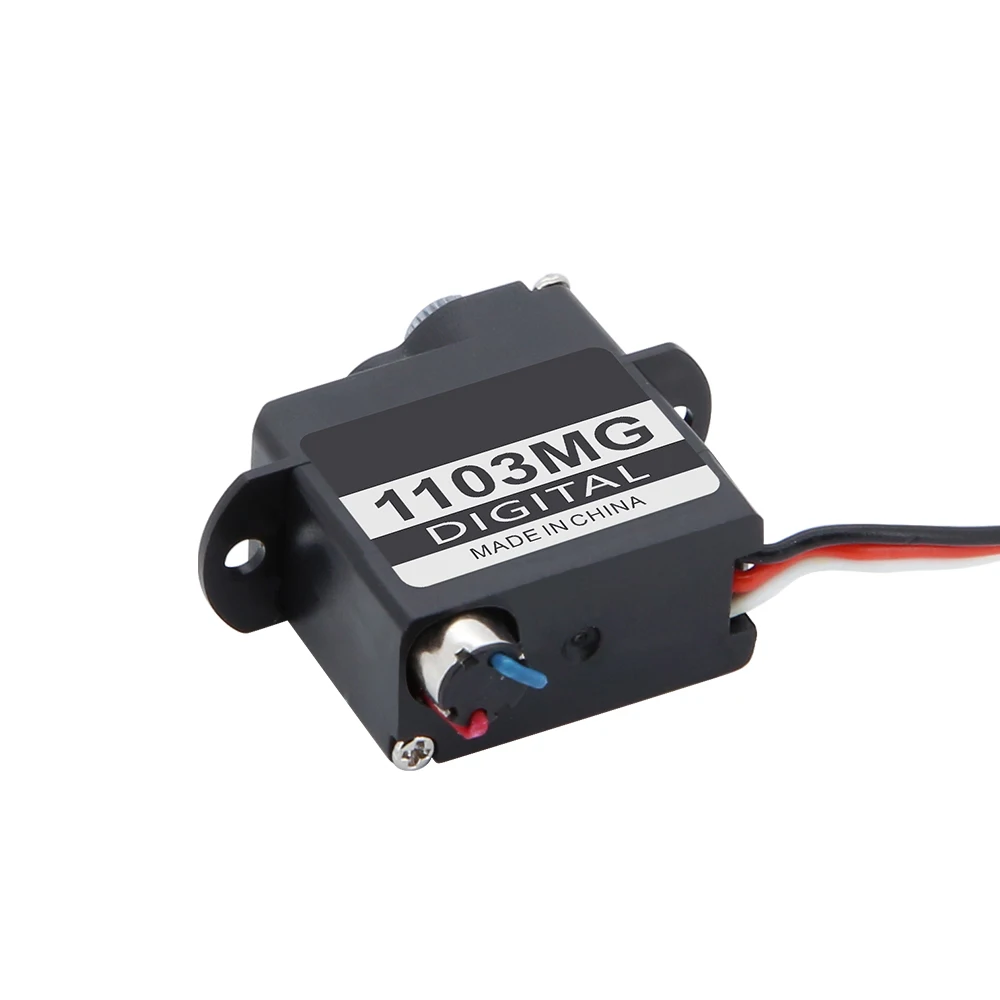

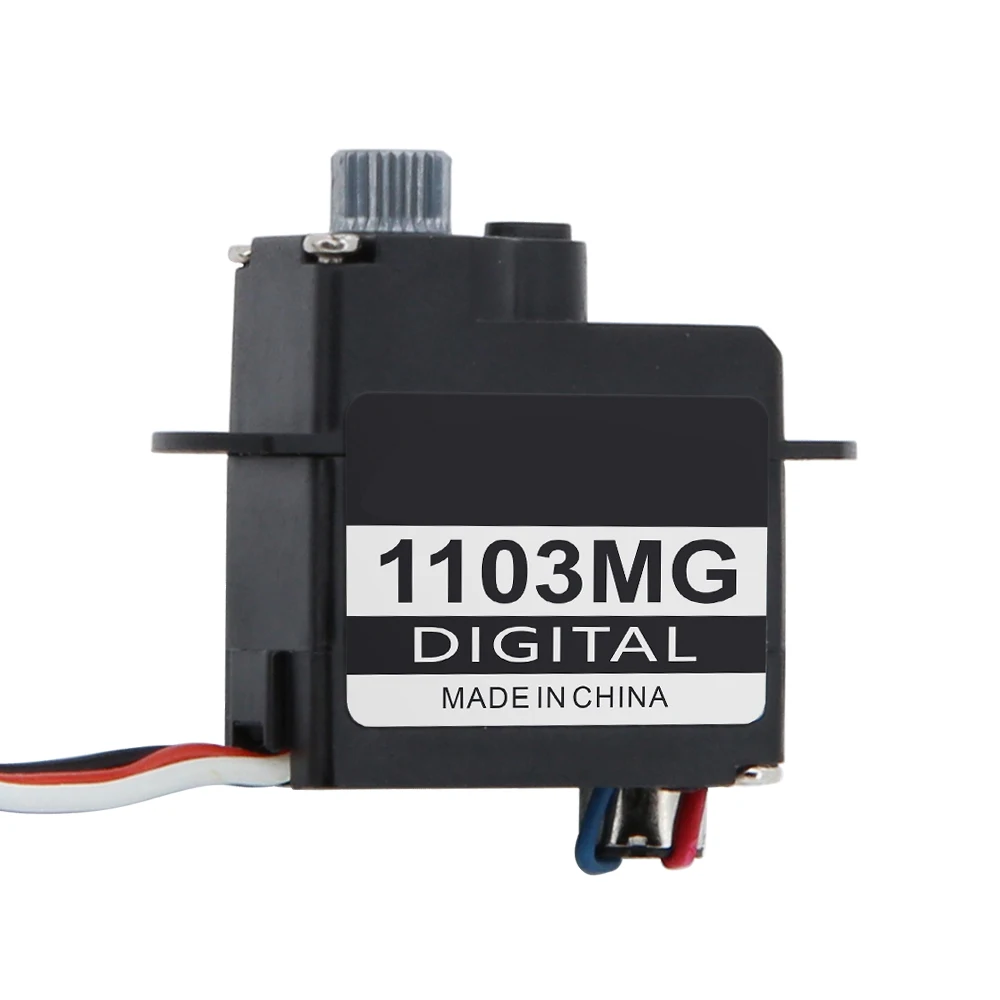

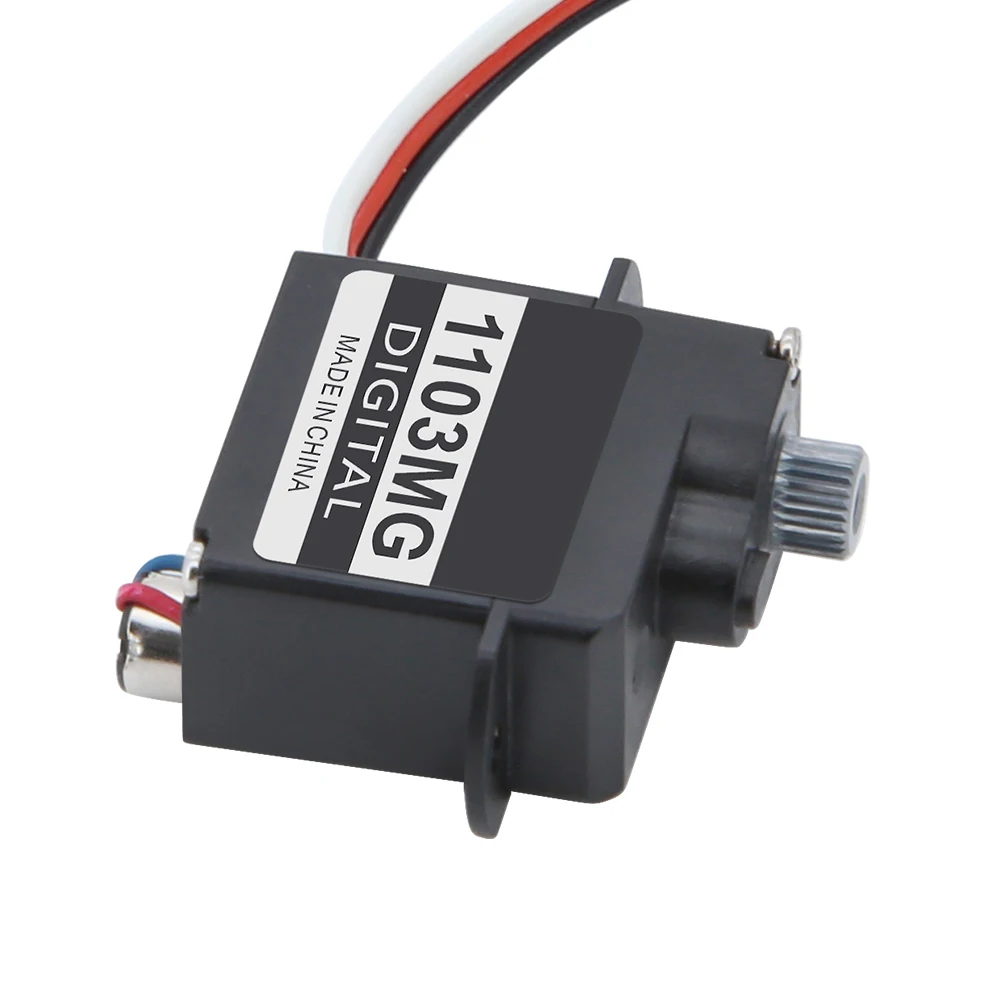

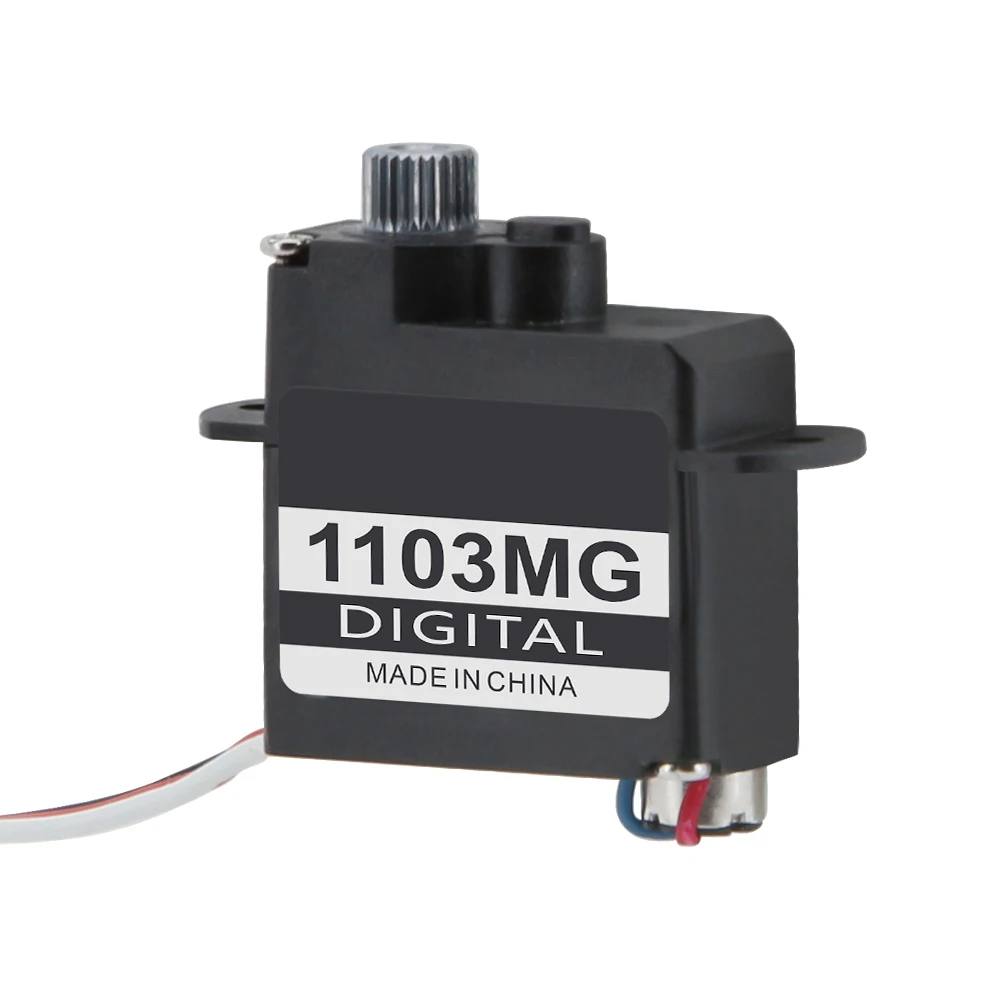

Metal-toothed micro servo, raised motor, exposed motor

Centre casing sticker dimensions: 14 × 10 mm; power cable: JR black, red and white, 150 mm
