KT1359-8KG Electric Linear Actuator Built-In limit Protection Push Rod Stroke 10/15/20/25/30/50/75/100mm 80N-7mm/s For Airplane

QWinOut

Regular price $44.63

Shipping calculated at checkout.

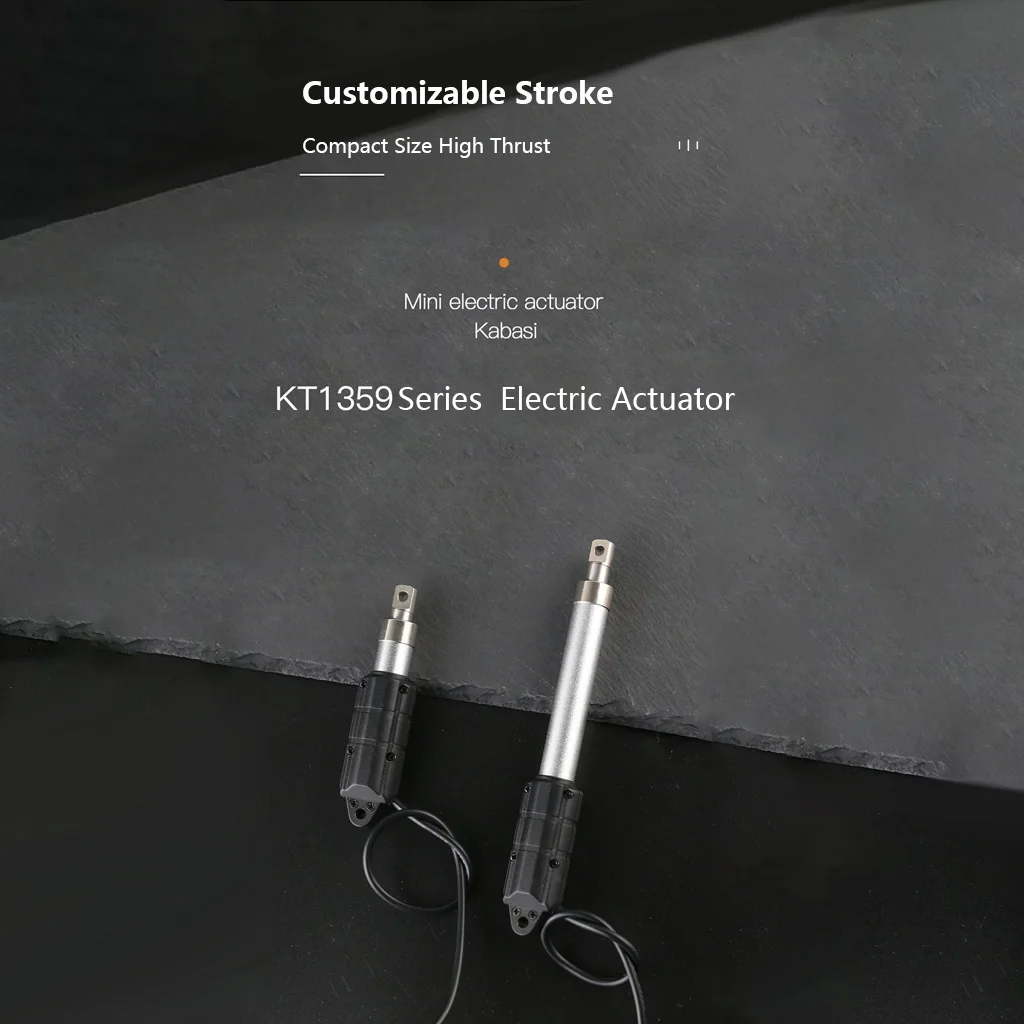

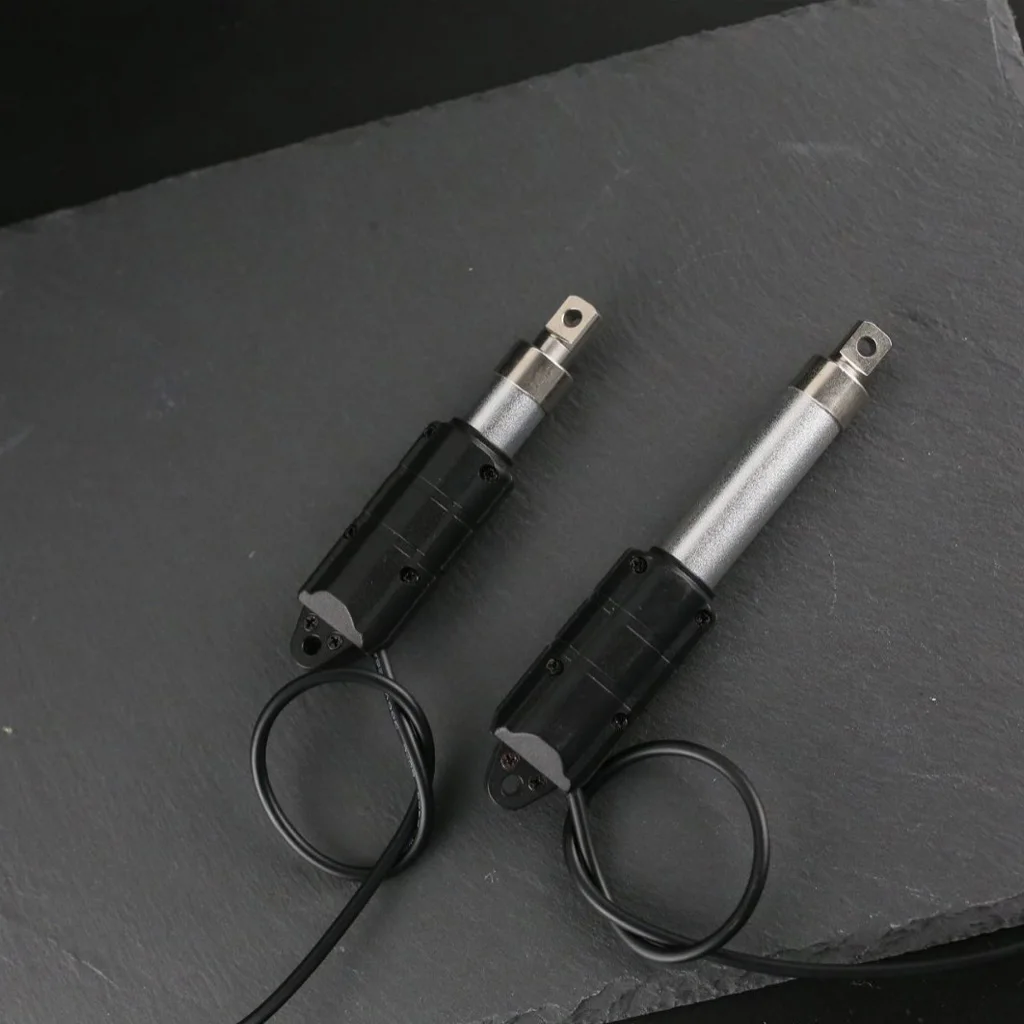

KT1359 Mini 12V DC Linear Electric Actuator Micro Telescopic Push Rod

Ultra Light | High Self-locking Force | Low Noise | Custom Stroke

This compact miniature linear actuator adopts full metal 304 stainless steel telescopic shaft and wear-resistant nylon outer shell. It features ultra-small size, lightweight body and stable heavy load capacity, widely applied in DIY mechanical models, smart home, medical devices, industrial automation, unmanned aerial vehicles and other micro automatic lifting & pushing projects.

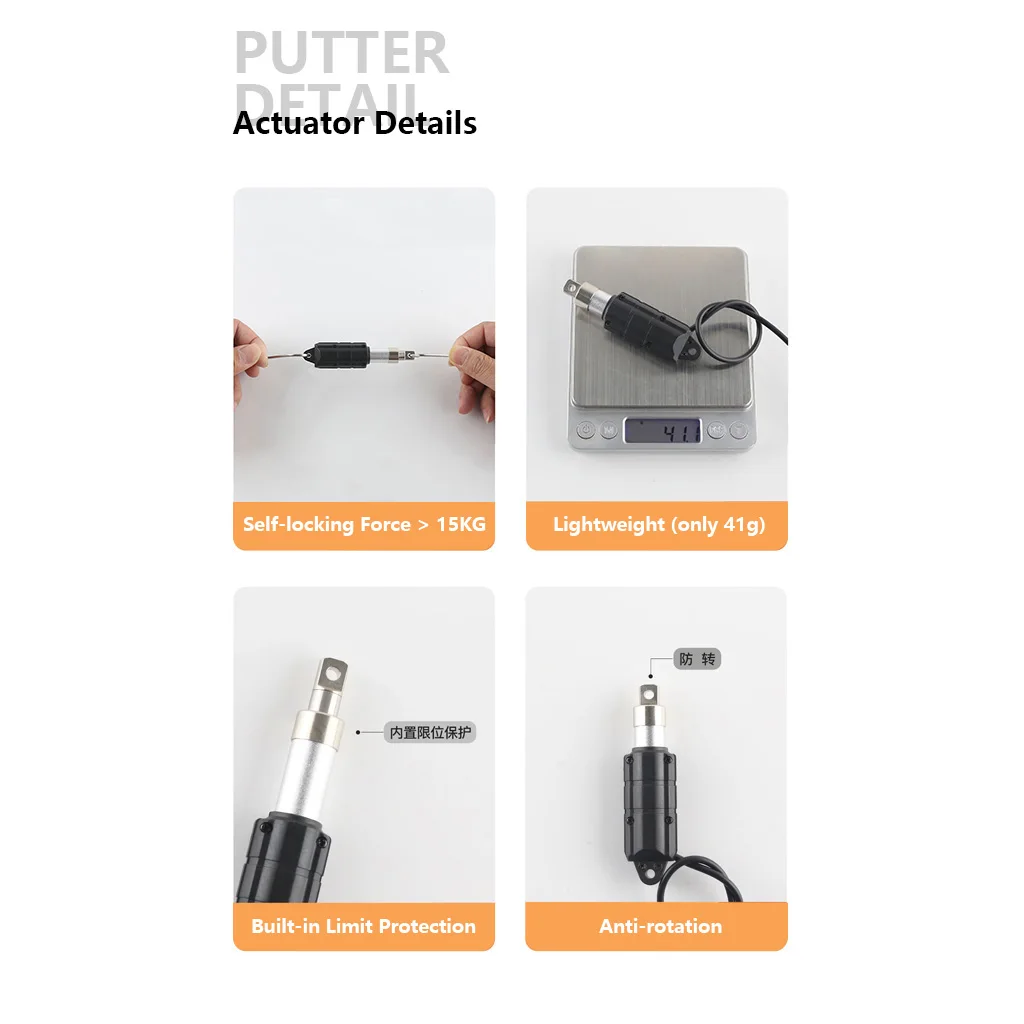

Core Product Advantages

Ultra Lightweight Body (Only 41g)

Integrated mini structure, net weight only 41g, will not bring extra load burden to small equipment, easy to embed into limited installation space.
304 Stainless Steel Full Metal Telescopic Shaft

Corrosion-resistant, rust-proof, high hardness, smooth telescopic operation, greatly extend service life.
Strong Self-locking Performance

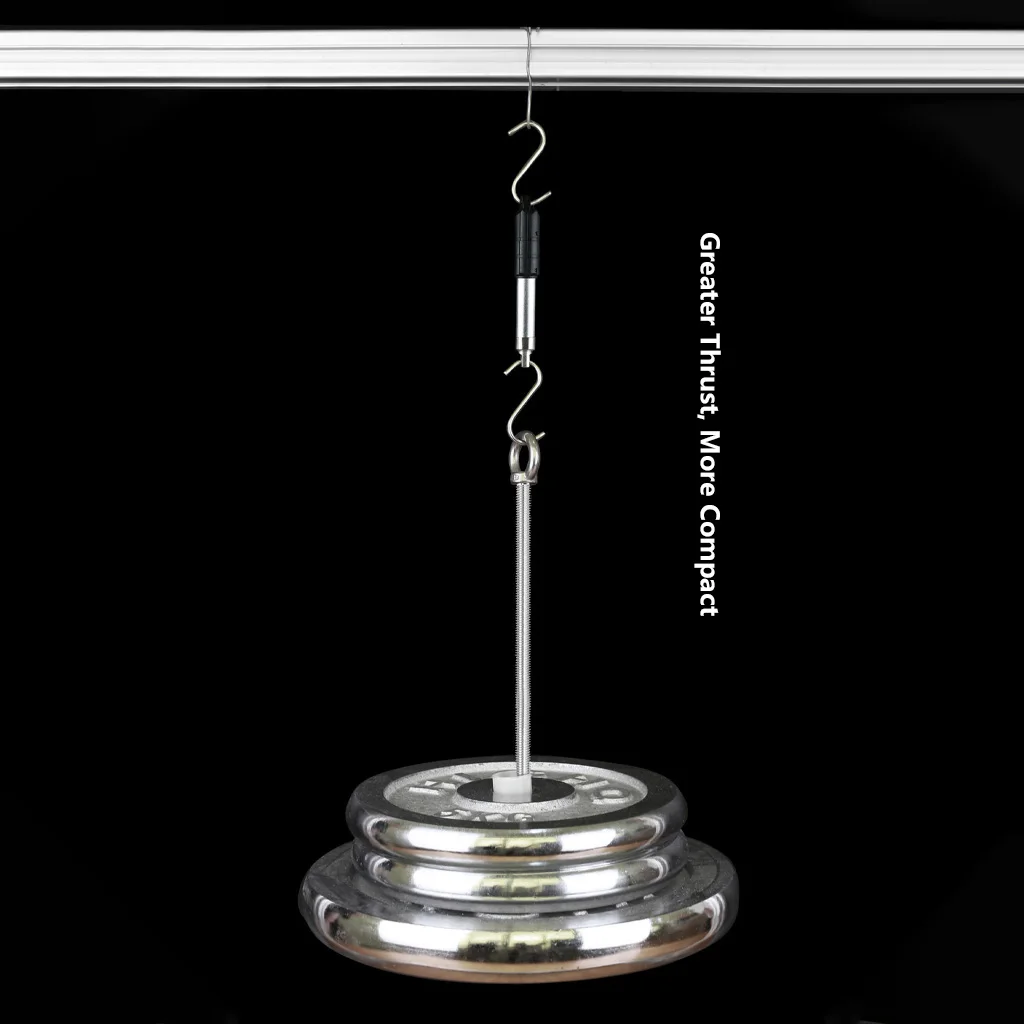

Self-locking force exceeds 15KG, the push rod can stay fixed at any stroke position after power cut, no extra locking structure required.
Built-in Travel Limit Protection

Internal limit switch automatically cuts off power when fully extended or retracted, effectively avoid motor burnout from over-stroke.
Anti-rotation Structural Design

Special limit structure prevents the telescopic shaft from rotating during operation, ensures stable linear movement.
Low Noise Operation ≤60dB

Precision internal gear assembly, quiet running, suitable for silent scenarios like medical equipment and smart furniture.

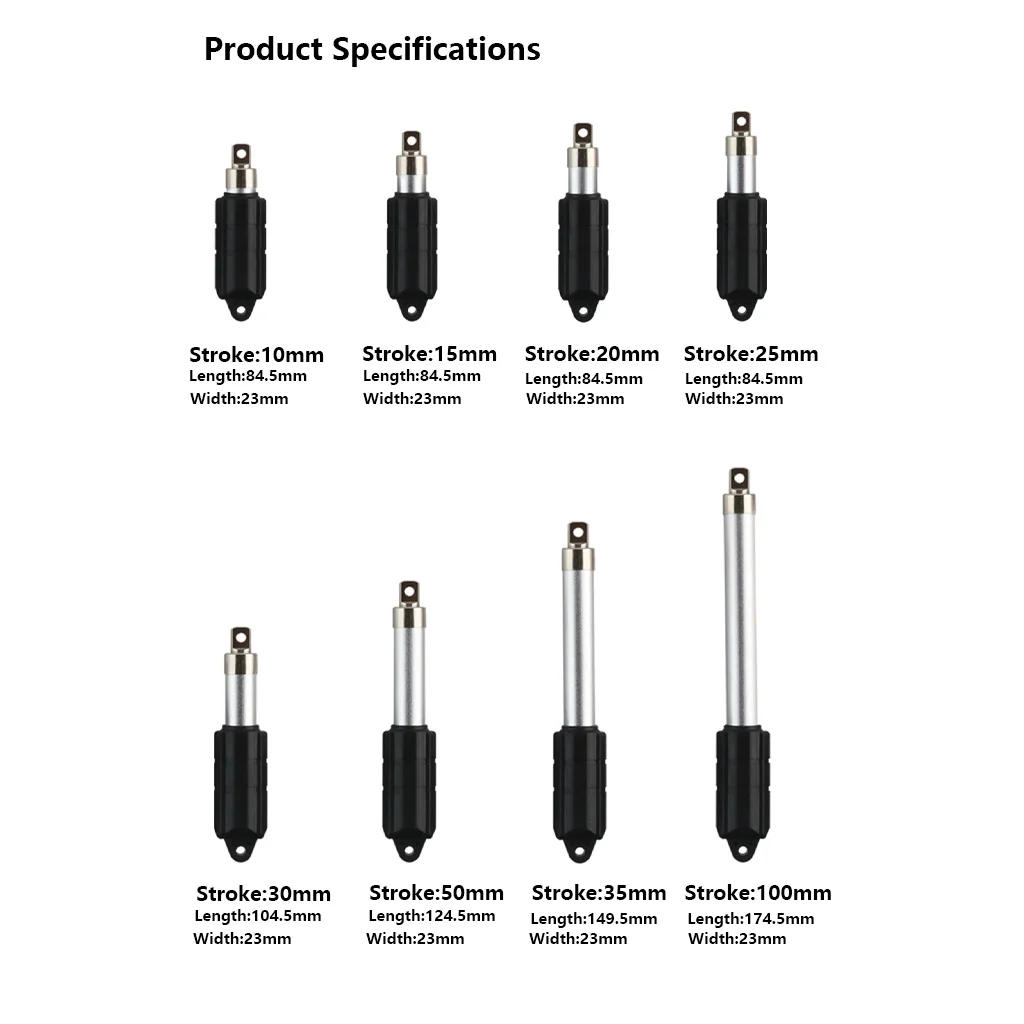

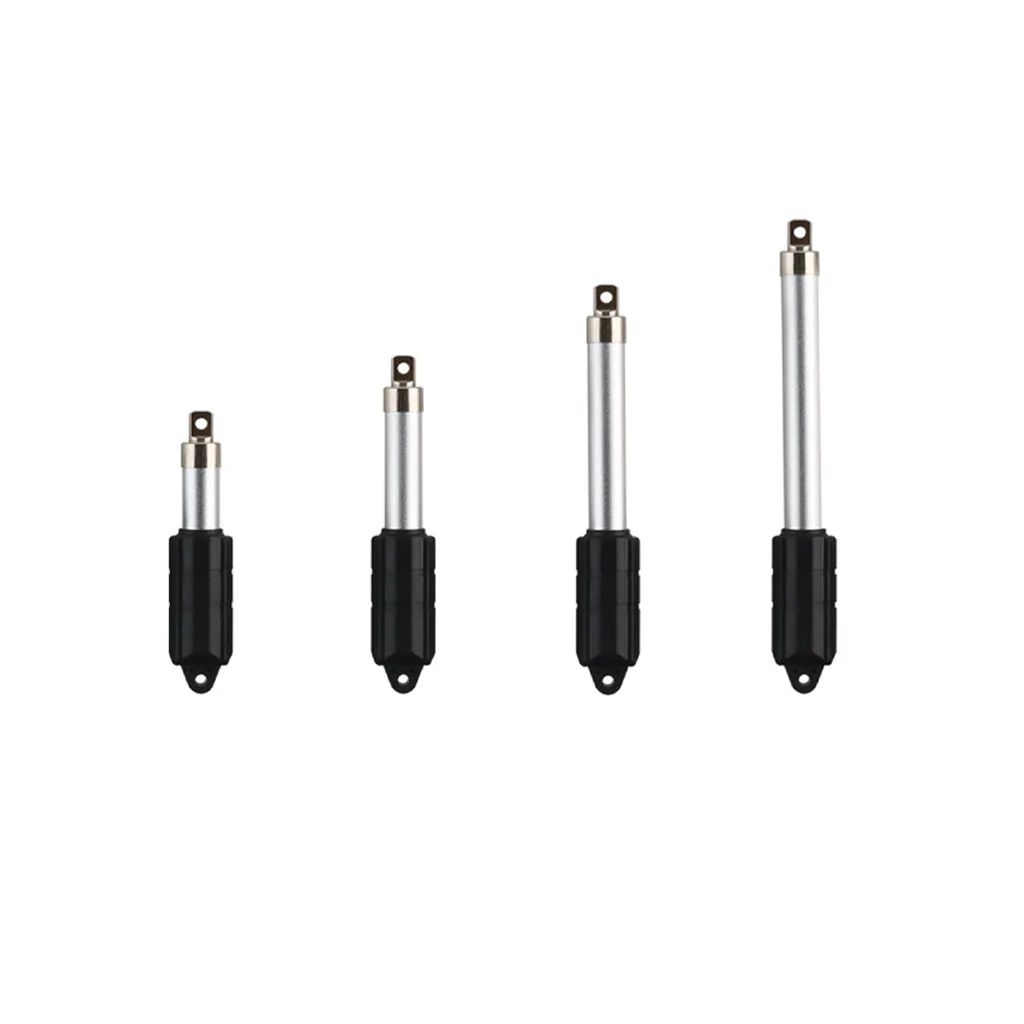

Rich Standard Strokes & Customizable Length

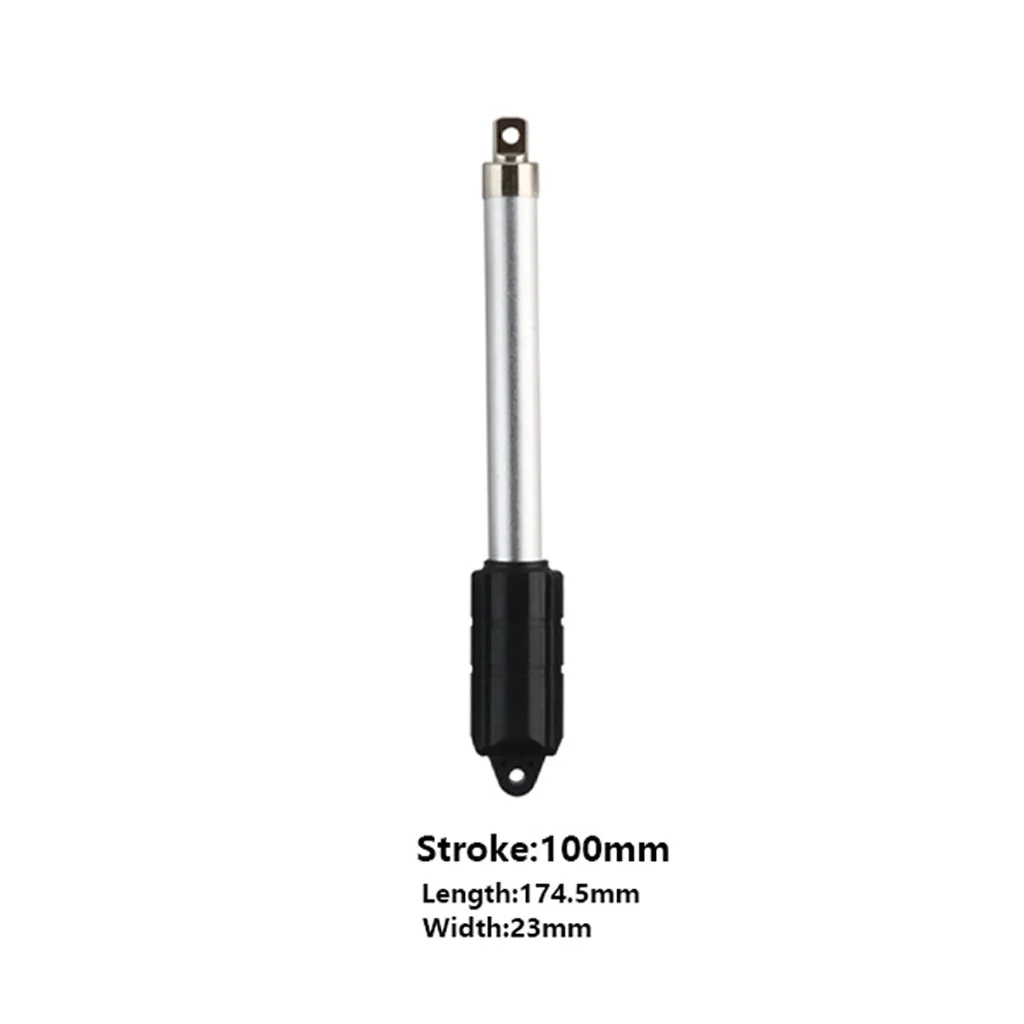

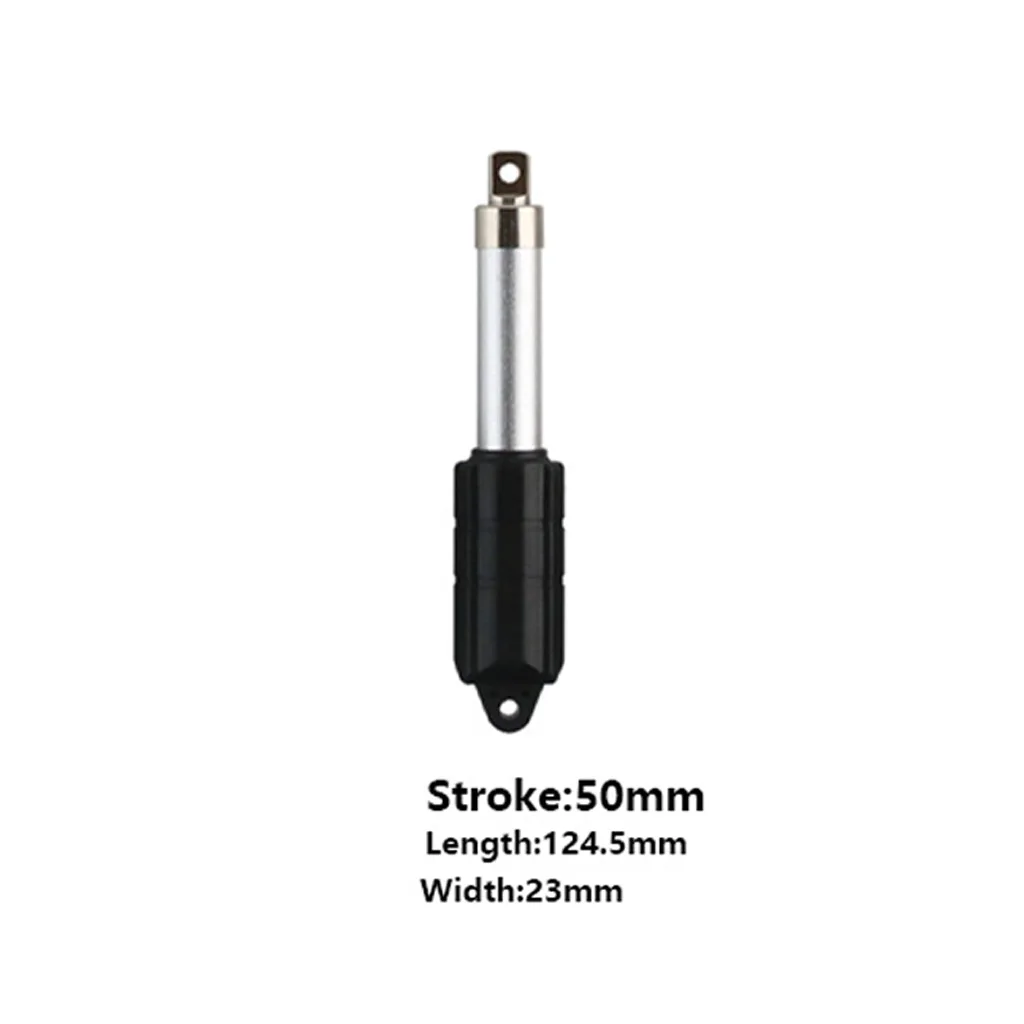

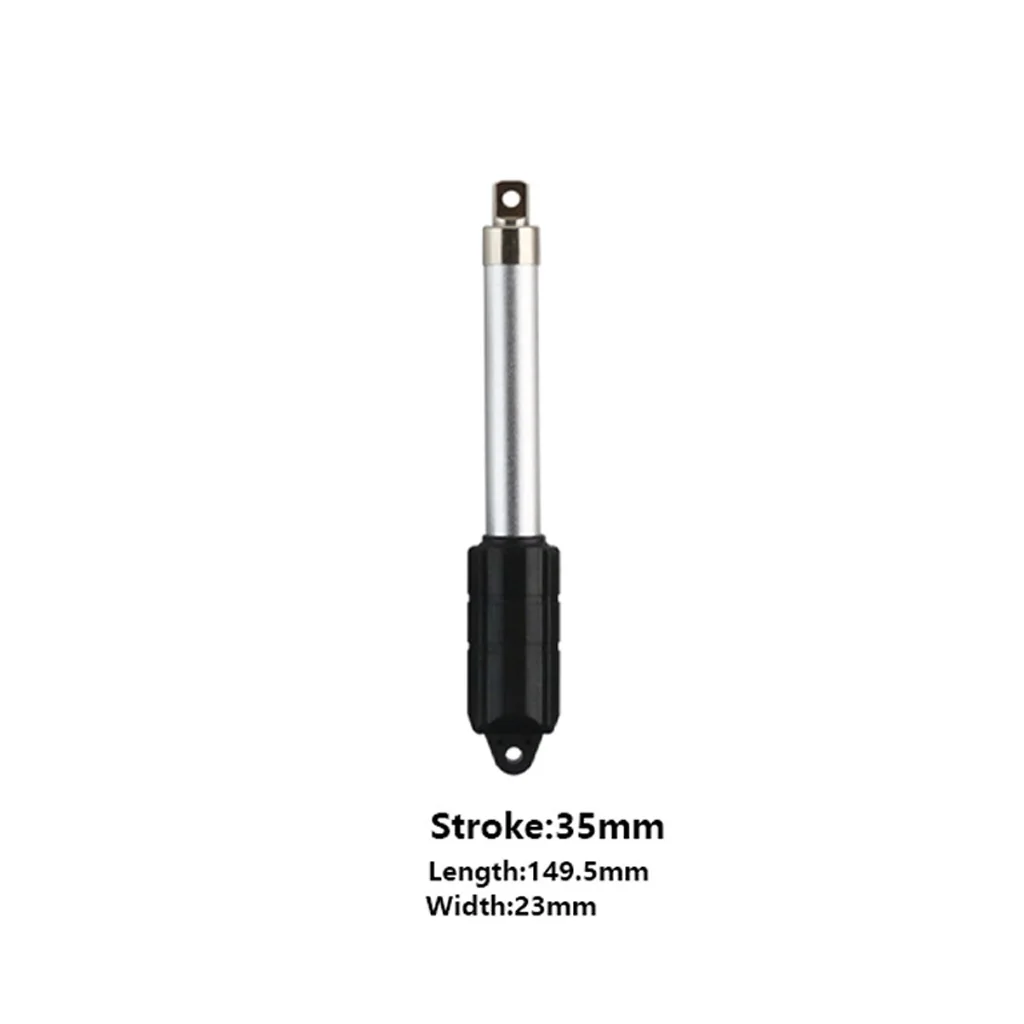

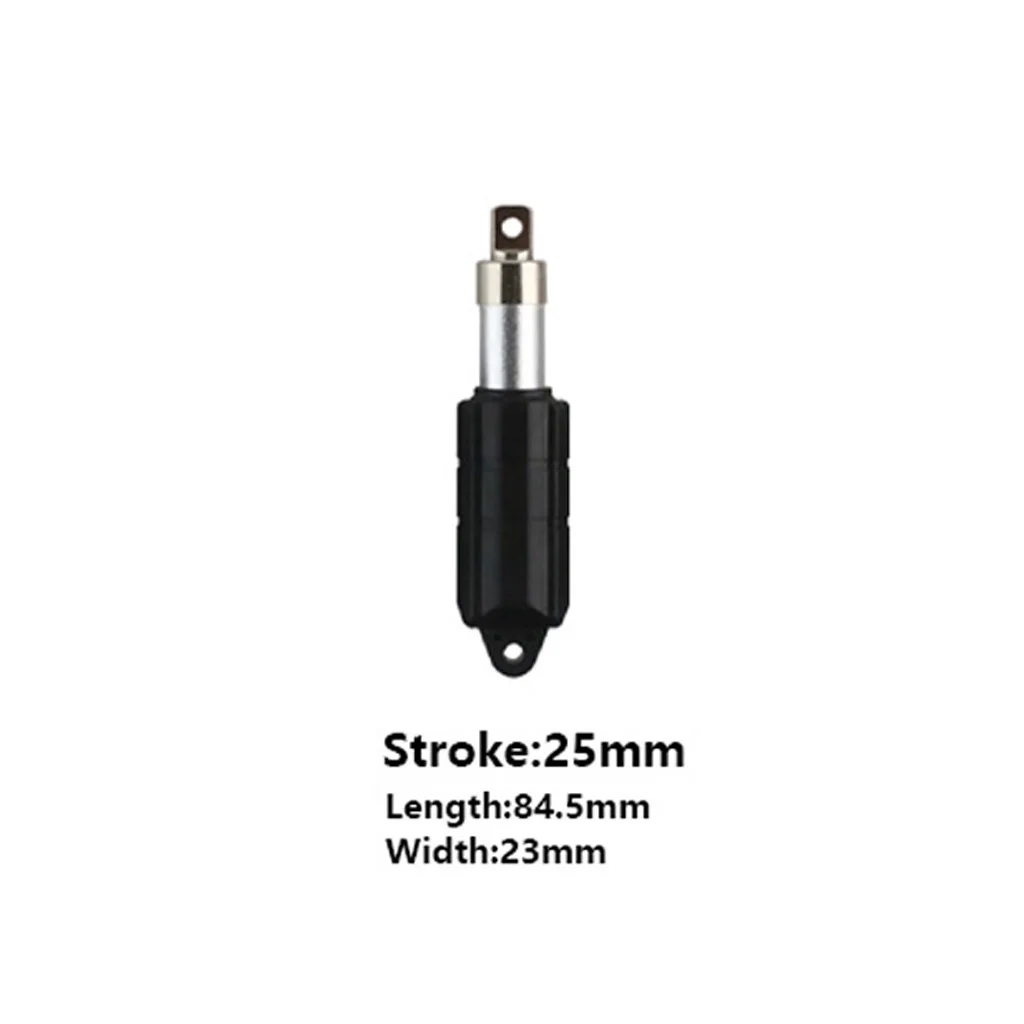

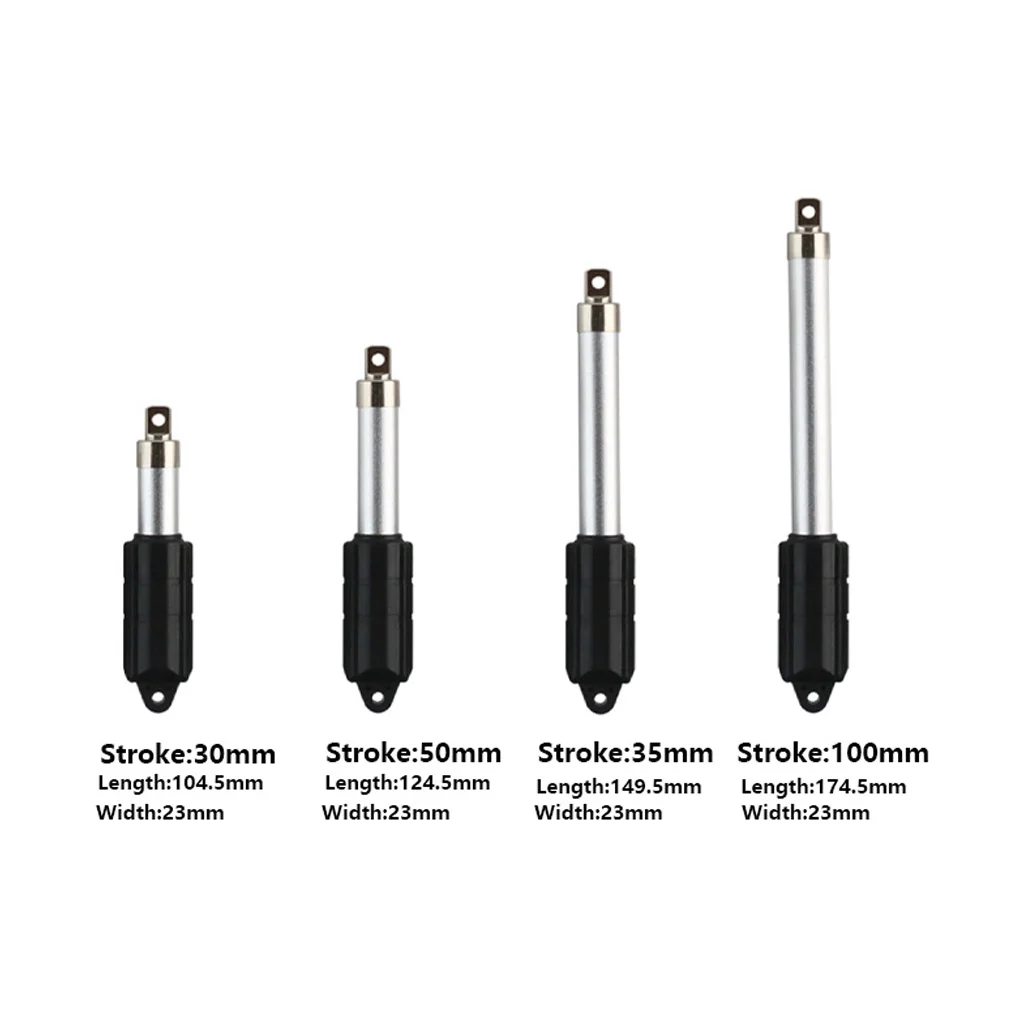

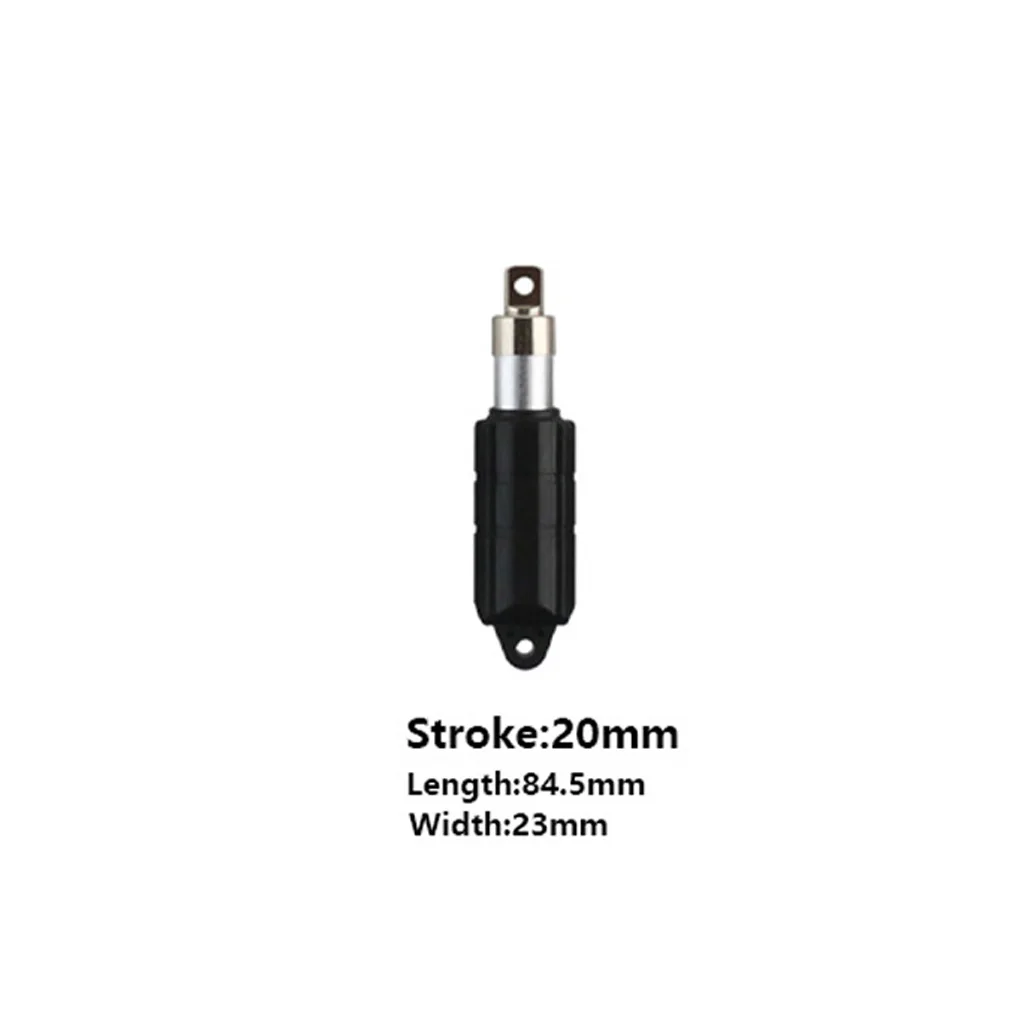

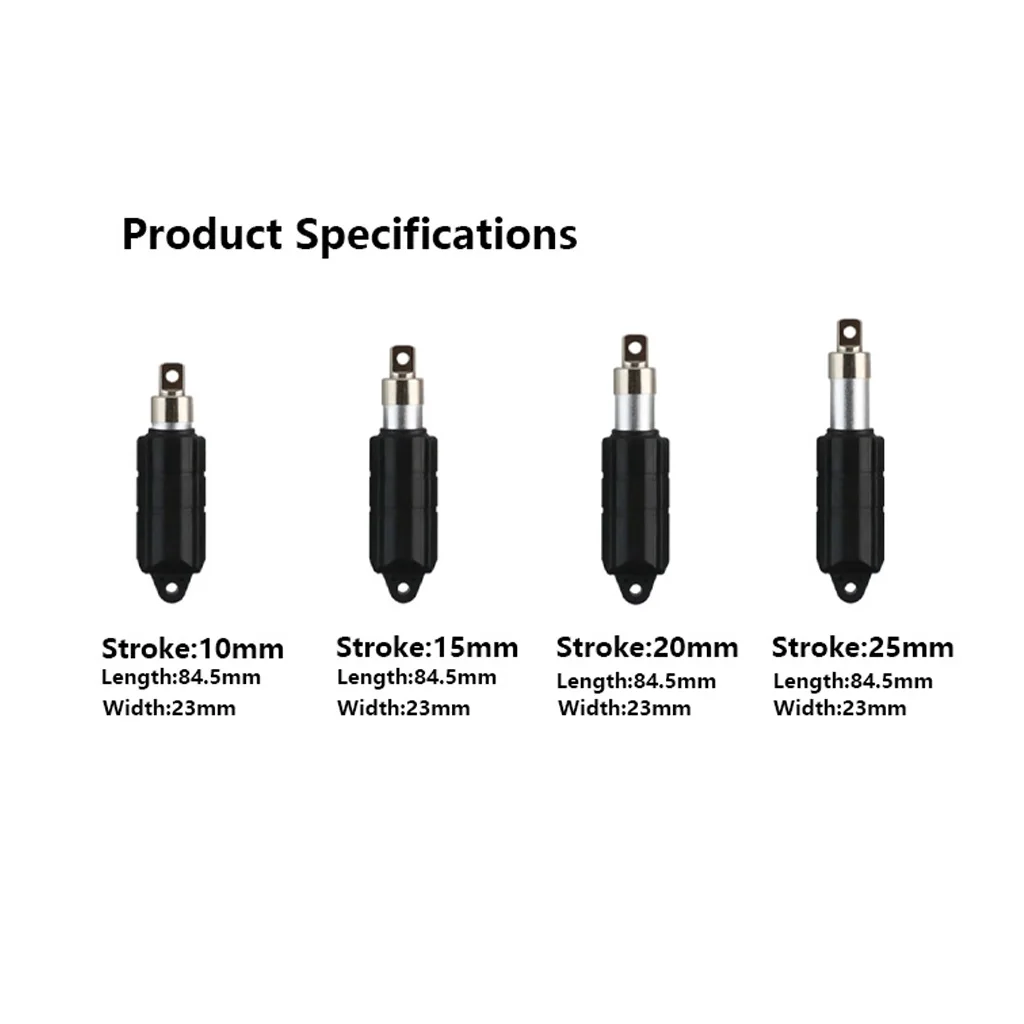

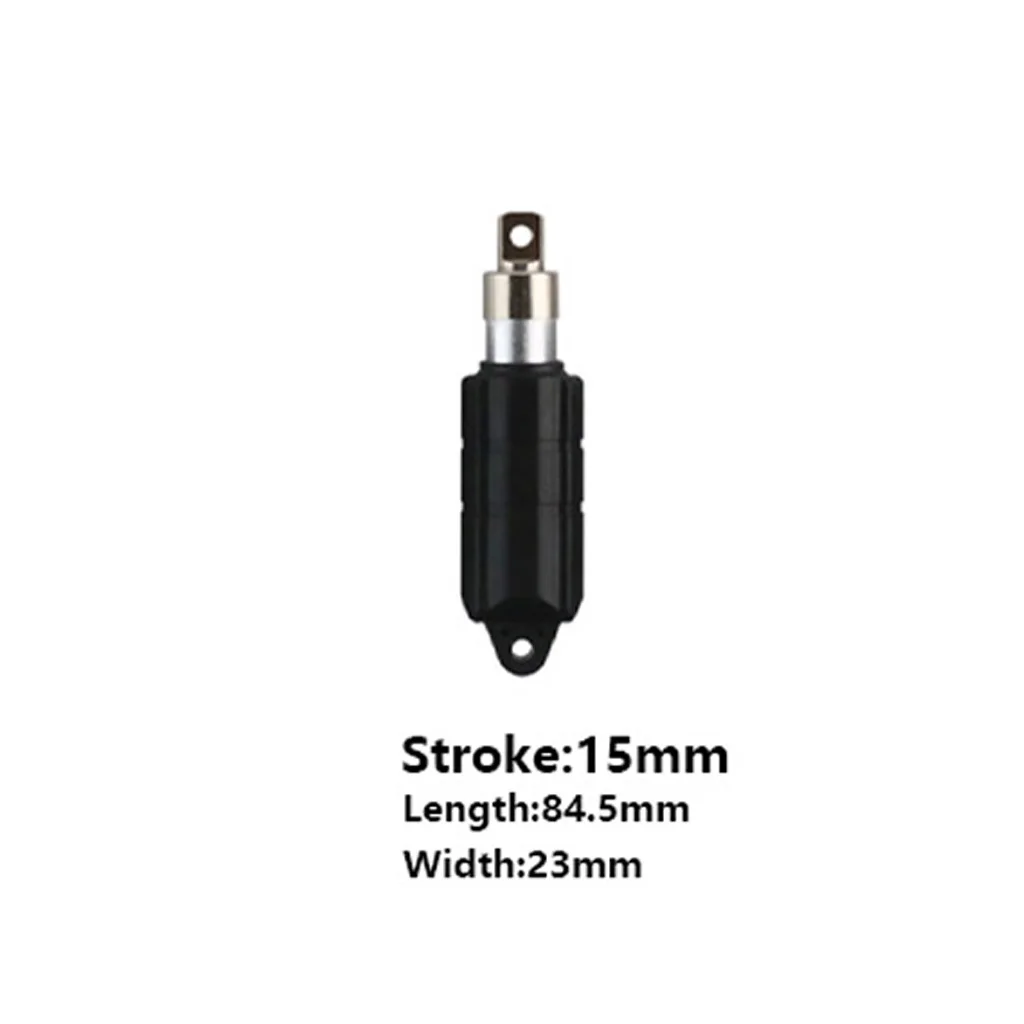

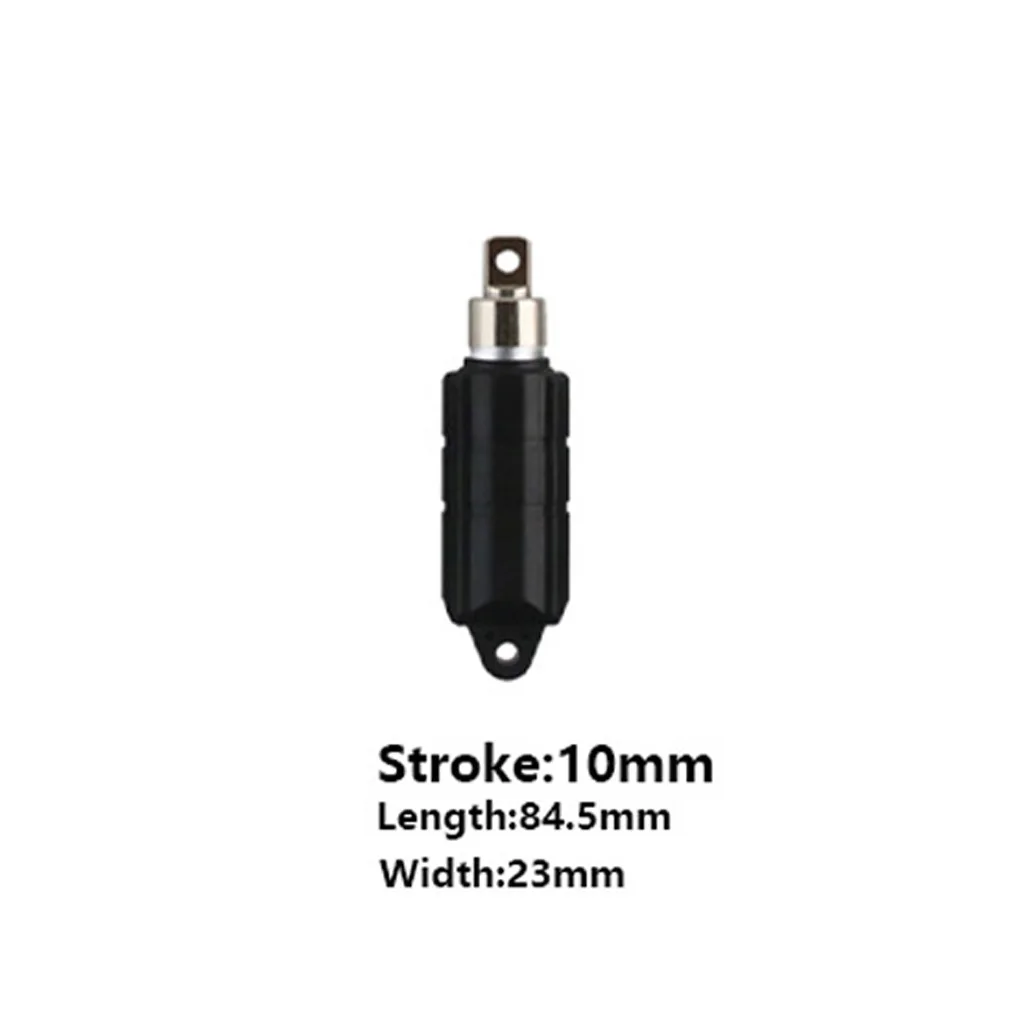

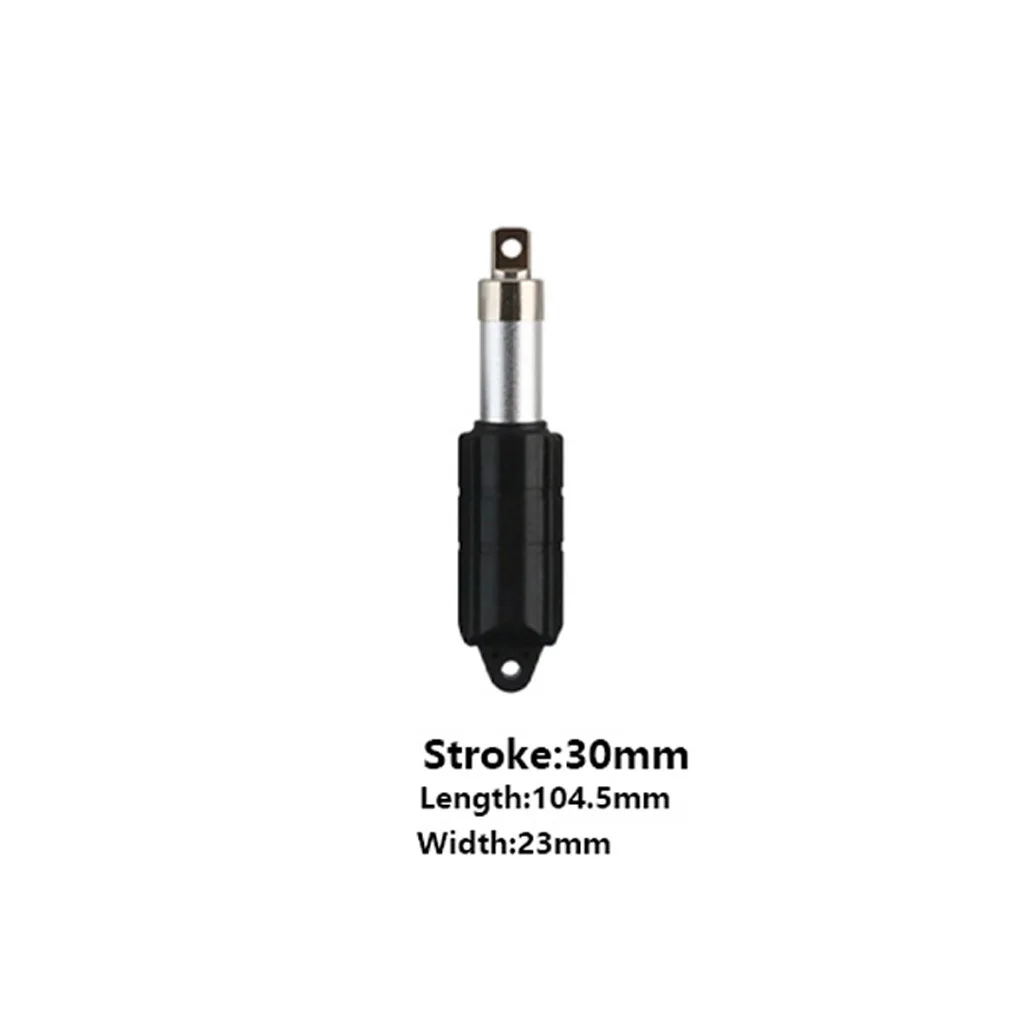

Standard stroke options: 10/15/20/25/30/50/75/100mm; longer stroke can be customized according to customer demand.

All specifications keep uniform 23mm width, convenient unified installation.
Two Performance Versions for Different Load Demands

3KG Fast Speed Version: High moving speed for light load quick response

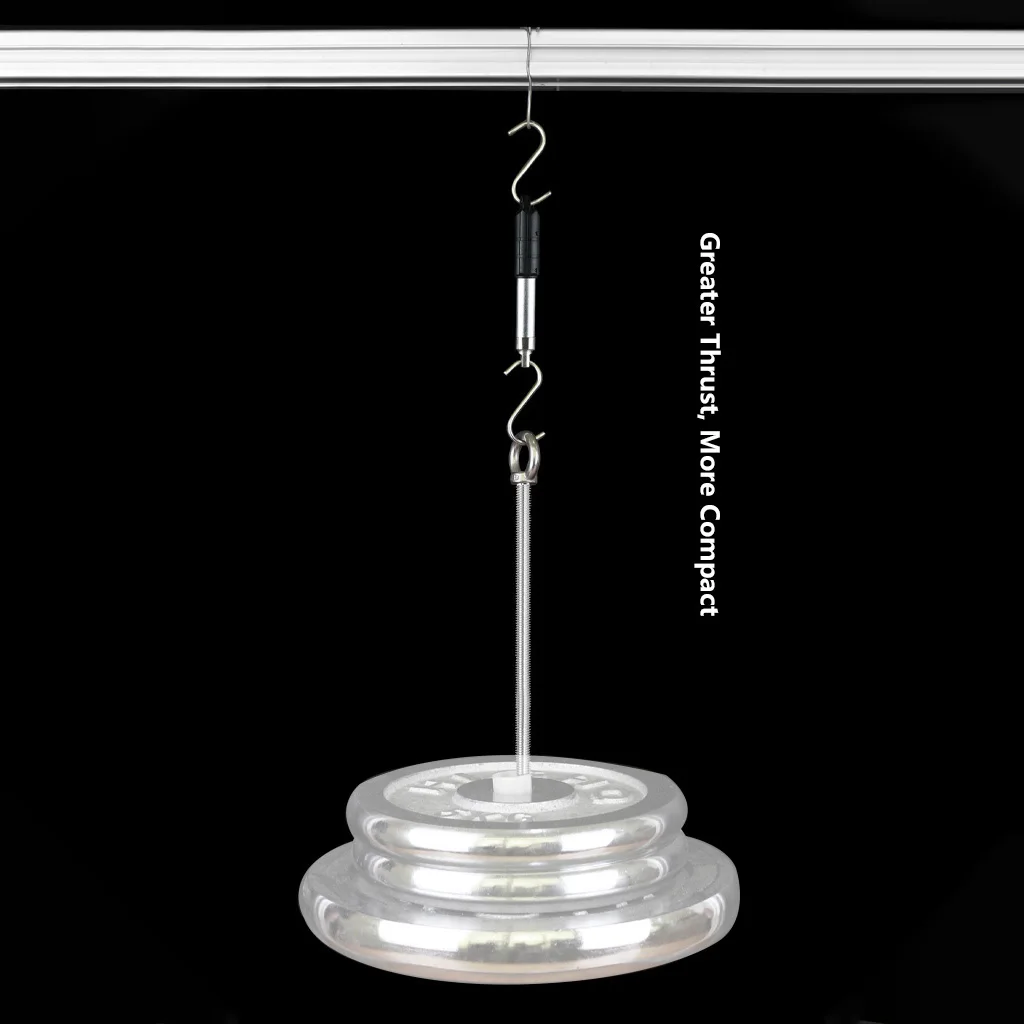

8KG Heavy Load Version: Strong thrust for heavy weight lifting

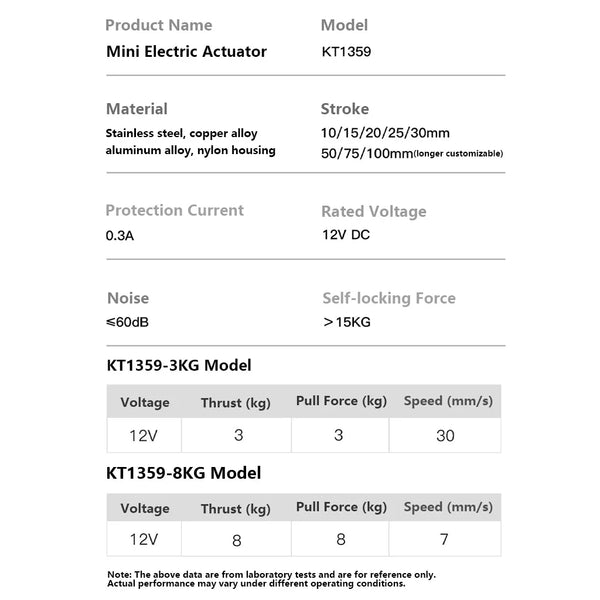

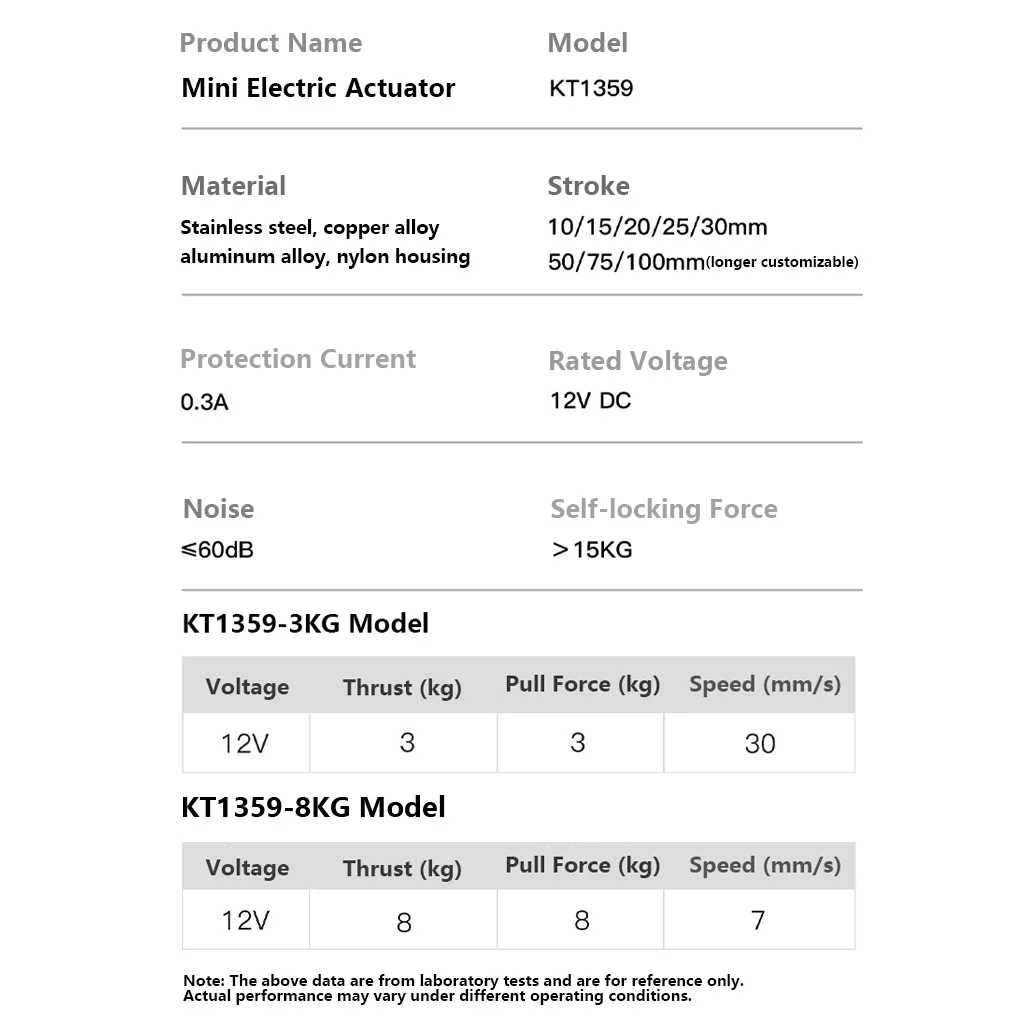

Complete Technical Specifications

Parameter Item	Specific Data
Model	KT1359 Mini Linear Actuator
Rated Voltage	DC 12V
Protection Current	0.3A
Working Noise	≤60dB
Self-locking Force	>15KG
Main Material	304 Stainless Steel Shaft, Copper Alloy Fittings, Aluminum Alloy Inner Tube, Nylon Outer Shell
Standard Stroke Range	10/15/20/25/30/50/75/100mm (custom longer stroke available)
Uniform Width for All Sizes	23mm
Net Weight	41g

Two Performance Versions Parameter Table

KT1359-3KG Version

Voltage	Thrust	Pull Force	Running Speed
12V DC	3KG	3KG	30mm/s

KT1359-8KG Version

Voltage	Thrust	Pull Force	Running Speed
12V DC	8KG	8KG	7mm/s

Note: All above data are laboratory test results for reference only; actual performance will vary under different working conditions.

Reliable Quality Guarantee

This linear actuator owns independent appearance design and utility model structure certifications, and has passed third-party BCTC conformity test verification. Strict production inspection and quality control ensure stable long-term operation performance.

Wide Application Scenarios

DIY Mechanical Models & Sand Table Models
Smart Home Automatic Lifting Furniture
Medical Auxiliary Equipment
Industrial Automation Robots & Intelligent Logistics AGV
Automotive Small Electric Modification Parts
Stage & Studio Lighting Adjustable Equipment
RC Model Aircraft / Drones

Package Contents

1 × Mini 12V DC Linear Electric Actuator (stroke & thrust version as you ordered)

Warm Tips

Please confirm required stroke, thrust and speed before placing order; customized stroke length needs extra production lead time.
This actuator only supports DC 12V power supply, connecting to other voltage will cause permanent component damage.
Only vertical push/pull force is allowed during operation; avoid applying lateral side force on the telescopic shaft.
Minor dimensional error may exist due to manual measurement; product color may slightly differ on different display screens.
If you need matching power supply or remote control drive module, please contact customer service for consultation.
