LR4 180mm 4inch Carbon Fiber Micro Long Range Frame Kits Fits 20mm 25.5mm FPV Stacks for DJI O3 Air Unit FPV Camera

QWinOut

Sale price $19.02 Regular price $28.53

Shipping calculated at checkout.

Long Range 4 LR4 FPV Frame Kit RC Drone FPV Racing Quadcopter for DJI O3 Air Unit for CADDXFPV Vista Polar Nebula Pro 1408 1507

Features:

Quick disassembly design.

Light weight, high strength, foldable arm.

FPV camera high-efficiency shock absorption.

Suitable for FPV camera of various sizes.

Specification:

Model: LR4-Voyager.

Wheelbase: 180mm.

Arm Thickness: 4MM.

Bottom Plate Thickness: 2mm.

middle plate Thickness:2mm.

Upper Plate Thickness: 2mm.

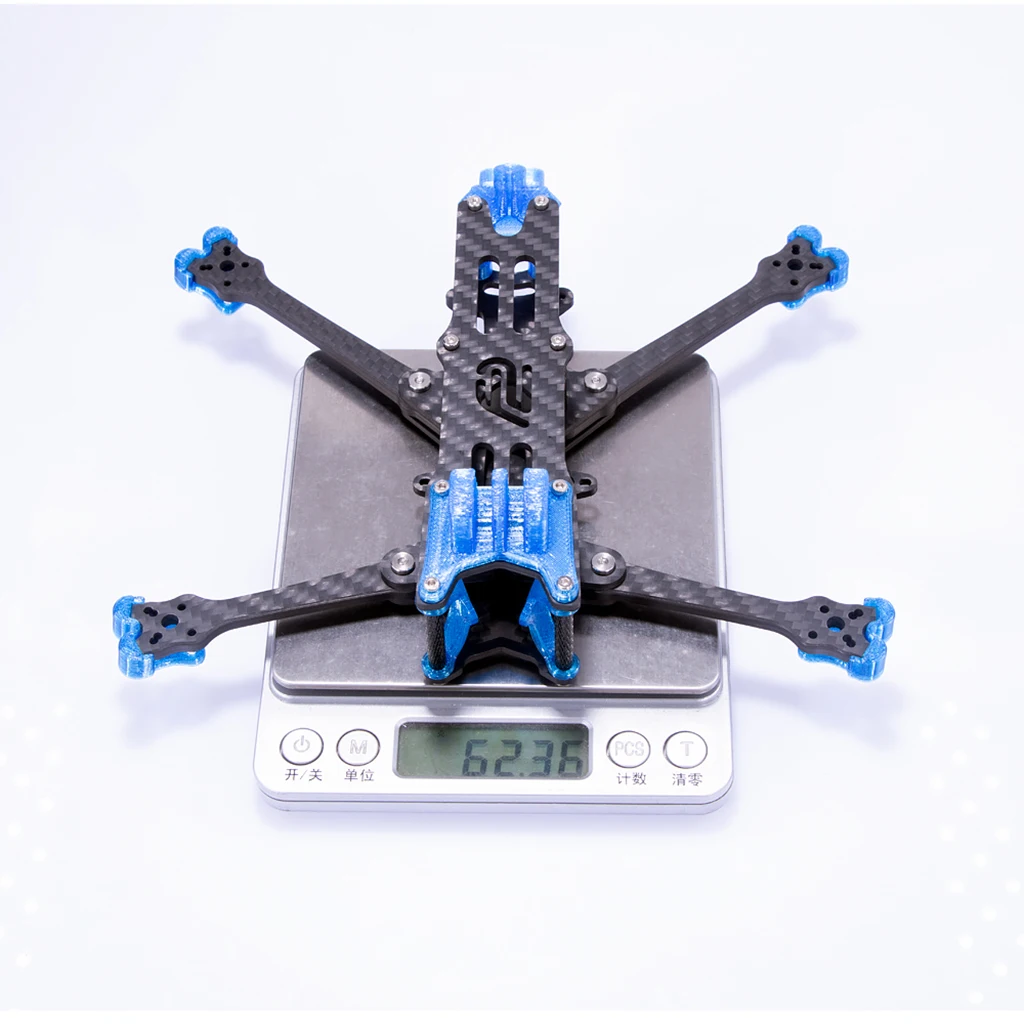

Weight: 62g(Different production batches will vary ).

Material: 3K Carbon Fiber.

Aluminum column height:26 / 20mm.

FC Hole distance:  (front:25.5x25.5 /26.5*26.5 / 20X20MM) / (Rear:20X20 25.5x25.5).

Motor Hole distance: :9*9/12*12MM.

Suitable propeller: 4inch.

GPS bin size:17*12.5*5mm(BE122/BZ122)

Support camera: 14MM-22MM(For DJI FPV series,Nano series, micro series, mini series FPV camera).

Package list:

1set Frame Kit, without any electronic equipment.
