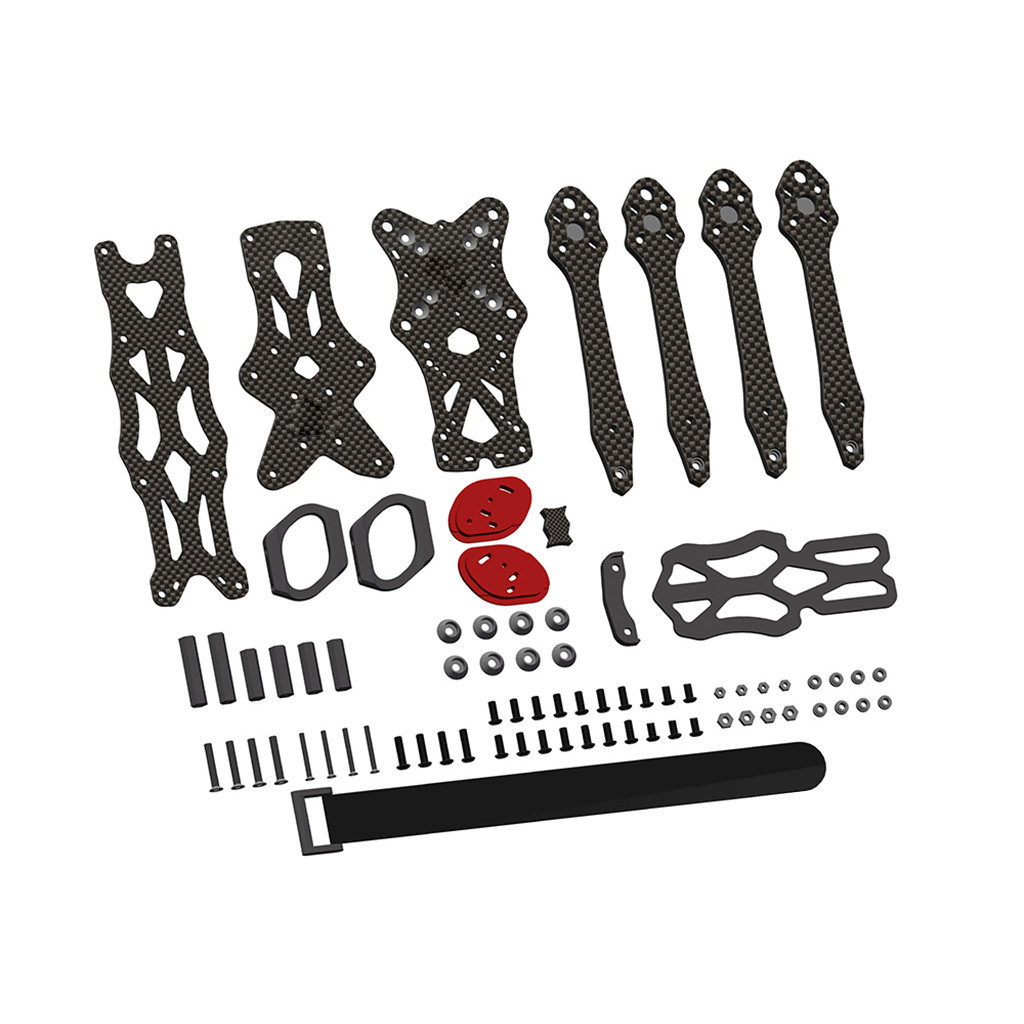

QWINOUT APEX EVO O4 Pro 225mm Wheelbase 3K Carbon Fiber FPV Toy Airplane Frame Kit For DJI O3 / O4 Pro Air Unit VTX Mount

QWINOUT APEX EVO O4 Pro 225mm Wheelbase 3K Carbon Fiber FPV Toy Airplane Frame Kit For DJI O3 / O4 Pro Air Unit VTX Mount

Note:

* This kit does not include other accessories.

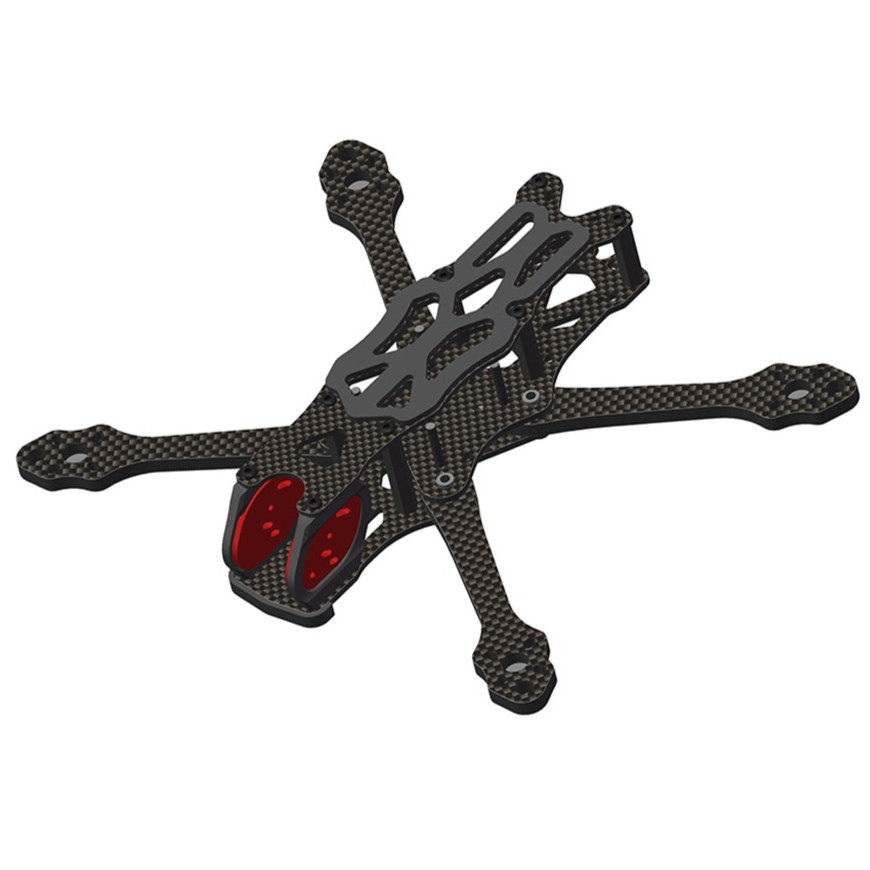

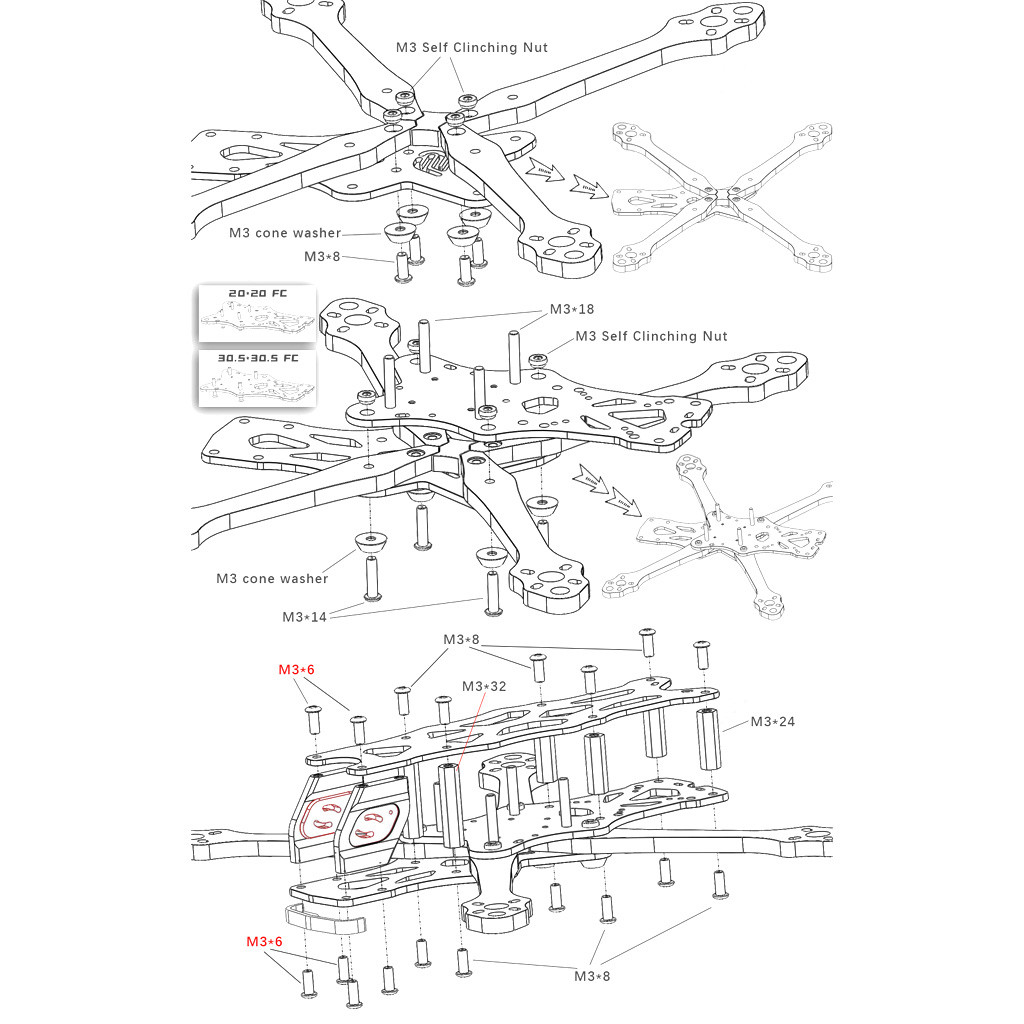

* The kit still needs to be assembled by oneself, and the product image just shows the assembled effect. If you mind, purchase with caution.

Specifications:

Item: FPV Toy Airplane Frame Kit

Model: APEX EVO O4 Pro

Material: 3K Carbon Fiber

Weight: 130g, 160g (include 3D printed parts)

Wheelbase: 225mm (5inch)

Arm Plate Thickness: 5.5mm

Base Plate Thickness: 2.5mm

Middle Plate Thickness: 2.5mm

Top Plate Thickness: 2.0mm

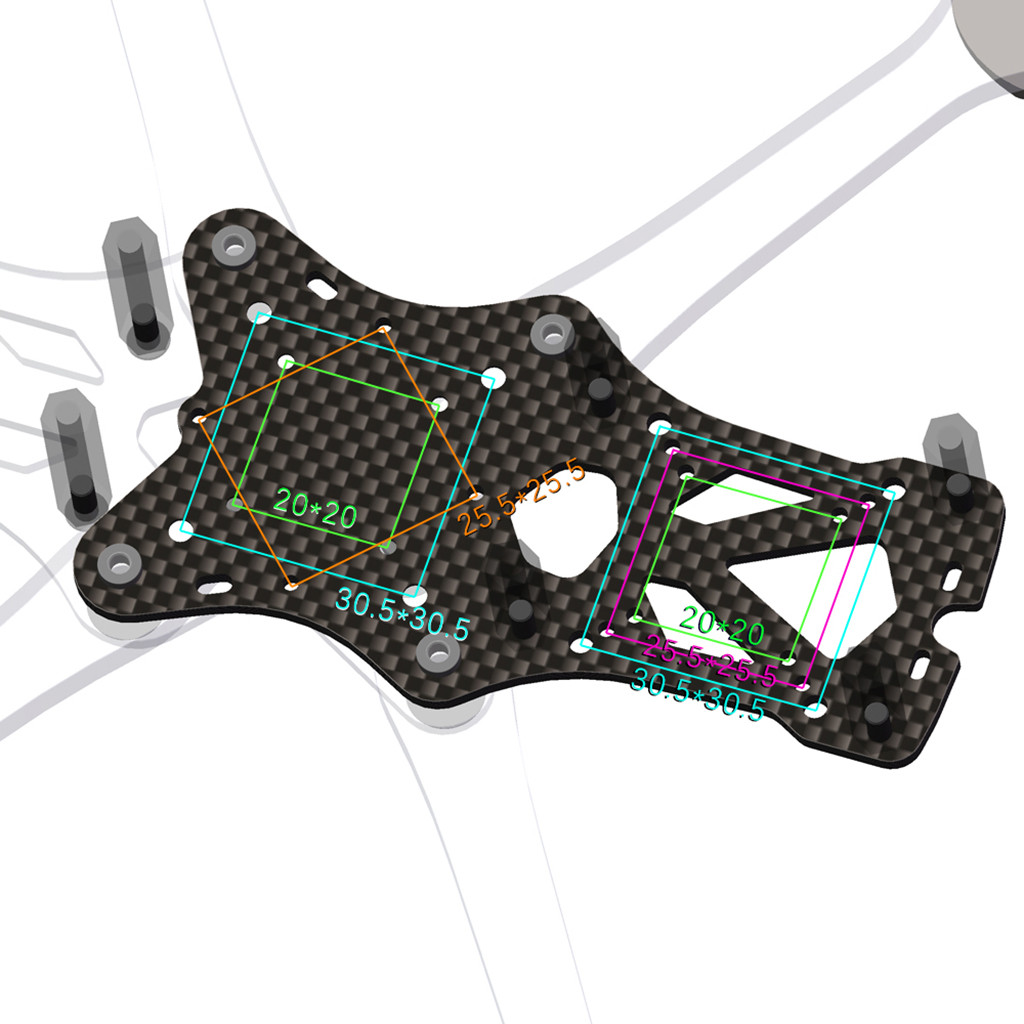

FC Mounting Hole Distance: 30.5X30.5mm, 25.5x25.5mm, 20X20mm

Motor Mounting Hole Distance:16x16mm, 19x19mm

Suitable Propeller: 5inch-5.2inch

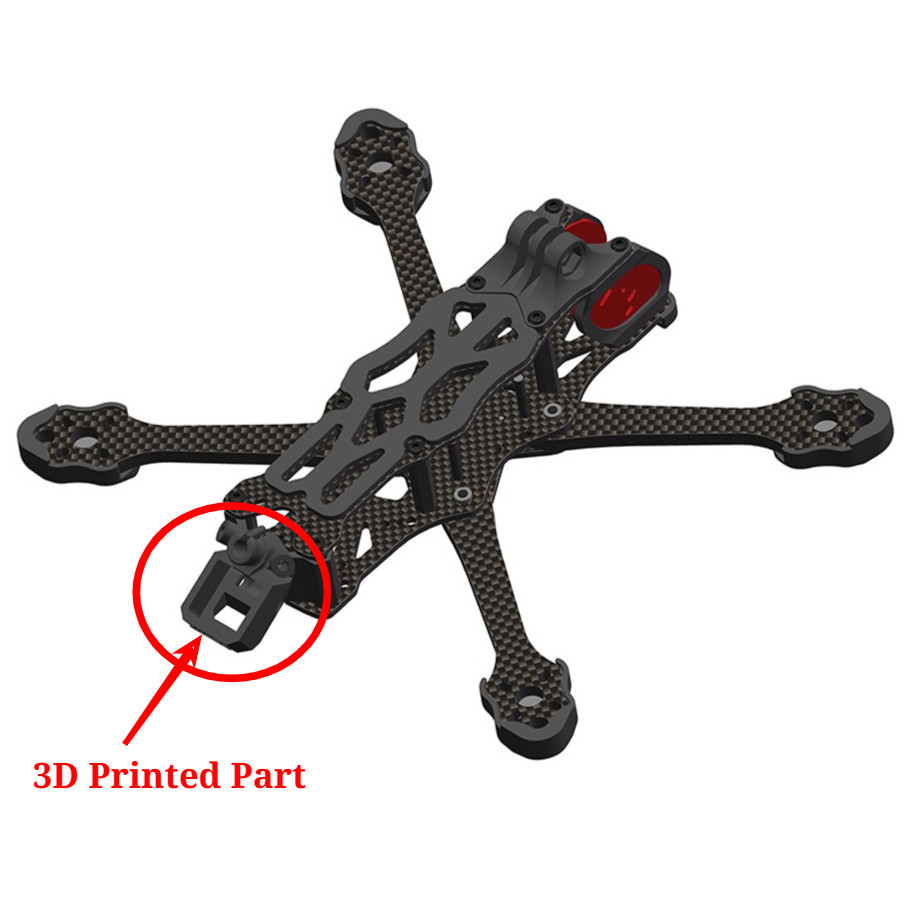

Suitable Camera: 20mm（The installation of 14mm / 19mm cameras can be achieved through 3D printed parts）
