QWinOut DIY Drone Assembled HJ 450 F450 4-Aixs RFT Full Kit with APM 2.8 Flight Controller GPS Compass with AT9S Transmitter No Gimbal

QWinOut

Regular price $292.73

Shipping calculated at checkout.

QWinOut DIY Drone Assembled HJ 450 F450 4-Aixs RFT Full Kit with APM 2.8 Flight Controller GPS Compass with AT9S Transmitter No Gimbal

2192-V AT9S 2192 0004 0005 0008

Packing including :

1 X HJ 450 450F Nylon Fiber Flamewheel

2 X D2212 920KV Clockwise Brushless Motor

2 X D2212 920KV Counter-clockwise Brushless Motor

4 X 30A Brushless ESC

2 X 9443 propellers

1 X APM 2.8 Multicopter Flight Controller

1 X GPS with Compass

1 X Radiolink AT9S 2.4GHz 9 Channel Transmitter Radio & Receiver

1 X 140MM High Landing Gear Skid

1 X 11.1V 3300Mah 25C 3S lithium battery

1 X IMAX RC B3 Pro Compact Balance Charger

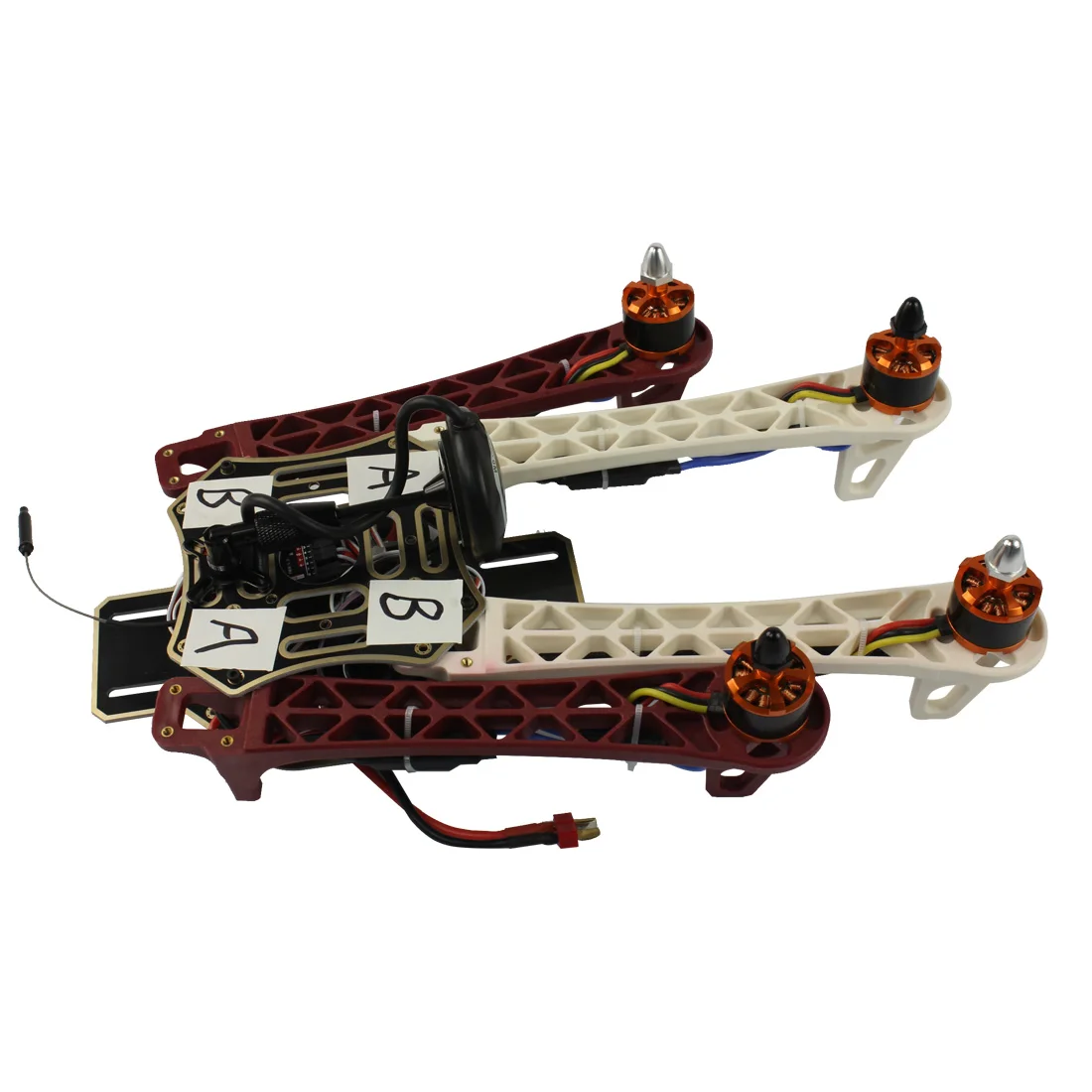

HJ 450 450F Nylon Fiber Flamewheel Frame Airframe kit HJ450

This is a very popular machine, it has a strong rack, beautiful appearance, and a stable system of flight for smooth flight. It is very suitable for both beginners and senior .

Notes:

This product only includes the airframe, no other config is included.

Shaft distance: 17.7in/450mm

- Net weight: 0.65lb/282g - by advanced engineering material,super strong & smooth

D2212 920KV Clockwise Counter-clockwise CW CCW Brushless Motor

Outer diameter: 28.0 mm

Height: 24.0 mm (Without Shaft)

K V: 920kv

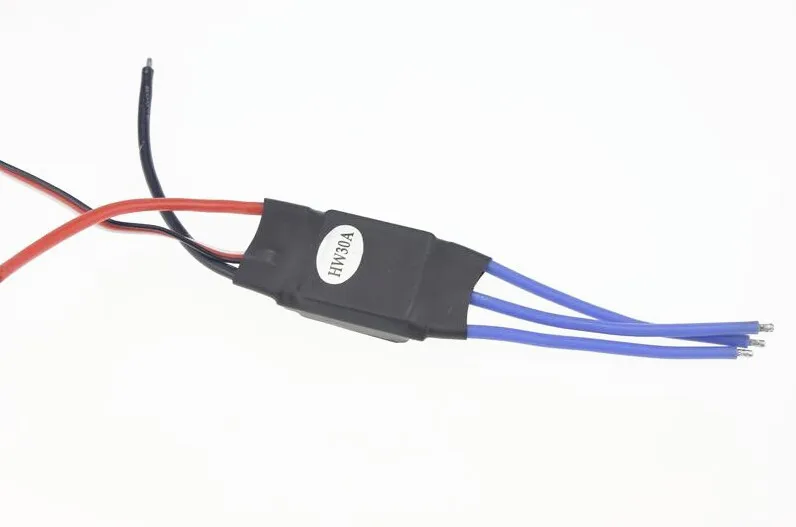

30A Brushless ESC Speed Controller

1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.

propeller 9443

Length: 9.4 inches Product Pitch: 4.3 inches Color: White

APM2.8 ArduPilot Mega APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded

Size: 70*45*13.5

Weight: 28G

APM is an open source flight control, can you play APM well depend on individual ability.

Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.

Introduction: Eliminate V2.52 Version Old 1.0mm 6P SM06B GPS interface , changed to the DF13-4P compass external I2C interface, Place the DF13-5P GPS interface with external interfaces of the compass, more convenient to connections GPS with external compass.

Replaced the V2.52 I2C interface to multi-purpose MUX interfaces, which can be used by the users themselves through the Pad of Back Board freely configurable function output, UART0,UART2,I2C,OSD optional, defaults OSD interface, avoiding 2.52 version when you want to use both Data Transmission and OSD, you need to use Y-line separating the interface programme.

Improved OSD interface when used in conjunction with Data Transmission, because of the isolation resistance, more effective to avoid the interference of Data Transmission.

New V2.8.0 use United States semi-LP2985-3.3, pressure-resistant up to 16V, increased reliability, reduced probability of Bad Gyro health due to voltage problems.

GPS with Compass

GPS Features: - Built-in compass GPS module - Main chip: 6M - With fast satellite searching speed and high precision - Compatible with APM serial port and I2C port - Includes round plastic shell

- Pre-configured, Flashed with the correct settings, and tested - Super Bright LED,BlackPlane with Standard Mk style mounting holes 45mm X 45mm - Cable included - With L5883 compass Cable length in 25CM - Dimensions: 53.5*53.5*15.5 - Weight: 30g

- Quantity:1 Piece

Description: C/A code,1.023MHz Receiver Frequency:L1 [1575.42MHz] Locate performance 2D :3m(Average) 2D:2m(average),with WAAS drifting<0.02m> accuracy:1us coordinate system:WGS84 max attitude height:18000 Max speed:515m/s

Specification: tracking sensitivity:161dBm Capture sensitivity:148dBm cold start time:38s average Warm start time:35s average hot start time:1s average Capture time:0.1s Average Temperature:40 centi grade to +80 centi grade wide power supply voltage:+3.5V~+5.5V

Radiolink AT9S 2.4GHz 9 Channel Transmitter Radio & Receiver

140MM High Landing Gear Skid Wheels Tripod

Features:

universal Tall Landing gear skids for DJI F450 F550 SK480 FPV aerial photo.

Specifications: Easy for install on the DJI F450 F550 or similar frame Come with 4pcs for one full set. Come with M3*8 Screws for assembling High(LxWxH): 140mm (Single) Weight: about 12g (Single)

11.1V 3300Mah 25C 3S lithium battery

Size: about 139x 43 x19MM

Weight: about 268.8g

IMAX RC B3 Pro Compact Balance Charger

Feature:

Input Voltage : 100 - 240V AC50 / 60Hz

Output Current: 3*800mA

Suitable for 2 cell and 3 cell Li-Po Batteries

Led Indicator:

When power is on : Orange

Stand by mode : Green

Battery Charging : Red

Battery Full : Green
