QWinOut DIY FPV Drone Hexacopter 6-axle Aircraft Kit HMF S550 Frame PXI PX4 Flight Control 920KV Motor GPS AT10 Transmitter
Package including:
1 set HMF S550 F550 Upgrade Hexacopter Frame Kit with Landing Gear
3 Pair 920KV CW CCW Brushless Motor
6 pcs 30A Brushless ESC Speed Controller
3 pair 9443 CW CCW Propellers
1 pcs PIXHAWK PIX PXI PX4 Flight Controller
1 pcs 6M GPS with Compass L5883 25cm Cable
1 pcs DJI GPS Folding Antenna Mount Holder Metal
1 pcs RadioLink AT10 2.4GHz 10CH Remote Control System
18 pcs 3.5mm Bullet Connector ( banana plug )
1 pcs Hook & Loop Fastening Tape
1 pcs T Plug Male Connector
1 pcs IMAX RC B3 Pro Compact Balance Charger
1 pcs 11.1V 4400MAH 30C 3S1P battery
Newest 2.45 32bit Flight Control Set PIX PXI PX4 Multi-axis Aircraft Fixed-wing Drones APM Upgraded
Hardware Specifications:
processor
1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor
sensor
1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5611 precision barometer
interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2.2 CAN
3. DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface
![](https://ae01.alicdn.com/kf/HTB1mj8fatfvK1RjSszhq6AcGFXaW.jpg)

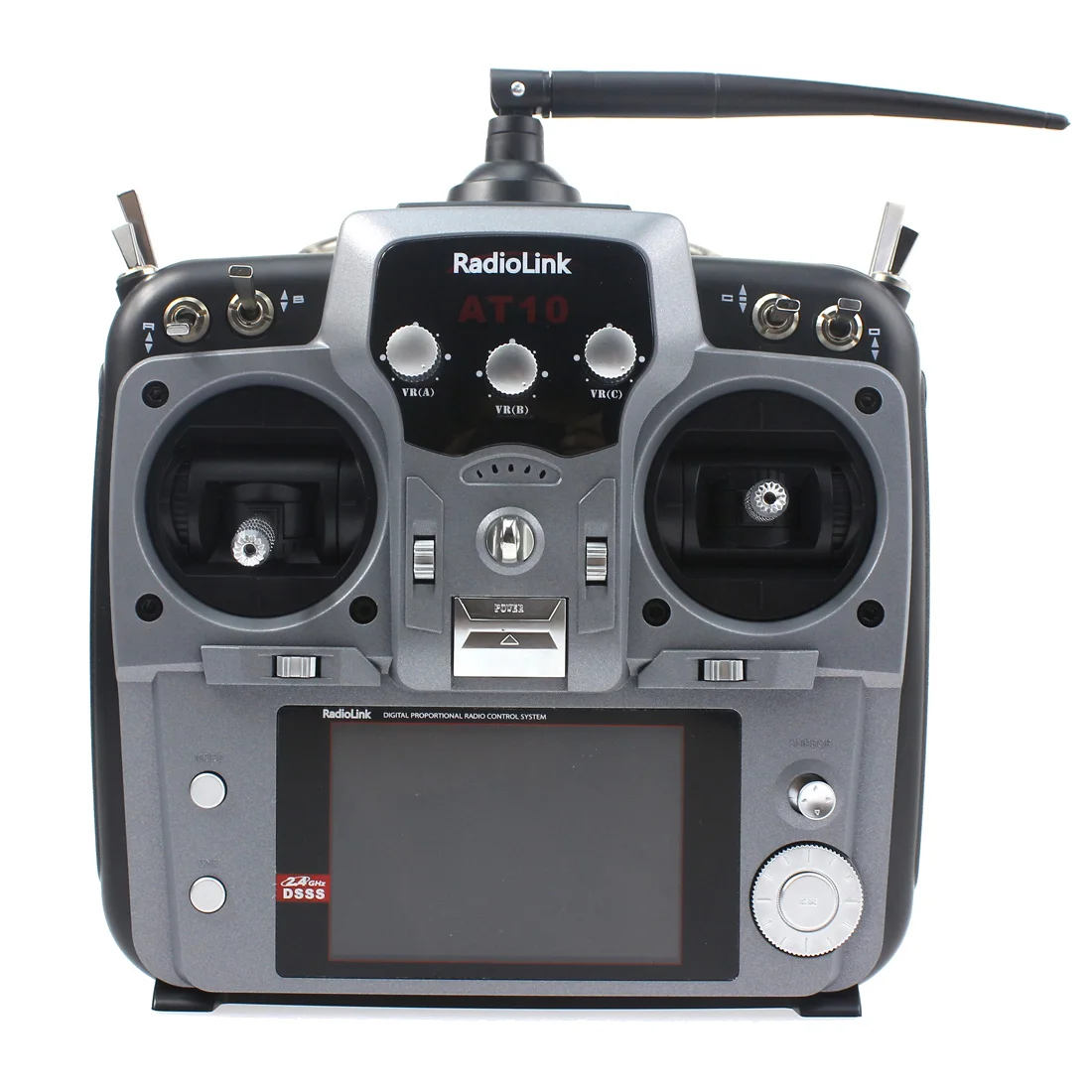

RadioLink AT10 2.4Ghz 10CH RC Transmitter w/ R10D Receiver PRM-01 Voltage Return Module Mode 2 for RC Helicopter Quadcopter
HMF S550 RC Hexacopter Frame Kit + Landing Gear 6-axle FPV F550 Flamewheel Upgrade
Features:
- Adopts S800 upward tilt arm design
- Plastic injection moduling, ensures hardness and lighter weight
- Brushless gimbal compatible for FPV (Not included)
Specifications:
- Wheelbase: 528mm
- Weight: 550g/720g(without/with gimbal)
- Motor suggest: 2212 KV980, 2216 KV880 KV900, 3108 KV720 KV900
- Prop suggest: 8038 9047 1038 1045 1047
- Battery suggest: 3S-4S 2200mAh-5200mAh
![](https://ae01.alicdn.com/kf/HTB17sTGLXXXXXbuXFXXq6xXFXXXE/223648530/HTB17sTGLXXXXXbuXFXXq6xXFXXXE.jpg)
![](https://ae01.alicdn.com/kf/HTB18ULDatfvK1RjSszhq6AcGFXaJ.jpg)
