QWinOut DIY FPV Drone W/ AT9S TX RX S600 4 axle Quadcopter APM 2.8 Flight Control GPS 7M 40A ESC 700kv Motor 4400MAH Battery Full Set

QWinOut

Regular price $346.78

Shipping calculated at checkout.

DIY FPV Drone Kit S600 4 axle Aerial Quadcopter APM 2.8 Flight Control GPS 7M 40A ESC 700kv Motor AT9S TX RX Battery Soldered Unassembled

F19457-R

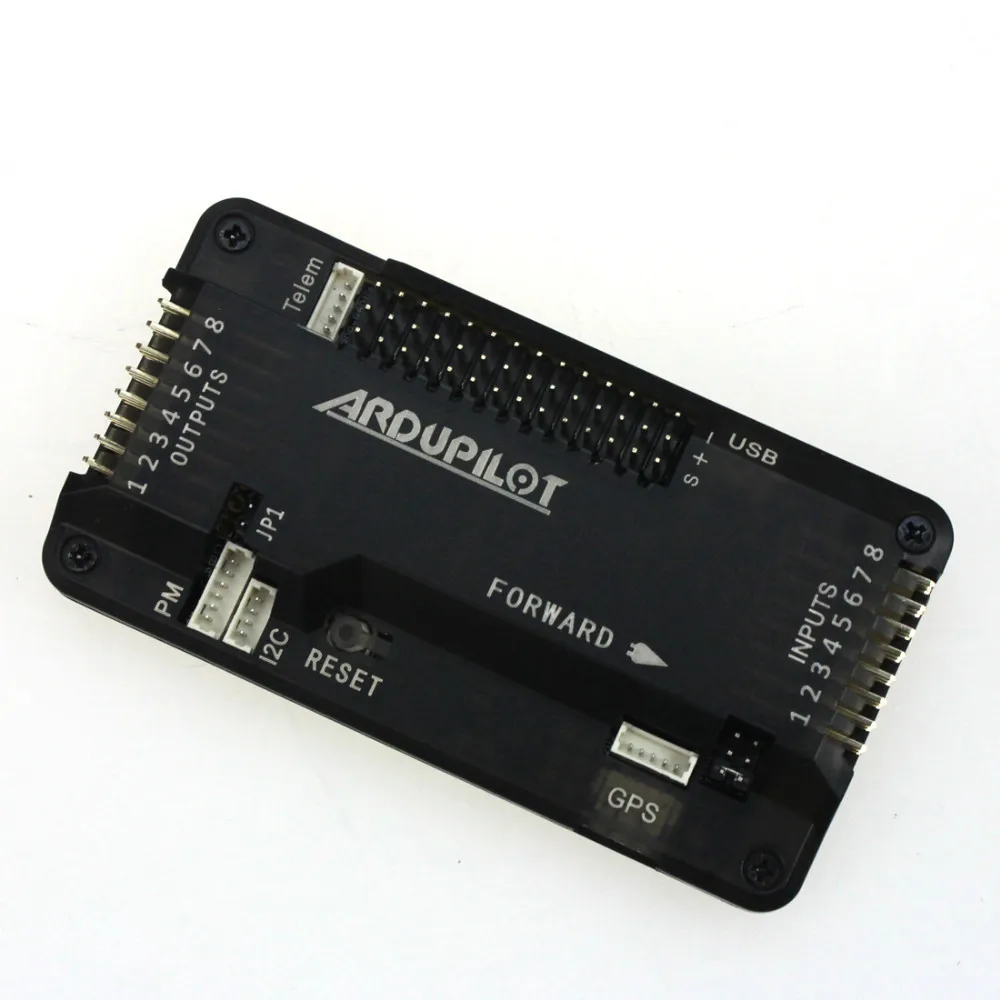

Use APM2.8 APM 2.8 No Compass Flight Controller Board Bent Pin with Case   with 7M GPS

Features:

- Arduino Compatible!
- Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally
- Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
- Onboard 4 MegaByte Dataflash chip for automatic datalogging
- Optional off-board GPS, uBlox LEA-6H module with Compass.
- One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.

1. data transmission port
2. analog sensor port
3. autostability gimbal output
4. ATMEGA2560 SPI online programming port (be useful for optical flow sensor)
5. USB port
6. remote control input
7. function selection jumper
8. GPS port
9. 12C external compass port
10. ATMEGA32U2 SPI online programming port
11. multifunction configurable MUX port (OSD is the defaulted output)
12. current voltage port
13. ESC power supply selection jumper
14. ESC output port

aeProduct.getSubject()

F17884IMG_5739

All motors and ESC has been Welded before shipping,what you need to do is assemble it and fly
IMG_4408

11111

S600 Super Hard Arm 4-Axis Rack Quadcopter Frame Kit with Landing

Gear Skid makes your DIY Drone looks cool and strong

Wheelbase:  600mm

Tripod height: 250mm

Maximum available paddle: 15 inch

Weight: 860g

Upper and lower center plate middle height: 36mm

F19457IMG_4077

Radiolink AT9S 2.4G 10CH DSSS FHSS Transmitter R9DS 9CH Receiver Radio Controller S-BUS PWM

AT9S Specification
1. Size: AT9S- 183*100*193mm, R9DS- 41*23*14mm
2. Weight: 0.88kg
3. Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
4. Modulation mode: QPSK
5. Channel bandwidth: 5.0 MHz & 250Kbps
6. Spread spectrum: DSSS ;FHSS
7. Adjacent channel rejection: >38dbm
8. Transmitter power: <100mW (20dbm )
9. Operating current: <90mA 12V
10. Operating voltage: 7.4 ~ 18.0V
11. Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment
12. Channel: 10 channels, 5-10 channels are customized
13. Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
14. Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode
15. Screen: 2.8 inches 16 colorful screen, 240*320 pixels
16. Support receivers: sells with R9DS (SBUS;PWM) ;Also support R10DS(SBUS PWM) and R6DS(SBUS;PPM;PWM)



R9DS 2.4G 9CH DSSS Receiver

1111

11.1V 4400MAH 30C 3S1P Lipo Battery  xt60 Plug and Charger
