QWinOut DIY Mini Full X4M310L Kit Kits FPV Drone 2.4G 10CH RC 4-Axis Quadcopter Radiolink Mini PIX M8N GPS PIXHAWK Altitude Hold Module

QWinOut

Regular price $205.27

Shipping calculated at checkout.
QWinOut DIY Mini Full X4M310L Kit Kits FPV Drone 2.4G 10CH RC 4-Axis Quadcopter Radiolink Mini PIX M8N GPS PIXHAWK Altitude Hold Module


310mm Quadcopter:
X4M310L Glassfiber Frame Kit * 1,
1400KV A2212 10T Brushless Motor * 4,
Hobbywing XRotor 20A ESC * 4,
8x4.5 2-Blade Propellers * 2,

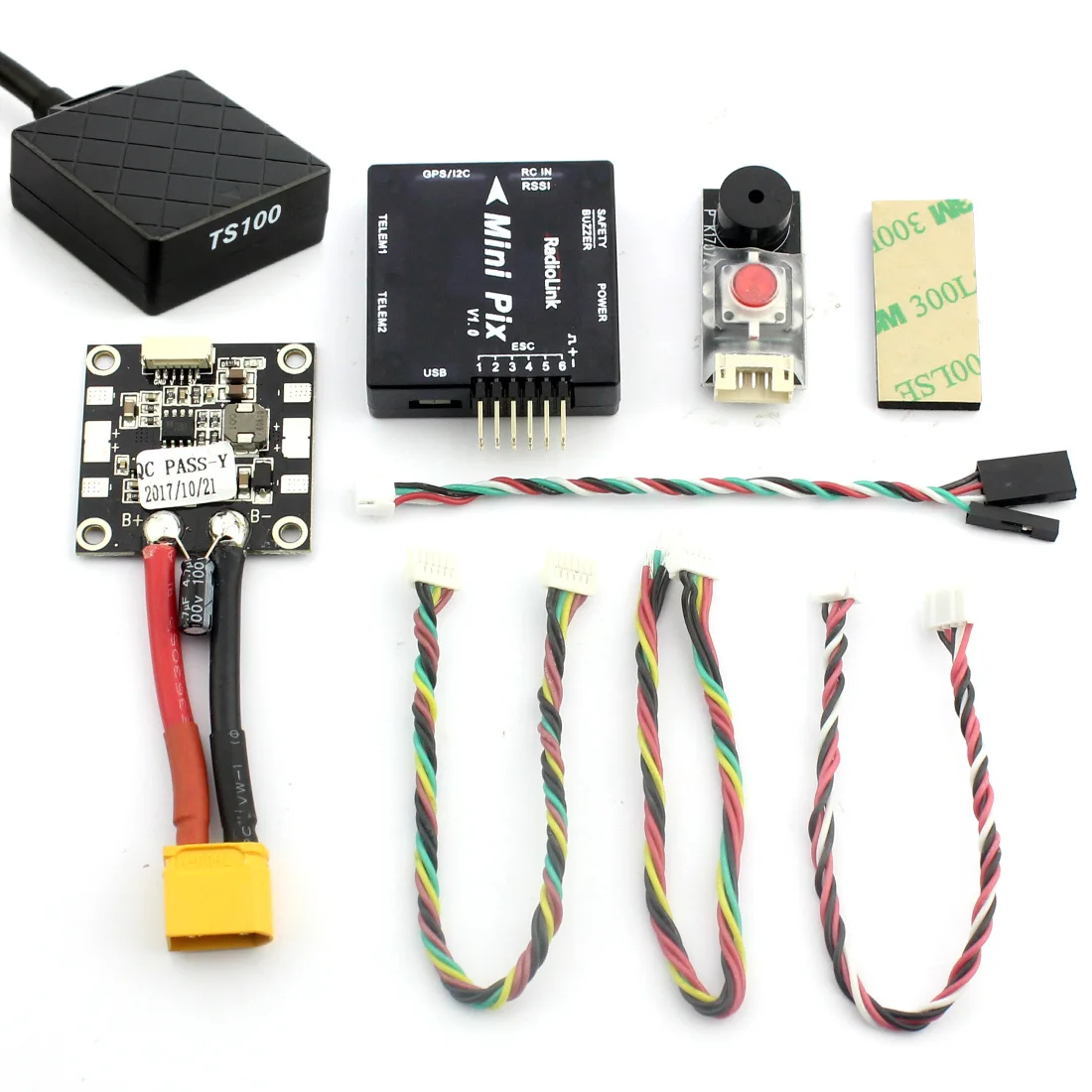

Radiolink MINI PIX + MINI GPS * 1,
GPS Folding Antenna Mount * 1,
Flysky FS-i6X Transmitter + IA10B Receiver * 1,
11.1V 2200MAH 25C Lipo Battery * 1,
B3PRO Charger * 1,
Buzzer Alarm * 1,
Accessories bag * 1


Function:
1. Forward/backward,Sideward flight,Turn left/right,Up/down,Hover,One Key Taking Off,Self-stability,Altitude Hold,Fixed point,A key landing (The above functions have been set before shipment, the following functions need to be set by buyer): Ratio control Acro (caution to beginner), automatic mode (AUTO), around, guide, following model, Improve the barometer set high, More stable than APM Flight controller.
2. New version Flysky 2.4GFS-i6x data back 10-channel display remote control.
3. The aircraft frame is using high-strength drop-resistant plastic material, durable.
4. Radiolink MINI PIX with M8N GPS, 50cm positioning accuracy, beyond the u-box M8 chip, achieve 1M positioning accuracy, can search 20 Pieces Star within 6 seconds in open place, very strong valley positioning capabilities,support a variety of positioning systems GPS, GLONASS L10F, QZSS L1 C/A, BeiDou b1, can dual-mode work at the same time.
5. Simple operation with manuals, do not need to make tedious setup and debugging to the Flight controller, simply assembled to fly.
6. When using the charger, please do not simultaneously charge the 2S and 3S batteries on the charger.
7. Do not understand the flight control and remote control, please do not modify any parameters and wiring.

Flight Controller:
Software: Mission Planner
Official website address: http://ardupilot.org/planner/index.html                     MINI PIX is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.


Remote Controller:

FS-i6X Specifications:

Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA x 4(No included)
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

FS-IA10B:

Number of Channels: 10
Suitable models: Airplane / glider / helicopter Health
Frequency range :2.4-2 .48 GHz
Number of newspapers: 160
Transmitting power: not more than 20dBm
Receiver sensitivity:-105dBm
2.4G modes: automatic frequency second generation digital system
Encoding: GFSK
Antenna length: 26 mm x 2 (dual antenna)
Weight: 19.3 g
Input power :4.0-6 .5 V DC
Dimensions: 47 x 33.1 x 14.7 mm
Color: Black
Certification: CE0678, FCC
i-BUS Interface: Yes
Data acquisition interface: Yes
