QWinOut DIY RC Drone Full Kit S600 Frame PIX 2.4.8 Flight Control 40A ESC 700KV Motor AT9S TX with Battery Charger XT60 Plug

QWinOut

Sale price $494.02 Regular price $642.23

Shipping calculated at checkout.
QWinOut DIY RC Drone Full Kit S600 Frame PIX 2.4.8 Flight Control 40A ESC 700KV Motor AT9S TX with Battery Charger XT60 Plug


Product Listing :

S600 4-Axis Rack Quadcopter Frame Kit * 1

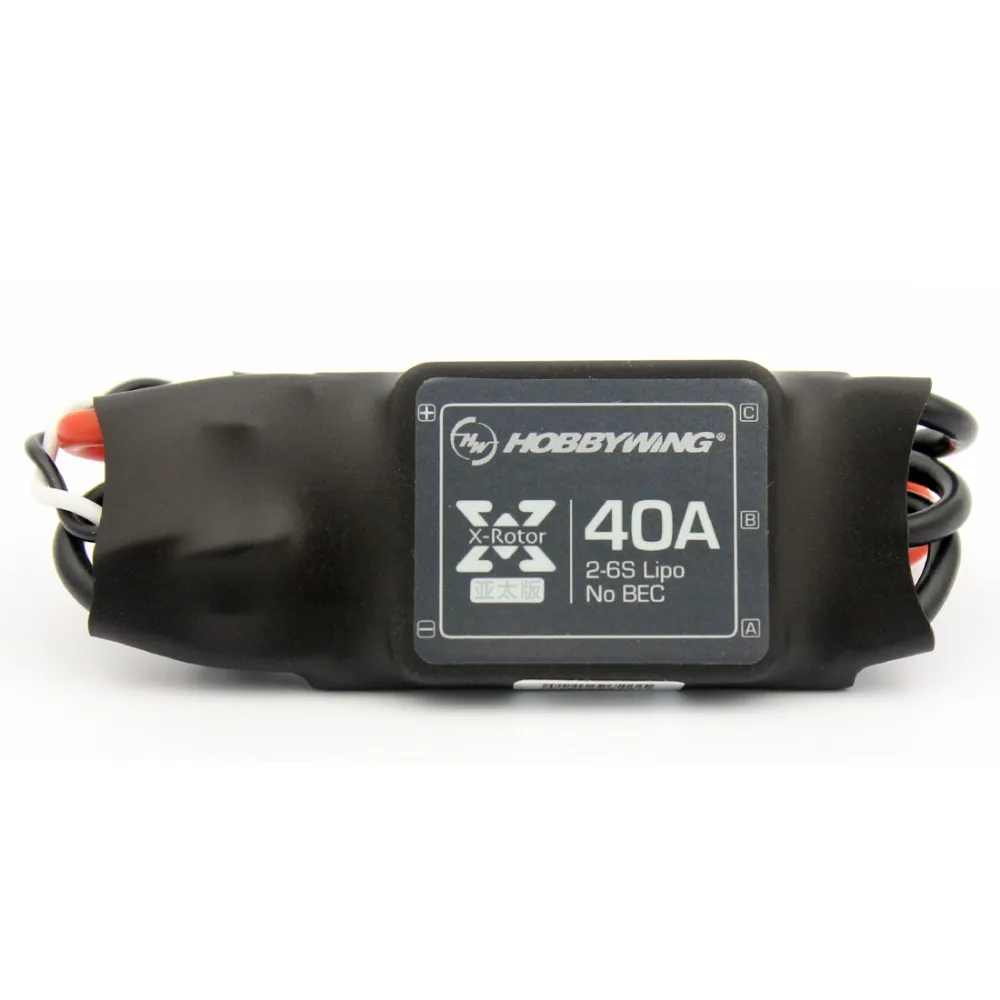

40A Brushless ESC Speed Controller *4

HYD 3508 700KV 198W Disc Motor *4

15x5.5 3K Carbon Fiber Propeller CW CCW 1555 CF Props * 2 pairs

PX4 PIX 2.4.8 32 Bit Flight Controller Integrate PX4FMU PX4IO Safety Switch Buzzer 4G SD *1

UBLOX NEO-7M 7M GPS Module with Compass *1

CNC GPS Anti-interference Antenna Mount Holder Stent Case *1

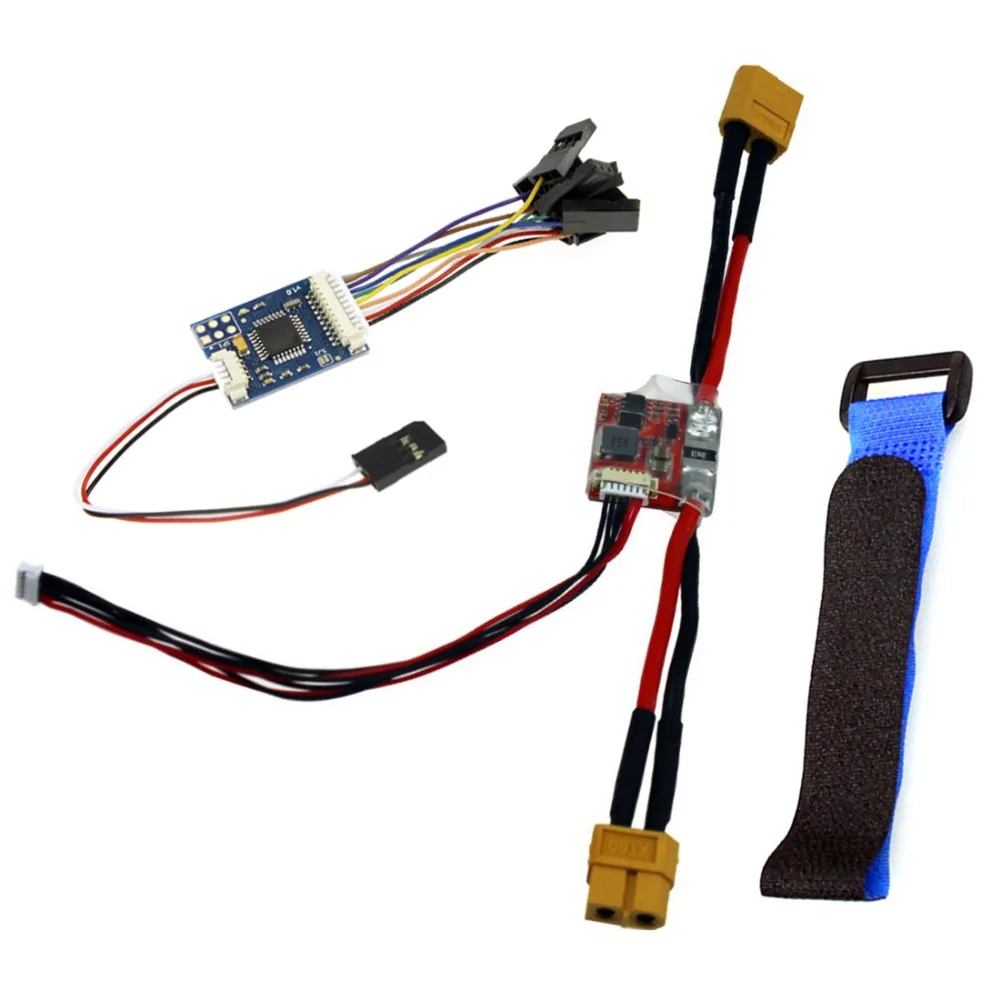

8 Channel PPM Encoder *1

APM2.6 2.5 2.52 Power Module Current Module APM with 5.3V DC BEC *1

Thick Gold Plated 3.5mm Bullet Connector ( banana plug ) *12

5X Hook & Loop Fastening Tape *1

Radiolink AT9S 2.4G 10CH DSSS FHSS Transmitter R9DS 9CH Receiver Radio Controller S-BUS PWM * 1

IMAX RC B3 Pro Compact Balance Charger * 1

JMT 11.1V 4400MAH 30C 3S1P xt60 Plug * 1

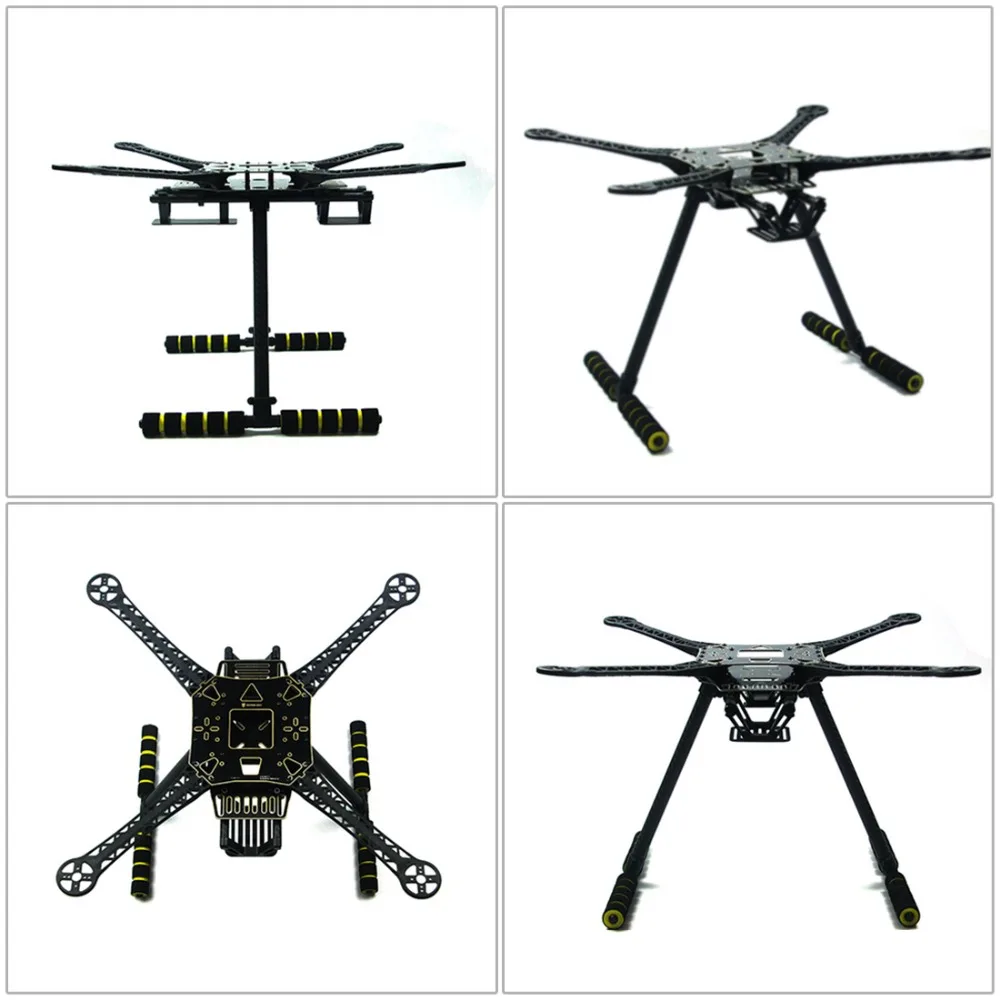

Frame Kit Specifications:

Specifications:
Wheelbase: 600mm
Weight: 590g
Color: Black
Rack plate thickness: 1.6mm
Motor installation size: 16mm, 26mm

improvement
1. Built-in power distribution board
2. Added flight control shock absorber plate

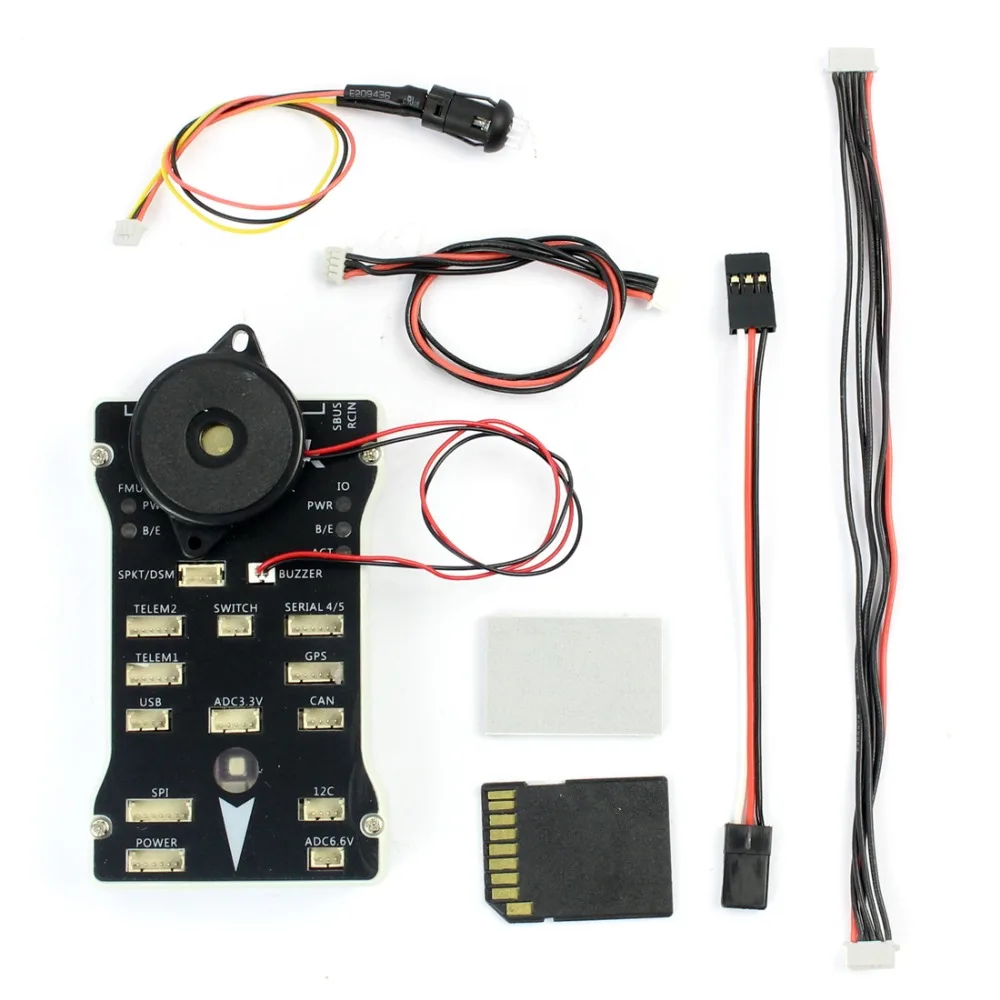

Pix 2.4.8 Spacifications :

Note:

Open source products, once sold, no return, if quality problems, Please return for repair . Does not provide one to one support. Buy carefully!

If you are using a PWM receiver, please ready a PWM / PPM converter.

Description:
- The board integrates with PX4FMU+PX4IO
- Pixhawk is with new 32 bit chip and sensor technology

Features:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide automatic and manual mode;
- Provide redundant power input and fault transfer function;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;

Processor:
- 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
- Main frequency: 256K, 168MHZ RAM
- 32 bit STM32F103 backup co processor

Sensor:
- L3GD20 3 axis digital 16 bit gyroscope
- LSM303D 3 axis 14 bit accelerometer /magnetometer
- MPU6000 6 axis accelerometer / magnetometer
- MS5611 high precision barometer

Interface:
- 5* UART, 1*compatible high voltage, 2*hardware flow control
- 2* CAN
- DSM/DSM2/DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC input
- External USB MICRO interface
