QWinOut J630 DIY Full Set FPV 2.4GHz 4-Aixs RC Aircraft APM2.8 Flight Controller M7N GPS 630MM Carbon Fiber Frame Props with AT9S TX Copter

QWinOut

Sale price $408.44 Regular price $530.98

Shipping calculated at checkout.

Full Set DIY 2.4GHz 4-Aixs RC Drone ARF APM2.8 M7N GPS 630MM Carbon Fiber Frame Props with AT9S TX Quadcopter





Spacifications:

Wheelbase:630mm

Size(L*W*H):510*510*255mm

Power Supply: 700KV Brushless Motor 3508 / 40A ESC No BEC

Propellers:  1555 Carbon Fiber Propellers

Flight Control/GPS: APM 2.8 / M7N GPS

Remote Distance :About 3000M ( Depends on Enviromental ,outdoor fly)

Remote controller:  9CH Radiolink At9s Transmitter

Battery : 11.1V 4400MAH 30C ,XT60 Plug

Flight Time : 12 mins-15mins ( Depends on Enviromental )





Functions :

1. The aircraft in the air has a rise, fall, hover, forward, backward, turn left, turn right, left fly, right fly, self-stability, set high, a key return, headless mode, fixed point, a key landing (The above functions have been set before shipment, the following functions to set their own), ratio control Acro novice with caution), automatic mode (AUTO), winding, guidance, follow the model, open source flight control flight stability, can be prepared.

2.RadioLink AT9S DSSS & FHSS hybrid dual-band technology, real-time power position feedback, multi-language menu.

3. The fuselage pure carbon cover the overall use of CNC precision machining.

4.APM2.8 with M7NGPS, search star speed, cold start speed than 6M, 6H twice as fast. Positioning accuracy of 2.5M, built-in high-precision electronic compass, 56-channel 7 engine. C / A, BeiDou b1, can be dual-mode at the same time.

5. Simple operation With manuals, do not need to fly the tedious set-up debugging, simply assembled to fly.

6. When using the charger, please do not charge the 3S and 4S batteries at the same time.

7. IF Do not understand the flight control and remote control, please do not modify any parameters and wiring.





Please Note : 1.When you charging ,please don't connect charger with 3S and 4S battery at the same time ,

                      2. Please don't change parameter and wires randomly , any questions ,please contact us , thank you .



SoftWare :

Software:Mission Planner

Official website address : http://ardupilot.org/planner/index.html

APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.





Package Include :

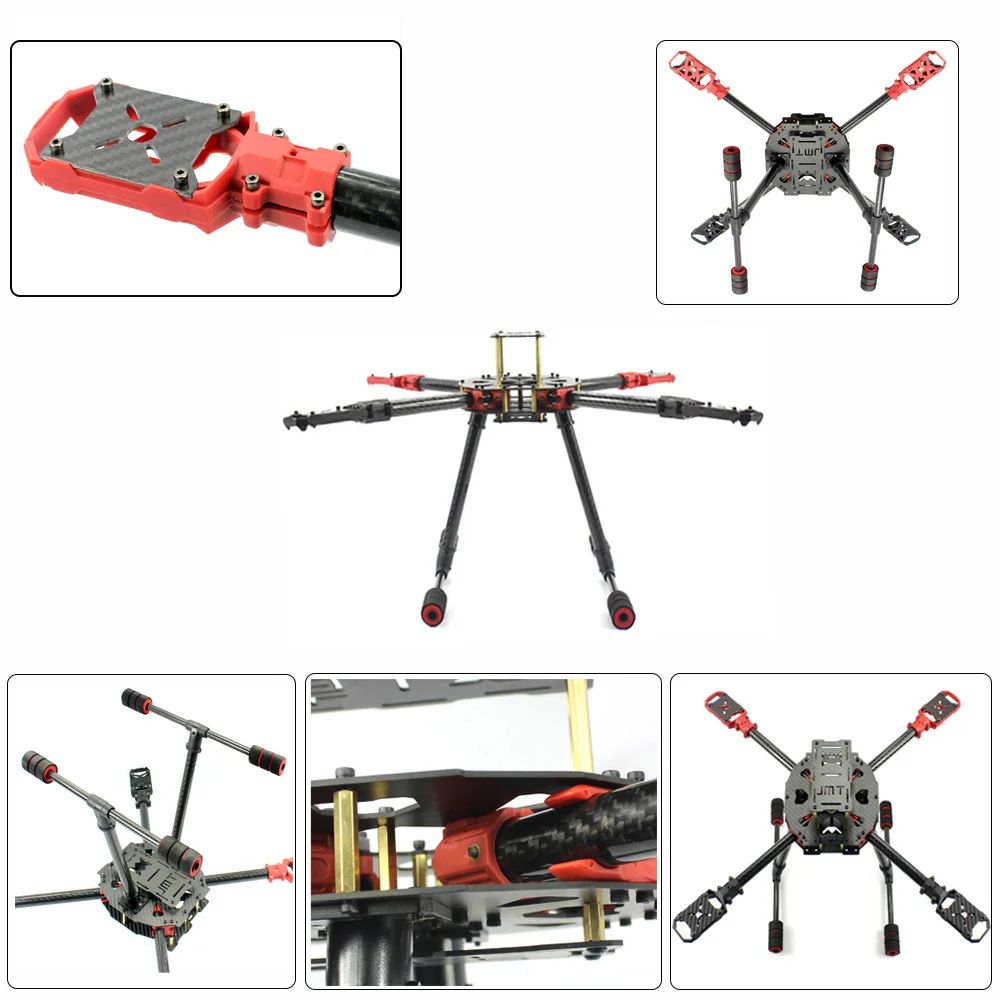

Frame kit *1

700KV Brushless Motor *4

40A Brushless ESC *4

1555Propellers *2 pairs

Flight Control GPS Set  *1

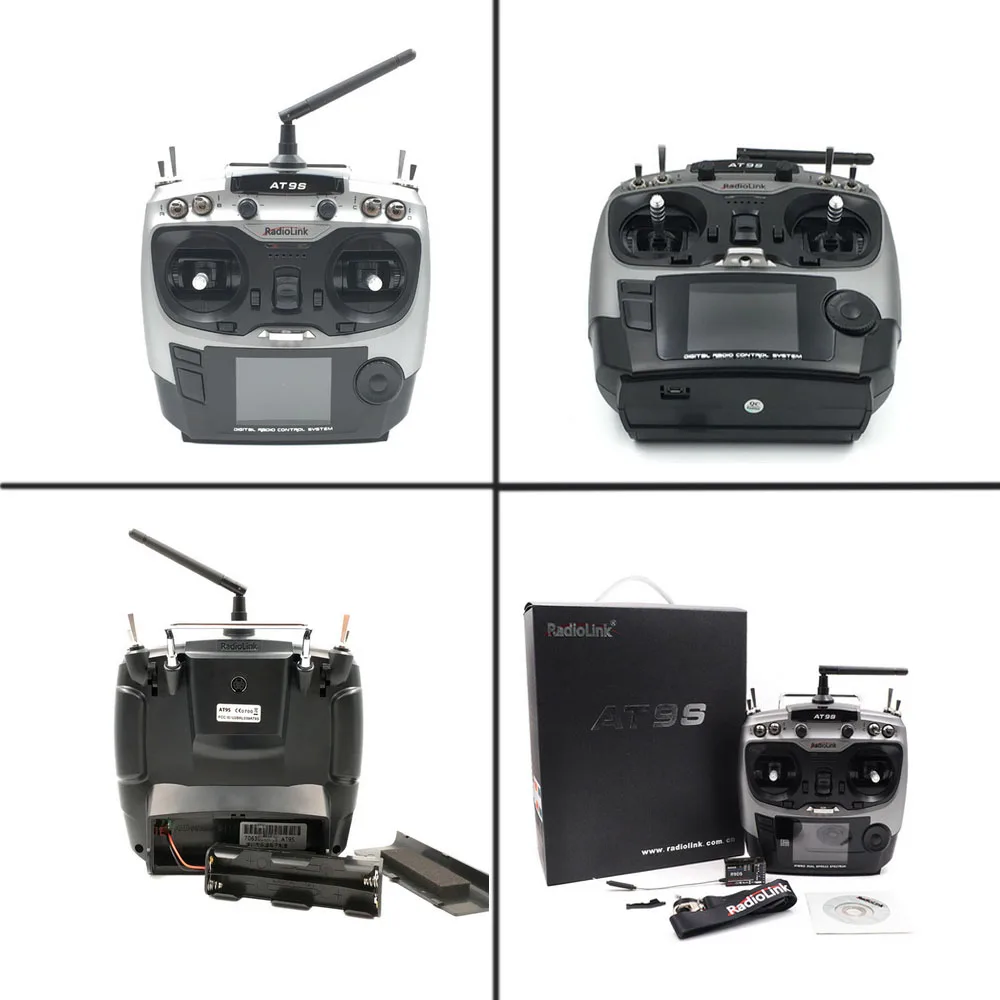

AT9S Transmitter with Receiver *1

Battery *1

Charger *1

Accessories kit *1
