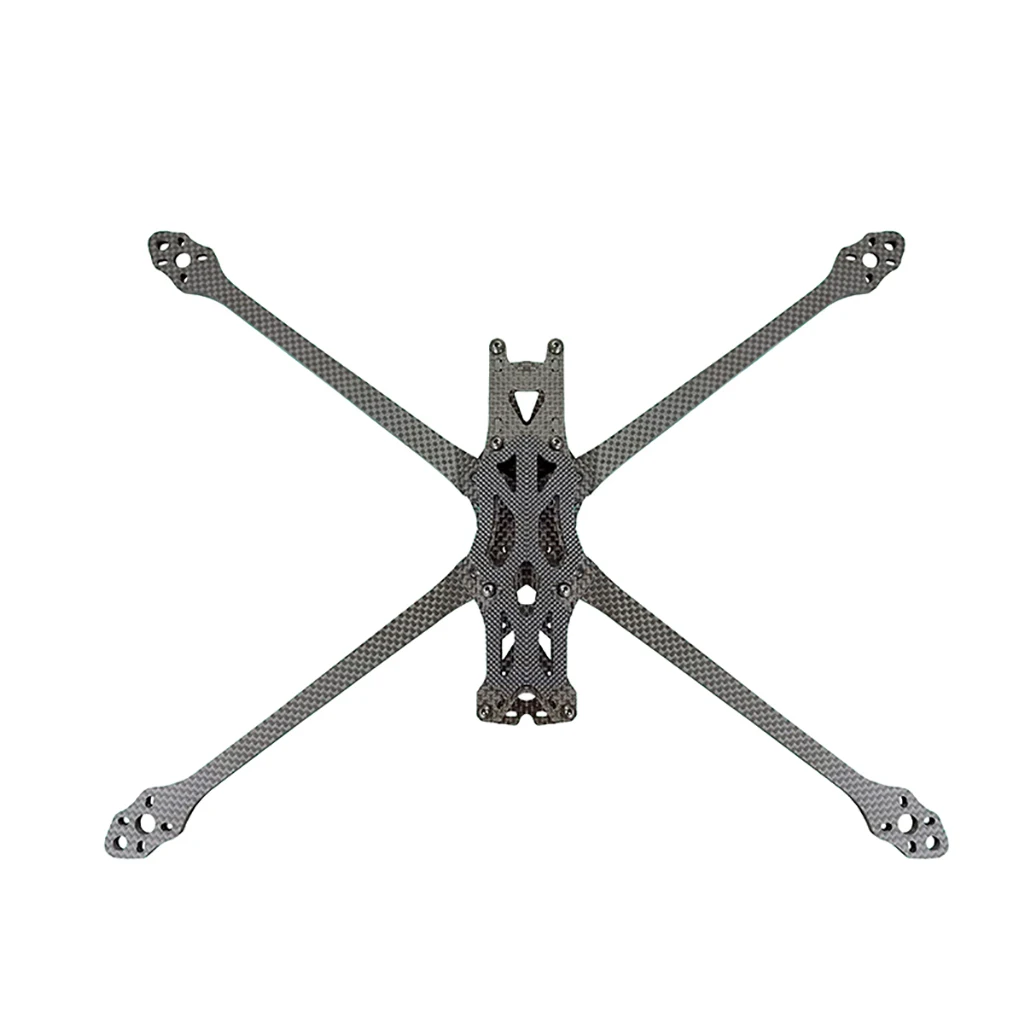

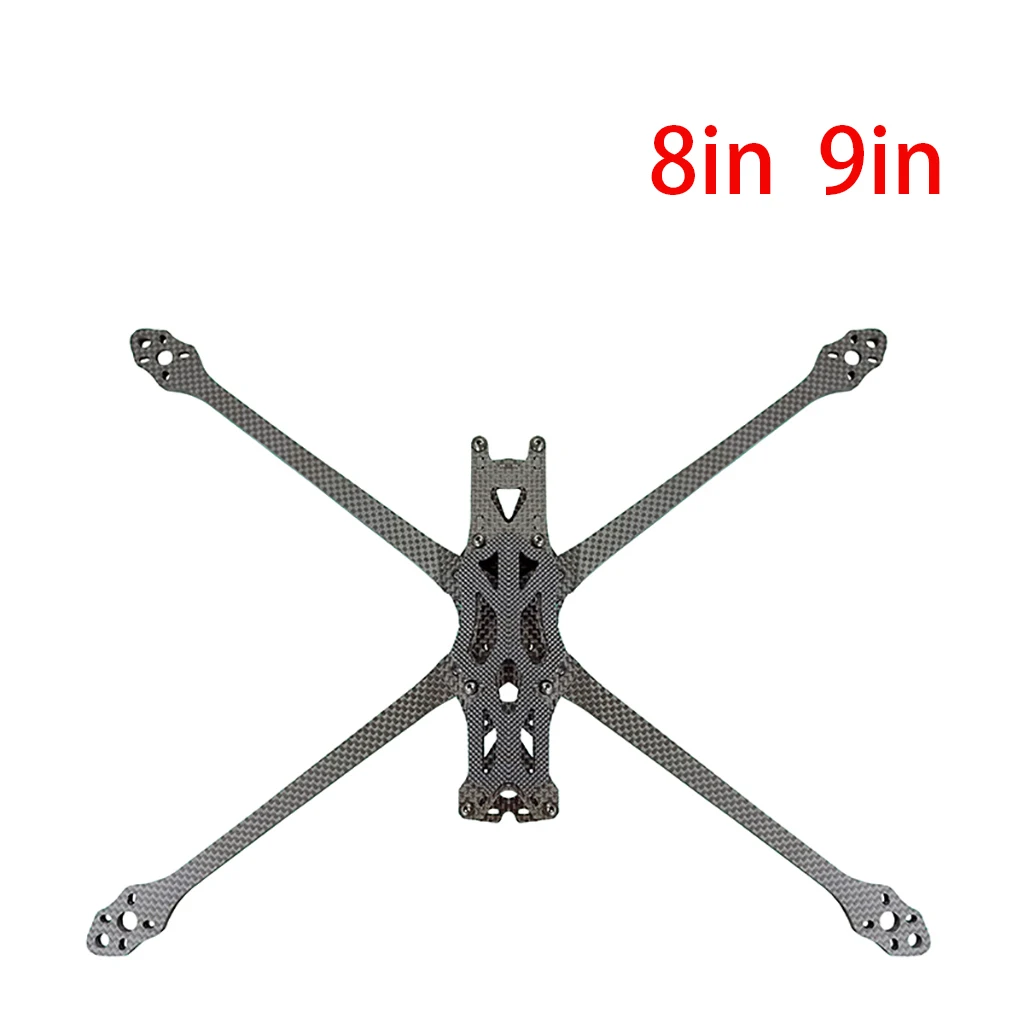

QWinOut RC Frame Kit 8 Inch 362MM/9 Inch 390MM Carbon Fiber Quadcopter Arm For FPV RC Racing Drone Models

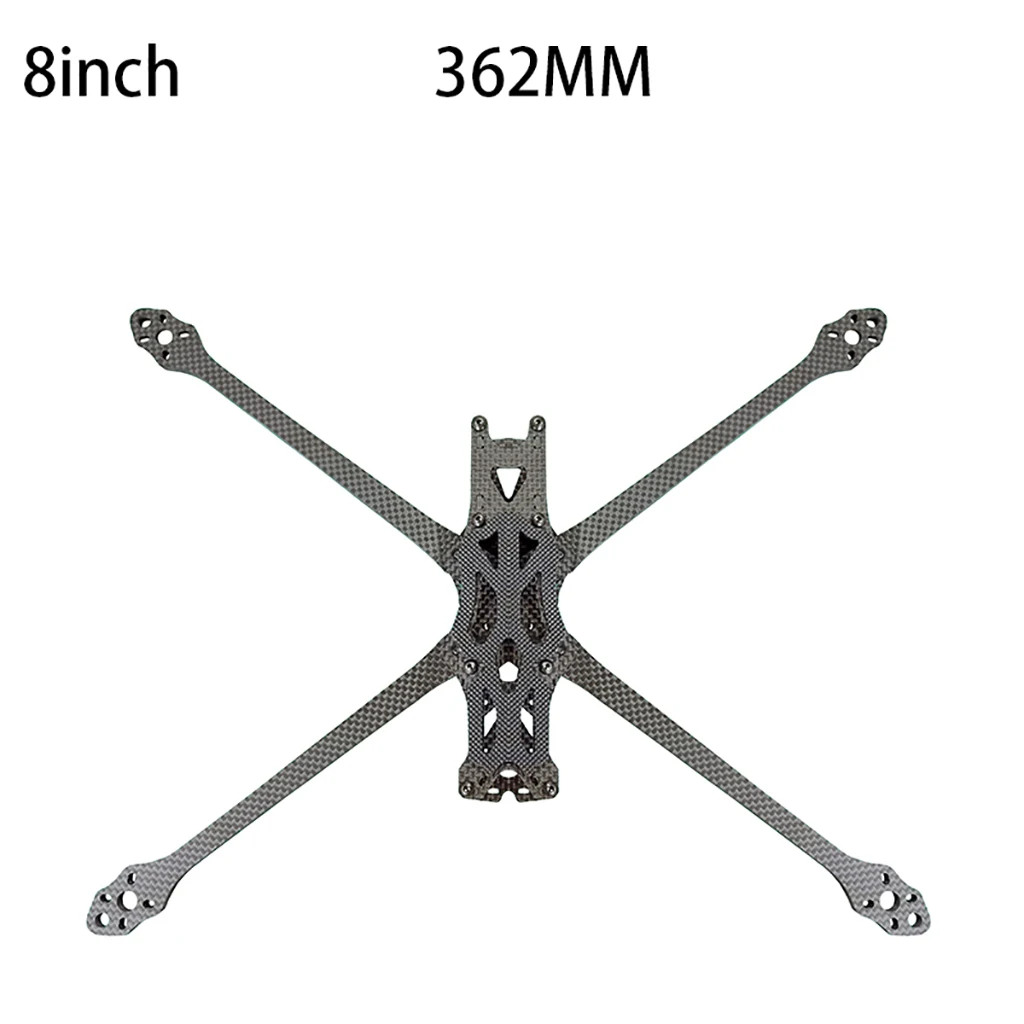

APEX HD version 8 inches:
Rack type: Wide X type
WHEELBASE: 362MM
Propeller: 8 inches
Size: 316*253*32.5mm
Weight: 155g (with packaging) (without 3D print)
Weight: 180g (with packaging) (with 3D print)


Bottom Plate Thickness: 2.5mm
Middle Plate Thickness: 2.0mm
Top Plate Thickness: 2mm
Arm Thickness: 5mm
Camera Installation Pitch: 19-20mm
Image Transmission Installation Hole Distance: Compatible With 30.5mm/25.5mm/20mm
Flight Controller Mounting Hole Distance: Compatible With 30.5mm/20mm


Recommended configuration (Not include):
Motor mounting hole distance: 16*16mm/19*19mm
Flight controller: RF/KISS/F 3/F 4/F 7
Motor: 2205/06/07/2305/2306/2307
ESC: 20-50A
BATTERY: 4-6S 3500-5200MAH


---------------------------------------------------------------------------------

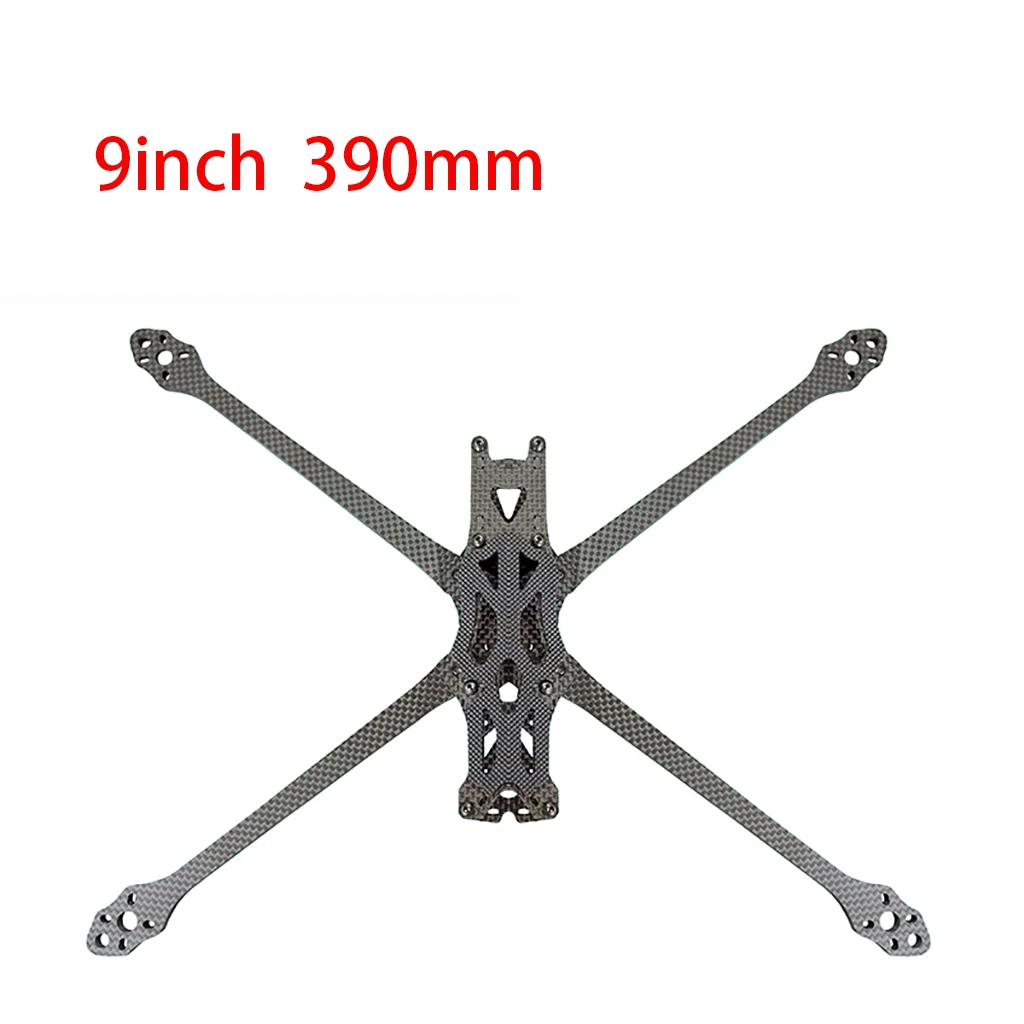

APEX HD version 9 inches:
Rack type: Wide X type
WHEELBASE: 390MM
Propeller: 9 inches
Size: 338.5*270*32.5mm
Weight: 165g (with packaging) (without 3D printing)

bottom plate thickness: 2.5mm
middle plate thickness: 2.0mm
top plate thickness: 2mm
arm thickness: 5mm
camera installation pitch: 19-20mm
image transmission installation hole distance: compatible with 30.5mm/25.5mm/20mm
flight controller mounting hole distance: compatible with 30.5mm/20mm


Recommended configuration (Not include):
Motor mounting hole distance: 16*16mm/19*19mm
Flight controller: RF/KISS/F 3/F 4/F 7
Motor: 2205/06/07/2305/2306/2307
ESC: 20-50A
BATTERY: 4-6S 3500-5200MAH
