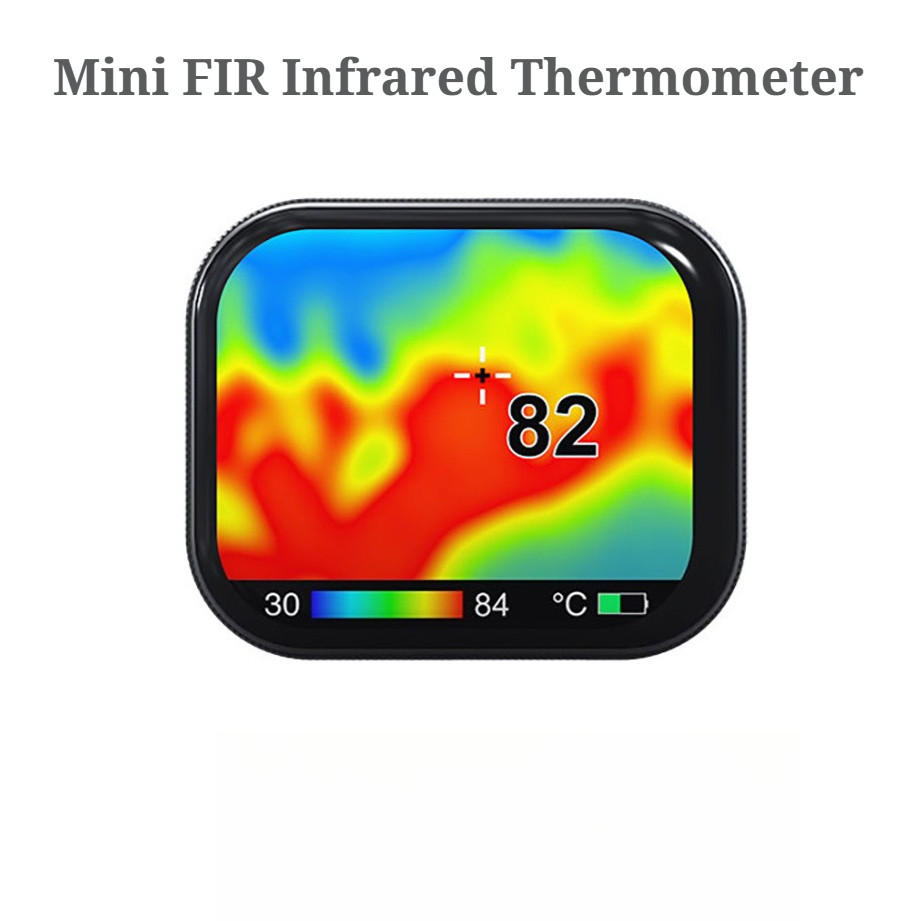

SKYRC Mini FIR Infrared Thermometer 8 FPS Frame Rate 100mK@1Hz Thermal Sensitivity With Type C Charging Port

SKYRC Mini FIR Infrared Thermometer 8 FPS Frame Rate 100mK@1Hz Thermal Sensitivity With Type C Charging Port

Specifications:

Quantity: 1PC

Name: Mini FIR Infrared Thermometer

Size: 46 × 38 × 20.1mm

Weight: 50g

Touch Display: 1.83 inch

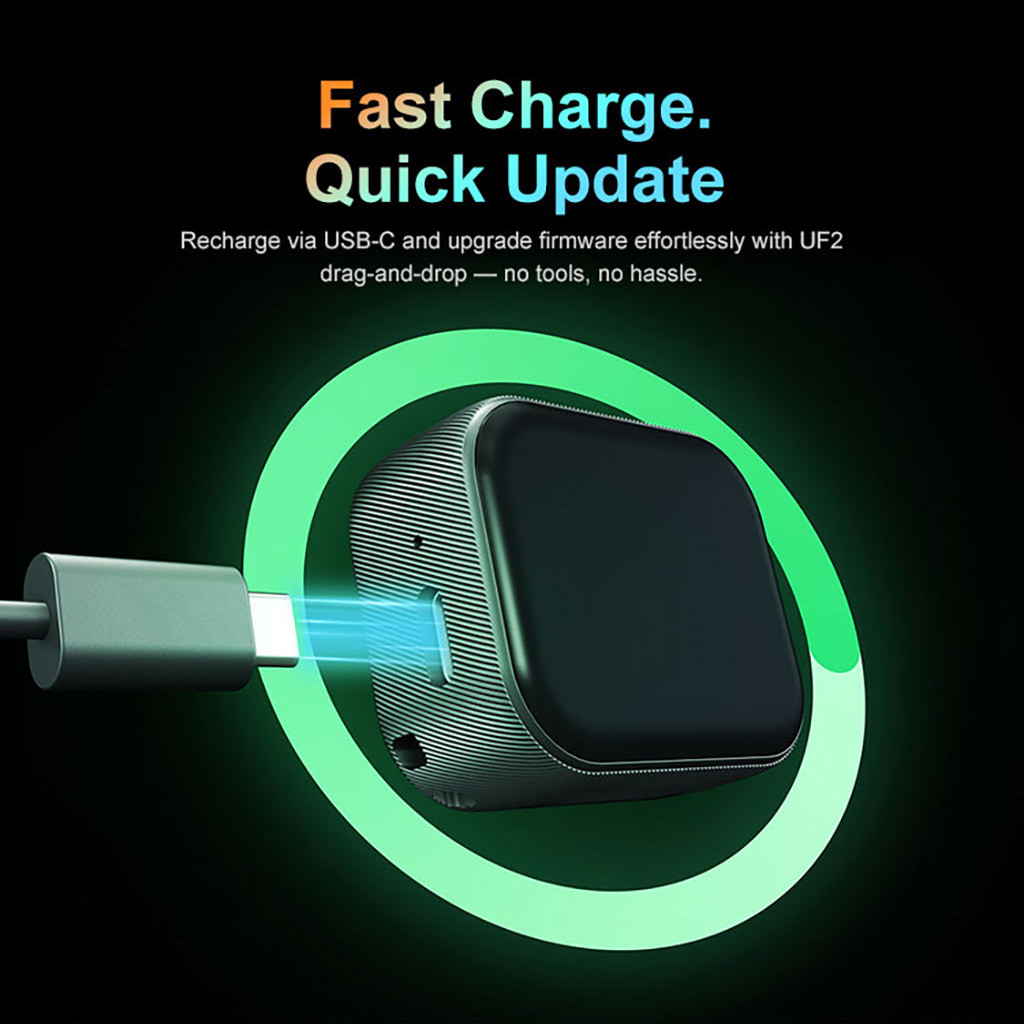

Charging Interface: Type C charging port

Charging Input Voltage: DC 5V

Battery: 600mAh rechargeable lithium battery

IR Resolution: 32 × 24 pixels

Thermal Sensitivity: 100mK @ 1Hz

Field of View: 55° × 35°

Frame Rate: 8 FPS

LCD Display: 240 × 284 pixels

Temperature Measurement Range: -20°C(-4℉) ~ 300°C(572℉)

Measurement Accuracy: ±2.0℃(3.6℉)

Measuring Distance: <5 m (for high accuracy, within <20 cm)

Languages: EN / CN / FR / DE / ES / JP

Operating temperature: -5℃-60℃

Working humidity: ≤85%RH, non-condensing

Storage temperature: 0°C–35°C

Storage humidity: ≤65% RH, non-condensing

Package Include:

1 x Mini FIR Infrared Thermometer

Feature:

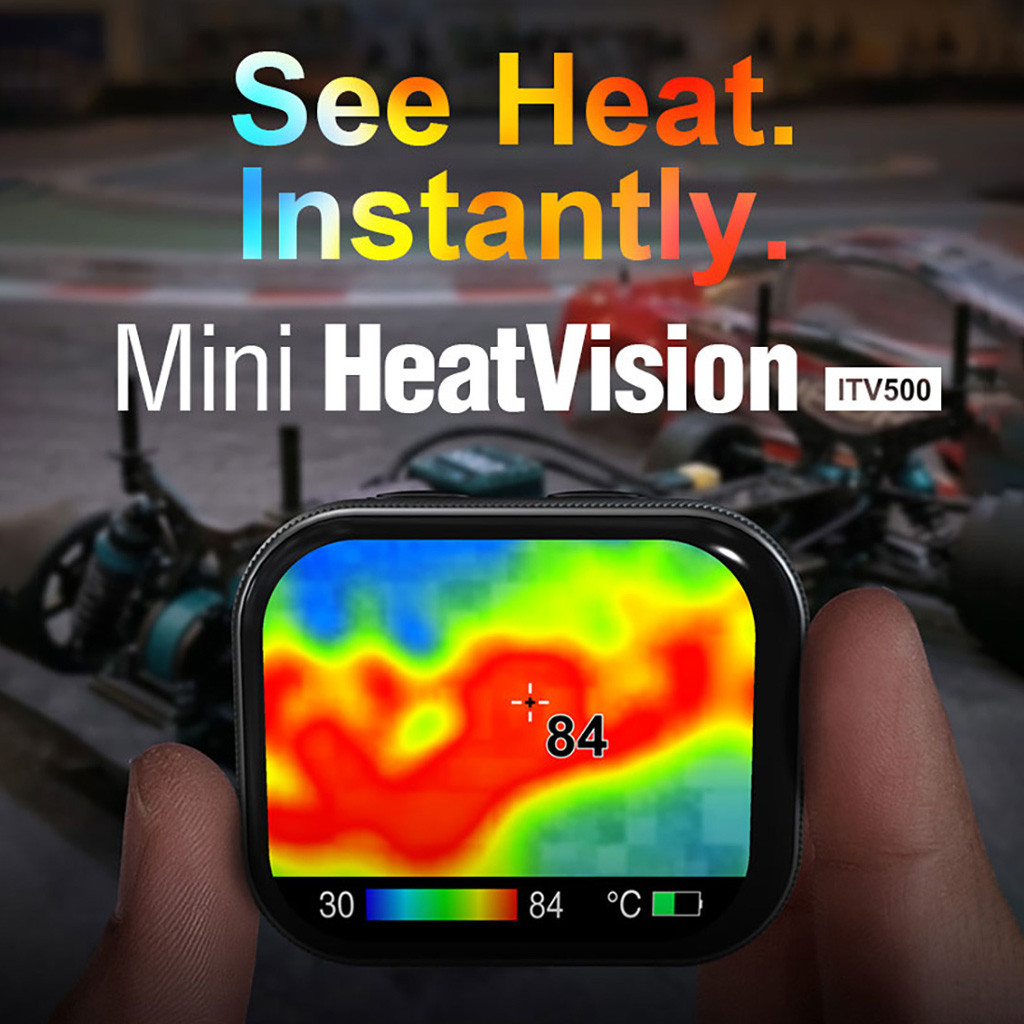

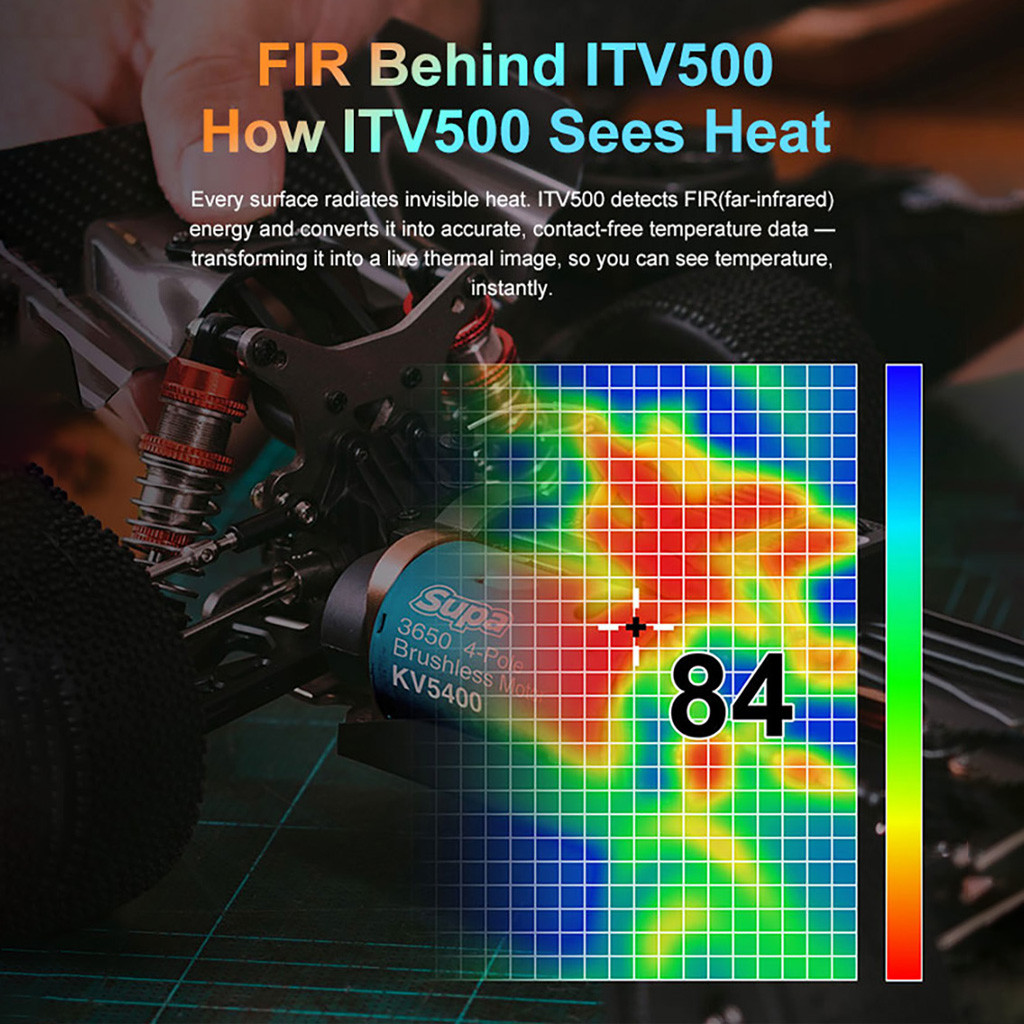

1. The ITV500 detects FIR(far-infrared) energy and converts it into accurate, contact-free temperature data — transforming it into a live thermal image, so you can see temperature, instantly.

2. Whether you’re chasing lap consistency or fine-tuning gearing, ITV500 gives you instant thermal feedback — helping you protect your power system and extract every bit of speed.

3. Its bright 1.83″ touch display visualizes temperature gradients in seconds — from brushless motors to LiPo packs, connectors, or even tire surfaces.

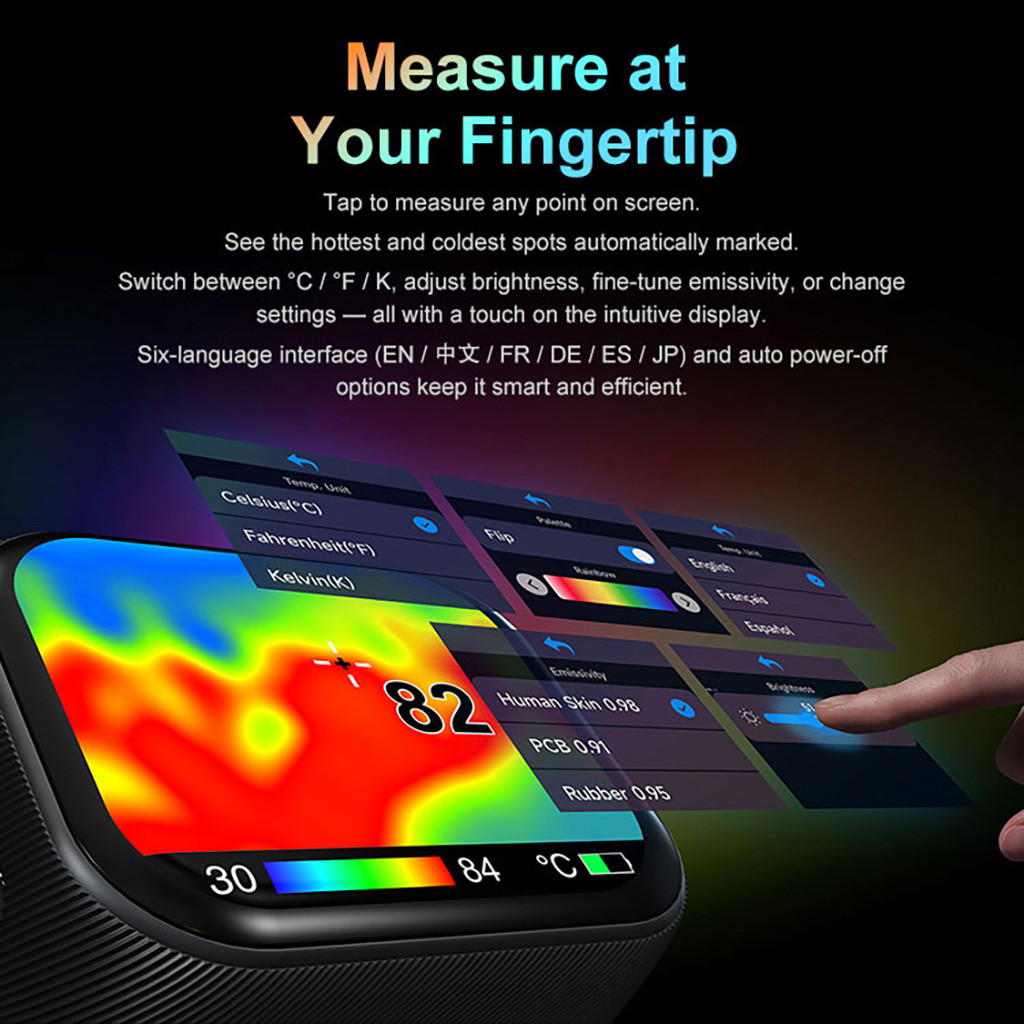

4. Measure at your fingertip, tap to measure any point on screen. See the hottest and coldest spots automatically marked. Switch between °C / °F / K, adjust brightness, fine-tune emissivity, or change setting.

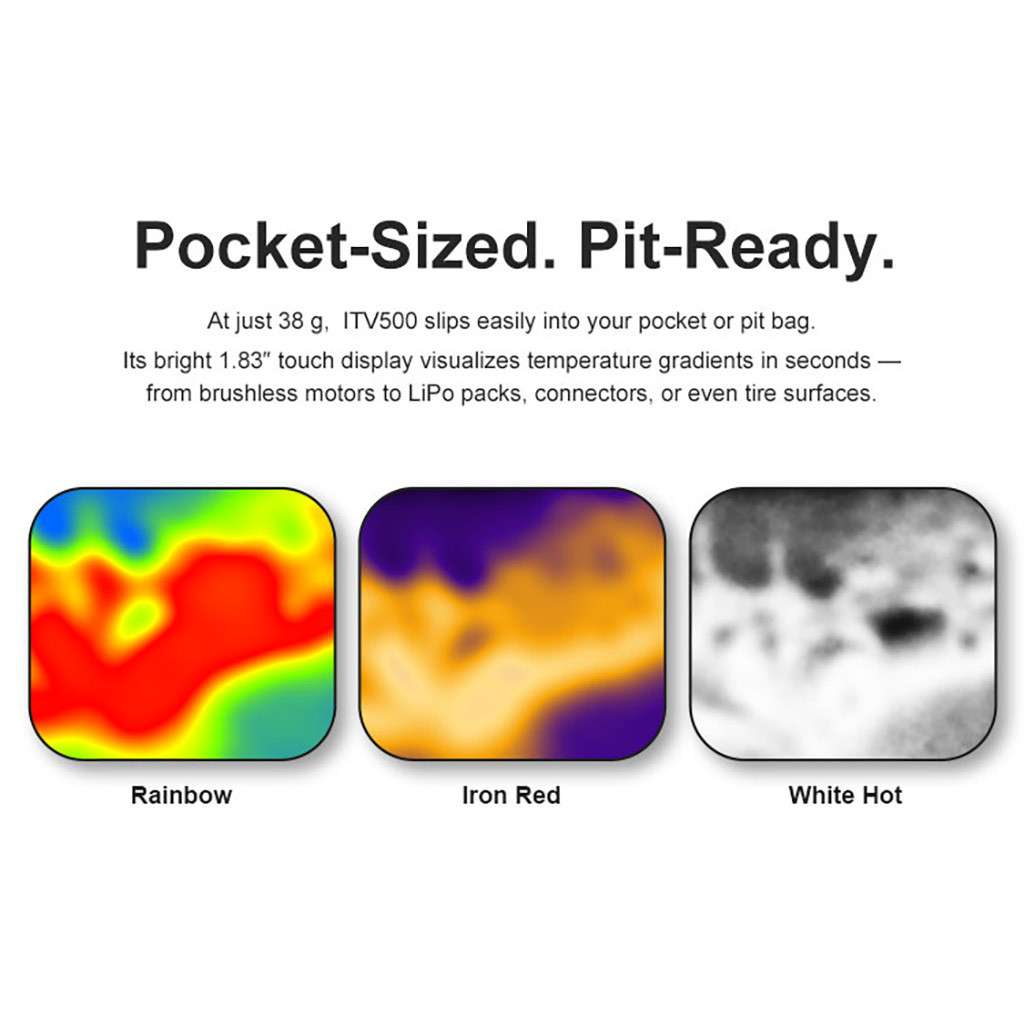

5. Rainbow, Iron Red, or White Hot — choose your thermal style. Tap to spot-measure any point, and let the ITV500 automatically mark the hottest and coolest areas on screen.

6. Six-language interface (EN / CN / FR / DE / ES / JP) and auto power-off options keep it smart and efficient.
