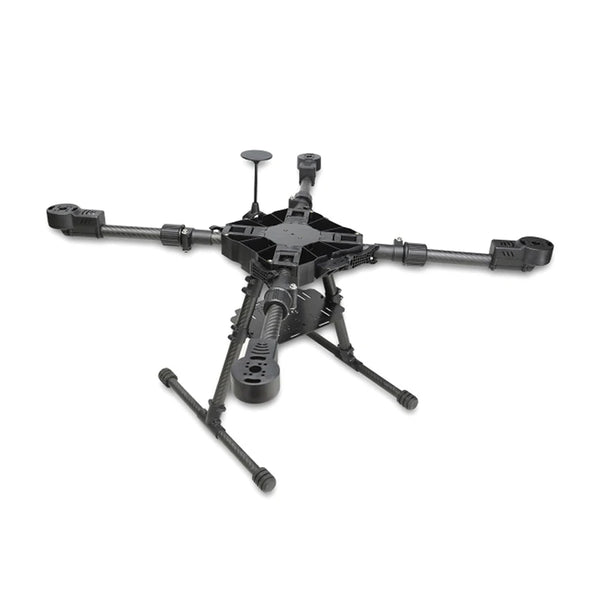

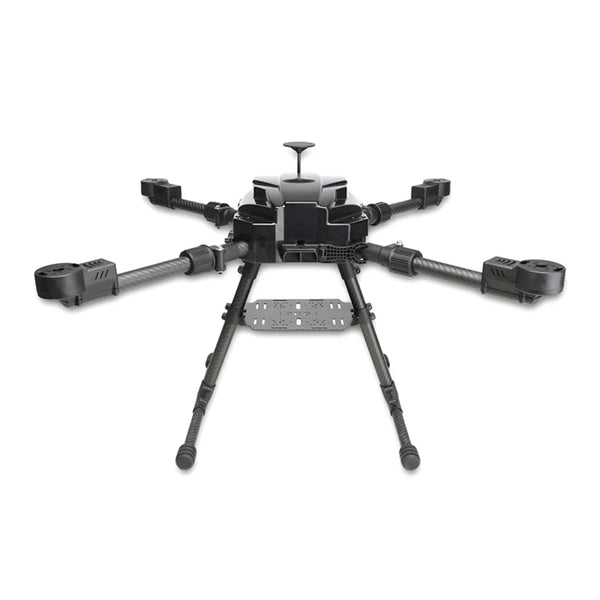

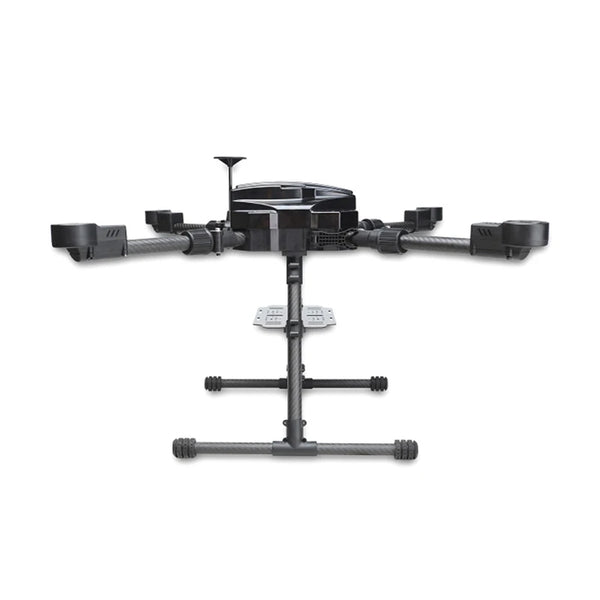

Tarot 718mm Wheelbase Foldable 4-axis Frame with Landing Gear for Quadcopter Drone Airplane

Tarot

Regular price $200.99

Shipping calculated at checkout.

Product Overview

This 718mm wheelbase foldable 4-axis UAV frame is a professional integrated industrial multirotor rack, designed for light-load industrial flight missions. It reserves abundant installation space to mount gimbal, pickup microphone, payload thrower and other auxiliary devices. Widely applied in aerial monitoring, remote sensing, terrain mapping, aerial search, fire observation, power line inspection, farm crop monitoring and other scenarios requiring flexible mobility and small payload demands

Core Product Advantages

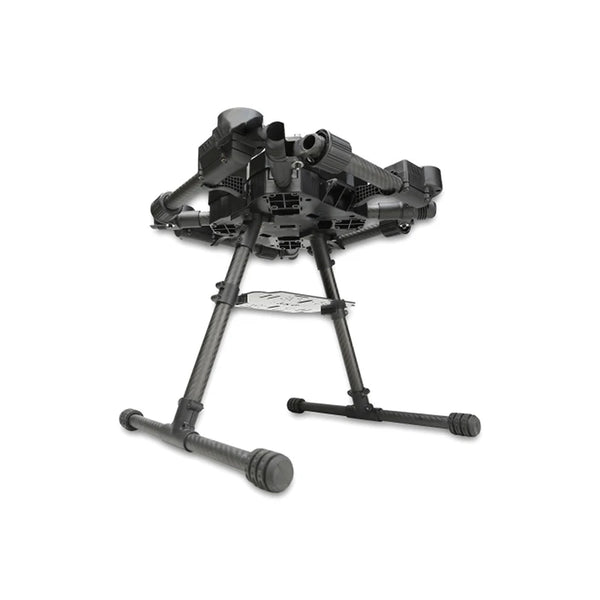

One-piece Integrated Body & Wrap-Around Foldable Design

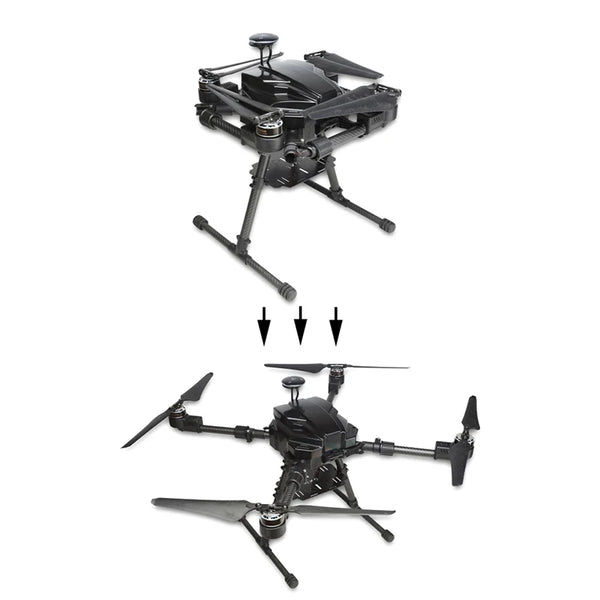

Adopts all-in-one molding structure, with wrap-around arm folding mechanism. Arms can rotate 360° counterclockwise to fold, greatly reducing storage space and improving portability.
High-Strength Composite Material Construction

Main body is injection molded with imported composite material containing 30% carbon fiber, realizing lightweight and high rigidity, strong anti-vibration & anti-impact performance during long flight.
Rotary Arm Lock Buckle

Equipped with rotary locking fasteners for arms, arms stay firmly locked both fully unfolded and folded, no loose shaking during flight.

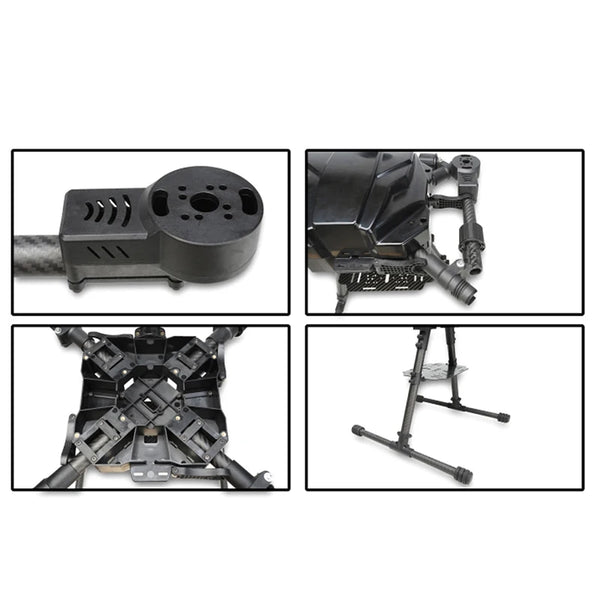

Integrated Enclosed Motor Base

Whole-pack motor base design can fully accommodate standard ESC inside the frame, tidy internal wiring and enhance overall appearance.
Spacious Multi-function Mount Platform

Large reserved top/bottom mounting area, enough space for flight controller, power distribution board, camera gimbal and various industrial payload modules.
Humanized Wiring Holes Layout

Multiple reserved wire routing ports, compatible with mainstream DIY power distribution modules and flight control systems on the market, neat internal wiring layout.
3KG Max Payload Design & Long Flight Time

Supports up to 3kg payload carrying capacity. Matched with standard 6S power assembly, the aircraft can reach up to 40 mins empty flight time to meet long-duration industrial operation demands.
Lightweight Empty Frame

Only 1380g net weight for the frame body (including hood), effectively reduce overall takeoff weight and save power consumption.

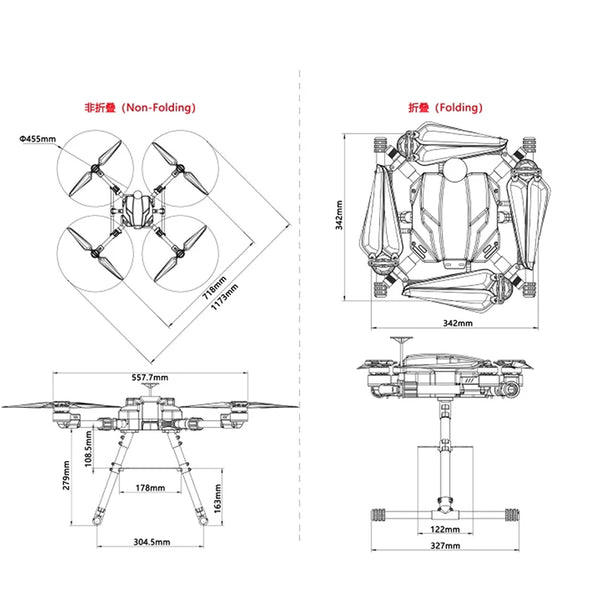

Full Flight Platform Test Parameters (Complete Machine Data)

Item	Spec Value	Item	Spec Value
Empty Aircraft Weight	2.44kg	Wheelbase	718mm
Max Takeoff Weight	4.1kg	Full Span Width	1173mm
Max Wind Resistance	Level 6 Wind	Folded Dimension	342*342mm
Max Flight Distance	4000m	Aircraft Height	279mm
Max Flight Altitude	3000m	Test Environment	Sunny, 28℃, Level 2 Wind
Flight Modes	Self-stable, Altitude Hold, Loiter, One-key Return	-	-

Endurance Test Data (Reference)

Empty load flight: 16.7A current, about 40 mins flight time
Load 0.5kg: 20A current, about 35 mins
Load 1kg: 22.6A current, about 30 mins
Load 2kg: 30.2A current, about 22 mins
Load 3kg: 37.1A current, about 18 mins

Note: Actual flight time changes with environment temperature, wind speed and battery capacity

Recommended DIY Matching Configuration (General Model Description, No Brand Trademark)

Component	General Spec Reference
Brushless Motor	6S 4012 320KV Outer Rotor Motor
ESC	6S 40A High Power Speed Controller
Propeller	18-inch Foldable Carbon Propeller
Flight Controller	Open-source Industrial Flight Control Unit

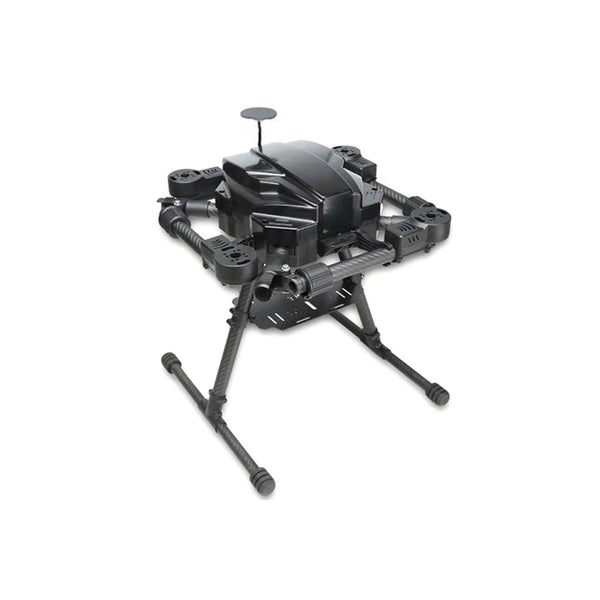

Outer Cover	Integrated ABS Protective Hood

Packing List

1 × Integrated 4-axis Foldable UAV Frame (with ABS protective hood)

Wide Application Scenarios

Aerial video monitoring & real-time surveillance

Terrestrial remote sensing & aerial mapping survey

Fire scene observation & emergency life search

High-voltage power line inspection

Farm crop growth monitoring & pest patrol

Light payload throwing, aerial broadcasting, camera shooting missions
