Tarot Analog AV to compatible-HDMI HD/ compatible-HDMI HD to AV Module/300mm/Open type TL3504 For Drone Quadcopter

Tarot Analog AV to compatible-HDMI HD/ compatible-HDMI HD to AV Module/300mm/Open type TL3504 For Drone Quadcopter

Tarot

Regular price $61.70

Shipping calculated at checkout.

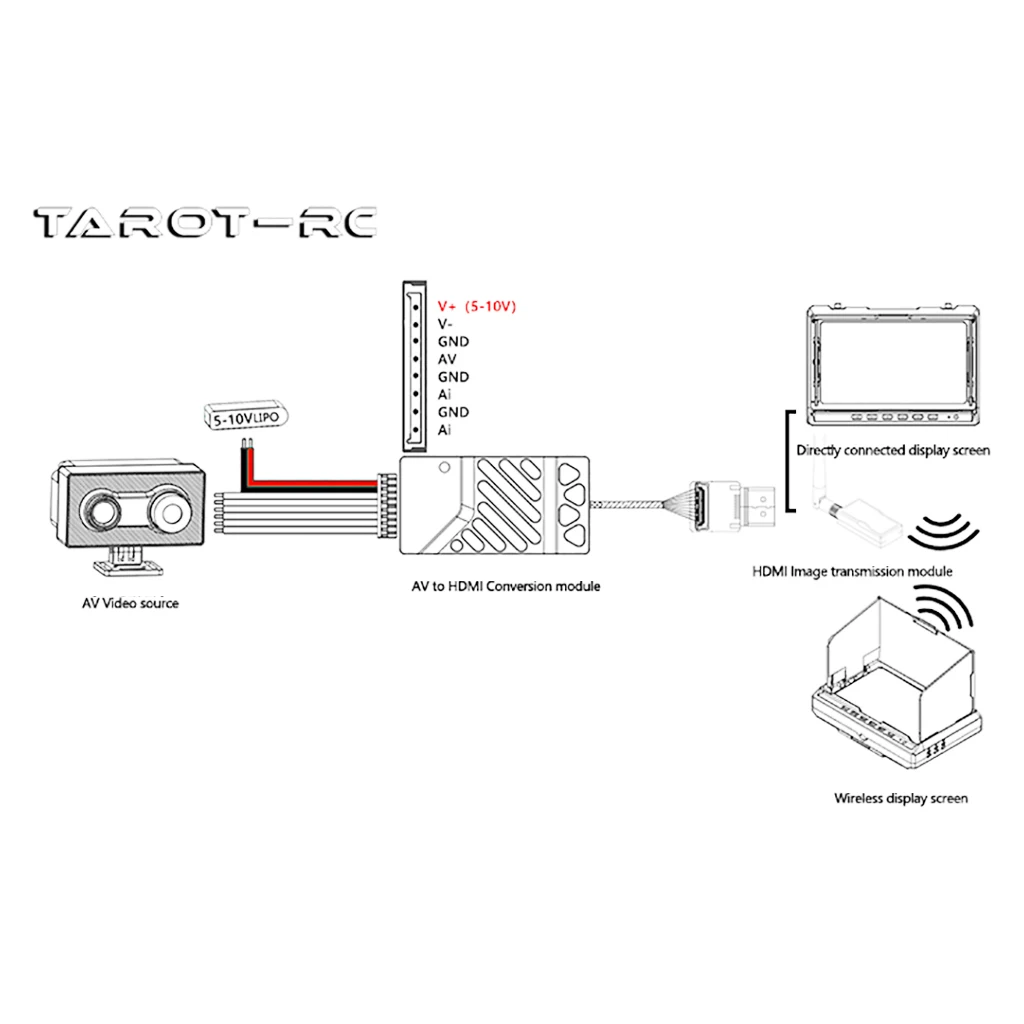

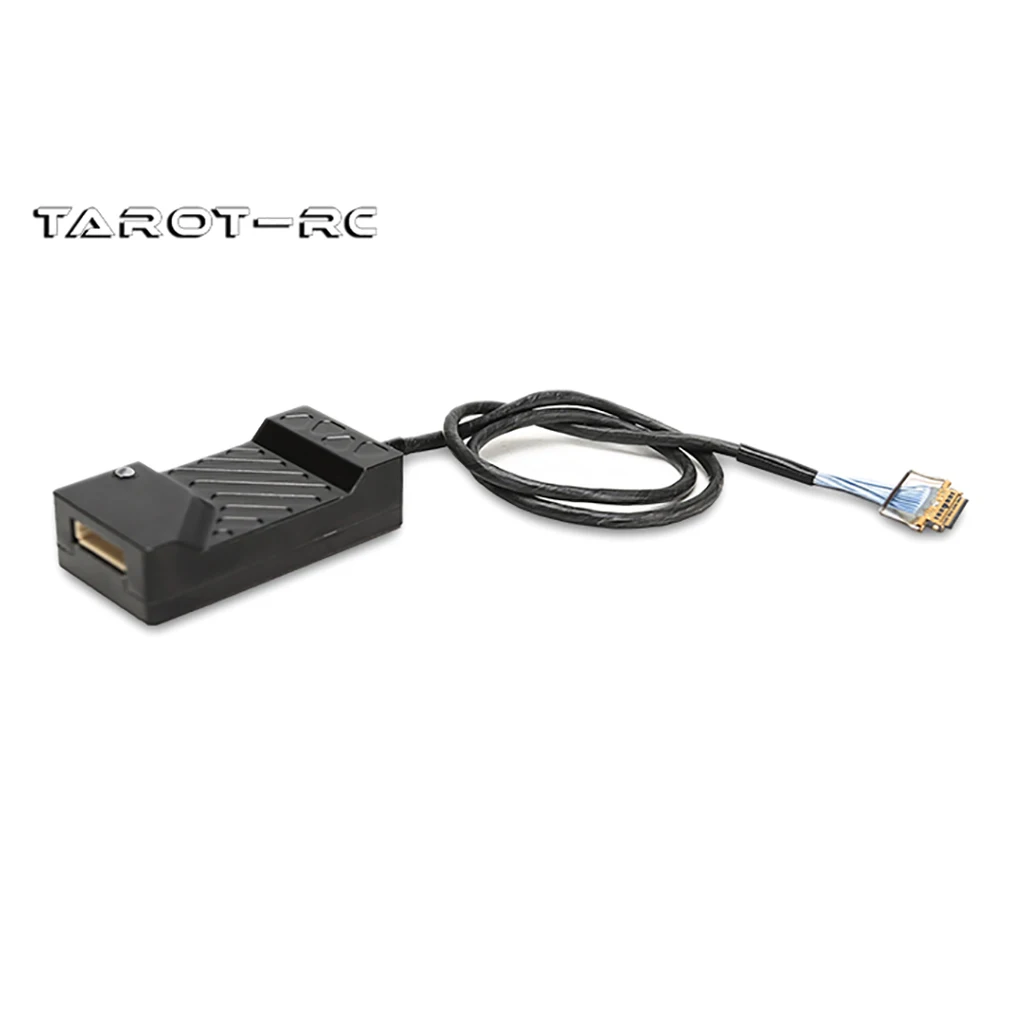

Tarot Analog AV to HDMI Module/300mm/Open type TL3504

Product Description:

·Tarot company produced AV analog to 1080P HDMI signal module;

·It is a video signal conversion accessory specially developed for drones;

·Adopting high-performance chip,it can keep the picture clear and smooth at all times;

·The product mini compact and lightweight, weight only 12g.

Product Parameters:

Product name: AV2HDMI module

Input voltage: 5-10V

Delay: 120 milliseconds

Resolution: Support physical button 1080P/720P switching

Output HDMI cable length: 300mm

Operating ambient temperature: -20 to 50℃

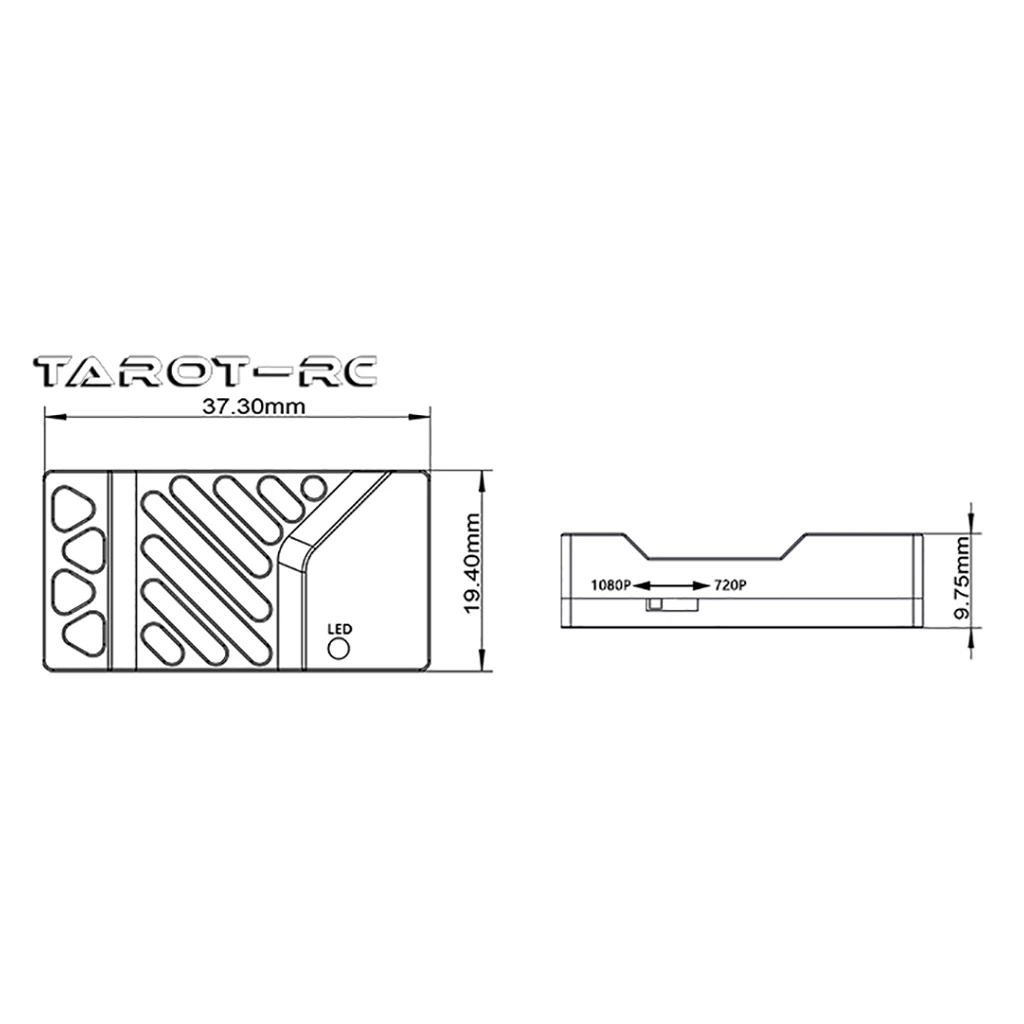

Size: 37.3mm*19.4mm*9.75mm

Weight: 12g

Caution:

1.Only support AV to HDMI one-way conversion;

2.Led lamp red light is always on after power-on;

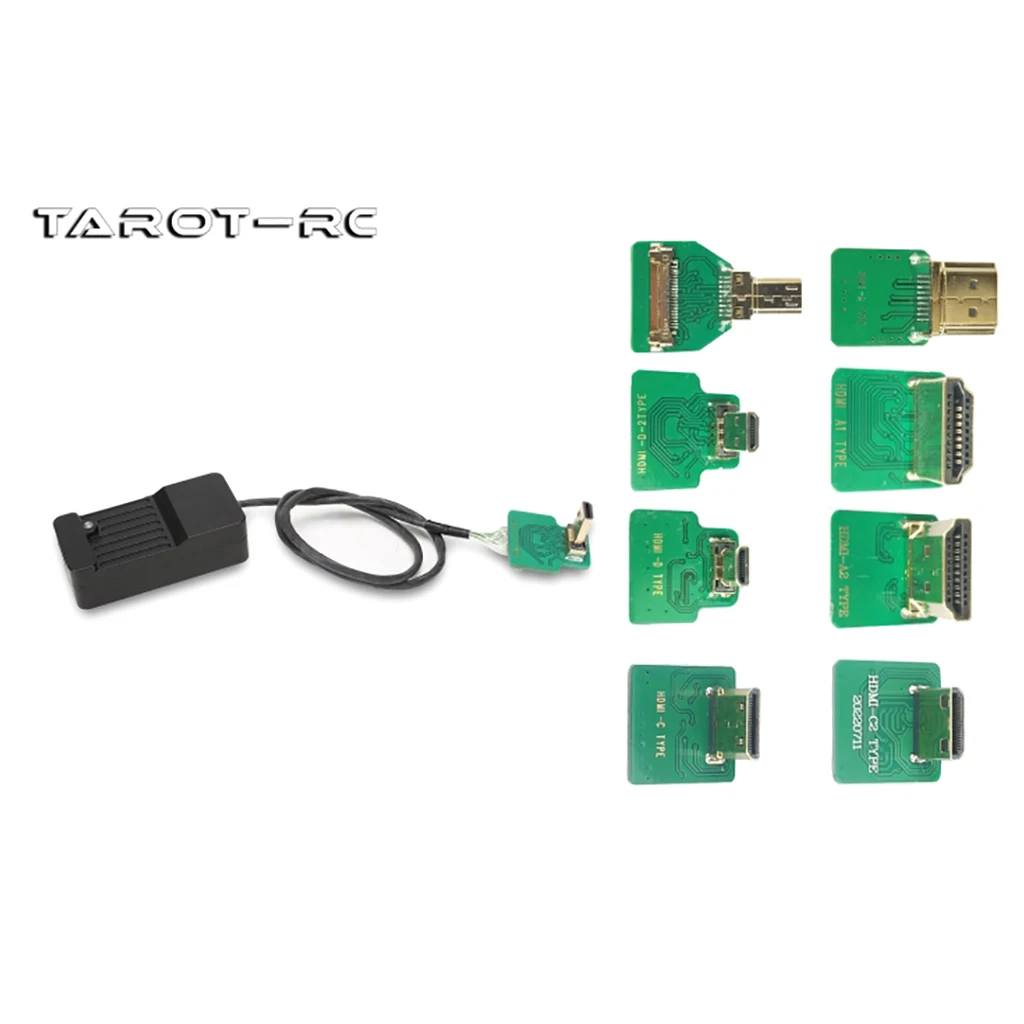

3.Default cable length 300mm, can replace the 500mm cable length, can also be customized to other lengths. Match with our TL10A11 series various adapters to use.

Packing List:

AV to HDMI module (cable length 300mm) ×1

1.0-8P single-ended cable/150mm ×1

3M adhesive ×1

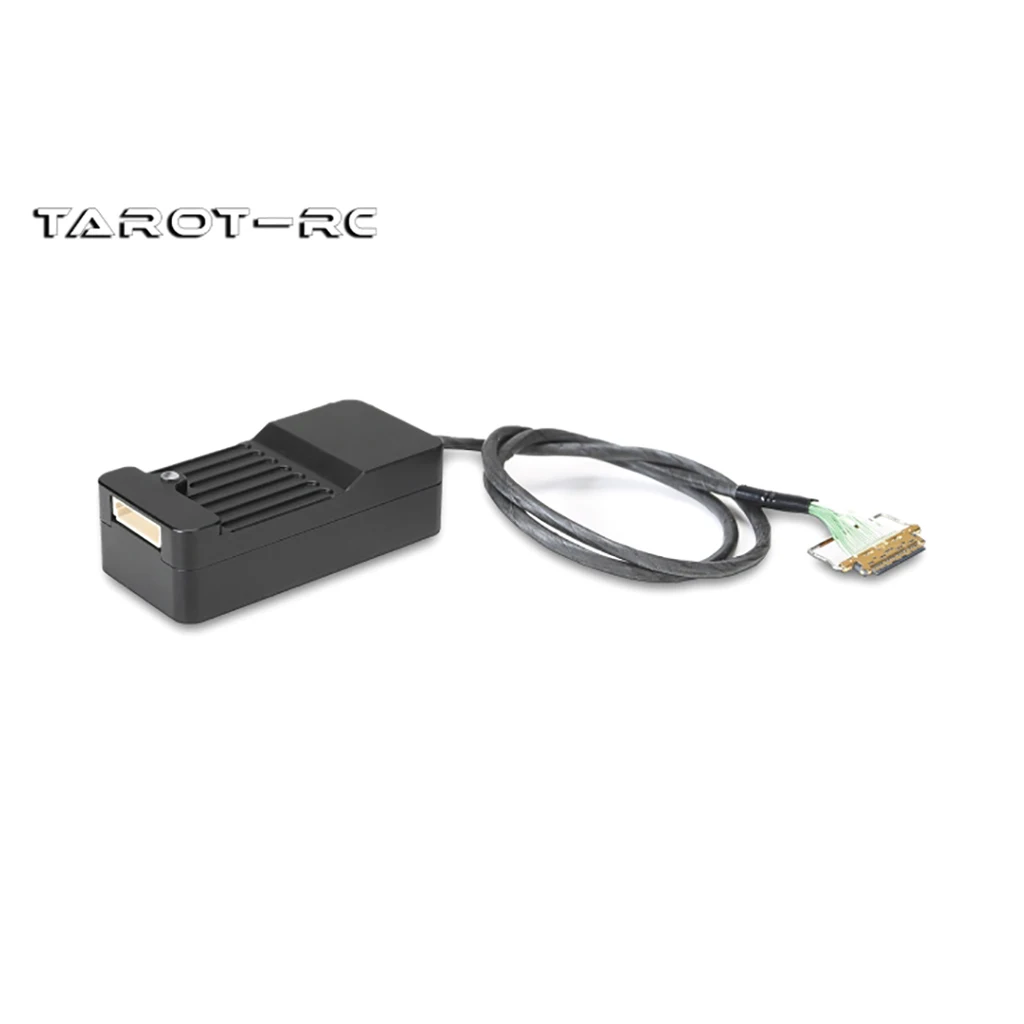

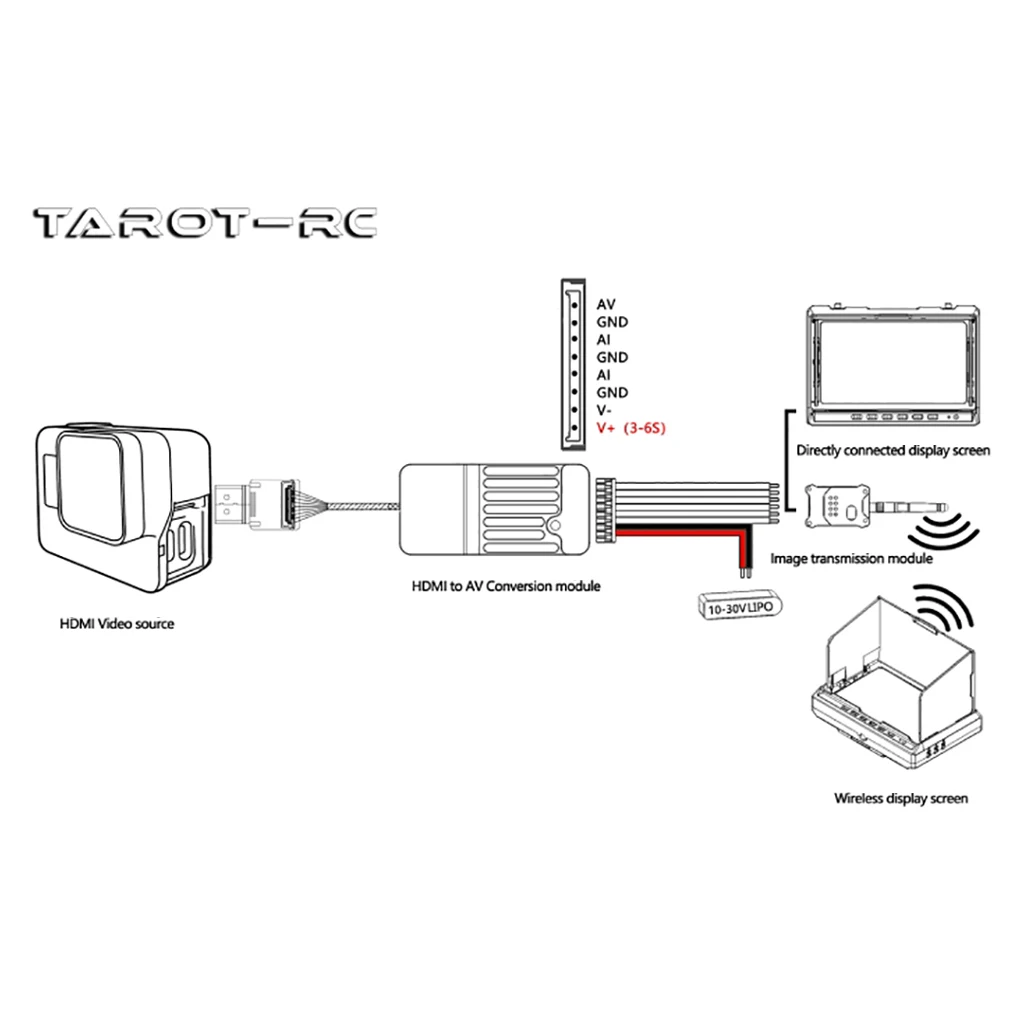

Tarot HDMI to Analog AV Module/300mm/Open type TL3503

Product Description:

·Tarot company produced 1080P HDMI to AV analog signal module;

·It is a video signal conversion accessory specially developed for drones;

·Adopting high-performance chip,it can keep the picture clear and smooth at all times;

·The product mini compact and lightweight, weight only 17g.

Product Parameters:

Product name: HDMI2AV module

Input voltage: 10-30V

Delay: 60 milliseconds

Output HDMI cable length: 300mm

Operating ambient temperature: -20 to 50℃

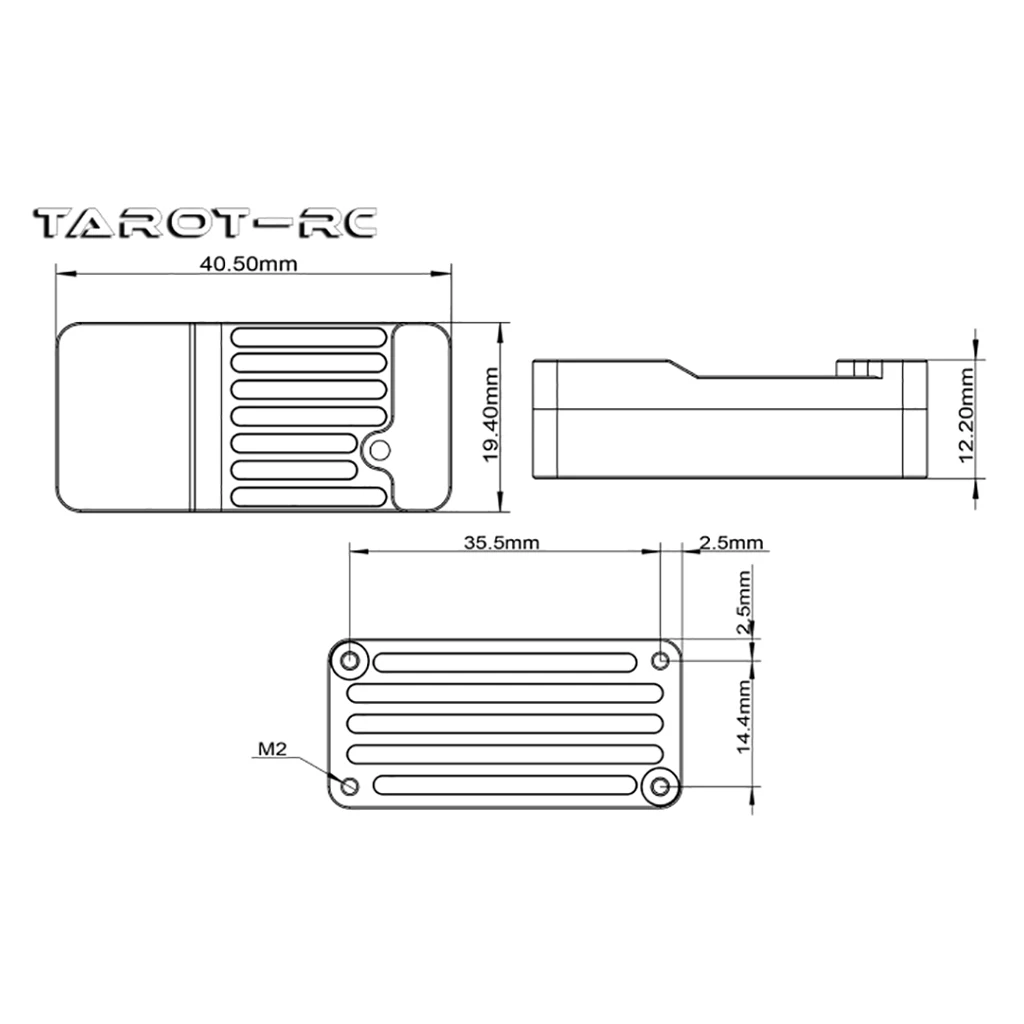

Size: 40.5mm*19.4mm*12.2mm

Weight: 17g

Caution:

1.Only support HDMI to AV one-way conversion;

2.HDMI video source such as its own battery,power on:first power on the module power supply, and then power on the video source power supply; power off: first cut off the video source power supply, and then cut off the module power supply;

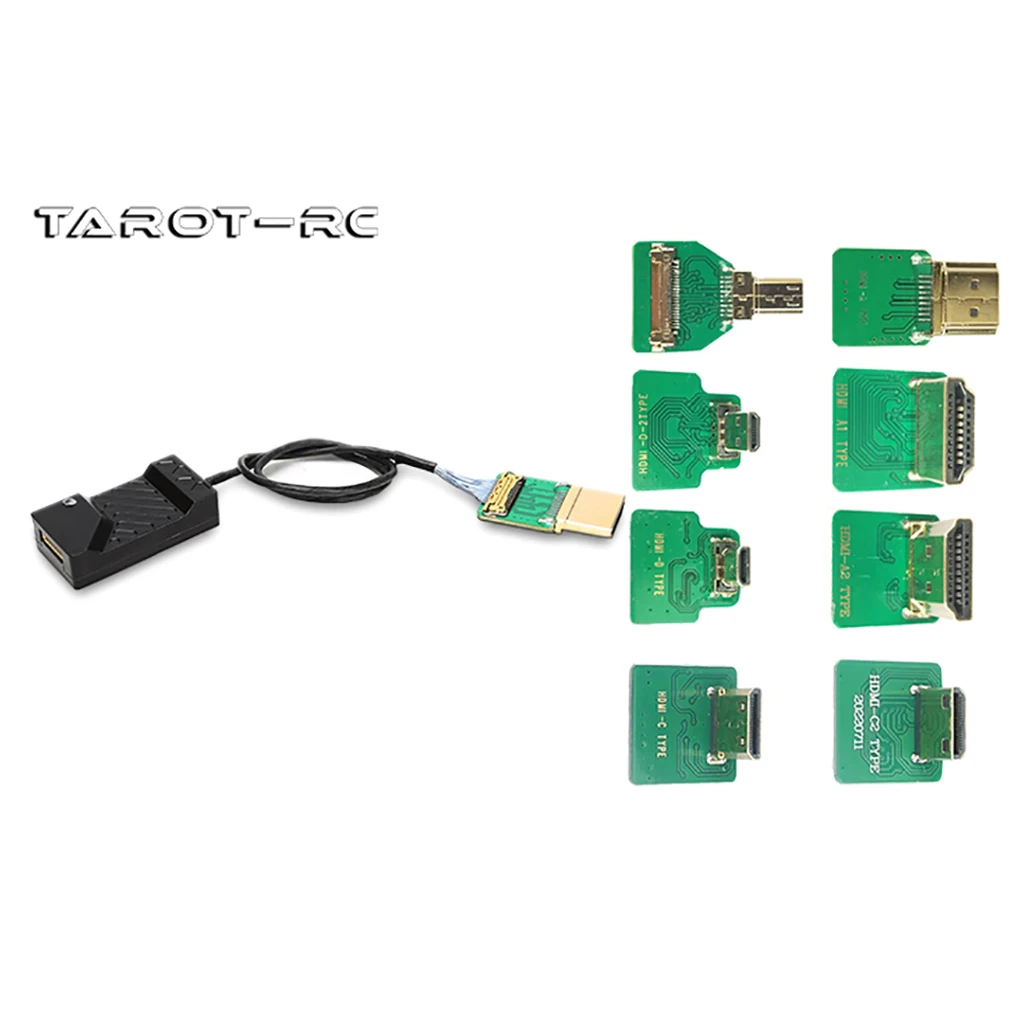

3.Default cable length 300mm, can replace the 500mm cable length, can also be customized to other lengths. Match with TL10A11 series various adapters to use.

Packing List:

HDMI to AV module (cable length 300mm) ×1

1.0-8P single head cable/150mm ×1

Cup head screw(M2*6mm) ×2
