Triple Feed Patch 4.9G-6.2Ghz 5.8GHz 14dBi /8dBi Gain Antenna LHCP & RHCP For RC Long Range FPV Drone Receiver Monitor Accessory

Triple Feed Patch 4.9G-6.2Ghz 5.8GHz 14dBi /8dBi Gain Antenna LHCP & RHCP For RC Long Range FPV Drone Receiver Monitor Accessory

QWinOut

Regular price $22.78

Shipping calculated at checkout.

3options for your choice: 14dBi Gain / 8dBi Gain SMA Pin /

8dBi Gain SMA Hole, pls choose the one you need carefully.

14dBi Gain option:
Specification:

Item name: triple feed patch antenna

Center Frequency:5.8GHz

Gain:14dBi

Band Width:4.9G~6.2GHz

SWR:<1.5

Connector: SMA pin and RPSMA hole

Dimension: 150mm

Polarization:RHCP and LHCP

Color: Black

Package Include:

1PC Black Triple Feed Patch Antenna

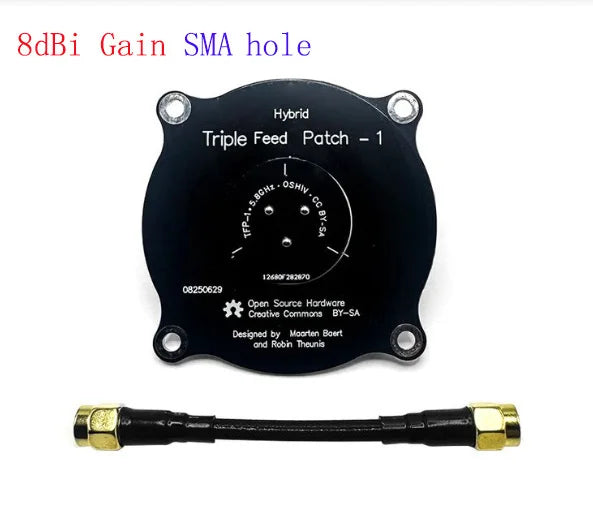

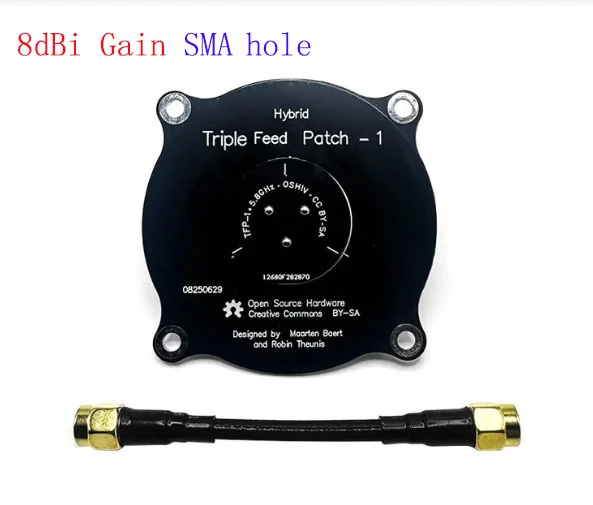

8dBi Gain option:

Specification:

ltem name: tniple feed patch antenna
Center Frequency:5.8GHz
Gain: 8dBi
Band Width: 4.9G~6.0GHz
SWR:<1.3
Connector: SMA Pin to Pin / Pin to Hole (optional)
Dimension: 60mm
Polarization: RHCP/LHCP
Color: Black

Package Include:

1PC Black Triple Feed Patch Antenna
